19000-05460 PUMP ASSY, INJECTI Calibration Data


Rating:
8
Buy PUMP ASSY, INJECTI 19000-05460 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL F4L912
Engine
F4L912
Serial start-end
8201-
Info
Injector Nozzle
093500-0990
Injector nozzle: 0935000990

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
1904400320
Governor assy, mec
1908900190
Pump assy, fuel fe
1922900060

Components :

00.001
PUMP ASSY, INJECTI
19000-05460 MITSUI-DEUTZ
A4,R721
01.002
BODY ASSY, INJECTI
09010-04930 MITSUI-DEUTZ
A4
01.003
GOVERNOR ASSY, MEC
09080-07440 MITSUI-DEUTZ
R721
01.004
PUMP ASSY, FUEL FE
09210-00073 MITSUI-DEUTZ
KS22

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19000-05460
PUMP ASSY, INJECTI
A4,R721
004
[01]
94918-00310
SCREW, HOLLOW
M14,L10
008
[01]
09080-07440
GOVERNOR ASSY, MEC
R721
009
[01]
09210-00073
PUMP ASSY, FUEL FE
KS22
010
[01]
09010-04930
BODY ASSY, INJECTI
A4
011
[01]
94905-02450
NUT, HEXAGON
M12
012
[01]
94901-50500
WASHER, SPRING
T2.5
013
[01]
94913-00190
KEY, WOODRUFF
015
[01]
09001-80140
COVER, CONTROL RAC
016
[01]
94901-81020
WASHER, COPPER PLA
T1
017
[04]
09022-20011
WASHER, FUEL PIPE
-9410
017
[04]
09022-20070
WASHER, FUEL PIPE
ID13.8 9411-
018
[01]
09031-00011
VALVE ASSY, OVERFL
1.8K
019
[01]
09024-40080
SCREW, AIR BLEEDER
020
[06]
94904-70620
BOLT, W/WASHER
M6,L14
021
[01]
94904-73910
BOLT, W/WASHER
M8,L18

Include in ##:

19000-05460 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19000-05460

PUMP ASSY, INJECTI

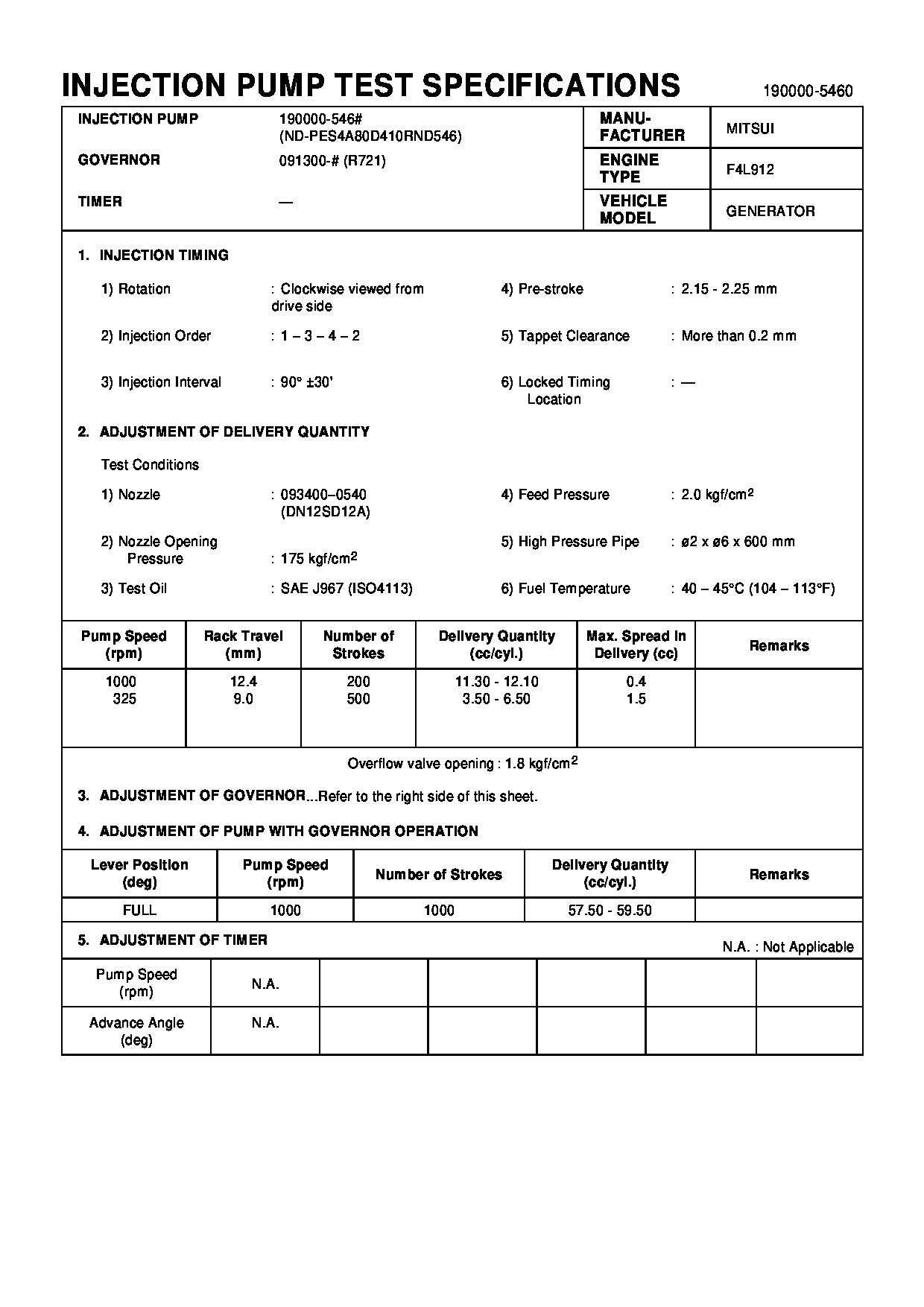

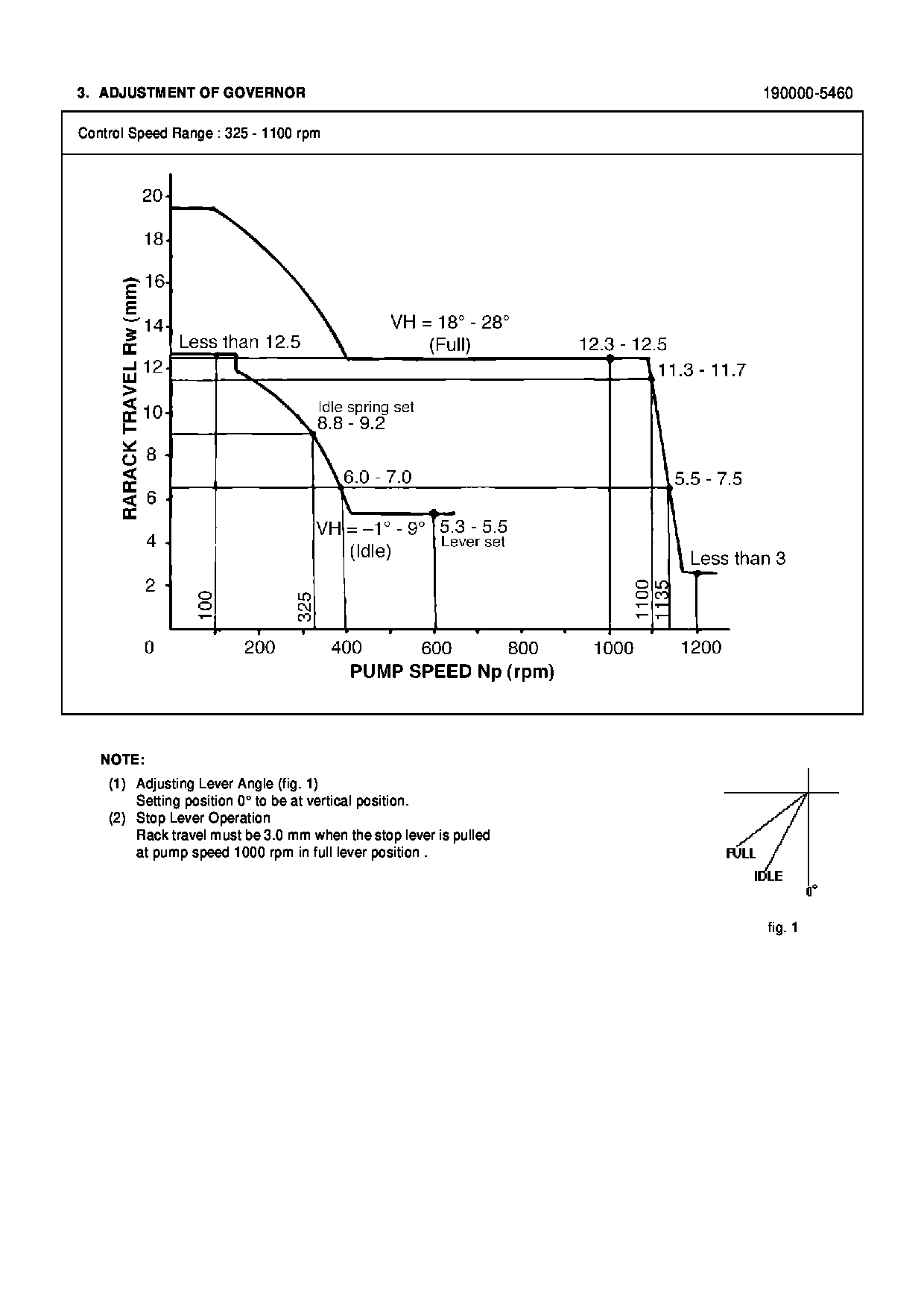

Test Calibration Data:

Get Full test data file
1900005460 1708370
EB5460
EB5460
