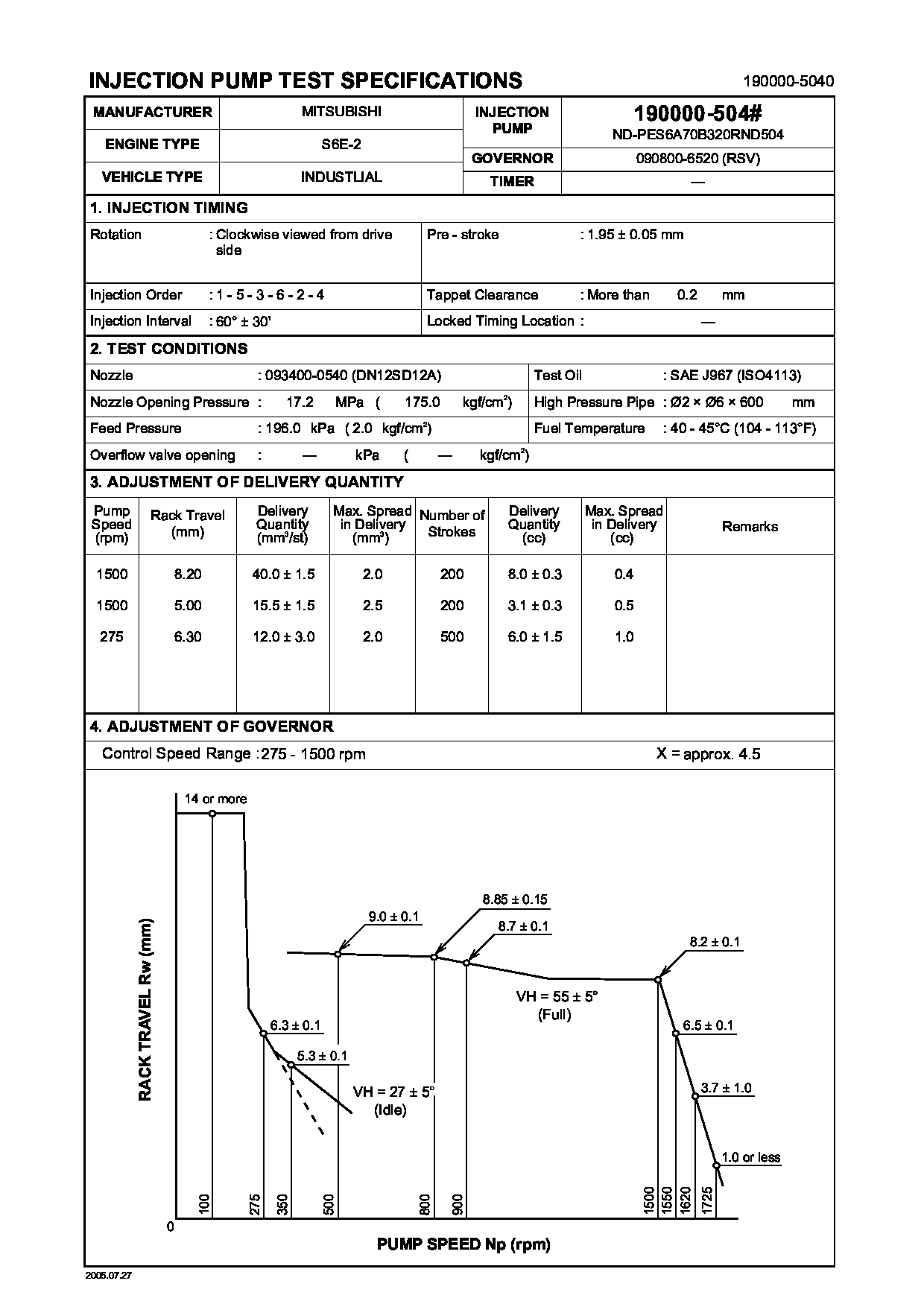

Information pump assy, injecti Denso
Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL S6E
Engine
S6E
Serial start-end
8012--8407
Info
Injector Nozzle
093500-0180
Injector nozzle:
0935000180
KIT List:
Part name
Kit1
Kit2
Components :
Scheme #.#:
№
Qty
Part num
Name
Remarks
Manufacture num
Cross reference number
Part num
Firm num
Firm
Name
19000-05040
PUMP ASSY, INJECTI
Information:
(8) Distance four dowels extend above the surface of governor housing (5) ... 6.0 0.5 mm (.24 .02 in)(9) Distance two dowels extend above the surface of the governor housing ... 3.0 0.5 mm (.12 .02 in) (10) Distance from the surface of block (7) to the end of the dowel ... 62.00 0.75 mm (2.44 .03 in) (11) Tighten the plug to a torque of ... 11 2 N m (8.1 1.5 lb ft)(12) Tighten the body to a torque of ... 6.25 1.35 N m (4.6 1.0 lb ft)(13) Tighten the insulator to a torque of ... 3.4 0.5 N m (31 4 lb in)(14) Tighten bolts to a torque of ... 3.5 0.4 N m (2.57 4 lb in)
