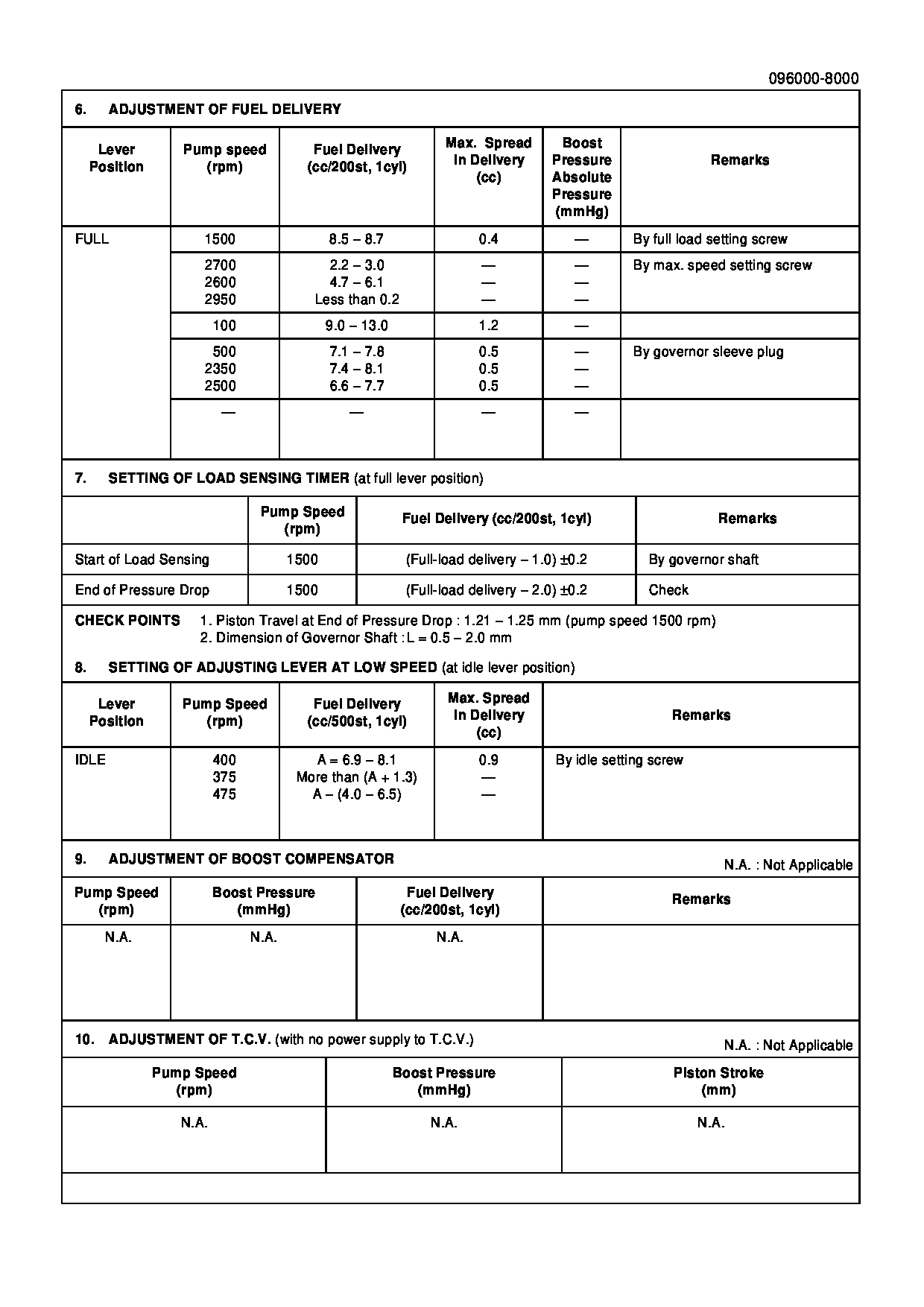

09600-08000 PUMP ASSY, INJECTI Calibration Data

24May2019
U-305
O-271
After Failure Only
PRODUCT SUPPORT PROGRAM FOR TROUBLESHOOTING AND REPLACING THE DIESEL OXIDATION CATALYST ON CERTAIN M313D AND M315D WHEELED EXCAVATORS
1091 PS54060
Caterpillar’s obligations under this Service Letter are subject to, and shall not apply in contravention of, the laws, rules, regulations, directives, ordinances, orders, or statutes of the United States, or of any other applicable jurisdiction, without recourse or liability with respect to Caterpillar.
This Program can only be administered after a failure occurs.The decision whether to apply the Program is made by the dealer. When reporting the repair, use "PS54060" as the Part Numberand "7755" as the Group Number. Use "96" as the Warranty Claim Description Code and use "Z" as the SIMS Description Code.
The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
TERMINATION DATE
31May2021
PROBLEM
The existing Diesel Oxidation Catalyst (DOC) can fail on certain M313D and M315D Wheeled Excavators. If the existing DOC fails, it will result in a 593 EID and failure to complete the active regeneration process.
AFFECTED PRODUCT
Model Identification Number
M313D K3D00113-00115, 158, 204, 217, 224, 234, 236, 240, 250, 253, 256, 261, 267, 270, 275, 279, 281, 292, 322-324, 326, 328-332, 334, 336-341, 371, 396-397, 405, 411-412, 417-418, 420-423, 425, 427-429, 433, 435, 442, 450, 455, 473, 475, 479, 482, 485, 487-489, 493, 499, 514, 517, 520, 530-531, 533-534, 536, 538-540, 543-544, 549, 551, 553-557, 559-565, 567, 569-570, 572, 574, 576-577, 579-581, 583, 595, 624-625, 627-632, 637-647, 651, 653-655, 660, 662-671, 686, 688-689, 691, 704, 730-731, 733-760, 762-772, 775-786, 788-824, 826-829, 831-872, 874-875, 877-907, 909-930, 932-936, 938-939, 941-980, 982-999, 1001-1007, 1009-1016, 1019-1020, 1022-1023, 1028-1045, 1047-1208
M315D J5B00328
K5E00137-00138, 153, 181, 206, 222, 224, 226, 237, 239, 248, 252-254, 259, 272, 275, 278, 328, 334, 345, 347, 350, 352, 355-356, 359, 367, 371, 374-377, 379-380, 393-397, 399-406, 408, 412-413, 416-422, 425-426, 437-440, 444, 446-452, 455-459, 461, 463-464, 466, 470-475, 479, 481-482, 484-486, 489-494, 503-506, 508-510, 513, 518-519, 523, 530-540, 542-544, 546-553, 559, 562, 564-567, 569-585, 590-608, 612-628, 630, 632, 634-643, 647-686, 688-706, 708-730, 732-749, 751-758, 760-787
M315D OEM EY200102-00110, 112-144, 147-152, 155-161
H9A00135, 149-150
PARTS NEEDED
Qty
Part Number Description
3 2228823 BOLT-HEX HEAD
3 2323209 WASHER-SST
1 4165035 KIT-CONVERTER
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 4% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
Refer to M0099921, Special Instruction, "Troubleshooting Procedure for Diagnostic Code EID 593, "Aftertreatment Insufficient Temperature to Complete Regeneration", on Certain M313D and M315D Wheeled Excavators and Mobile Hydraulic Power Units", to complete this Rework Procedure.
Note: Findings and Datalogs from the troubleshooting must be attached to the claim. This information is required. Claims without documentation are subject to rejection.
