09600-07530 PUMP ASSY, INJECTI Calibration Data


Rating:
46
Buy PUMP ASSY, INJECTI 09600-07530 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL B
Engine
B
Serial start-end
9006--9012
Info
Injector Nozzle
093500-2480
Injector nozzle: 0935002480

KIT List:

Part name
Kit1
Kit2
Pump assy, injecti

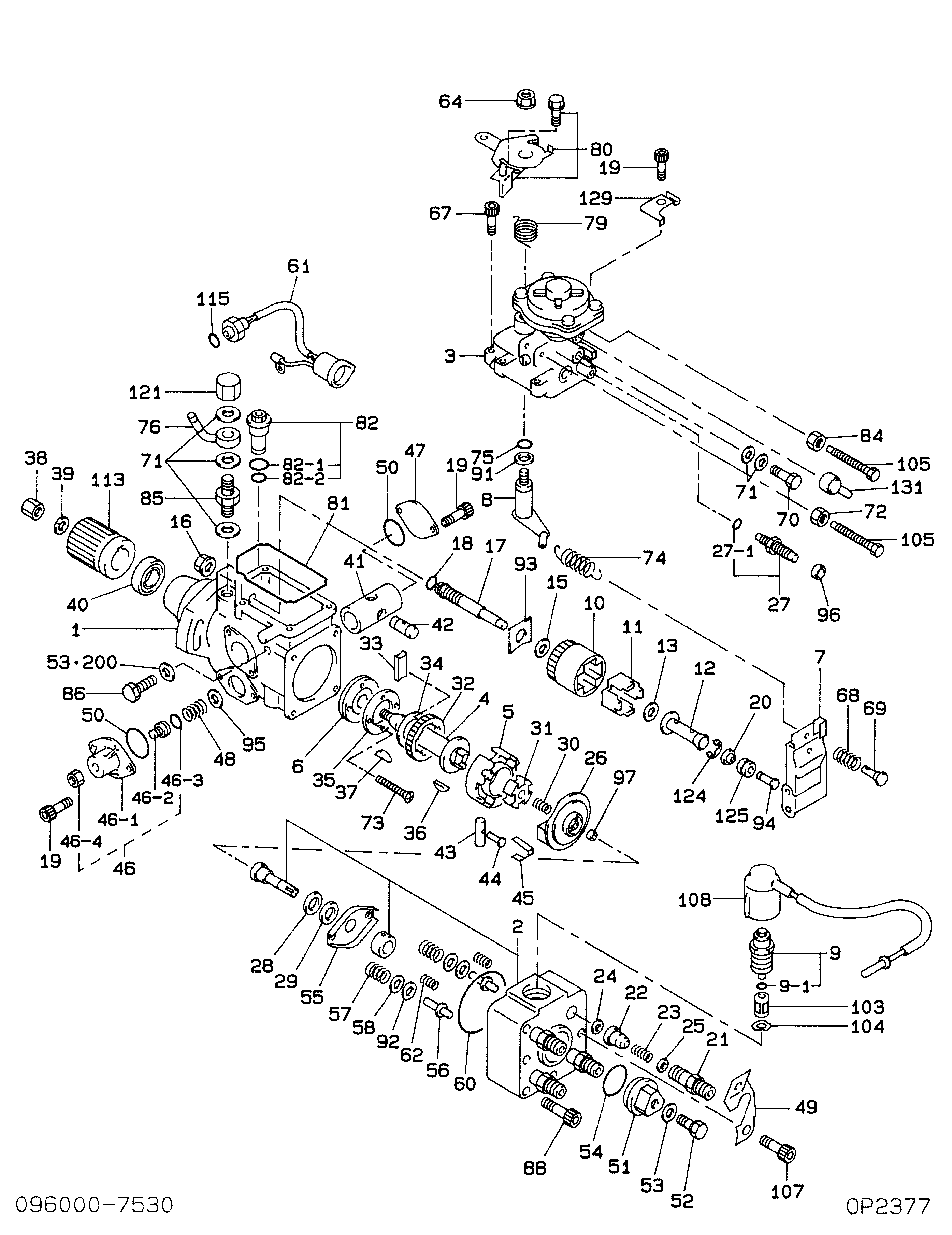

Components :

00.001
PUMP ASSY, INJECTI
01.002
BELLOWS ASSY, PNEU
01.003
RING SUB-ASSY, ROL
01.004
GOVERNOR ASSY, TOR
01.005
SHIM, PLUNGER ADJU
DUMMY
01.005
SHIM, PLUNGER ADJU
T1.9(*1)

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09600-07530
PUMP ASSY, INJECTI
001
[01]
HOUSING SUB-ASSY,
002
[01]
HEAD SUB-ASSY, DIS
003
[01]
BELLOWS ASSY, PNEU
004
[01]
SHAFT, DRIVE
005
[01]
RING SUB-ASSY, ROL
006
[01]
PUMP SUB-ASSY, FUE
007
[01]
GOVERNOR ASSY, TOR
008
[01]
SHAFT SUB-ASSY, GO
009
[01]
SOLENOID ASSY, FUE
FCV,12V -9702
009
[01]
SOLENOID ASSY, FUE
FCV,12V 9702-
009-001
[01]
O-RING
ID14.4
010
[01]
HOLDER SUB-ASSY, F
011
[04]
FLYWEIGHT, DISTRIB
012
[01]
SLEEVE, GOVERNOR
013
[01]
WASHER, FLYWEIGHT
-9106
013
[01]
WASHER, FLYWEIGHT
9106-
015
[01]
WASHER, FLYWEIGHT
016
[01]
NUT, GOVERNOR SHAF
M10,L SCREW
017
[01]
SHAFT, GOVERNOR MA
018
[01]
O-RING
ID 8
019
[05]
BOLT, SOCKET
M6,L16
020
[01]
RING, GOVERNOR SLE
021
[04]
HOLDER, DELIVERY V
022
[04]
VALVE SUB-ASSY, DI
023
[04]
SPRING, DELIVERY V
024
[04]
GASKET, DELIVERY V
025
[04]
SEAT, DELIVERY VAL
026
[01]
CAMPLATE SUB-ASSY,
027
[01]
SMOKE SET SUB-ASSY
027-001
[01]
O-RING
ID 5 -9607
027-001
[01]
O-RING
ID 5 9607-
028
[01]
PLATE, PLUNGER, LW
029
[01]
PLATE, PLUNGER, UP
030
[01]
SPRING, COUPLING
031
[01]
COUPLING
032
[01]
GEAR, GOVERNOR DRI
033
[02]
JOINT, RUBBER
034
[01]
WASHER, DRIVE SHAF
035
[01]
COVER, FEED PUMP
036
[01]
KEY, WOODRUFF
037
[01]
KEY, WOODRUFF
038
[01]
NUT, TIMER ROUND
039
[01]
WASHER, SPRING
T3.5 -9309
040
[01]
SEAL, 0IL
041
[01]
PISTON, TIMER
042
[01]
SUB-PISTON, TIMER
043
[01]
PIN, TIMER SLIDE
044
[01]
STOPPER, TIMER SLI
-9510
044
[01]
STOPPER, TIMER SLI
9510-
045
[01]
CLIP, TIMER
-9510
045
[01]
CLIP, TIMER
9510-
046
[01]
COVER SUB-ASSY, TI
TIMER COVER
046-001
[01]
COVER, TIMER
046-002
[01]
STOPPER, TIMER SLI
046-003
[01]
O-RING
ID14.8
046-004
[01]
NUT, HEXAGON
047
[01]
COVER, TIMER
-9112
047
[01]
COVER, TIMER
9112-
048
[1C]
SPRING, TIMER, OUT
K2.5
048
[1C]
SPRING, TIMER, OUT
K2.3
048
[1C]
SPRING, TIMER, OUT
K2.1
049
[01]
CLIP, CONNECTOR SU
050
[02]
O-RING
ID26.3 -9310
050
[02]
O-RING
ID26.3 9311--9508
050
[02]
O-RING
ID27.5 9509-
051
[01]
PLUG, DISTRIBUTIVE
052
[01]
BOLT, DISTRIBUTIVE
053
[03]
GASKET, DELIVERY V
ID8.2,T1 -9703
053
[01]
GASKET, DELIVERY V
ID8.2,T1 9704-
054
[01]
O-RING
ID30 -9607
054
[01]
O-RING
ID30 9607-
055
[01]
SHEET, PLUNGER SPR
056
[02]
GUIDE SUB-ASSY, PL
057
[02]
SPRING, PLUNGER
058
[02]
SHEET, PLUNGER SPR
060
[01]
O-RING
ID60
061
[01]
PICKUP ASSY, TACHO
-9211
061
[01]
PICKUP ASSY, TACHO
9211-
062
[02]
SPRING, LEVER SUPP
K1.03
064
[01]
NUT
M6
067
[04]
BOLT, SOCKET
M6,L35
068
[01]
SPRING, GOVERNOR I
069
[01]
SHEET, GOVERNOR SP
070
[01]
SCREW SUB-ASSY, OV
071
[05]
WASHER, AIR BLEEDE
072
[01]
NUT, HEXAGON
M6,L5
073
[02]
SCREW, COUNTERSUNK
M4,L28
074
[01]
SPRING, SPEED CONT
075
[01]
O-RING
ID 7.5 -9111
075
[01]
O-RING
9111-
076
[01]
NIPPLE SUB-ASSY, S
079
[01]
SPRING, RETURN
080
[1C]
LEVER SUB-ASSY, AD
ANGLE 22
080
[1C]
LEVER SUB-ASSY, AD
ANGLE 29.5
081
[01]
GASKET, GOVERNOR C
-9112
081
[01]
GASKET, GOVERNOR C
9112-
082
[01]
VALVE SUB-ASSY, RE
082-001
[01]
O-RING
ID10
082-002
[01]
O-RING
ID 7.5 -9607
082-002
[01]
O-RING
ID 7.5 9607-
084
[01]
NUT, LOCK
085
[01]
SCREW, HOLLOW
M12,L43.5
086
[02]
BOLT, GOVERNOR LIN
088
[04]
BOLT, SOCKET
M6,L45
091
[01]
WASHER, GOVERNOR T
T0.5
092
[2C]
SHIM, PLUNGER SPRI
T0.5
092
[2C]
SHIM, PLUNGER SPRI
T0.8
092
[2C]
SHIM, PLUNGER SPRI
T1.0
092
[2C]
SHIM, PLUNGER SPRI
T1.2
092
[2C]
SHIM, PLUNGER SPRI
T1.5
092
[2C]
SHIM, PLUNGER SPRI
T1.8
092
[2C]
SHIM, PLUNGER SPRI
T2.0
092
[2C]
SHIM, PLUNGER SPRI
T0.9
092
[2C]
SHIM, PLUNGER SPRI
T1.1
092
[2C]
SHIM, PLUNGER SPRI
T1.3
092
[2C]
SHIM, PLUNGER SPRI
T1.4
093
[1C]
WASHER, GOVERNOR G
T1.05
093
[1C]
WASHER, GOVERNOR G
T1.25
093
[1C]
WASHER, GOVERNOR G
T1.45
093
[1C]
WASHER, GOVERNOR G
T1.65
093
[1C]
WASHER, GOVERNOR G
T1.85
093
[1C]
WASHER, GOVERNOR G
T1.55
093
[1C]
WASHER, GOVERNOR G
T1.75
093
[1C]
WASHER, GOVERNOR G
T2.05
093
[1C]
WASHER, GOVERNOR G
T1.15 9807-
093
[1C]
WASHER, GOVERNOR G
T1.2 9807-
093
[1C]
WASHER, GOVERNOR G
T1.7 9807-
093
[1C]
WASHER, GOVERNOR G
T1.8 9807-
094
[1C]
PLUG, GOVERNOR SLE
L3.0
094
[1C]
PLUG, GOVERNOR SLE
L3.1
094
[1C]
PLUG, GOVERNOR SLE
L3.2
094
[1C]
PLUG, GOVERNOR SLE
L3.3
094
[1C]
PLUG, GOVERNOR SLE
L3.4
094
[1C]
PLUG, GOVERNOR SLE
L2.2
094
[1C]
PLUG, GOVERNOR SLE
L2.3
094
[1C]
PLUG, GOVERNOR SLE
L2.4
094
[1C]
PLUG, GOVERNOR SLE
L2.5
094
[1C]
PLUG, GOVERNOR SLE
L2.6
094
[1C]
PLUG, GOVERNOR SLE
L2.7
094
[1C]
PLUG, GOVERNOR SLE
L2.8
094
[1C]
PLUG, GOVERNOR SLE
L2.9
095
[01]
WASHER, TIMER SENS
T0.5
096
[01]
COLLAR, SMOKE SET
ID7.9,L8
097
[1C]
SHIM, PLUNGER ADJU
T1.9
097
[1C]
SHIM, PLUNGER ADJU
T2.2
097
[1C]
SHIM, PLUNGER ADJU
T2.4
097
[1C]
SHIM, PLUNGER ADJU
T2.7
097
[1C]
SHIM, PLUNGER ADJU
T2.9
103
[01]
FILTER, SUB-ASSY
104
[01]
WASHER
105
[02]
BOLT, HEXAGON, W/
M6,L62
107
[01]
BOLT, SOCKET
M8,L16
108
[01]
WIRE SUB-ASSY
113
[01]
SHAFT, SPLINE
115
[01]
O-RING
121
[01]
NUT, CAP
M12
124
[01]
E-RING
D2
125
[01]
BEARING, BALL
OD8
129
[01]
CLIP, CONNECTOR SU
131
[01]
CAP RUBBER
200
[02]
GASKET, DELIVERY V
9704-

Include in ##:

09600-07530 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09600-07530

PUMP ASSY, INJECTI

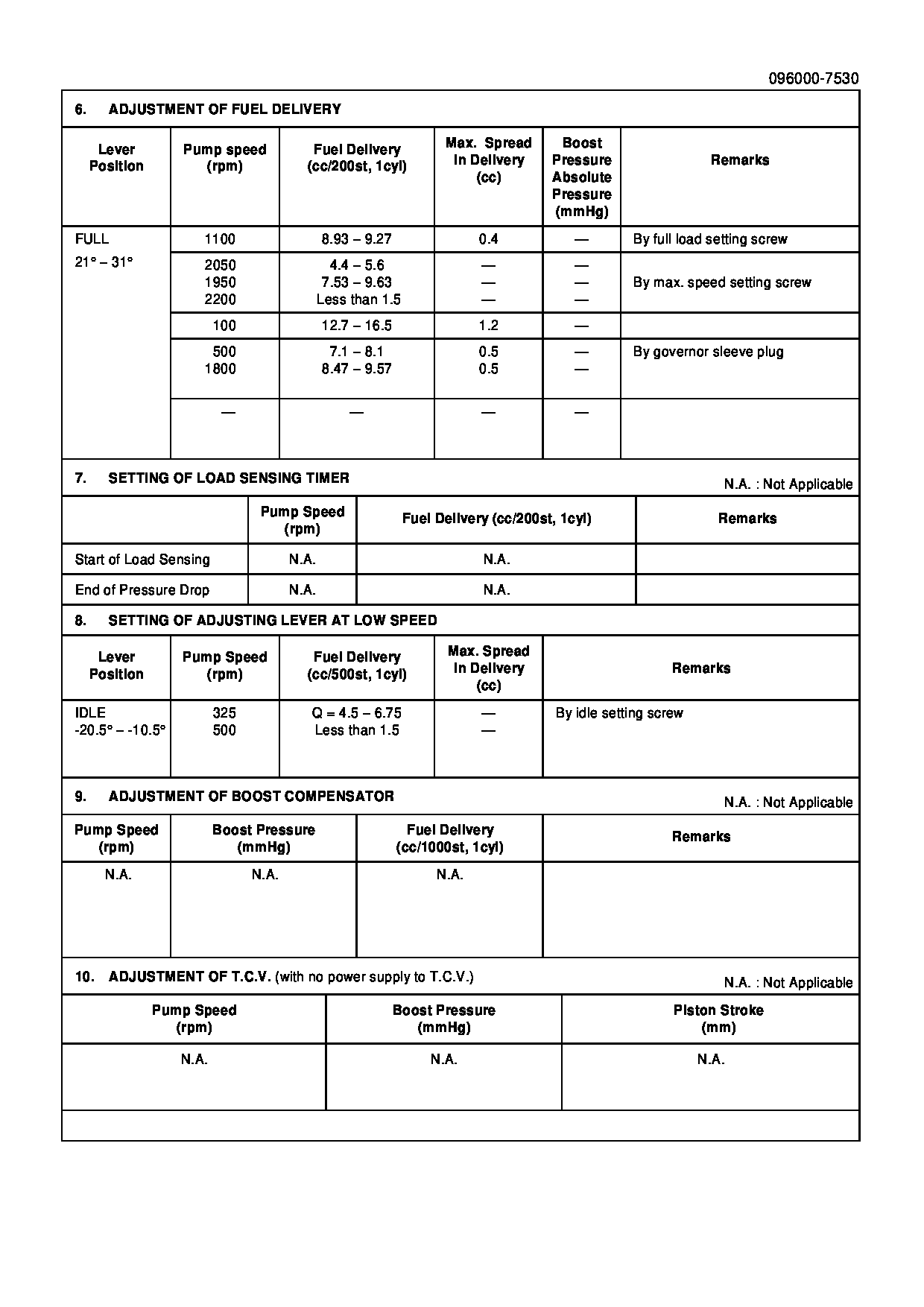

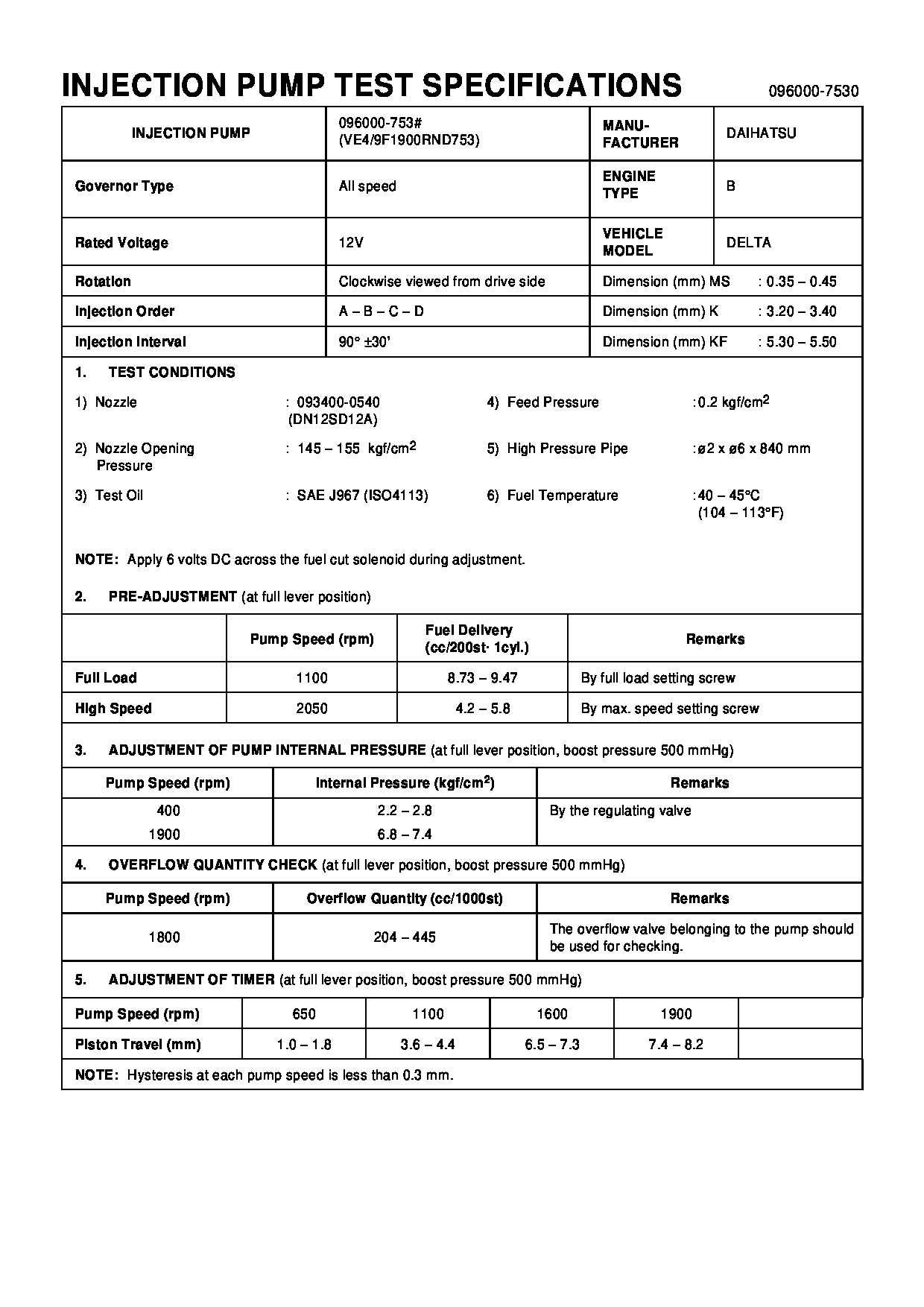

Test Calibration Data:

0960007530 22100-87J02




Information:

1. Remove nuts (1), cover (2), and the gasket. 2. Put No. 1 piston at the top center compression position (TC) with the following procedure:a. Remove plug (3), two bolts and cover (2) from the flywheel housing. b. Install Tool (B) in the flywheel housing. Use Tool (B) to slowly rotate the engine in the direction of normal rotation, (counterclockwise as seen from the flywheel end of the engine), until timing bolt (4) can be installed in the flywheel housing and into the hole in the flywheel. c. Remove the valve cover from the valve cover base. Check to see if both rocker arms (5) for the No. 1 cylinder can be moved backward and forward. The No. 1 piston is at the top center compression position (TC) when the timing bolt is installed in the flywheel and both rocker arms for the No. 1 cylinder can be moved backward and forward. If both rocker arms cannot be moved, the No. 1 piston is not at the top center compression position (TC). Remove the timing bolt from the flywheel and rotate the engine in the direction for normal rotation, (counterclockwise as seen from the flywheel end of the engine one full turn 360 degrees, and install the timing bolt again.3. Remove the timing bolt, and use Tool (B) to rotate the engine in the opposite direction of normal rotation (clockwise as seen from the flywheel end of the engine) a minimum of 30 degrees. The timing is correct if Tool (A) and the timing bolt can be installed at the same time. The timing procedure in the Testing & Adjustment Manual must be done again if the timing bolt and Tool (A) can not be installed at the same time.4. Remove the plug from the timing pin hole in the fuel injection pump housing. Install Tool (A) in the timing pin hole. 5. Remove eight bolts (6) and automatic timing advance (7). 6. Remove gear (9) from fuel injection pump camshaft (8).The following steps are for the installation procedure.7. Install gear (9) on fuel injection pump camshaft (8). 8. Install two 3/8 in 16 NC x 6 in (152.4 mm) long guide bolts (10). Space the guide bolts evenly.
There is a light spring located beneath the flyweight cover (12). Hold cover (12) while removing last nut (11). Slowly remove flyweight cover (12) to avoid dropping the spring.
9. Remove four nuts (11) and remove flyweight cover (12). 10. Put automatic timing advance (13) in position on the fuel injection pump camshaft, and install four bolts (14). Tighten bolts (14) just past finger tight. Remove guide bolts (15). 11. Install four nuts (16). Install Tool (C). 12. Tighten four knurled nuts (17) finger tight.
Do not use any tools to tighten the knurled nuts.
13. Install all mounting bolts (14) and tighten to 55 10 N m (41 7 lb ft).14. Loosen knurled nuts (17). Remove four nuts (16) and remove Tool (C).15. Install the spring and flyweight cover
