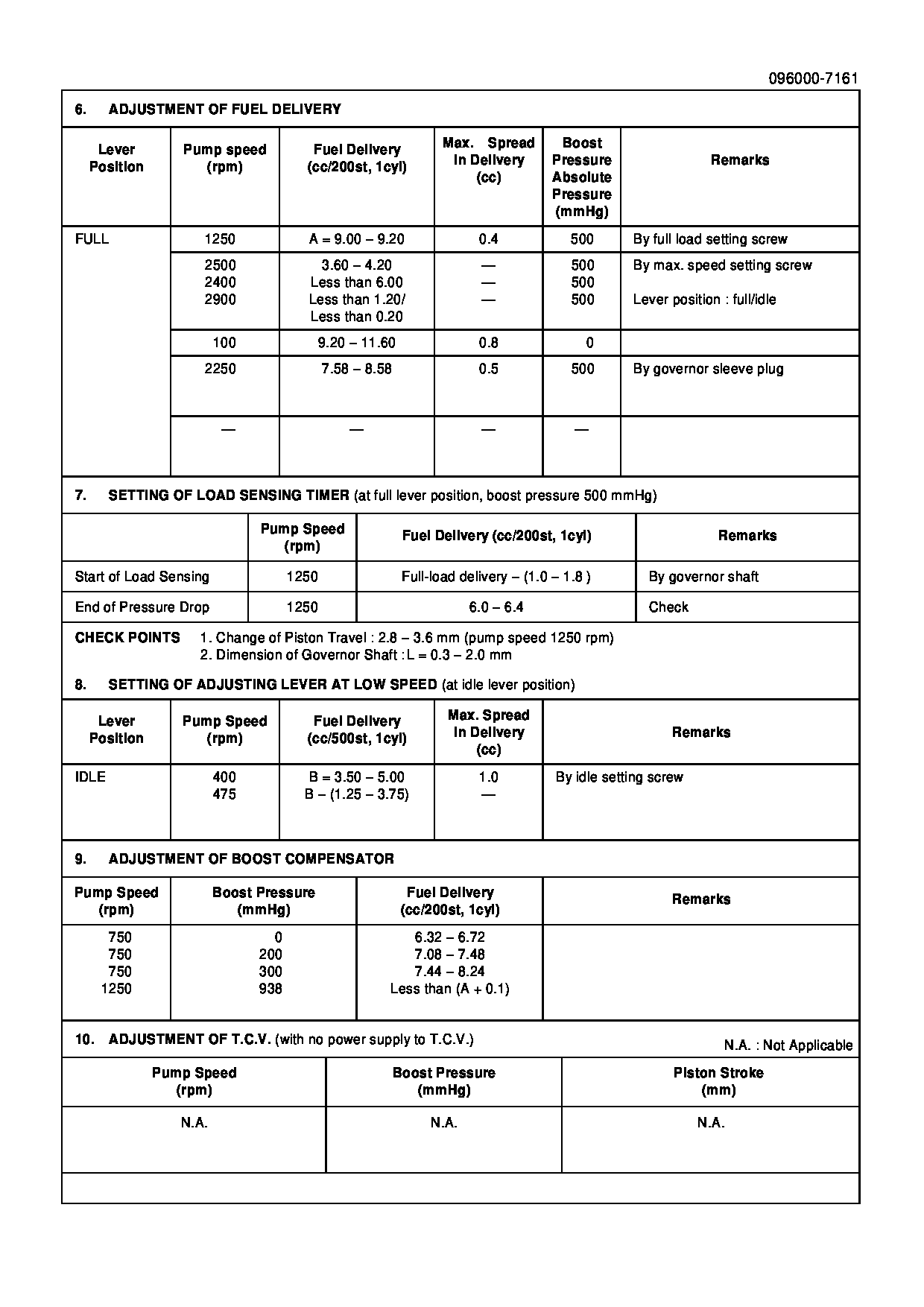

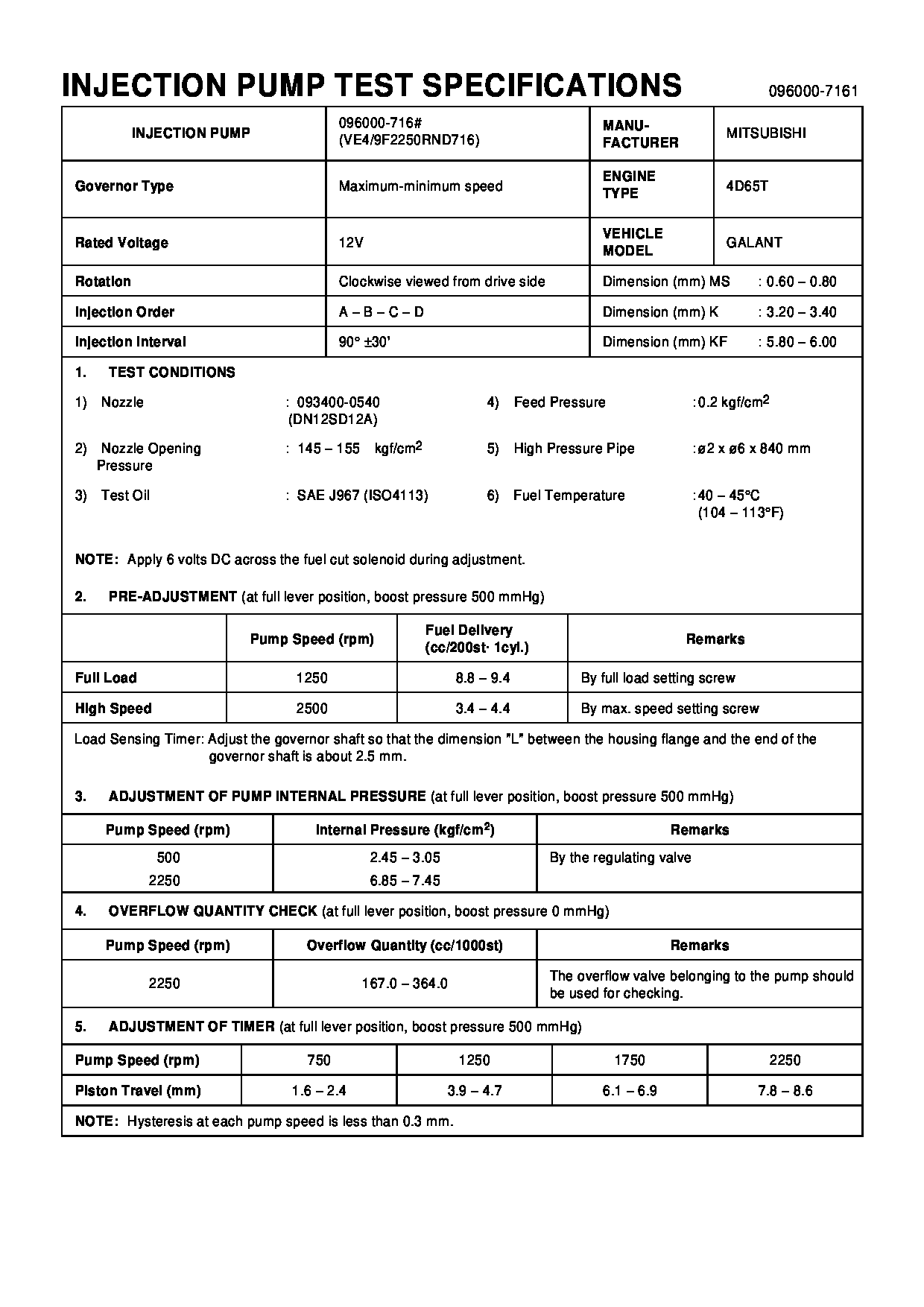

09600-07161 PUMP ASSY, INJECTI Calibration Data


Rating:
74
Buy PUMP ASSY, INJECTI 09600-07161 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Components :

00.001
PUMP ASSY, INJECTI
09600-07161 MITSUBISHI
01.002
RING SUB-ASSY, ROL
09618-00050 MITSUBISHI
01.003
COVER SUB-ASSY, TI
09621-00171 MITSUBISHI
01.004
GOVERNOR ASSY, TOR
09627-00171 MITSUBISHI
01.005
SHIM, PLUNGER ADJU
09640-60020 MITSUBISHI
DUMMY
01.005
SHIM, PLUNGER ADJU
09640-60020 MITSUBISHI
T1.9(*1)
01.006
COMPENSATOR SUB-AS
09649-00750 MITSUBISHI
01.007
COMPENSATOR SUB-AS
09649-01020 MITSUBISHI

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09600-07161
PUMP ASSY, INJECTI
MD170816 MITSUBISHI
001
[01]
09611-00512
HOUSING SUB-ASSY,
002
[01]
09640-01130
HEAD SUB-ASSY, DIS
-9105
002
[01]
09640-01140
HEAD SUB-ASSY, DIS
9105-
003
[01]
09649-00750
COMPENSATOR SUB-AS
-9106
003
[01]
09649-01020
COMPENSATOR SUB-AS
9107-
004
[01]
09612-10060
SHAFT, DRIVE
ME736309 MITSUBISHI
005
[01]
09618-00050
RING SUB-ASSY, ROL
ME736310 MITSUBISHI
006
[01]
09614-00030
PUMP SUB-ASSY, FUE
ME736311 MITSUBISHI
007
[01]
09627-00171
GOVERNOR ASSY, TOR
008
[01]
09646-00580
SHAFT SUB-ASSY, SP
-9106
008
[01]
09646-01540
SHAFT SUB-ASSY, SP
9107-
009
[01]
09603-00160
SOLENOID ASSY, FUE
FCV,12V -9702
009
[01]
09603-00520
SOLENOID ASSY, FUE
FCV,12V 9702-
ME736821 MITSUBISHI
009-001
[01]
09604-90350
O-RING
ID14.4
ME743582 MITSUBISHI
010
[01]
09626-00050
HOLDER SUB-ASSY, F
ME736316 MITSUBISHI
011
[04]
09626-30030
FLYWEIGHT, DISTRIB
ME736317 MITSUBISHI
012
[01]
09625-20550
SLEEVE, GOVERNOR
013
[01]
09626-50040
WASHER, FLYWEIGHT
-9106
013
[01]
09626-50030
WASHER, FLYWEIGHT
9106-
ME736319 MITSUBISHI
015
[01]
09626-50020
WASHER, FLYWEIGHT
ME736320 MITSUBISHI
016
[01]
09625-40050
NUT, GOVERNOR SHAF
M10,L SCREW
ME736321 MITSUBISHI
017
[01]
09625-00030
SHAFT SUB-ASSY, GO
ME736468 MITSUBISHI
018
[01]
94914-02930
O-RING
ID 8
ME736323 MITSUBISHI
019
[07]
09644-90110
BOLT, SOCKET
M6,L16
ME736324 MITSUBISHI
020
[01]
09625-50020
RING, GOVERNOR SLE
ME736325 MITSUBISHI
021
[04]
09643-00150
VALVE SUB-ASSY, SN
ME736326 MITSUBISHI
022
[04]
09642-00510
VALVE SUB-ASSY, DI
-9105
ME736327 MITSUBISHI
022
[04]
09642-00650
VALVE SUB-ASSY, DI
9105-
023
[04]
09642-70010
SPRING, DELIVERY V
ME736328 MITSUBISHI
024
[04]
09642-60070
GASKET, DELIVERY V
ME736329 MITSUBISHI
026
[01]
09623-00090
CAMPLATE SUB-ASSY,
028
[01]
09624-50020
PLATE, PLUNGER, LW
ME736331 MITSUBISHI
029
[01]
09624-40040
PLATE, PLUNGER, UP
ME736332 MITSUBISHI
030
[01]
09622-40040
SPRING, COUPLING
ME736333 MITSUBISHI
031
[01]
09622-20020
COUPLING
ME736334 MITSUBISHI
032
[01]
09612-40030
GEAR, GOVERNOR DRI
ME736335 MITSUBISHI
033
[02]
09612-60020
JOINT, RUBBER
ME736336 MITSUBISHI
034
[01]
09612-50010
WASHER, DRIVE SHAF
ME736337 MITSUBISHI
035
[01]
09614-70052
COVER, FEED PUMP
ME736338 MITSUBISHI
036
[01]
94913-00260
KEY, WOODRUFF
T3.980
ME736339 MITSUBISHI
037
[01]
94913-00350
KEY, WOODRUFF
T3.998
040
[01]
09603-90040
SEAL, 0IL
ME736342 MITSUBISHI
041
[01]
09620-10290
PISTON, TIMER
042
[01]
09621-30020
SUB-PISTON, TIMER
ME736344 MITSUBISHI
043
[01]
09620-50020
PIN, TIMER SLIDE
ME736345 MITSUBISHI
044
[01]
09621-60020
STOPPER, TIMER SLI
-9510
ME736346 MITSUBISHI
044
[01]
09621-60120
STOPPER, TIMER SLI
L16.4 9510-
ME736849 MITSUBISHI
045
[01]
09621-10050
CLIP, TIMER
-9510
ME736347 MITSUBISHI
045
[01]
09621-10080
CLIP, TIMER
L/ DITCH 9510-
ME736850 MITSUBISHI
046
[01]
09621-80040
COVER, TIMER
ME743594 MITSUBISHI
047
[01]
09621-80020
COVER, TIMER
-9112
047
[01]
09621-80270
COVER, TIMER
9112-
ME736353 MITSUBISHI
048
[1C]
09620-80110
SPRING, TIMER, OUT
K2.7
048
[1C]
09620-80120
SPRING, TIMER, OUT
K3.3
048
[1C]
09620-80161
SPRING, TIMER, OUT
K3.0
050
[03]
94914-02960
O-RING
ID26.3 -9310
050
[03]
94914-05820
O-RING
ID26.3 9311--9508
ME736359 MITSUBISHI
050
[03]
09604-90400
O-RING
ID27.5 9509-
ME743600 MITSUBISHI
051
[01]
09641-70040
PLUG, DISTRIBUTIVE
ME736360 MITSUBISHI
052
[01]
09641-80020
BOLT, DISTRIBUTIVE
M8,L19.7
ME736361 MITSUBISHI
053
[03]
09642-60030
GASKET, DELIVERY V
ID8.2,T1 -9703
ME736362 MITSUBISHI
053
[01]
09642-60030
GASKET, DELIVERY V
ID8.2,T1 9704-
ME736362 MITSUBISHI
054
[01]
94914-02970
O-RING
ID30 -9607
ME736363 MITSUBISHI
054
[01]
09604-90510
O-RING
ID30 9607-
ME743620 MITSUBISHI
055
[01]
09624-70010
SHEET, PLUNGER SPR
ME736364 MITSUBISHI
056
[02]
09623-70010
GUIDE SUB-ASSY, PL
ME736365 MITSUBISHI
057
[02]
09623-60030
SPRING, PLUNGER
058
[02]
09624-60010
SHEET, PLUNGER SPR
ME736367 MITSUBISHI
060
[01]
94914-02980
O-RING
ID60
ME736368 MITSUBISHI
062
[02]
09627-90010
SPRING, LEVER SUPP
K1.03
ME736369 MITSUBISHI
063
[01]
09648-00010
SMOKE SET SUB-ASSY
ME736370 MITSUBISHI
063-001
[01]
94914-02900
O-RING
ID 5 -9607
ME736371 MITSUBISHI
063-001
[01]
09604-90470
O-RING
ID 7.5 9607-
ME743622 MITSUBISHI
064
[01]
90166-06051
NUT, HEXAGON
M6,L5
ME736372 MITSUBISHI
067
[04]
09644-90020
BOLT, SOCKET
M6,L35
ME736373 MITSUBISHI
068
[01]
09644-50140
GUIDE, RETURN SPRI
MARK 14
ME736832 MITSUBISHI
070
[01]
09602-00030
SCREW SUB-ASSY, OV
W/FILTER
ME736376 MITSUBISHI
071
[05]
09024-10010
WASHER, AIR BLEEDE
T1.6
ME702102 MITSUBISHI
073
[02]
94900-20420
SCREW, COUNTERSUNK
M4,L28
ME736377 MITSUBISHI
075
[01]
94914-02910
O-RING
ID 6.5 -9111
075
[01]
09604-90300
O-RING
ID 6.5 9111-
ME736378 MITSUBISHI
078
[01]
09644-40920
SPRING, RETURN
ME736834 MITSUBISHI
079
[01]
09644-40930
SPRING, RETURN
ME736835 MITSUBISHI
080
[1C]
09643-54050
LEVER SUB-ASSY, AD
MARK 405
080
[1C]
09643-54060
LEVER SUB-ASSY, AD
MARK 406
081
[01]
09644-60093
GASKET, GOVERNOR C
-9112
081
[01]
09644-60100
GASKET, GOVERNOR C
9112-
ME736386 MITSUBISHI
082
[01]
09616-00030
VALVE SUB-ASSY, RE
ME736387 MITSUBISHI
082-001
[01]
09604-90180
O-RING
ID10
ME736285 MITSUBISHI
082-002
[01]
94914-02920
O-RING
ID 7.5 -9607
ME736388 MITSUBISHI
082-002
[01]
09604-90500
O-RING
ID 7.5 9607-
ME743633 MITSUBISHI
084
[01]
09634-20010
NUT, LOCK
M6,L5
ME702196 MITSUBISHI
085
[01]
94918-00770
SCREW, HOLLOW
M12,L43.5
ME736389 MITSUBISHI
086
[02]
09626-90020
BOLT, GOVERNOR LIN
M8,L19
ME736390 MITSUBISHI
087
[01]
94905-50300
NUT, CAP
M12L16.5
ME736391 MITSUBISHI
088
[05]
09644-90070
BOLT, SOCKET
M6,L45
ME736392 MITSUBISHI
091
[01]
09627-30140
WASHER, GOVERNOR T
T0.5
ME736379 MITSUBISHI
092
[2C]
09624-80010
SHIM, PLUNGER SPRI
T0.5
ME736393 MITSUBISHI
092
[2C]
09624-80020
SHIM, PLUNGER SPRI
T0.8
ME736394 MITSUBISHI
092
[2C]
09624-80030
SHIM, PLUNGER SPRI
T1.0
ME736395 MITSUBISHI
092
[2C]
09624-80040
SHIM, PLUNGER SPRI
T1.2
ME736396 MITSUBISHI
092
[2C]
09624-80050
SHIM, PLUNGER SPRI
T1.5
ME736397 MITSUBISHI
092
[2C]
09624-80060
SHIM, PLUNGER SPRI
T1.8
ME736398 MITSUBISHI
092
[2C]
09624-80070
SHIM, PLUNGER SPRI
T2.0
ME736399 MITSUBISHI
092
[2C]
09624-80080
SHIM, PLUNGER SPRI
T0.9
ME736400 MITSUBISHI
092
[2C]
09624-80090
SHIM, PLUNGER SPRI
T1.1
ME736401 MITSUBISHI
092
[2C]
09624-80100
SHIM, PLUNGER SPRI
T1.3
ME736402 MITSUBISHI
092
[2C]
09624-80110
SHIM, PLUNGER SPRI
T1.4
ME736403 MITSUBISHI
092
[2C]
09624-80220
SHIM, PLUNGER SPRI
T1.6
ME736404 MITSUBISHI
093
[1C]
09626-60100
WASHER, GOVERNOR G
T1.05
ME736405 MITSUBISHI
093
[1C]
09626-60110
WASHER, GOVERNOR G
T1.25
ME736406 MITSUBISHI
093
[1C]
09626-60120
WASHER, GOVERNOR G
T1.45
ME736407 MITSUBISHI
093
[1C]
09626-60130
WASHER, GOVERNOR G
T1.65
ME736408 MITSUBISHI
093
[1C]
09626-60140
WASHER, GOVERNOR G
T1.85
ME736409 MITSUBISHI
093
[1C]
09626-60150
WASHER, GOVERNOR G
T1.55
ME736410 MITSUBISHI
093
[1C]
09626-60160
WASHER, GOVERNOR G
T1.75
ME736411 MITSUBISHI
093
[1C]
09626-60170
WASHER, GOVERNOR G
T2.05
ME736412 MITSUBISHI
093
[1C]
09626-60180
WASHER, GOVERNOR G
T1.35
ME736413 MITSUBISHI
093
[1C]
09626-60270
WASHER, GOVERNOR G
T1.3
ME736414 MITSUBISHI
093
[1C]
09626-60280
WASHER, GOVERNOR G
T1.4
ME736415 MITSUBISHI
093
[1C]
09626-60290
WASHER, GOVERNOR G
T1.5
ME736416 MITSUBISHI
093
[1C]
09626-60300
WASHER, GOVERNOR G
T1.6
ME736417 MITSUBISHI
093
[1C]
09626-60310
WASHER, GOVERNOR G
T1.15 9807-
ME743634 MITSUBISHI
093
[1C]
09626-60320
WASHER, GOVERNOR G
T1.2 9807-
ME743635 MITSUBISHI
093
[1C]
09626-60330
WASHER, GOVERNOR G
T1.7 9807-
ME743636 MITSUBISHI
093
[1C]
09626-60340
WASHER, GOVERNOR G
T1.8 9807-
ME743637 MITSUBISHI
094
[1C]
09625-60480
PLUG, GOVERNOR SLE
L3.8
ME736418 MITSUBISHI
094
[1C]
09625-60490
PLUG, GOVERNOR SLE
L3.9
ME736419 MITSUBISHI
094
[1C]
09625-60500
PLUG, GOVERNOR SLE
L4.0
ME736420 MITSUBISHI
094
[1C]
09625-60510
PLUG, GOVERNOR SLE
L4.1
ME736421 MITSUBISHI
094
[1C]
09625-60520
PLUG, GOVERNOR SLE
L4.2
ME736422 MITSUBISHI
094
[1C]
09625-60530
PLUG, GOVERNOR SLE
L4.3
ME736423 MITSUBISHI
094
[1C]
09625-60540
PLUG, GOVERNOR SLE
L4.4
ME736424 MITSUBISHI
094
[1C]
09625-60550
PLUG, GOVERNOR SLE
L2.2
ME736425 MITSUBISHI
094
[1C]
09625-60560
PLUG, GOVERNOR SLE
L2.3
ME736426 MITSUBISHI
094
[1C]
09625-60570
PLUG, GOVERNOR SLE
L2.4
ME736427 MITSUBISHI
094
[1C]
09625-60580
PLUG, GOVERNOR SLE
L2.5
ME736428 MITSUBISHI
094
[1C]
09625-60590
PLUG, GOVERNOR SLE
L2.6
ME736429 MITSUBISHI
094
[1C]
09625-60600
PLUG, GOVERNOR SLE
L2.7
ME736430 MITSUBISHI
095
[2C]
09621-40030
WASHER, TIMER SENS
T0.1
095
[2C]
09621-40040
WASHER, TIMER SENS
T0.2
095
[2C]
09621-40050
WASHER, TIMER SENS
T0.5
095
[2C]
09621-40060
WASHER, TIMER SENS
T0.6
095
[2C]
09621-40070
WASHER, TIMER SENS
T0.7
095
[2C]
09621-40080
WASHER, TIMER SENS
T0.8
095
[2C]
09621-40090
WASHER, TIMER SENS
T0.9
095
[2C]
09621-40100
WASHER, TIMER SENS
T1.0
ME736839 MITSUBISHI
095
[2C]
09621-40110
WASHER, TIMER SENS
T1.2
095
[2C]
09621-40120
WASHER, TIMER SENS
T1.4
095
[2C]
09621-40130
WASHER, TIMER SENS
T1.6
095
[2C]
09621-40140
WASHER, TIMER SENS
T1.8
095
[2C]
09621-40150
WASHER, TIMER SENS
T2.0
096
[01]
09644-80111
COLLAR, SMOKE SET
COLLAR TYPE
ME736431 MITSUBISHI
097
[1C]
09640-60020
SHIM, PLUNGER ADJU
T1.9
ME736432 MITSUBISHI
097
[1C]
09640-60170
SHIM, PLUNGER ADJU
T2.2
ME736433 MITSUBISHI
097
[1C]
09640-60270
SHIM, PLUNGER ADJU
T2.4
ME736434 MITSUBISHI
097
[1C]
09640-60420
SHIM, PLUNGER ADJU
T2.7
ME736435 MITSUBISHI
097
[1C]
09640-60520
SHIM, PLUNGER ADJU
T2.9
ME736436 MITSUBISHI
105
[02]
94904-50210
BOLT, HEXAGON, W/
M6,L62
ME736437 MITSUBISHI
108
[01]
09604-50201
WIRE SUB-ASSY
MD627116 MITSUBISHI
109
[01]
09621-00171
COVER SUB-ASSY, TI
ACSD
110
[01]
09643-80511
BRACKET, IDLE UP
111
[01]
09644-90130
BOLT, SOCKET
M6,L14 -0006
ME736283 MITSUBISHI
111
[01]
09644-90110
BOLT, SOCKET
M6,L16 0007-
ME736324 MITSUBISHI
112
[01]
09644-90140
BOLT, SOCKET
M8,L16
ME736442 MITSUBISHI
114
[02]
09644-90100
BOLT, SOCKET
M6,L10
ME736443 MITSUBISHI
117
[01]
07630-00310
PICKUP ASSY, TACHO
118
[02]
91518-06141
BOLT, W/WASHER
M6,L14
ME736842 MITSUBISHI
119
[01]
09604-90190
O-RING
ID14.8
ME736444 MITSUBISHI
121
[01]
09643-80523
BRACKET, IDLE UP
ACCEL WIRE
ME736843 MITSUBISHI
122
[01]
09653-00071
FILTER, SUB-ASSY
ME736445 MITSUBISHI
123
[01]
09221-70370
NIPPLE, SWIVEL
124
[01]
09221-70380
NIPPLE, SWIVEL
125
[01]
09647-30011
DASHPOT
126
[01]
09606-40110
WASHER
T0.2
ME736446 MITSUBISHI
133
[01]
09643-64090
LEVER, ADJUSTING
MARK 409
134
[01]
09626-90080
BOLT, GOVERNOR LIN
135
[02]
09644-90151
BOLT, SOCKET
M10,L14
ME736456 MITSUBISHI
137
[01]
09602-91000
CLIP, CONNECTOR SU
138
[01]
09602-90381
CLIP, CONNECTOR SU
MD627124 MITSUBISHI
139
[01]
19850-00401
SENSOR, ROTARY POS
DISCONTINUED -9401
139
[01]
19850-00402
SENSOR, ROTARY POS
ADDITION 9401-
140
[01]
09643-81720
BRACKET, IDLE UP
144
[02]
91370-04121
SCREW, W/WASHER
M4,L12
MF350745 MITSUBISHI
145
[01]
09646-80250
CAP RUBBER
ME743624 MITSUBISHI
147
[01]
90577-02000
E-RING
D2
ME736460 MITSUBISHI
148
[01]
94910-02860
BEARING, BALL
OD8
ME736459 MITSUBISHI
149
[01]
09602-90630
CLIP, CONNECTOR SU
154
[01]
94905-61680
NUT
M6,L6.5
ME736463 MITSUBISHI
200
[02]
09642-60130
GASKET, DELIVERY V
9704-
ME743647 MITSUBISHI

Include in ##:

09600-07161 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09600-07161
MD170816
PUMP ASSY, INJECTI

Test Calibration Data:

Get Full test data file
0960007160 MD170816
EH7161
EH7161
Get Full test data file
0960007161
EH7161
EH7161




Have questions with 09600-07161?





Group cross 09600-07161

Back to top
