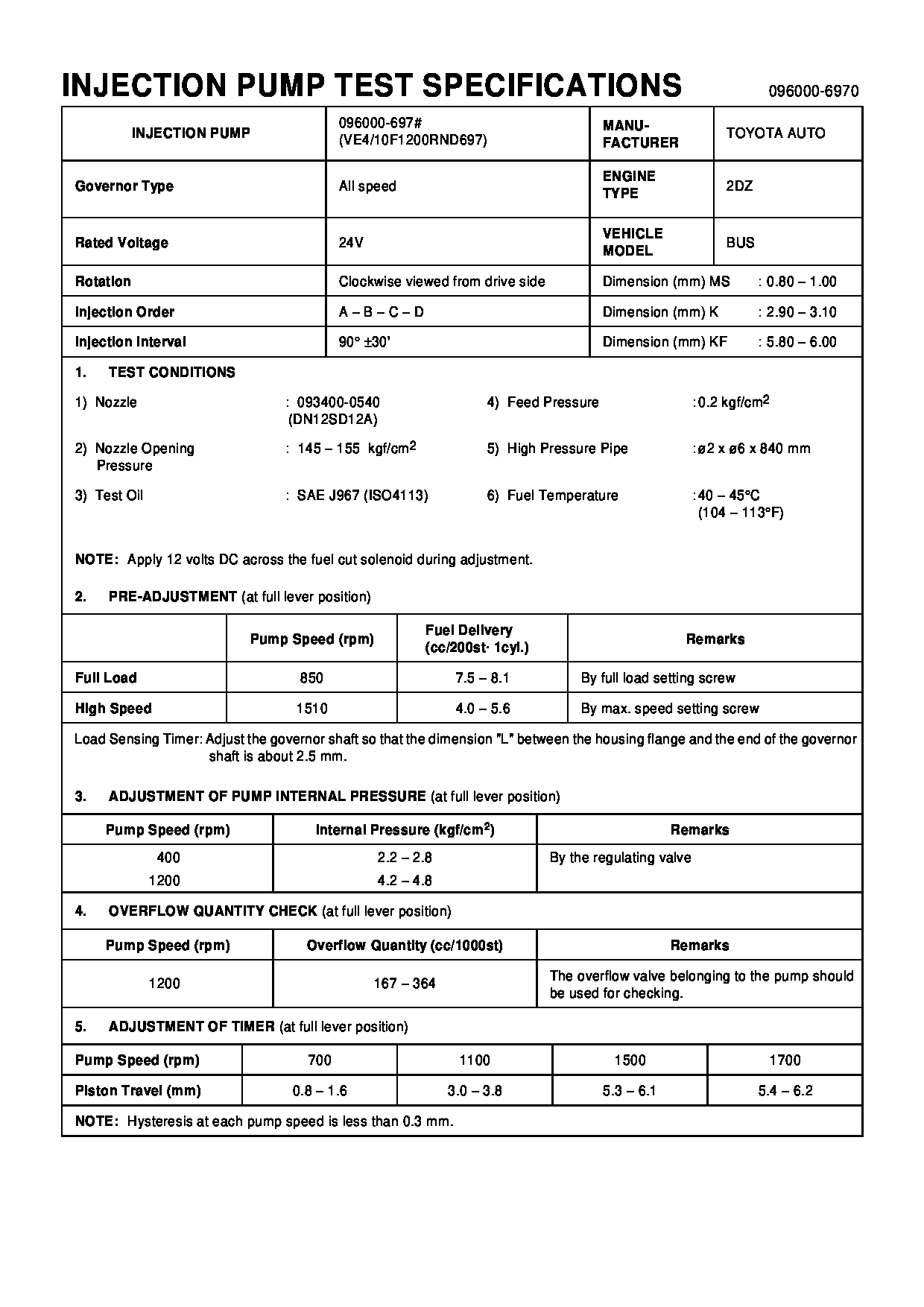

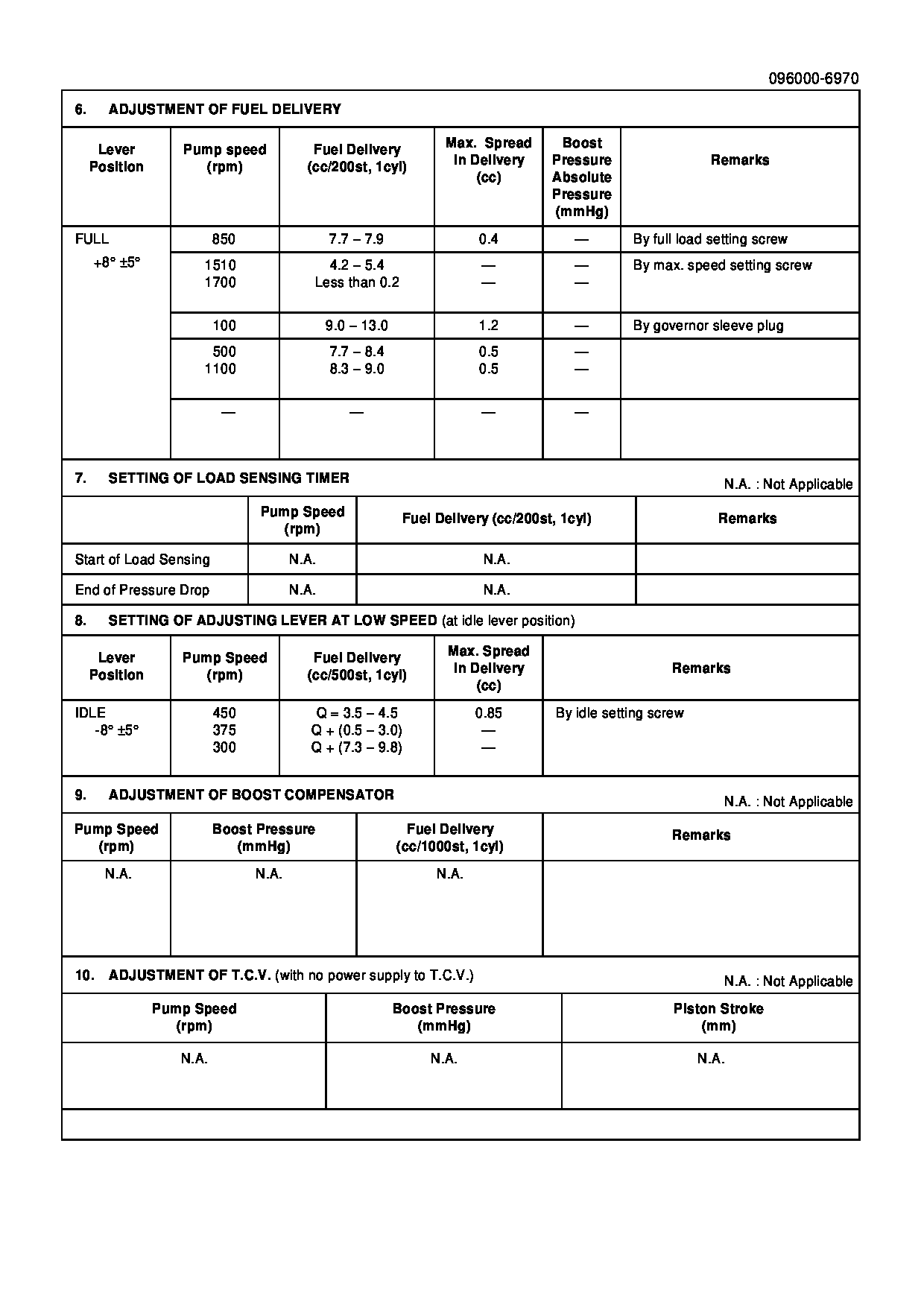

Information pump assy, injecti Denso
Product
Fuel Injection Pump
Vehicle engine
BUS A/C 2DZ
Engine
2DZ
Serial start-end
9002--9908
Info
Injector Nozzle
093500-2240
Manufacture:
22100-78250-71 TOYOTA
Dim 1
3.2-3.4
Dim 2
5.8-6.0
Dim 3
0.8-1.0
Dim 4
Dim 5
Dim 6
Information
Injector nozzle:
0935002240
KIT List:
Part name
Kit1
Kit2
Components :
Scheme #.#:
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09600-06970
PUMP ASSY, INJECTI
22100-78250-71
TOYOTA
Include in ##:
09600-06970
as PUMP ASSY, INJECTI
Cross reference number
Part num
Firm num
Firm
Name
09600-06970
22100-7825
PUMP ASSY, INJECTI
0960006970
22100-78250-71
TOYOTA
PUMP ASSY, INJECTI
Information:
