09600-06560 PUMP ASSY, INJECTI Calibration Data Denso

Information Cross number Test Calibration Data Calibration Data Ex

Buy now

Add to cart Go to cart

Rating:

Buy PUMP ASSY, INJECTI 09600-06560 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product

Fuel Injection Pump

Vehicle engine

CARINA 2C-L

Engine

2C-L

Serial start-end

8911--9211

Info

Injector Nozzle

093500-3650

Manufacture:

22100-6D020 TOYOTA

Dim 1

3.2-3.4

Dim 2

5.2-5.4

Dim 3

0.43-0.63

Dim 4

Dim 5

Dim 6

Information

Injector nozzle: 0935003650

KIT List:

Part name

Kit1

Kit2

Pump assy, injecti

0960100021

0960100541

Components :

00.001

PUMP ASSY, INJECTI

09600-06560 TOYOTA

01.002

RING SUB-ASSY, ROL

09618-00050 TOYOTA

01.003

COVER SUB-ASSY, TI

09621-00680 TOYOTA

01.004

GOVERNOR ASSY, TOR

09627-00101 TOYOTA

01.005

SHIM, PLUNGER ADJU

09640-60020 TOYOTA

DUMMY

01.005

SHIM, PLUNGER ADJU

09640-60020 TOYOTA

T1.9(*1)

01.006

COVER SUB-ASSY, GO

09644-01240 TOYOTA

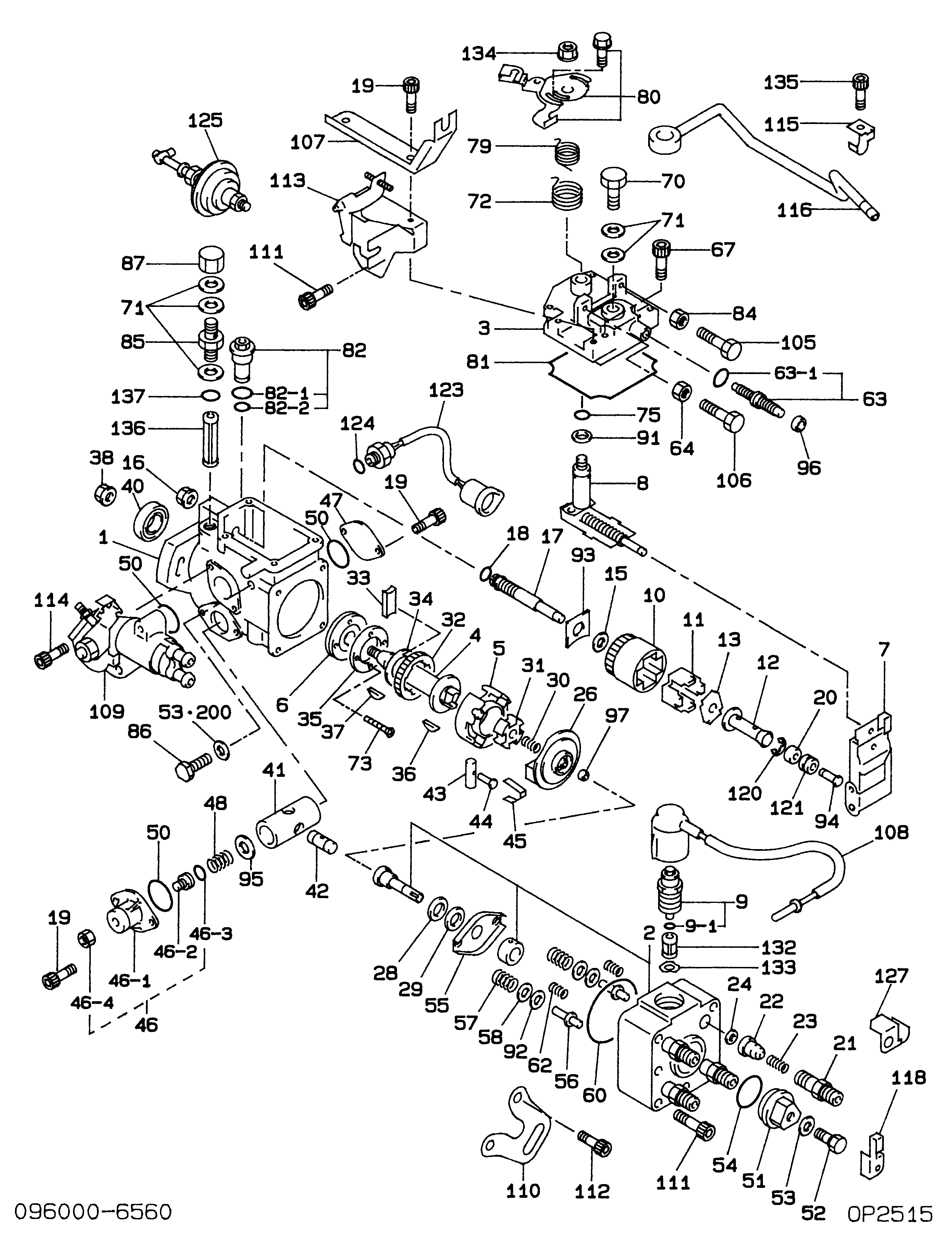

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

09600-06560

PUMP ASSY, INJECTI

22100-6D020 TOYOTA

001

[01]

09611-00242

HOUSING SUB-ASSY,

22101-64020 TOYOTA

002

[01]

09640-01000

HEAD SUB-ASSY, DIS

22140-6A511 TOYOTA

003

[01]

09644-01240

COVER SUB-ASSY, GO

22703-6A361 TOYOTA

004

[01]

09612-10100

SHAFT, DRIVE

22170-6A510 TOYOTA

005

[01]

09618-00050

RING SUB-ASSY, ROL

22108-54180 TOYOTA

006

[01]

09614-00030

PUMP SUB-ASSY, FUE

22505-54010 TOYOTA

007

[01]

09627-00101

GOVERNOR ASSY, TOR

22350-64010 TOYOTA

008

[01]

09646-01291

SHAFT SUB-ASSY, SP

22302-6A511 TOYOTA

009

[01]

09603-00160

SOLENOID ASSY, FUE

FCV,12V -9702

22390-6A510 TOYOTA

009

[01]

09603-00520

SOLENOID ASSY, FUE

FCV,12V 9702-

22390-6A511 TOYOTA

009-001

[01]

09604-90350

O-RING

ID14.4

010

[01]

09626-00050

HOLDER SUB-ASSY, F

22741-54020 TOYOTA

011

[04]

09626-30030

FLYWEIGHT, DISTRIB

22745-54010 TOYOTA

012

[01]

09625-20540

SLEEVE, GOVERNOR

D1.10

22316-6A740 TOYOTA

013

[01]

09626-50040

WASHER, FLYWEIGHT

SQUARE TYPE -9104

22753-54290 TOYOTA

013

[01]

09626-50030

WASHER, FLYWEIGHT

ROUND TYPE 9104-

22753-54020 TOYOTA

015

[01]

09626-50020

WASHER, FLYWEIGHT

T1.30

22753-54010 TOYOTA

016

[01]

09625-40050

NUT, GOVERNOR SHAF

M10,L SCREW

22722-54470 TOYOTA

017

[01]

09625-00030

SHAFT SUB-ASSY, GO

22380-54020 TOYOTA

018

[01]

94914-02930

O-RING

ID 8

90099-14049 TOYOTA

019

[06]

09644-90110

BOLT, SOCKET

M6,L16

22395-56351 TOYOTA

020

[01]

09625-50020

RING, GOVERNOR SLE

22147-54290 TOYOTA

021

[04]

09643-00080

VALVE SUB-ASSY, SN

-9004

22190-18040 TOYOTA

021

[04]

09643-00180

VALVE SUB-ASSY, SN

9005-

22190-6A680 TOYOTA

022

[04]

09642-00120

VALVE SUB-ASSY, DI

-9004

22104-64010 TOYOTA

022

[04]

09642-00510

VALVE SUB-ASSY, DI

9005-

22104-6A290 TOYOTA

023

[04]

09642-70010

SPRING, DELIVERY V

22148-54010 TOYOTA

024

[04]

09642-60020

GASKET, DELIVERY V

-9004

22149-54010 TOYOTA

024

[04]

09642-60070

GASKET, DELIVERY V

9005-

22149-56351 TOYOTA

026

[01]

09623-00180

CAMPLATE SUB-ASSY,

-9106

22130-6A510 TOYOTA

026

[01]

09623-00260

CAMPLATE SUB-ASSY,

9106-

22130-6D340 TOYOTA

028

[01]

09624-50020

PLATE, PLUNGER, LW

22163-54010 TOYOTA

029

[01]

09624-40040

PLATE, PLUNGER, UP

22162-54010 TOYOTA

030

[01]

09622-40040

SPRING, COUPLING

22659-64150 TOYOTA

031

[01]

09622-20020

COUPLING

22632-54010 TOYOTA

032

[01]

09612-40030

GEAR, GOVERNOR DRI

22341-54010 TOYOTA

033

[02]

09612-60020

JOINT, RUBBER

22169-54180 TOYOTA

034

[01]

09612-50010

WASHER, DRIVE SHAF

22161-54010 TOYOTA

035

[01]

09614-70052

COVER, FEED PUMP

22511-58650 TOYOTA

036

[01]

94913-00260

KEY, WOODRUFF

90099-13017 TOYOTA

037

[01]

94913-00300

KEY, WOODRUFF

90099-13018 TOYOTA

038

[01]

94905-62390

NUT

M14

90099-05166 TOYOTA

040

[01]

09603-90040

SEAL, 0IL

22544-64740 TOYOTA

041

[01]

09620-10500

PISTON, TIMER

22654-55050 TOYOTA

042

[01]

09621-30020

SUB-PISTON, TIMER

22657-54010 TOYOTA

043

[01]

09620-50020

PIN, TIMER SLIDE

22655-54010 TOYOTA

044

[01]

09621-60020

STOPPER, TIMER SLI

-9510

22658-54010 TOYOTA

044

[01]

09621-60120

STOPPER, TIMER SLI

9510-

22658-17840 TOYOTA

045

[01]

09621-10050

CLIP, TIMER

-9510

22656-54010 TOYOTA

045

[01]

09621-10080

CLIP, TIMER

9510-

22656-17840 TOYOTA

046

[01]

09621-00450

COVER SUB-ASSY, TI

TIMER COVER

22790-6A220 TOYOTA

046-001

[01]

09621-80230

COVER, TIMER

22612-54450 TOYOTA

046-002

[01]

09621-60040

STOPPER, TIMER SLI

22658-54450 TOYOTA

046-003

[01]

09604-90190

O-RING

ID14.8

22193-64750 TOYOTA

046-004

[01]

94905-05010

NUT, HEXAGON

90099-05225 TOYOTA

047

[01]

09621-80020

COVER, TIMER

-9112

22612-54010 TOYOTA

047

[01]

09621-80270

COVER, TIMER

9112-

22612-56350 TOYOTA

048

[1C]

09620-80161

SPRING, TIMER, OUT

K3.0

22615-54180 TOYOTA

048

[1C]

09620-80330

SPRING, TIMER, OUT

K2.5

22615-54490 TOYOTA

048

[1C]

09620-80560

SPRING, TIMER, OUT

K2.8

22615-5B010 TOYOTA

050

[03]

94914-02960

O-RING

ID26.3 -9310

90099-14051 TOYOTA

050

[03]

94914-05820

O-RING

ID26.3 9311--9508

90099-14105 TOYOTA

050

[03]

09604-90400

O-RING

ID27.5 9509-

22193-17840 TOYOTA

051

[01]

09641-70040

PLUG, DISTRIBUTIVE

22176-54020 TOYOTA

052

[01]

09641-80020

BOLT, DISTRIBUTIVE

22128-54010 TOYOTA

053

[03]

09642-60030

GASKET, DELIVERY V

ID8.2,T1 -9703

22149-56200 TOYOTA

053

[01]

09642-60030

GASKET, DELIVERY V

ID8.2,T1 9704-

22149-56200 TOYOTA

054

[01]

94914-02970

O-RING

ID30 -9607

90099-14052 TOYOTA

054

[01]

09604-90510

O-RING

ID30 9607-

22193-54772 TOYOTA

055

[01]

09624-70010

SHEET, PLUNGER SPR

22145-54010 TOYOTA

056

[02]

09623-70010

GUIDE SUB-ASSY, PL

22192-54010 TOYOTA

057

[02]

09623-60040

SPRING, PLUNGER

K10

22144-54190 TOYOTA

058

[02]

09624-60010

SHEET, PLUNGER SPR

22143-54010 TOYOTA

060

[01]

94914-02980

O-RING

ID60

90099-14053 TOYOTA

062

[02]

09627-90010

SPRING, LEVER SUPP

K1.03

22314-54010 TOYOTA

063

[01]

09648-00010

SMOKE SET SUB-ASSY

063-001

[01]

94914-02900

O-RING

ID 5 -9607

90099-14047 TOYOTA

063-001

[01]

09604-90470

O-RING

ID 5 9607-

22193-54771 TOYOTA

064

[01]

90166-06051

NUT, HEXAGON

M6,L5

90092-10608 TOYOTA

067

[04]

09644-90020

BOLT, SOCKET

M6,L35

22395-54010 TOYOTA

070

[01]

09602-00030

SCREW SUB-ASSY, OV

22160-64010 TOYOTA

071

[05]

09024-10010

WASHER, AIR BLEEDE

22119-77020 TOYOTA

072

[01]

09644-40530

SPRING, RETURN

22322-6A280 TOYOTA

073

[02]

94900-20420

SCREW, COUNTERSUNK

M4,L28

90099-00723 TOYOTA

075

[01]

94914-02910

O-RING

-9111

90099-14048 TOYOTA

075

[01]

09604-90300

O-RING

9111-

22193-54770 TOYOTA

079

[01]

09644-40490

SPRING, RETURN

22322-64740 TOYOTA

080

[1C]

09643-52840

LEVER SUB-ASSY, AD

ANGLE 14

22701-6A410 TOYOTA

080

[1C]

09643-52850

LEVER SUB-ASSY, AD

ANGLE 21.5

22701-6A411 TOYOTA

081

[01]

09644-60093

GASKET, GOVERNOR C

-9112

22774-54010 TOYOTA

081

[01]

09644-60100

GASKET, GOVERNOR C

9112-

22774-54270 TOYOTA

082

[01]

09616-00030

VALVE SUB-ASSY, RE

22180-54010 TOYOTA

082-001

[01]

09604-90180

O-RING

ID10

22193-54561 TOYOTA

082-002

[01]

94914-02920

O-RING

ID 7.5 -9607

90099-14080 TOYOTA

082-002

[01]

09604-90500

O-RING

ID 7.5 9607-

084

[01]

09634-20010

NUT, LOCK

22775-77121 TOYOTA

085

[01]

94918-00770

SCREW, HOLLOW

M12,L43.5

90099-18022 TOYOTA

086

[02]

09626-90020

BOLT, GOVERNOR LIN

22739-54020 TOYOTA

087

[01]

94905-50300

NUT, CAP

M12

90099-05161 TOYOTA

091

[01]

09627-30140

WASHER, GOVERNOR T

T0.5

22378-64010 TOYOTA

092

[2C]

09624-80010

SHIM, PLUNGER SPRI

T0.5

22182-54010 TOYOTA

092

[2C]

09624-80020

SHIM, PLUNGER SPRI

T0.8

22183-54010 TOYOTA

092

[2C]

09624-80030

SHIM, PLUNGER SPRI

T1.0

22184-54010 TOYOTA

092

[2C]

09624-80040

SHIM, PLUNGER SPRI

T1.2

22185-54010 TOYOTA

092

[2C]

09624-80050

SHIM, PLUNGER SPRI

T1.5

22186-54010 TOYOTA

092

[2C]

09624-80060

SHIM, PLUNGER SPRI

T1.8

22187-54010 TOYOTA

092

[2C]

09624-80070

SHIM, PLUNGER SPRI

T2.0

22188-54010 TOYOTA

092

[2C]

09624-80080

SHIM, PLUNGER SPRI

T0.9

22182-17010 TOYOTA

092

[2C]

09624-80090

SHIM, PLUNGER SPRI

T1.1

22182-17011 TOYOTA

092

[2C]

09624-80100

SHIM, PLUNGER SPRI

T1.3

22182-17012 TOYOTA

092

[2C]

09624-80110

SHIM, PLUNGER SPRI

T1.4

22182-17013 TOYOTA

092

[2C]

09624-80220

SHIM, PLUNGER SPRI

T1.6

093

[1C]

09626-60100

WASHER, GOVERNOR G

T1.05

22713-54010 TOYOTA

093

[1C]

09626-60110

WASHER, GOVERNOR G

T1.25

22714-54010 TOYOTA

093

[1C]

09626-60120

WASHER, GOVERNOR G

T1.45

22715-54010 TOYOTA

093

[1C]

09626-60130

WASHER, GOVERNOR G

T1.65

22716-54010 TOYOTA

093

[1C]

09626-60140

WASHER, GOVERNOR G

T1.85

22717-54010 TOYOTA

093

[1C]

09626-60150

WASHER, GOVERNOR G

T1.55

093

[1C]

09626-60160

WASHER, GOVERNOR G

T1.75

093

[1C]

09626-60170

WASHER, GOVERNOR G

T2.05

093

[1C]

09626-60270

WASHER, GOVERNOR G

T1.3

093

[1C]

09626-60280

WASHER, GOVERNOR G

T1.4

093

[1C]

09626-60290

WASHER, GOVERNOR G

T1.5

093

[1C]

09626-60300

WASHER, GOVERNOR G

T1.6

093

[1C]

09626-60310

WASHER, GOVERNOR G

T1.15 9807-

093

[1C]

09626-60320

WASHER, GOVERNOR G

T1.2 9807-

093

[1C]

09626-60330

WASHER, GOVERNOR G

T1.7 9807-

093

[1C]

09626-60340

WASHER, GOVERNOR G

T1.8 9807-

094

[1C]

09625-60400

PLUG, GOVERNOR SLE

L3.0

22787-64641 TOYOTA

094

[1C]

09625-60410

PLUG, GOVERNOR SLE

L3.1

22787-64642 TOYOTA

094

[1C]

09625-60420

PLUG, GOVERNOR SLE

L3.2

22787-64643 TOYOTA

094

[1C]

09625-60430

PLUG, GOVERNOR SLE

L3.3

22787-54026 TOYOTA

094

[1C]

09625-60440

PLUG, GOVERNOR SLE

L3.4

22787-54027 TOYOTA

094

[1C]

09625-60550

PLUG, GOVERNOR SLE

L2.2

22787-64660 TOYOTA

094

[1C]

09625-60560

PLUG, GOVERNOR SLE

L2.3

22787-64661 TOYOTA

094

[1C]

09625-60570

PLUG, GOVERNOR SLE

L2.4

22787-64662 TOYOTA

094

[1C]

09625-60580

PLUG, GOVERNOR SLE

L2.5

22787-64663 TOYOTA

094

[1C]

09625-60590

PLUG, GOVERNOR SLE

L2.6

22787-64664 TOYOTA

094

[1C]

09625-60600

PLUG, GOVERNOR SLE

L2.7

22787-64665 TOYOTA

094

[1C]

09625-60610

PLUG, GOVERNOR SLE

L2.8

22787-64666 TOYOTA

094

[1C]

09625-60620

PLUG, GOVERNOR SLE

L2.9

22787-64667 TOYOTA

095

[01]

09621-40050

WASHER, TIMER SENS

T0.5

22625-54272 TOYOTA

096

[01]

09644-80111

COLLAR, SMOKE SET

ID7.9,L8

097

[1C]

09640-60020

SHIM, PLUNGER ADJU

T1.9

22179-54010 TOYOTA

097

[1C]

09640-60170

SHIM, PLUNGER ADJU

T2.2

22179-54013 TOYOTA

097

[1C]

09640-60270

SHIM, PLUNGER ADJU

T2.4

22179-54015 TOYOTA

097

[1C]

09640-60420

SHIM, PLUNGER ADJU

T2.7

22179-54018 TOYOTA

097

[1C]

09640-60520

SHIM, PLUNGER ADJU

T2.9

22179-54020 TOYOTA

105

[01]

94904-50190

BOLT, HEXAGON, W/

M6,L40

90099-04946 TOYOTA

106

[01]

94904-50180

BOLT, HEXAGON, W/

M6,L32

90099-04576 TOYOTA

107

[01]

09643-81760

BRACKET, IDLE UP

22178-6A360 TOYOTA

108

[01]

09604-50380

WIRE SUB-ASSY

22751-6A041 TOYOTA

109

[01]

09621-00680

COVER SUB-ASSY, TI

22790-6A770 TOYOTA

110

[01]

09643-80110

BRACKET, IDLE UP

22178-64010 TOYOTA

111

[05]

09644-90070

BOLT, SOCKET

M6,L45

22395-58200 TOYOTA

112

[02]

09644-90140

BOLT, SOCKET

M8,L16

22395-56350 TOYOTA

113

[01]

09647-00380

IDLE UP SUB-ASSY

22305-6A770 TOYOTA

114

[02]

09644-90100

BOLT, SOCKET

M6,L10

22395-56352 TOYOTA

115

[01]

09602-90251

CLIP, CONNECTOR SU

22172-64150 TOYOTA

116

[01]

09221-80010

NIPPLE SUB-ASSY, S

22548-64150 TOYOTA

118

[01]

09602-90950

CLIP, CONNECTOR SU

22172-6A330 TOYOTA

120

[01]

90577-02000

E-RING

90096-90024 TOYOTA

121

[01]

94910-02860

BEARING, BALL

OD8

90099-10148 TOYOTA

123

[01]

07630-01241

PICKUP ASSY, TACHO

-9211

83180-32020 TOYOTA

123

[01]

07630-01950

PICKUP ASSY, TACHO

9211-

124

[01]

09604-90190

O-RING

22193-64750 TOYOTA

125

[01]

09647-20590

ACTUATOR SET, IDLE

88031-20080 TOYOTA

127

[01]

09602-90350

CLIP, CONNECTOR SU

22172-64230 TOYOTA

132

[01]

09653-00071

FILTER, SUB-ASSY

22602-56350 TOYOTA

133

[01]

09606-40110

WASHER

22689-56350 TOYOTA

134

[01]

94905-61680

NUT

90179-06009 TOYOTA

135

[01]

09644-90130

BOLT, SOCKET

M6,L14 -0006

22395-54263 TOYOTA

135

[01]

09644-90110

BOLT, SOCKET

M6,L16 0007-

22395-56351 TOYOTA

136

[01]

09653-00111

FILTER, SUB-ASSY

9609-

22602-5B320 TOYOTA

137

[01]

09604-90460

O-RING

ID 6.5 9609-

22193-5B320 TOYOTA

200

[02]

09642-60130

GASKET, DELIVERY V

9704-

22149-54771 TOYOTA

Include in ##:

09600-06560 as PUMP ASSY, INJECTI

Cross reference number

Part num

Firm num

Firm

Name

09600-06560

22100-6D02

PUMP ASSY, INJECTI

0960006560

22100-6D020

TOYOTA

PUMP ASSY, INJECTI

Test Calibration Data:

Get Full test data file

0960006560 22100-6D020

Information:

Part Numbers Impacted
The table below lists Injector assembly part numbers impacted by this change.
Reman Part Number
Family
Description
Reman Part Number
Family
Description
20R0848
EI800
FUEL INJECTOR GP
10R0724
EI550
FUEL INJECTOR GP
20R0849
EI800
FUEL INJECTOR GP
10R0954
EI550
FUEL INJECTOR GP
20R0850
EI800
FUEL INJECTOR GP
10R0955
EI550
FUEL INJECTOR GP
20R0863
EI800
FUEL INJECTOR GP
10R0956
EI550
FUEL INJECTOR GP
20R0864
EI800
FUEL INJECTOR GP
10R0959
EI550
FUEL INJECTOR GP
20R1262
EI800
FUEL INJECTOR GP
10R7228
EI550
FUEL INJECTOR GP
20R1263
EI800
FUEL INJECTOR GP
10R7229
EI550
FUEL INJECTOR GP
20R1264
EI800
FUEL INJECTOR GP
10R7232
EI550
FUEL INJECTOR GP
2R1265
EI800
FUEL INJECTOR GP
10R8501
EI550
FUEL INJECTOR GP
20R1266
EI800
FUEL INJECTOR GP
10R8502
EI550
FUEL INJECTOR GP
20R1267
EI800
FUEL INJECTOR GP
10R8990
EI550
FUEL INJECTOR GP
20R1268
EI800
FUEL INJECTOR GP
10R1000
EI550 BRIDGE
FUEL INJECTOR GP
20R1269
EI800
FUEL INJECTOR GP
10R1273
EI550 ACERT™
FUEL INJECTOR GP
20R1270
EI800
FUEL INJECTOR GP
10R2772
EI550 ACERT™
FUEL INJECTOR GP
20R1271
EI800
FUEL INJECTOR GP

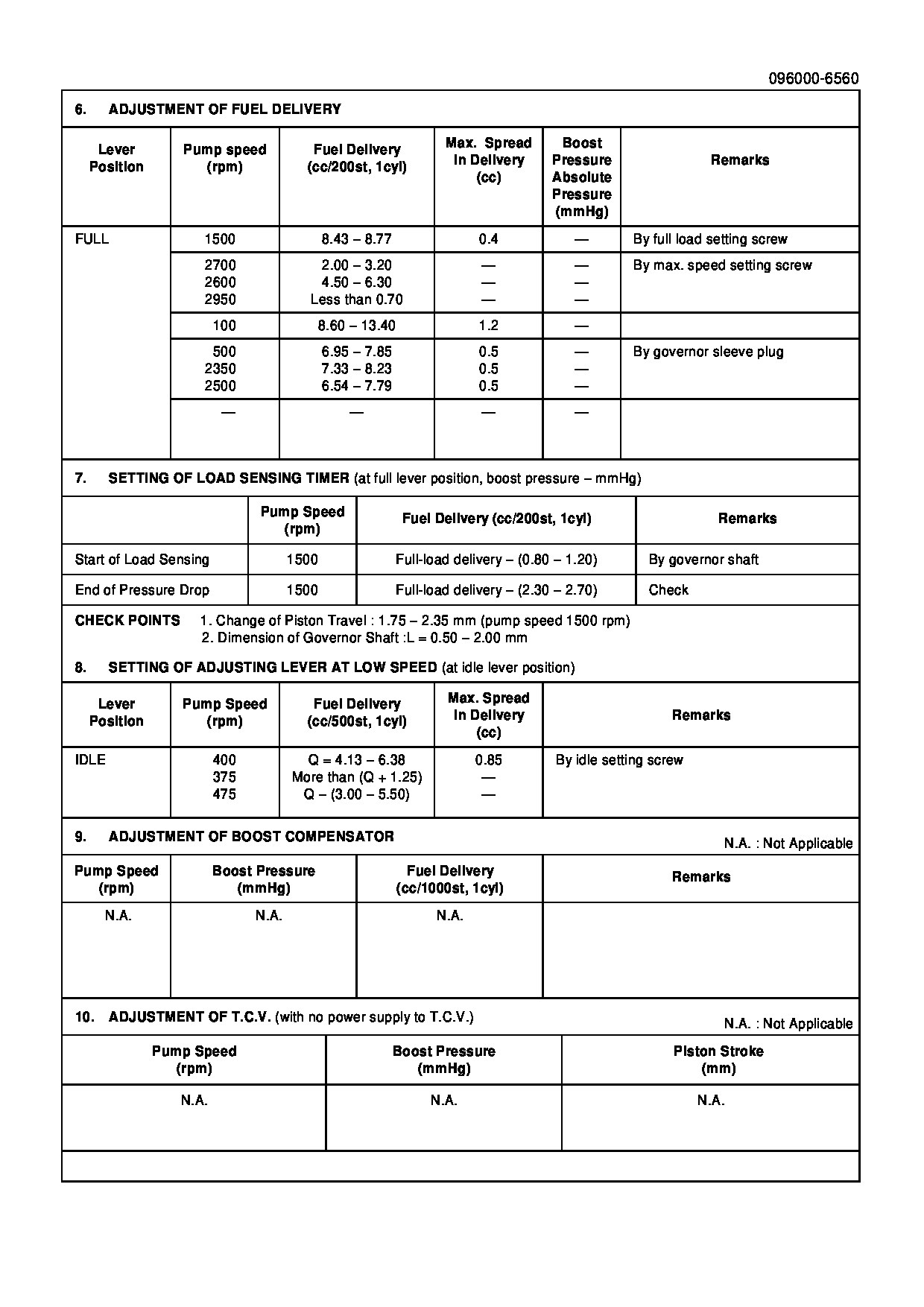

09600-06560 PUMP ASSY, INJECTI Calibration Data

Information pump assy, injecti Denso

KIT List:

Components :

Scheme #.#:

Include in ##:

Cross reference number

Test Calibration Data:

Information:

Have questions with 09600-06560?

Group cross 09600-06560
