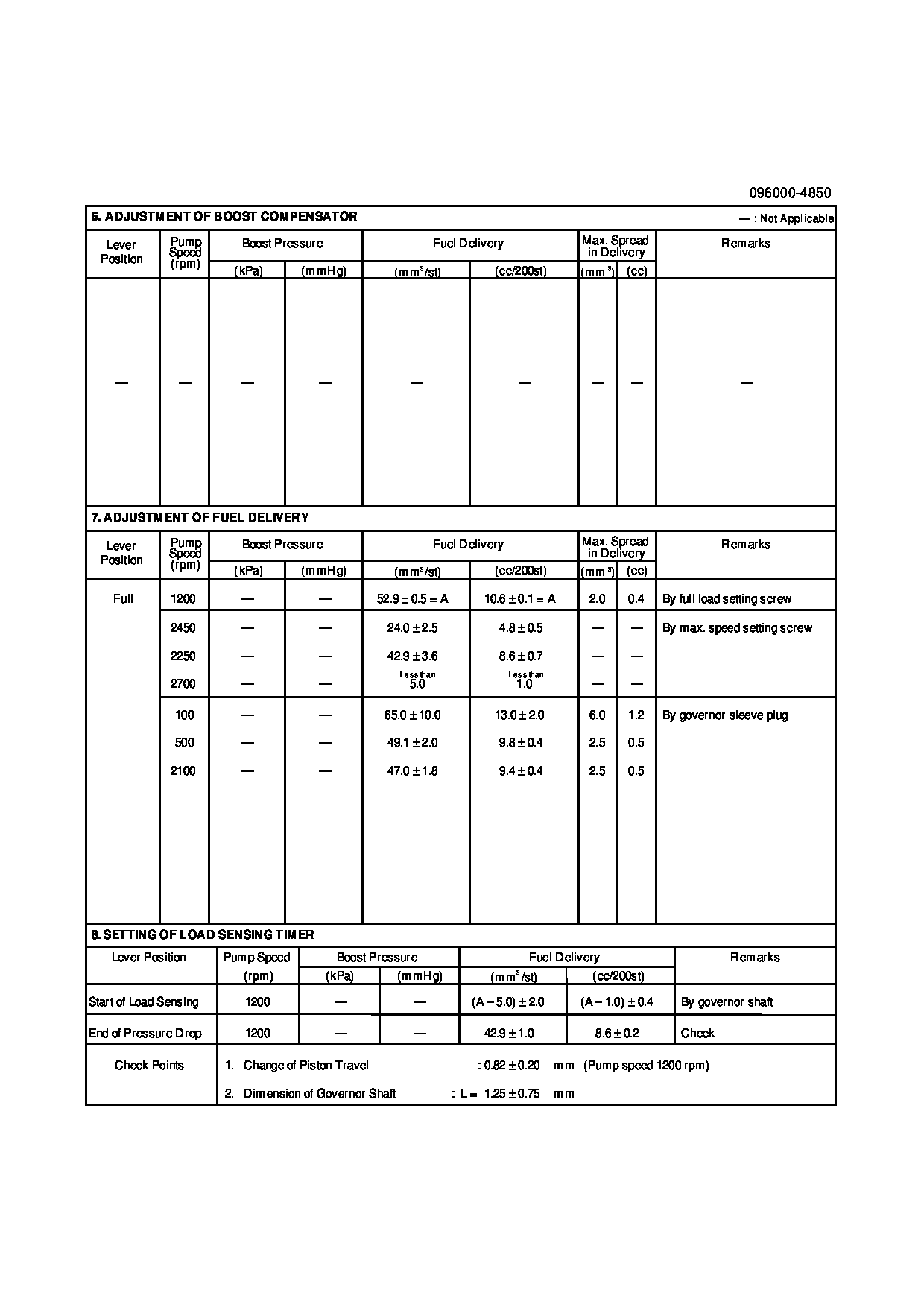

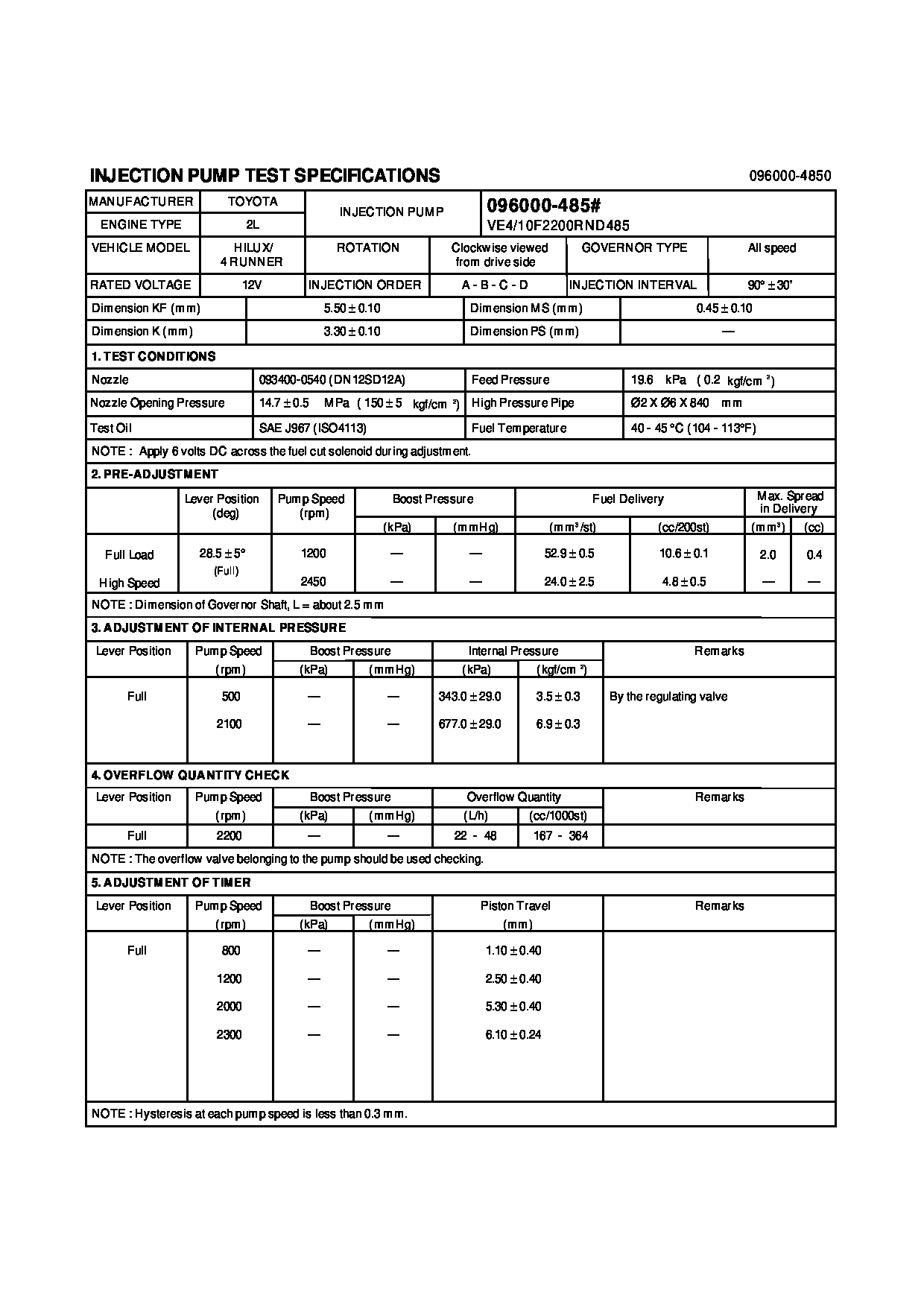

0960004850 TOYOTA PUMP ASSY, INJECTI Calibration Data

Product

Fuel Injection Pump

Vehicle engine

HILUX 2L

Engine

2L

Serial start-end

8804-

Info

Injector Nozzle

093500-4180

Manufacture:

22100-54770 TOYOTA

Dim 1

3.2-3.4

Dim 2

5.4-5.6

Dim 3

0.35-0.55

Dim 4

Dim 5

Dim 6

Information

THE CONNECTING PORTION BETWEEN COUPLING AND DRIVESHAFT END HAS BEEN MODIFIED SINCE JULY, 2000.A COUPLING SPACER IS ADOPTED INSTEAD OF SPRING. KF DIMENSION IS 5.2-5.4MM AFTER THE MODIFICATION.
