Information pump assy, injecti Denso
Product

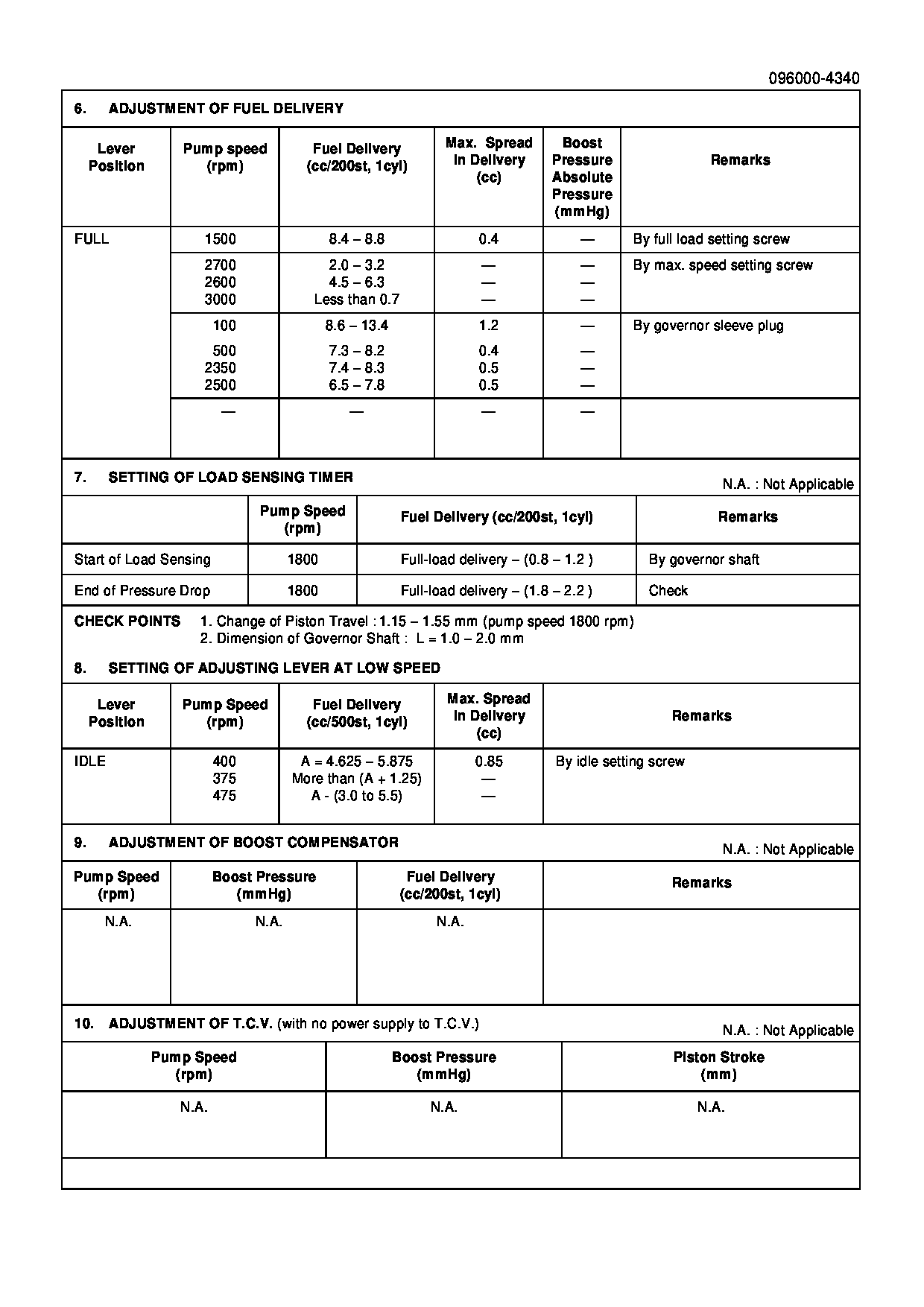

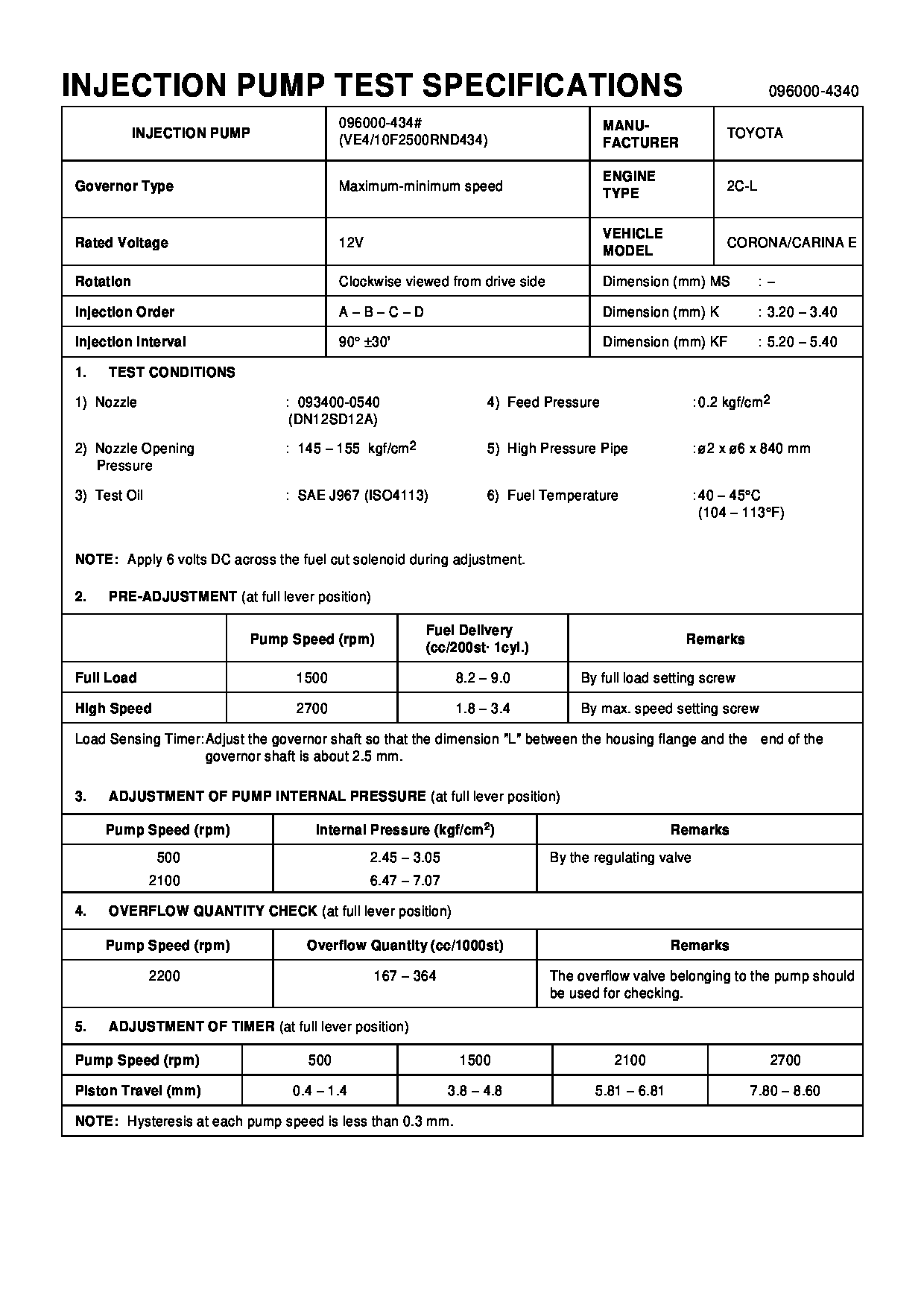

Fuel Injection Pump
Vehicle engine
CARINA 2C-L
Engine
2C-L
Serial start-end
8712--9007
Info
Injector Nozzle
093500-3650
Manufacture:
22100-6A550 TOYOTA
Dim 1
3.2-3.4
Dim 2
5.2-5.4
Dim 3
0.43-0.63
Dim 4
Dim 5
Dim 6
Information
TOYOTA
PUMP ASSY, INJECTI
AA
- *1 NEW PARTS ARE INTERCHANGEABLE WITH OLD ONE, IF
- NO.109 AND 113 ARE CHANGED AT THE SAME TIME.
Injector nozzle:
0935003650
KIT List:
Part name
Kit1
Kit2
Components :
Scheme #.#:
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09600-04340
PUMP ASSY, INJECTI
22100-6A550
TOYOTA
Include in ##:
09600-04340
as PUMP ASSY, INJECTI
Cross reference number
Part num
Firm num
Firm
Name
09600-04340
22100-6A55
TOYOTA
PUMP ASSY, INJECTI
0960004340
22100-6A550
TOYOTA
PUMP ASSY, INJECTI
