09450-08470 PUMP ASSY, INJECTI Calibration Data


Rating:
79
Buy PUMP ASSY, INJECTI 09450-08470 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL V3007-DI
Engine
V3007-DI
Serial start-end
0510-
Info
Injector Nozzle
093500-8040
Injector nozzle: 0935008040

Components :

00.001
PUMP ASSY, INJECTI
PFR4M -0806
00.001
PUMP ASSY, INJECTI
PFR4M 1306-
00.001
PUMP ASSY, INJECTI
PFR4M 0806--1306

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09450-08470
PUMP ASSY, INJECTI
PFR4M -0806
1G774-51013 KUBOTA
000
[01]
PUMP ASSY, INJECTI
PFR4M 0806--1306
1G774-51013 KUBOTA
000
[01]
PUMP ASSY, INJECTI
PFR4M 1306-
1G774-51013 KUBOTA
003
[01]
HOUSING SUB-ASSY,
-0806
003
[01]
HOUSING SUB-ASSY,
0806--1306
003
[01]
HOUSING SUB-ASSY,
1306-
004
[04]
HOLDER, DELIVERY V
005
[04]
GASKET, DELIVERY V
ID 9
11420-51241 KUBOTA
006
[04]
O-RING
ID14.8
007
[04]
ELEMENT SUB-ASSY,
-0806
007
[04]
ELEMENT SUB-ASSY,
0806-
008
[04]
SLEEVE, PLUNGER CO
009
[04]
SEAT, SPRING, UPR
15221-51271 KUBOTA
010
[04]
SPRING, PUMP PLUNG
011
[04]
TAPPET SUB-ASSY,IN
ASSY -1306
011
[04]
TAPPET SUB-ASSY,IN
1306-
012
[04]
PIN, INJECTION PUM
14611-51251 KUBOTA
013
[01]
RACK ASSY, CONTROL
014
[02]
WASHER, FUEL PIPE
T1.5
15401-96652 KUBOTA
015
[02]
PLATE, DELIVERY VA
016
[02]
PLATE, DELIVERY VA
017
[01]
WASHER, DRAIN SCRE
T1.0 -0806
16241-96661 KUBOTA
018
[04]
SEAT, SPRING, LWR
15021-51291 KUBOTA
019
[4C]
PLATE, TAPPET ADJU
T0.64
019
[4C]
PLATE, TAPPET ADJU
T0.66
019
[4C]
PLATE, TAPPET ADJU
T0.68
019
[4C]
PLATE, TAPPET ADJU
T0.70
019
[4C]
PLATE, TAPPET ADJU
T0.72
019
[4C]
PLATE, TAPPET ADJU
T0.74
019
[4C]
PLATE, TAPPET ADJU
T0.76
019
[4C]
PLATE, TAPPET ADJU
T0.78
019
[4C]
PLATE, TAPPET ADJU
T0.80
019
[4C]
PLATE, TAPPET ADJU
T0.82
019
[4C]
PLATE, TAPPET ADJU
T0.84
019
[4C]
PLATE, TAPPET ADJU
T0.86
019
[4C]
PLATE, TAPPET ADJU
T0.88
019
[4C]
PLATE, TAPPET ADJU
T0.90
019
[4C]
PLATE, TAPPET ADJU
T0.92
019
[4C]
PLATE, TAPPET ADJU
T0.94
019
[4C]
PLATE, TAPPET ADJU
T0.96
019
[4C]
PLATE, TAPPET ADJU
T0.98
019
[4C]
PLATE, TAPPET ADJU
T1.00
019
[4C]
PLATE, TAPPET ADJU
T1.02
019
[4C]
PLATE, TAPPET ADJU
T1.04
019
[4C]
PLATE, TAPPET ADJU
T1.06
020
[02]
PLATE
14611-51441 KUBOTA
021
[01]
NIPPLE, OIL LEAKAG
-0806
022
[04]
VALVE SUB-ASSY, DI
023
[04]
SPRING, DELIVERY V
024
[04]
SEAT, SNUBBER VALV
026
[02]
BOLT
M6,L38
027
[01]
SCREW, HOLLOW
M14,L26
029
[01]
PLUG
0806-

Include in ##:

09450-08470 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09450-08470
1G774-5101
PUMP ASSY, INJECTI
0945008470
1G774-51013
KUBOTA
PUMP ASSY, INJECTI

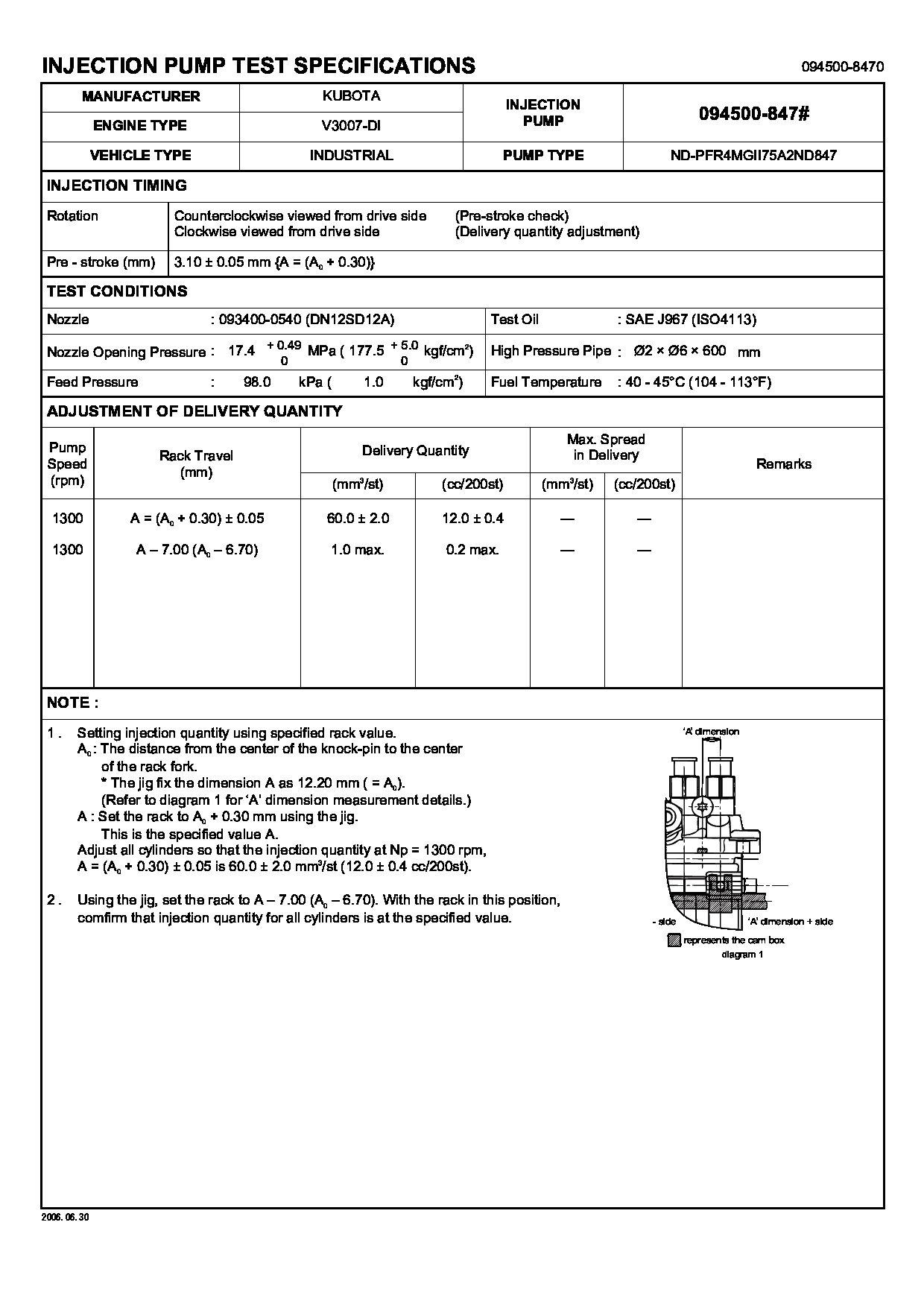

Test Calibration Data:

0945008470




Information:


REMOVING CONNECTING ROD BEARING CAP4. Push the piston and connecting rod upward until the piston rings clear the cylinder block. Remove the piston and connecting rod from the cylinder block.
REMOVING PISTON
Do not allow the connecting rods to hit the bottom edge of the cylinder bores or crankshaft journals when removing or installing. Check the lower portion of the bores for burrs or scratches. Use crocus cloth to remove any burrs or scratches from bottom edge of the bores.
5. Keep the connecting rod bearing cap with its respective connecting rod and piston.6. Repeat Steps 2 through 5 for the remaining pistons.Install Pistons
1. Rotate the crankshaft to position bearing journal of the piston to be installed.2. Lubricate the crankshaft bearing journal, bore in cylinder block, piston, rings, and connecting rod bearings with clean engine oil (SAE 30).3. Install a 1Y7426 Ring Compressor (3), or the 4S9450 Compressor (1) and the 4S9446 Clamp (2) from the 4S9458 Teflon Seal Tool Group, on the piston to compress the rings. Install the piston and connecting rod in cylinder bore with piston crater toward vee of engine. Guide the lower end of connecting rod over the crankshaft journal to prevent damage to the crankshaft.
INSTALLING PISTON
1. 4S9450 Compressor. 2. 4S9446 Clamp.
INSTALLING PISTON ALTERNATE METHOD
3. 1Y7426 Ring Compressor.4. Install the connecting rod cap to connecting rod so numbers correspond and both numbers appear on the same side. Lubricate bolt threads, seating faces of cap and nuts, install the retaining nuts and tighten to 30 3 lb. ft. (4.1 0.4 mkg). Mark cap and nut with matching marks. Tighten additional from mark 60° 5°.5. Repeat Steps 1 thru 4 for the remaining pistons.Disassemble Piston
PISTON ASSEMBLY1. Use ring expander (1) to remove rings.
REMOVING RINGS
1. 5F9059 Ring Expander.2. Remove snap ring (5) and push piston pin (2) out of piston (4) and connecting rod (3).
PISTON DISASSEMBLED
2. Piston pin. 3. Connecting rod. 4. Piston. 5. Snap ring.Assemble Piston
1. Install connecting rod into piston with boss on rod on same side as crater in piston crown.
CONNECTING ROD AND PISTON
CONNECTING ROD AND PISTON Installation of connecting rods WITHOUT BOSS on rod; Install connecting rod into piston with cylinder identification number (as marked on the lower end of the rod and on the cap) 180° opposite the crater in piston crown.2. Install piston pin and snap rings.3. Use the 8S2304 Piston Ring Groove Cleaner to clean the piston ring grooves before installing piston rings.4. Install oil ring spring (6) before installing oil ring.
8S2304 RING GROOVE CLEANER
INSTALLING OIL RING SPRING
6. Oil ring spring.5. Use a 5F9059 Ring Expander to install piston rings. Install compression ring with side marked "TOP" toward top of piston. Install oil ring with gap 180° from oil ring spring joint and approximately 120° from compression ring gap.
