09450-08140 PUMP ASSY, INJECTI Calibration Data


Rating:
3
Buy PUMP ASSY, INJECTI 09450-08140 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL S4L2
Engine
S4L2
Serial start-end
0301-
Info
Injector Nozzle
093500-3840
Injector nozzle: 0935003840

Components :

00.001
PUMP ASSY, INJECTI
PFR4M

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09450-08140
PUMP ASSY, INJECTI
PFR4M
005
[01]
HOUSING SUB-ASSY,
006
[04]
HOLDER, DELIVERY V
007
[04]
SPRING, DELIVERY V
008
[04]
GASKET, DELIVERY V
D11.8
009
[04]
VALVE SUB-ASSY, IN
MK:261
010
[04]
ELEMENT SUB-ASSY,
011
[04]
SLEEVE, PLUNGER CO
012
[04]
SEAT, SPRING, UPR
013
[04]
SPRING, PUMP PLUNG
L36.3
014
[04]
TAPPET SUB-ASSY,IN
014-001
[04]
TAPPET, INJECTION
014-002
[04]
ROLLER, FEED PUMP
014-003
[04]
PIN, INJECTION PUM
015
[04]
PIN, INJECTION PUM
016
[01]
RACK ASSY, CONTROL
017
[04]
SEAT, SPRING, LWR
018
[02]
PLATE
019
[4C]
PLATE, TAPPET ADJU
T0.6
019
[4C]
PLATE, TAPPET ADJU
T0.2
019
[4C]
PLATE, TAPPET ADJU
T0.3
019
[4C]
PLATE, TAPPET ADJU
T0.4
019
[4C]
PLATE, TAPPET ADJU
T0.5
019
[4C]
PLATE, TAPPET ADJU
T0.25
019
[4C]
PLATE, TAPPET ADJU
T0.35
019
[4C]
PLATE, TAPPET ADJU
T0.45
019
[4C]
PLATE, TAPPET ADJU
T0.55
019
[4C]
PLATE, TAPPET ADJU
T0.65
020
[01]
WASHER, COPPER PLA
T1,ID8.2
021
[01]
SCREW, AIR BLEEDER
022
[01]
SCREW, HOLLOW
M14,L26
023
[03]
PLATE, ADJUSTING
024
[03]
BOLT, WASHER HEAD
M6,L8
025
[04]
O-RING
ID14.8 -0501
025
[04]
O-RING
ID14.8 0502-

Include in ##:

09450-08140 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09450-08140

PUMP ASSY, INJECTI

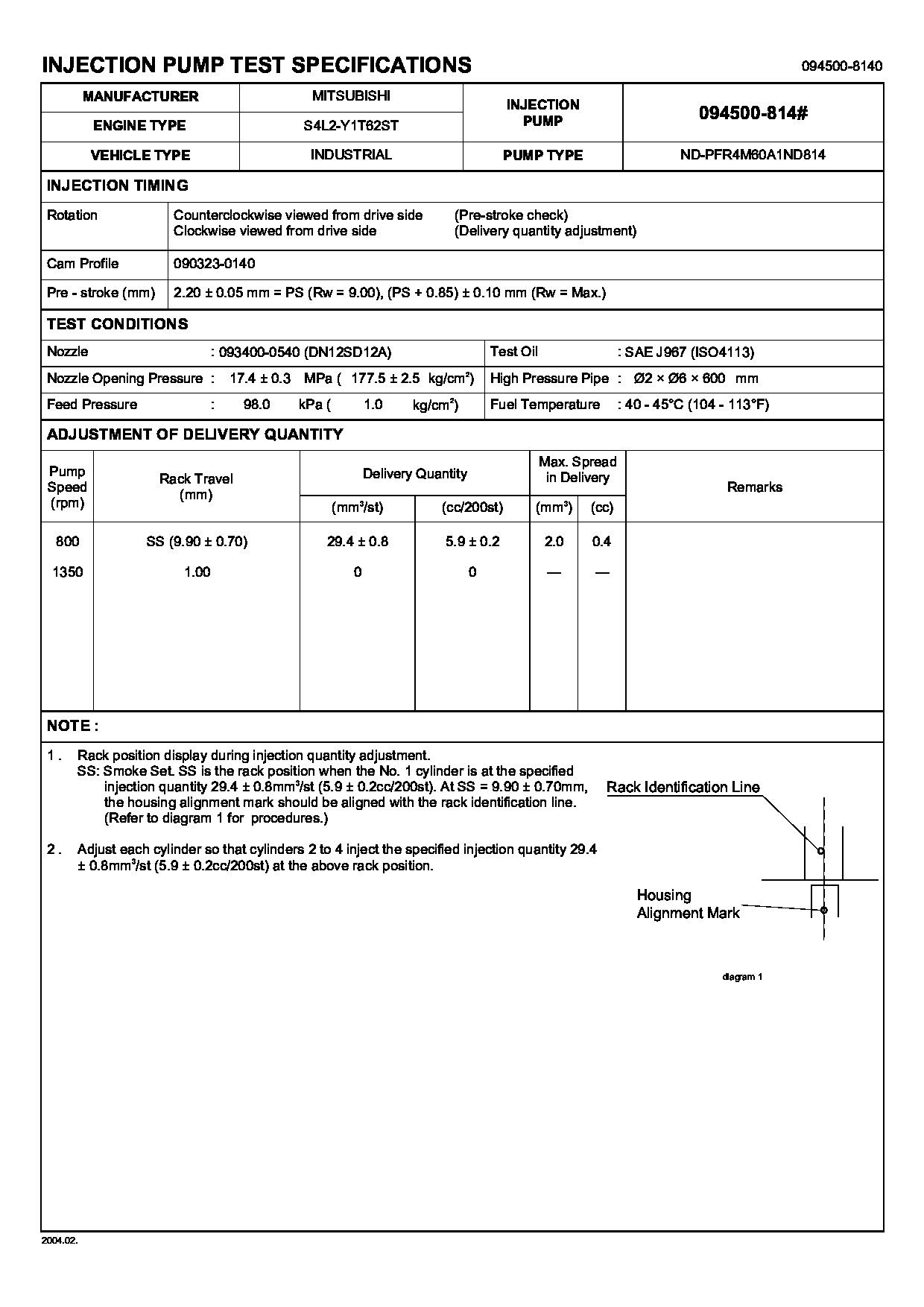

Test Calibration Data:

0945008140




Information:

1. Remove plate (2) from the idle screw housing.2. Remove cover (1) for the idle screw. 3. Remove two bolts (7) and lock. Remove lever (6) for fuel shutoff solenoid.4. Remove idle screw (4). Remove bolt (3) and idle screw housing (5). 5. Remove screw (8) that holds rack stop collar (10) to the governor shaft.6. Remove rack stop collar (10) and spring.7. Remove bolts (9) that hold the governor housing to the fuel injection pump housing. Remove the governor housing. 8. Remove seat (18), wave washer (17), washer (16), wave washer (15) and governor spring (14).9. Remove washer (13).10. Remove three bolts (11) and locks that hold cylinder and weight assemblies (12) to the pump housing. Remove the cylinder and weight assemblies from the rack.Connection Of Governor To Fuel Injection Pump Housing
1. Put cylinder and weight assemblies (1) on the fuel injection pump housing. Be sure the groove (slot) in piston (2) is engaged in groove (slot) in rack (3). 2. Install the lock and three bolts (4) that hold the cylinder and weight assemblies on the pump housing. Make sure washer (8) is between wave washers (7) and (9).3. Install washer (6), governor spring (5), wave washer (7), washer (8), wave washer (9) and seat (10) on the cylinder and weight assemblies. 4. Install the spring and rack stop collar (13).5. Install the screw that holds the collar to the bolt.6. Install idle screw housing (11). Install idle screw (12).7. Install lever (14), lock and bolts for the fuel shutoff solenoid.8. Install the cover for the idle screw.9. Install the plate for the idle screw housing.end by:a) install fuel injection pump housing and governorb) make adjustments to the rack and governor (see RACK SETTING and GOVERNOR ADJUSTMENTS in TESTING AND ADJUSTING)
