09450-07360 PUMP ASSY, INJECTI Calibration Data Denso

Information Cross number Test Calibration Data Calibration Data Ex

Buy now

Add to cart Go to cart

Rating:

Buy PUMP ASSY, INJECTI 09450-07360 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product

Fuel Injection Pump

Vehicle engine

agricultural machine S4L-T61ST

Engine

S4L-T61ST

Serial start-end

9802-

Info

Injector Nozzle

093500-3840

Injector nozzle: 0935003840

Components :

00.001

PUMP ASSY, INJECTI

09450-07360 MITSUBISHI HEAEY INDUSTRIES

PFR4M

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

09450-07360

PUMP ASSY, INJECTI

PFR4M

005

[01]

09011-05070

HOUSING SUB-ASSY,

006

[04]

09013-10520

HOLDER, DELIVERY V

007

[04]

09013-60540

SPRING, DELIVERY V

008

[04]

09013-70130

GASKET, DELIVERY V

009

[04]

09014-02670

VALVE SUB-ASSY, IN

010

[04]

09015-05550

ELEMENT SUB-ASSY,

011

[04]

09016-10210

SLEEVE, PLUNGER CO

012

[04]

09016-30082

SEAT, SPRING, UPR

013

[04]

09016-40170

SPRING, PUMP PLUNG

014

[04]

09017-00170

TAPPET SUB-ASSY,IN

014-001

[04]

09017-10022

TAPPET, INJECTION

014-002

[04]

09217-60010

ROLLER, FEED PUMP

014-003

[04]

09017-60020

PIN, INJECTION PUM

015

[04]

09018-30050

PIN, INJECTION PUM

016

[01]

09021-00440

RACK ASSY, CONTROL

017

[04]

09030-10060

SEAT, SPRING, LWR

018

[02]

09046-70030

PLATE

019

[4C]

09031-10010

PLATE, TAPPET ADJU

T0.6

019

[4C]

09031-10110

PLATE, TAPPET ADJU

T0.2

019

[4C]

09031-10120

PLATE, TAPPET ADJU

T0.3

019

[4C]

09031-10130

PLATE, TAPPET ADJU

T0.4

019

[4C]

09031-10140

PLATE, TAPPET ADJU

T0.5

019

[4C]

09031-10160

PLATE, TAPPET ADJU

T0.25

019

[4C]

09031-10170

PLATE, TAPPET ADJU

T0.35

019

[4C]

09031-10280

PLATE, TAPPET ADJU

T0.45

019

[4C]

09031-10300

PLATE, TAPPET ADJU

T0.55

019

[4C]

09031-10310

PLATE, TAPPET ADJU

T0.65

020

[01]

94901-81020

WASHER, COPPER PLA

021

[01]

09024-40180

SCREW, AIR BLEEDER

022

[01]

94918-00310

SCREW, HOLLOW

M14,L26

023

[03]

09006-80020

PLATE, ADJUSTING

024

[03]

94904-80800

BOLT, WASHER HEAD

M6,L8

025

[04]

90802-20150

O-RING

ID14.8 -0501

025

[04]

09013-90410

O-RING

ID14.8 0502-

Include in ##:

09450-07360 as PUMP ASSY, INJECTI

Cross reference number

Part num

Firm num

Firm

Name

09450-07360

PUMP ASSY, INJECTI

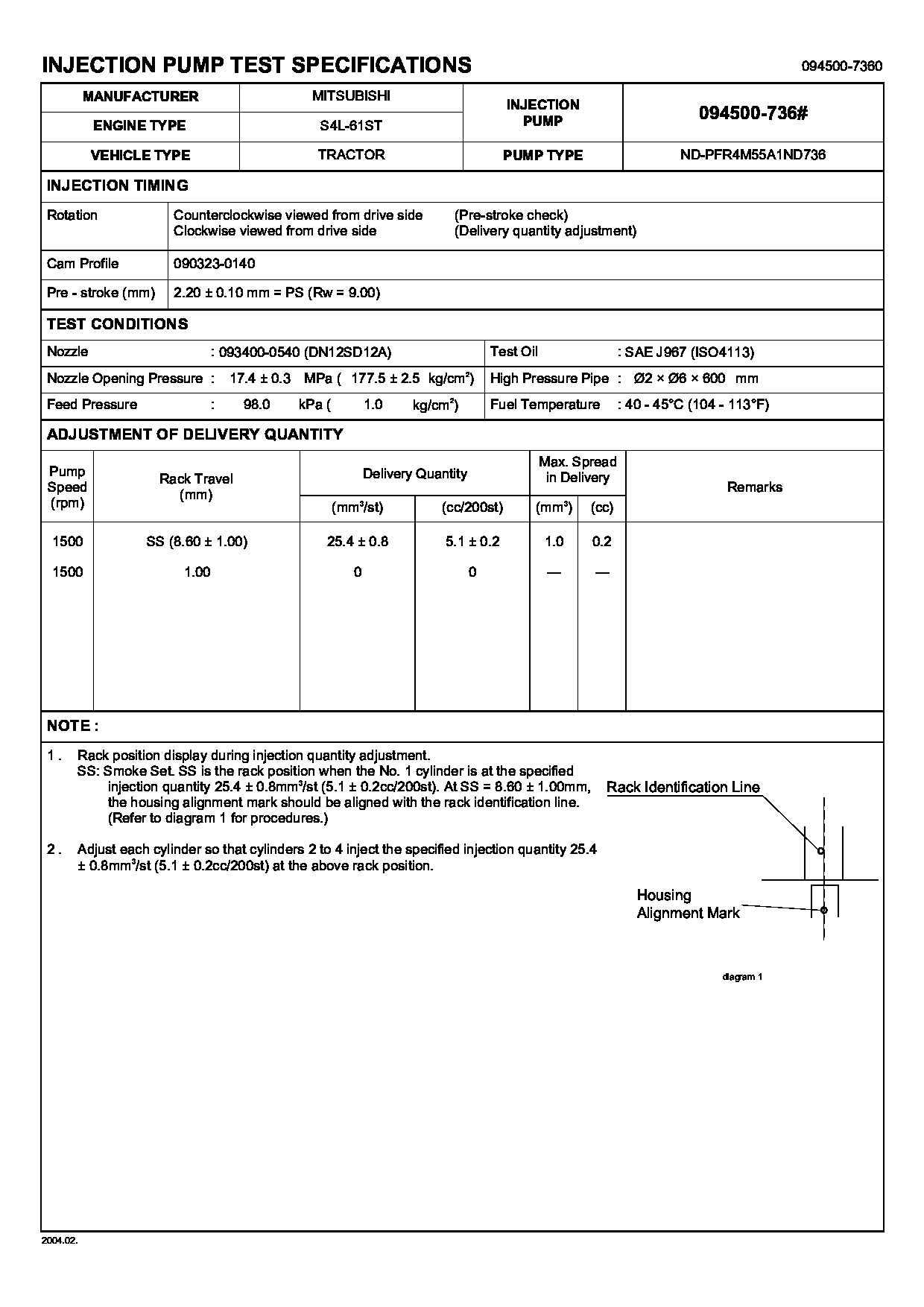

Test Calibration Data:

Get Full test data file

0945007360 31A65-02040
