Information pump assy, injecti Denso
Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL ZB600-E-KTC-1
Engine
ZB600-E-KTC-1
Serial start-end
9601-
Info
Injector Nozzle
093500-1560
Injector nozzle:
0935001560
Components :
Scheme #.#:
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09450-06670

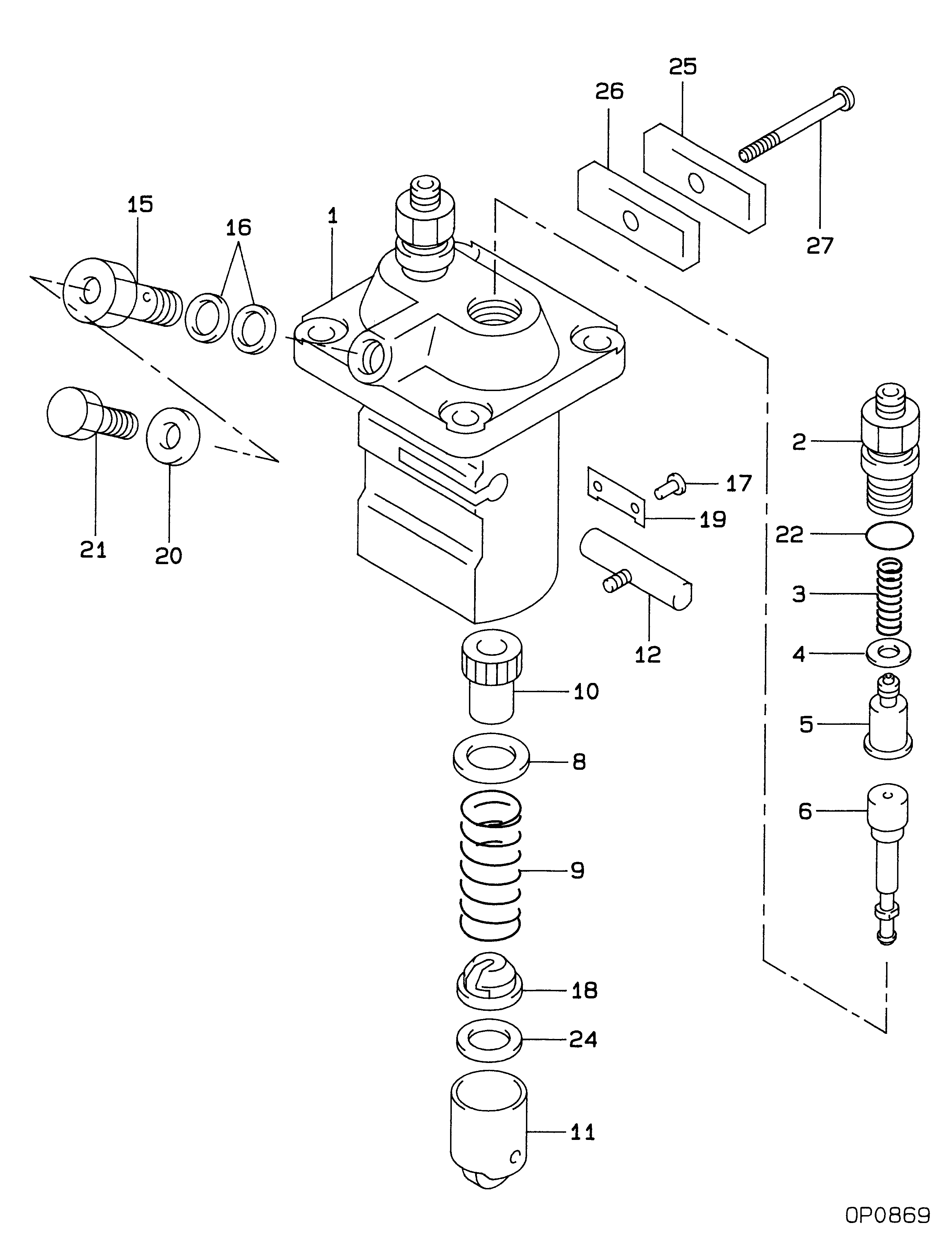

PUMP ASSY, INJECTI
PFR2M
1G121-51012
KUBOTA
Include in ##:
09450-06670
as PUMP ASSY, INJECTI
Cross reference number
Part num
Firm num
Firm
Name
09450-06670
1G121-5101
PUMP ASSY, INJECTI
0945006670
1G121-51012
KUBOTA
PUMP ASSY, INJECTI
