Information pump assy, injecti Denso
Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL EL-300-E
Engine
EL-300-E
Serial start-end
9402-
Info
Injector Nozzle
093500-1930
Injector nozzle:
0935001930
Components :
Scheme #.#:
№
Qty
Part num
Name
Remarks
Manufacture num
Cross reference number
Part num
Firm num
Firm
Name

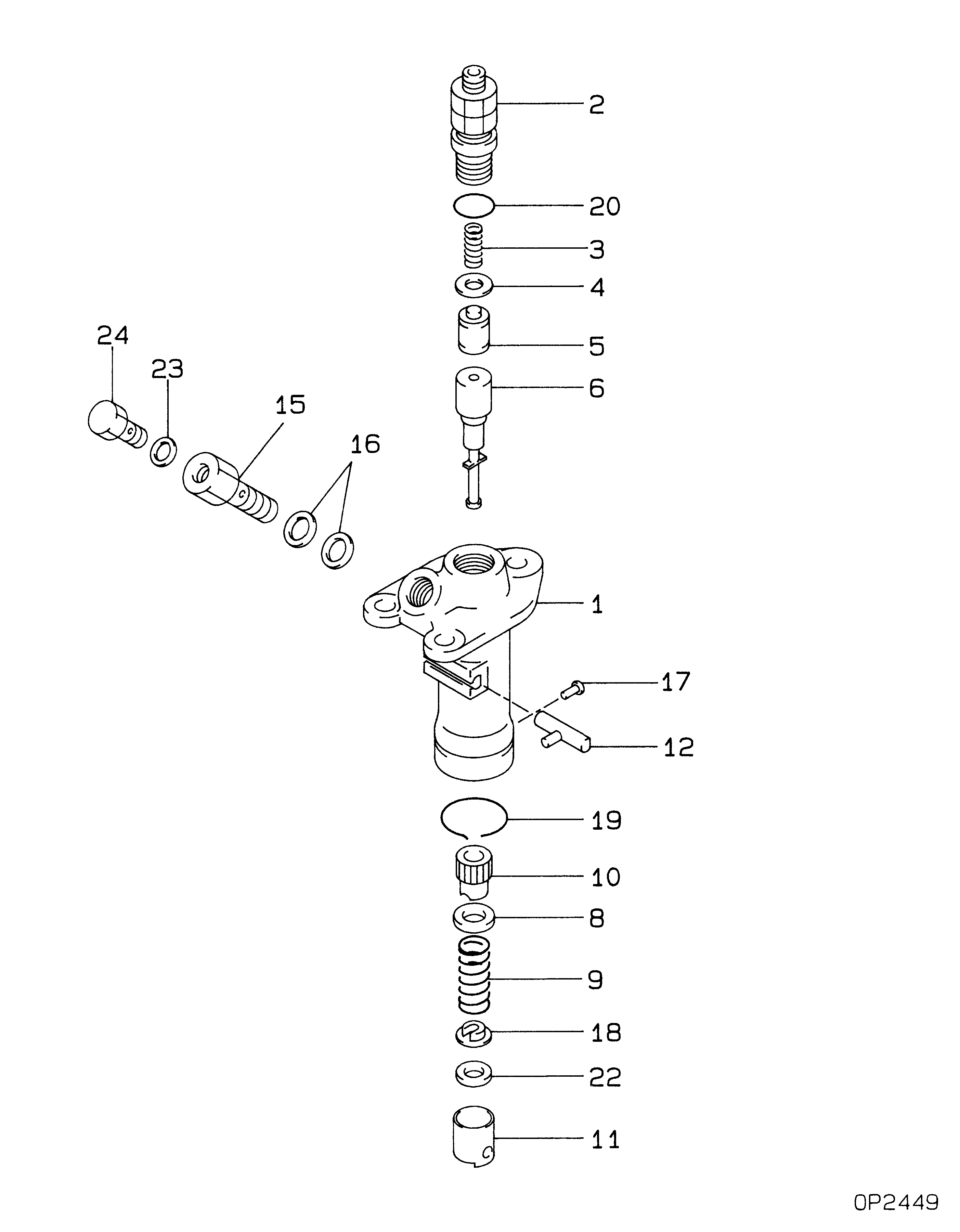

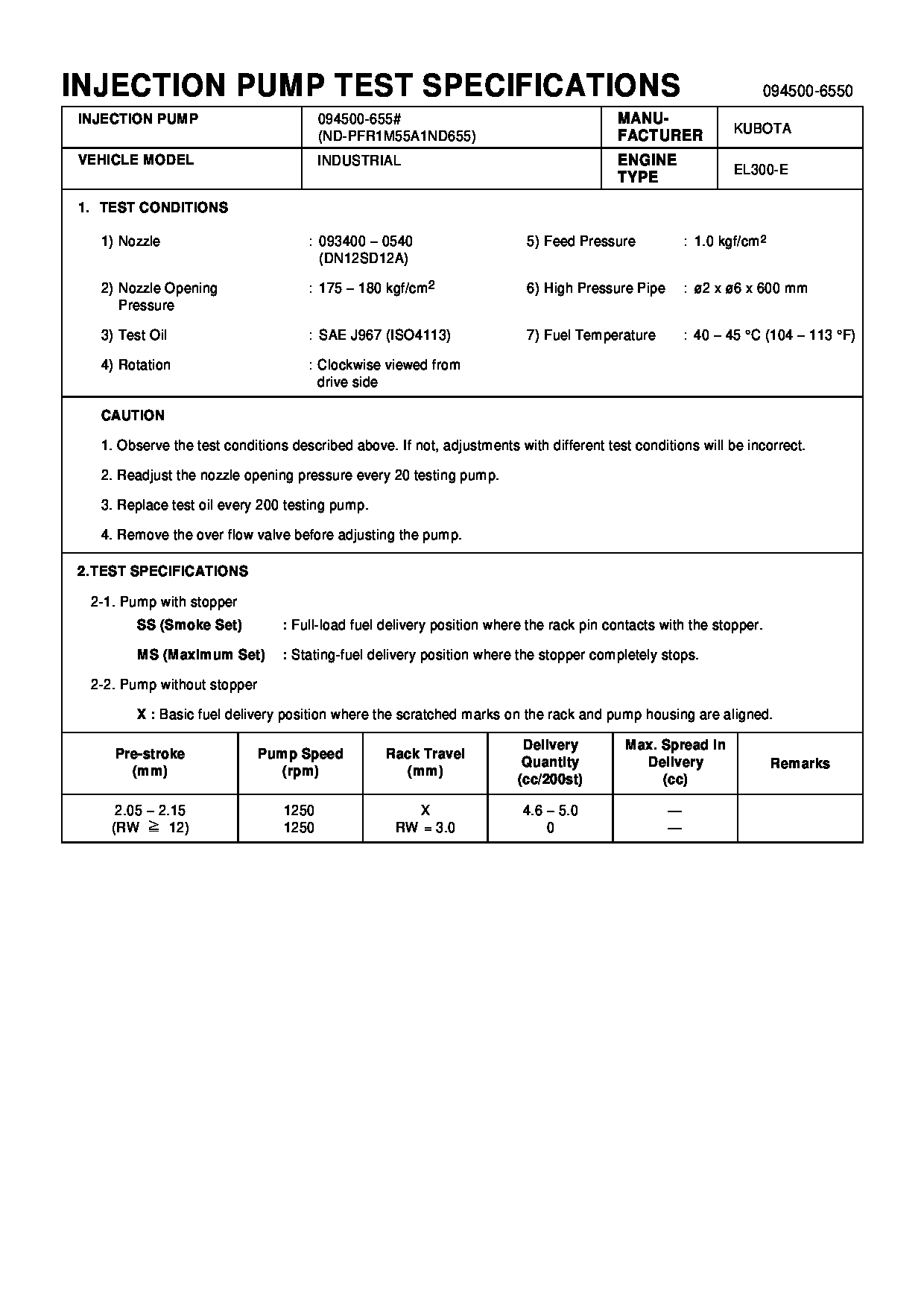

09450-06550
PUMP ASSY, INJECTI
0945006550
19701-51013
KUBOTA
PUMP ASSY, INJECTI
