09450-06110 PUMP ASSY, INJECTI Calibration Data


Rating:
22
Buy PUMP ASSY, INJECTI 09450-06110 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
Construction machine K4E-31
Engine
K4E-31
Serial start-end
9201--9605
Info
Injector Nozzle
093500-1660
Injector nozzle: 0935001660

Components :

00.001
PUMP ASSY, INJECTI
PFR4M

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09450-06110
PUMP ASSY, INJECTI
PFR4M
005
[01]
HOUSING SUB-ASSY,
006
[04]
HOLDER, DELIVERY V
007
[04]
SPRING, DELIVERY V
008
[04]
GASKET, DELIVERY V
009
[04]
VALVE SUB-ASSY, IN
010
[04]
ELEMENT SUB-ASSY,
MK:1840
011
[04]
SLEEVE, PLUNGER CO
012
[04]
SEAT, SPRING, UPR
013
[04]
SPRING, PUMP PLUNG
014
[04]
TAPPET SUB-ASSY,IN
014-001
[04]
TAPPET, INJECTION
014-002
[04]
ROLLER, FEED PUMP
014-003
[04]
PIN, INJECTION PUM
015
[04]
PIN, INJECTION PUM
016
[01]
RACK ASSY, CONTROL
017
[04]
SEAT, SPRING, LWR
018
[02]
PLATE
019
[4C]
PLATE, TAPPET ADJU
T0.6
019
[4C]
PLATE, TAPPET ADJU
T0.2
019
[4C]
PLATE, TAPPET ADJU
T0.3
019
[4C]
PLATE, TAPPET ADJU
T0.4
019
[4C]
PLATE, TAPPET ADJU
T0.5
019
[4C]
PLATE, TAPPET ADJU
T0.25
019
[4C]
PLATE, TAPPET ADJU
T0.35
019
[4C]
PLATE, TAPPET ADJU
T0.45
019
[4C]
PLATE, TAPPET ADJU
T0.55
019
[4C]
PLATE, TAPPET ADJU
T0.65
020
[02]
WASHER, FUEL PIPE
-9705
020
[02]
WASHER, COPPER PLA
9706-
021
[02]
SCREW, AIR BLEEDER
022
[01]
SCREW, HOLLOW
023
[03]
PLATE, ADJUSTING
024
[03]
BOLT, WASHER HEAD
025
[01]
SPRING, DIAPHRAGM
026
[01]
SPRING, DIAPHRAGM
027
[04]
O-RING
ID14.8
028
[01]
E-RING
029
[01]
E-RING
032
[1C]
STOPPER
6,L17.0
032
[1C]
STOPPER
7,L16.9
032
[1C]
STOPPER
8,L16.8
032
[1C]
STOPPER
9,L16.7
032
[1C]
STOPPER
10,L16.6
032
[1C]
STOPPER
11,L16.85
032
[1C]
STOPPER
11L16.75
033
[1C]
STOPPER
58,L2.1
033
[1C]
STOPPER
59,L2.2
033
[1C]
STOPPER
60,L2.3
033
[1C]
STOPPER
61,L2.4
033
[1C]
STOPPER
62,L2.5
033
[1C]
STOPPER
63,L2.6
033
[1C]
STOPPER
64,L2.7
033
[1C]
STOPPER
65,L2.8
033
[1C]
STOPPER
66,L2.9
033
[1C]
STOPPER
67,L3.0
033
[1C]
STOPPER
68,L3.1
033
[1C]
STOPPER
69,L3.2
033
[1C]
STOPPER
70,L3.3
033
[1C]
STOPPER
71,L3.4
033
[1C]
STOPPER
72,L3.5

Include in ##:

09450-06110 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09450-06110

PUMP ASSY, INJECTI

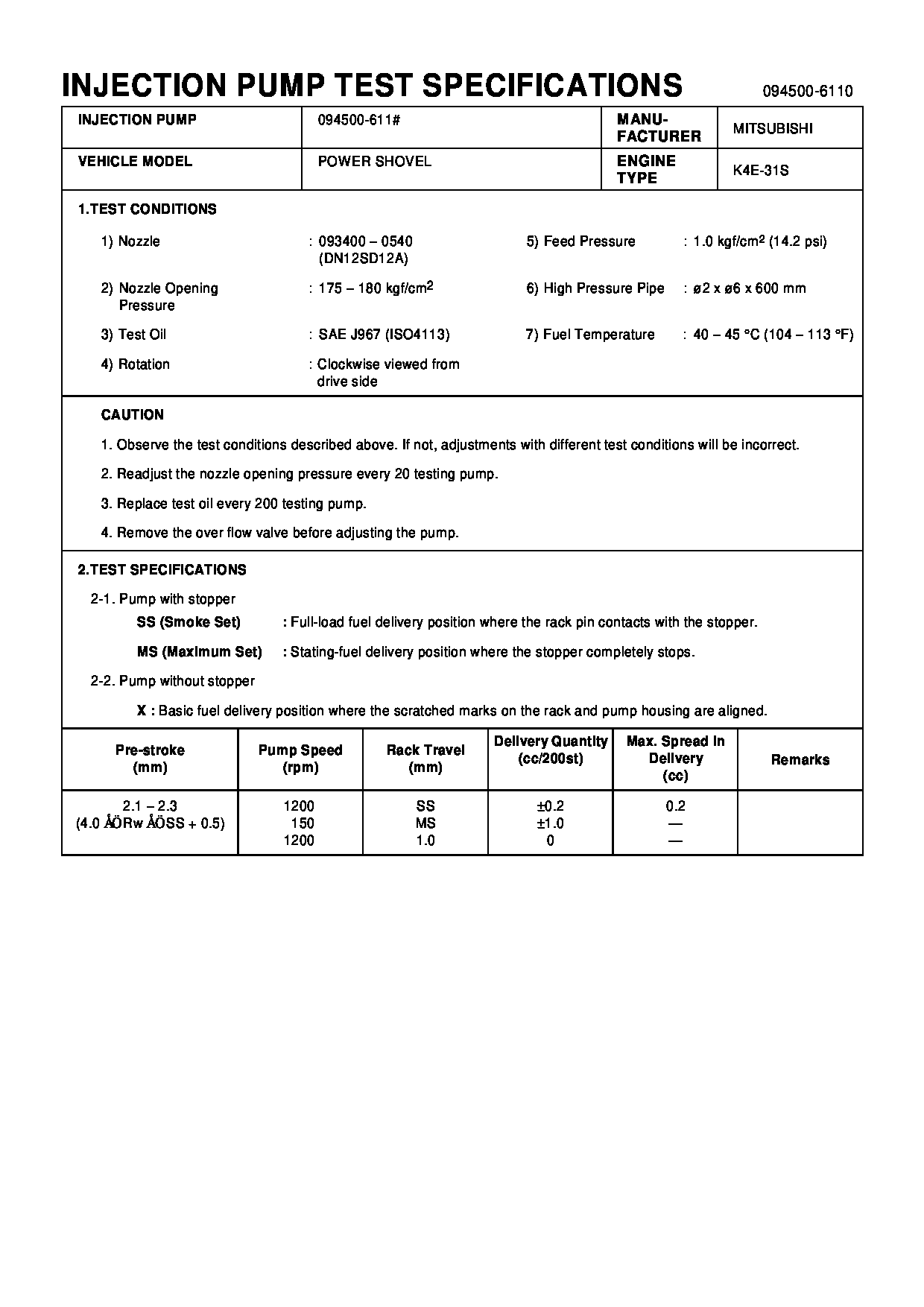

Test Calibration Data:

0945006110 30A6502700




Information:

The information supplied in this service letter may not be valid after the termination date of this program. Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
Termination Date
March 31, 1997Problem
Improvements have been made to the remanufactured unit injectors that are used in various 3114 and 3116 Engines. All of the former 0R3002, 0R3003, 0R3190, 0R3389, 0R3580, 0R3742, 0R4368, 0R4369, 0R4370, 0R4374, and 0R4376 Remanufactured Unit Injectors need to be removed from Parts Stock.
Action Required
Remove all 0R3002, 0R3003, 0R3190, 0R3389, 0R3580, 0R3742, 0R4368, 0R4369, 0R4370, 0R4374, and 0R4376 Remanufactured Unit Injectors from Parts Stock.
When ordering parts, refer to the attached chart until the information is available in a permanent publication.
Service Claim Allowances
Submit one claim for all 0R3002, 0R3003, 0R3190, 0R3389, 0R3580, 0R3742, 0R4368, 0R4369, 0R4370, 0R4374, and 0R4376 Remanufactured Unit Injectors removed from Parts Stock.
TEPS Dealers should refer to their warranty bullitin for proper claiming and disposition.
Parts Disposition
All injectors removed from Parts Stock are to be returned as cores for remanufacturing.
U.S. and Canadian Dealers
Return all 0R3002, 0R3003, 0R3190, 0R3389, 0R3580, 0R3742, 0R4368, 0R4369, 0R4370, 0R4374, and 0R4376 Remanufactured Unit Injectors that are removed from Parts Stock and a copy of the claim to:
Caterpillar Inc.
Attn: Bill Harland - Warranty Review
501 Cardinal Drive
Corinth, MS 38834
All Other Dealers
Handle the parts in accordance with your Warranty Bulletin on Remanufactured Engines and Components, refer to the topic "Disposition of the Core Under Warranty".
Attach.(1-UNIT INJECTOR CHART)3114 & 3116 Unit Injector Chart
