09450-05730 PUMP ASSY, INJECTI Calibration Data Denso

Information Cross number Test Calibration Data Calibration Data Ex

Buy now

Add to cart Go to cart

Rating:

Buy PUMP ASSY, INJECTI 09450-05730 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product

Fuel Injection Pump

Vehicle engine

Construction machine K4D-13K

Engine

K4D-13K

Serial start-end

9005--9312

Info

Injector Nozzle

093500-1660

Injector nozzle: 0935001660

Components :

00.001

PUMP ASSY, INJECTI

09450-05730 MITSUBISHI

PFR4M

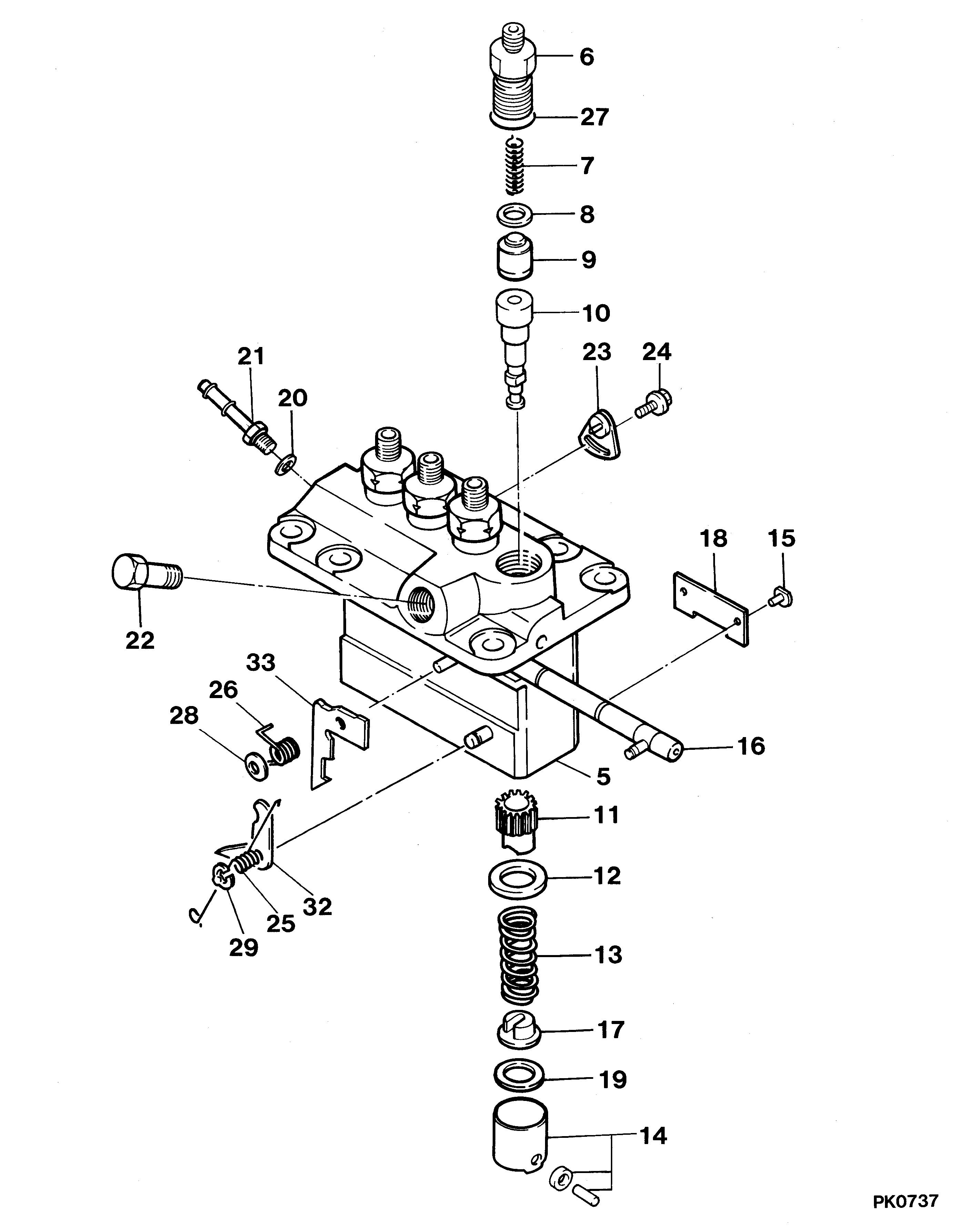

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

09450-05730

PUMP ASSY, INJECTI

PFR4M

005

[01]

09011-02420

HOUSING SUB-ASSY,

006

[04]

09013-10280

HOLDER, DELIVERY V

-9004

006

[04]

09013-10520

HOLDER, DELIVERY V

9005-

007

[04]

09013-60540

SPRING, DELIVERY V

008

[04]

09013-70130

GASKET, DELIVERY V

009

[04]

09014-00790

VALVE SUB-ASSY, IN

010

[04]

09015-01531

ELEMENT SUB-ASSY,

MK:1341

011

[04]

09016-10210

SLEEVE, PLUNGER CO

012

[04]

09016-30082

SEAT, SPRING, UPR

013

[04]

09016-40170

SPRING, PUMP PLUNG

014

[04]

09017-00170

TAPPET SUB-ASSY,IN

014-001

[04]

09017-10021

TAPPET, INJECTION

014-002

[04]

09217-60010

ROLLER, FEED PUMP

014-003

[04]

09017-60020

PIN, INJECTION PUM

015

[04]

09018-30050

PIN, INJECTION PUM

016

[01]

09021-00440

RACK ASSY, CONTROL

017

[04]

09030-10060

SEAT, SPRING, LWR

018

[02]

09046-70030

PLATE

019

[4C]

09031-10010

PLATE, TAPPET ADJU

T0.6

019

[4C]

09031-10110

PLATE, TAPPET ADJU

T0.2

019

[4C]

09031-10120

PLATE, TAPPET ADJU

T0.3

019

[4C]

09031-10130

PLATE, TAPPET ADJU

T0.4

019

[4C]

09031-10140

PLATE, TAPPET ADJU

T0.5

019

[4C]

09031-10160

PLATE, TAPPET ADJU

T0.25

019

[4C]

09031-10170

PLATE, TAPPET ADJU

T0.35

019

[4C]

09031-10280

PLATE, TAPPET ADJU

T0.45

019

[4C]

09031-10300

PLATE, TAPPET ADJU

T0.55

019

[4C]

09031-10310

PLATE, TAPPET ADJU

T0.65

020

[01]

94901-81020

WASHER, COPPER PLA

021

[01]

09314-10170

NIPPLE, OIL LEAKAG

022

[01]

94918-00310

SCREW, HOLLOW

023

[03]

09006-80020

PLATE, ADJUSTING

024

[03]

94904-71980

BOLT, W/WASHER

M6,L9.5 -9004

024

[03]

94904-80800

BOLT, WASHER HEAD

M6,L8 9005-

025

[01]

09055-40300

SPRING, DIAPHRAGM

026

[01]

09055-40160

SPRING, DIAPHRAGM

027

[04]

90802-20150

O-RING

ID14.8

028

[01]

09089-40020

E-RING

029

[01]

09089-40010

E-RING

032

[1C]

09021-93080

STOPPER

6,L17.0

032

[1C]

09021-93090

STOPPER

7,L16.9

032

[1C]

09021-93100

STOPPER

8,L16.8

032

[1C]

09021-93110

STOPPER

9,L16.7

032

[1C]

09021-93120

STOPPER

10,L16.6

032

[1C]

09021-95360

STOPPER

032

[1C]

09021-95370

STOPPER

033

[1C]

09021-93550

STOPPER

58,L2.1

033

[1C]

09021-93560

STOPPER

59,L2.2

033

[1C]

09021-93570

STOPPER

60,L2.3

033

[1C]

09021-93580

STOPPER

61,L2.4

033

[1C]

09021-93590

STOPPER

62,L2.5

033

[1C]

09021-93600

STOPPER

63,L2.6

033

[1C]

09021-93610

STOPPER

64,L2.7

033

[1C]

09021-93620

STOPPER

65,L2.8

033

[1C]

09021-93630

STOPPER

66,L2.9

033

[1C]

09021-93640

STOPPER

67,L3.0

033

[1C]

09021-93650

STOPPER

68,L3.1

033

[1C]

09021-93660

STOPPER

69,L3.2

033

[1C]

09021-93670

STOPPER

70,L3.3

033

[1C]

09021-93680

STOPPER

71,L3.4

033

[1C]

09021-93690

STOPPER

72,L3.5

Include in ##:

09450-05730 as PUMP ASSY, INJECTI

Cross reference number

Part num

Firm num

Firm

Name

09450-05730

PUMP ASSY, INJECTI

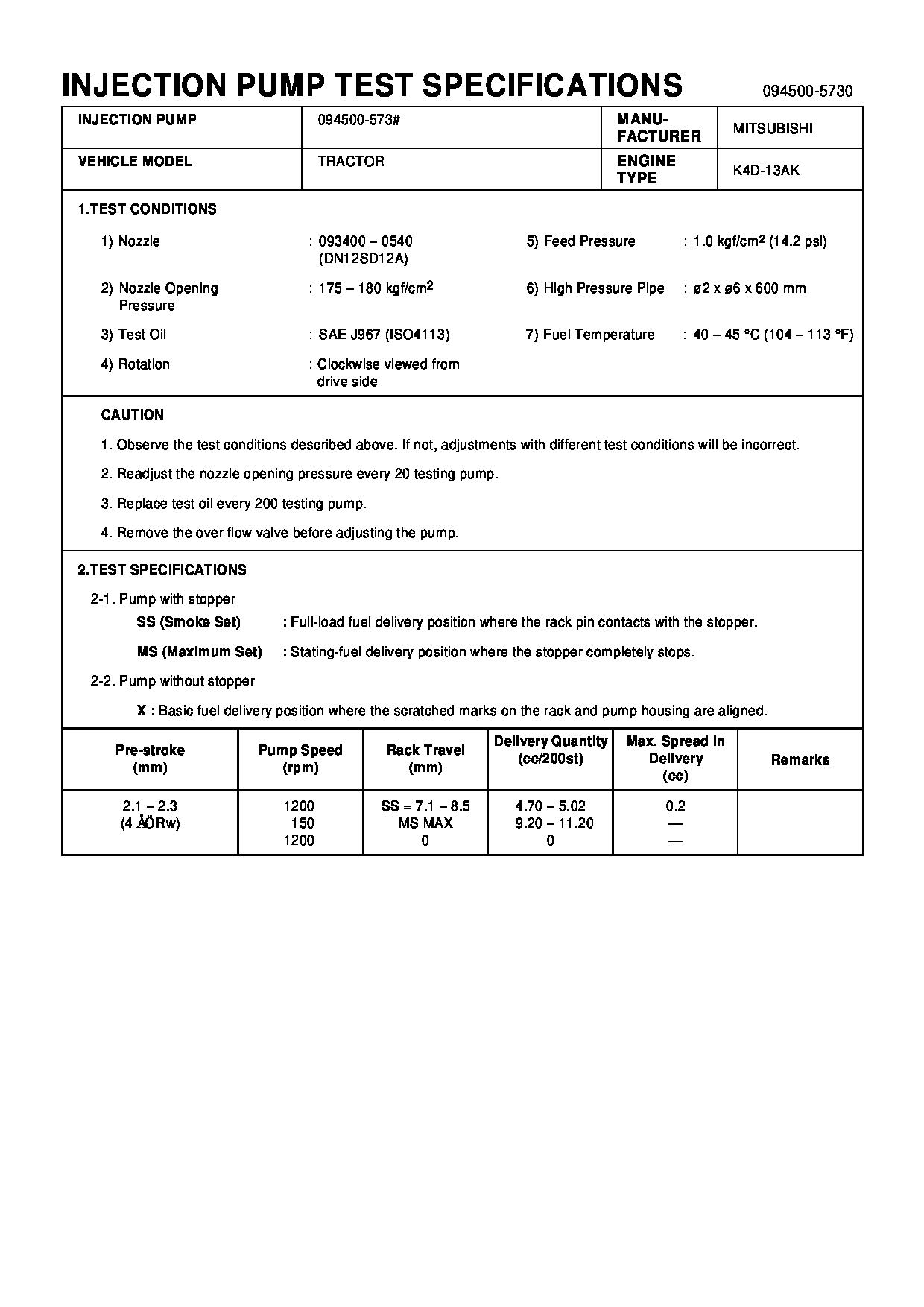

Test Calibration Data:

Get Full test data file

0945005730 30A6501900

09450-05730 PUMP ASSY, INJECTI Calibration Data

Information pump assy, injecti Denso

Components :

Scheme #.#:

Include in ##:

Cross reference number

Test Calibration Data:

Have questions with 09450-05730?

Group cross 09450-05730
