09450-05710 PUMP ASSY, INJECTI Calibration Data


Rating:
41
Buy PUMP ASSY, INJECTI 09450-05710 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL K4C-61SA
Engine
K4C-61SA
Serial start-end
9003--9407
Info
Injector Nozzle
093500-1660
Injector nozzle: 0935001660

Components :

00.001
PUMP ASSY, INJECTI
09450-05710 MITSUBISHI
PFR4M

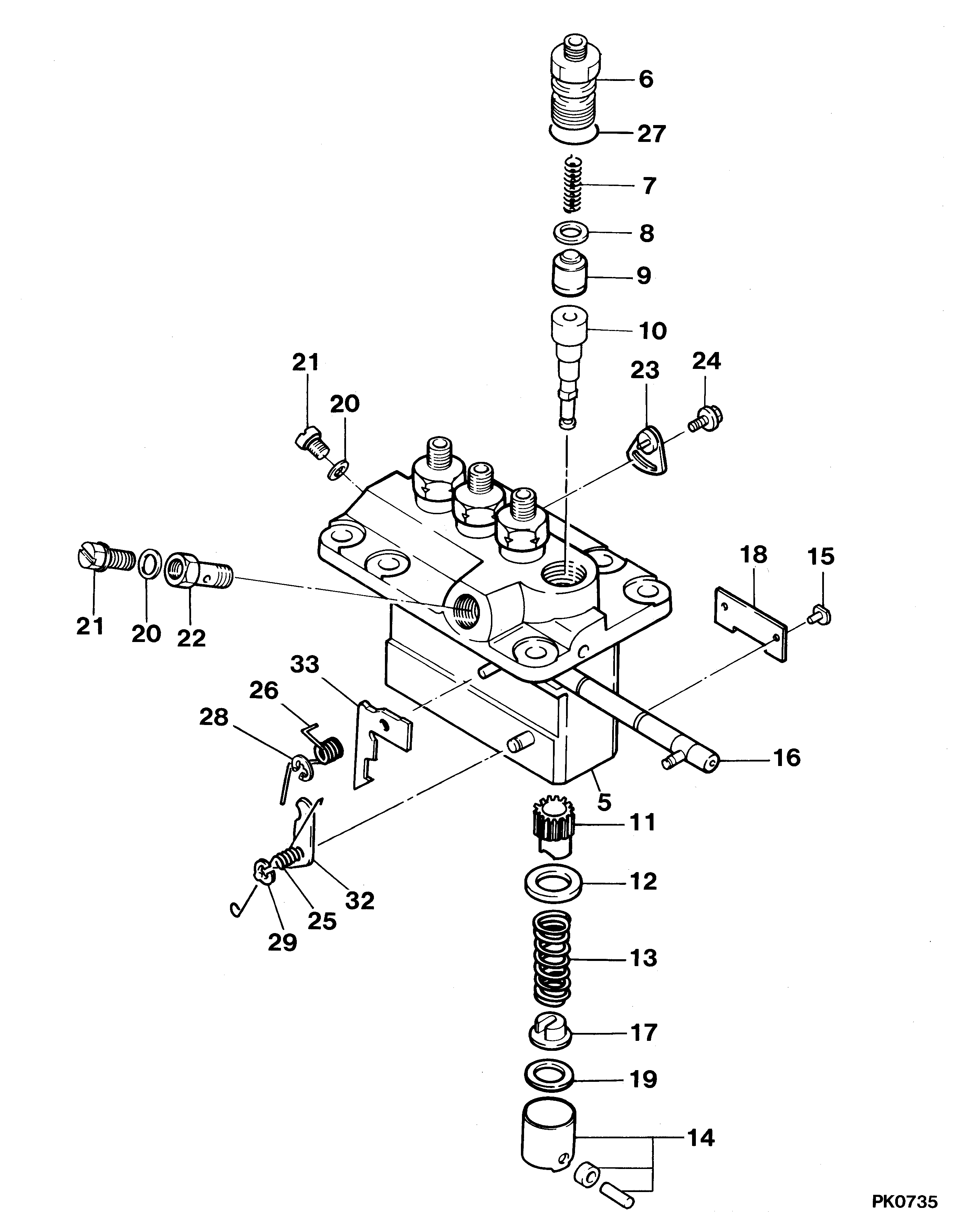

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09450-05710
PUMP ASSY, INJECTI
PFR4M
005
[01]
09011-02420
HOUSING SUB-ASSY,
006
[04]
09013-10280
HOLDER, DELIVERY V
-9004
006
[04]
09013-10520
HOLDER, DELIVERY V
9005-
007
[04]
09013-60540
SPRING, DELIVERY V
008
[04]
09013-70130
GASKET, DELIVERY V
009
[04]
09014-00410
VALVE SUB-ASSY, IN
MK: -
010
[04]
09015-02120
ELEMENT SUB-ASSY,
MK:2120
011
[04]
09016-10210
SLEEVE, PLUNGER CO
012
[04]
09016-30082
SEAT, SPRING, UPR
013
[04]
09016-40170
SPRING, PUMP PLUNG
014
[04]
09017-00170
TAPPET SUB-ASSY,IN
014-001
[04]
09017-10021
TAPPET, INJECTION
014-002
[04]
09217-60010
ROLLER, FEED PUMP
014-003
[04]
09017-60020
PIN, INJECTION PUM
015
[04]
09018-30050
PIN, INJECTION PUM
016
[01]
09021-00440
RACK ASSY, CONTROL
017
[04]
09030-10060
SEAT, SPRING, LWR
018
[02]
09046-70030
PLATE
019
[4C]
09031-10010
PLATE, TAPPET ADJU
T0.6
019
[4C]
09031-10110
PLATE, TAPPET ADJU
T0.2
019
[4C]
09031-10120
PLATE, TAPPET ADJU
T0.3
019
[4C]
09031-10130
PLATE, TAPPET ADJU
T0.4
019
[4C]
09031-10140
PLATE, TAPPET ADJU
T0.5
019
[4C]
09031-10160
PLATE, TAPPET ADJU
T0.25
019
[4C]
09031-10170
PLATE, TAPPET ADJU
T0.35
019
[4C]
09031-10280
PLATE, TAPPET ADJU
T0.45
019
[4C]
09031-10300
PLATE, TAPPET ADJU
T0.55
019
[4C]
09031-10310
PLATE, TAPPET ADJU
T0.65
020
[02]
09022-20080
WASHER, FUEL PIPE
-9705
020
[02]
94901-81020
WASHER, COPPER PLA
9706-
021
[02]
09024-40180
SCREW, AIR BLEEDER
022
[01]
94918-00510
SCREW, HOLLOW
023
[03]
09006-80020
PLATE, ADJUSTING
024
[03]
94904-71980
BOLT, W/WASHER
-9004
024
[03]
94904-80800
BOLT, WASHER HEAD
9005-
025
[01]
09055-40300
SPRING, DIAPHRAGM
026
[01]
09055-40280
SPRING, DIAPHRAGM
027
[04]
90802-20150
O-RING
ID14.8
028
[01]
09089-40020
E-RING
029
[01]
09089-40010
E-RING
032
[1C]
09021-92500
STOPPER
1,L16.9
032
[1C]
09021-92510
STOPPER
2,L16.8
032
[1C]
09021-92520
STOPPER
3,L16.7
032
[1C]
09021-92530
STOPPER
4,L16.6
032
[1C]
09021-92540
STOPPER
5,L16.5
033
[1C]
09021-93510
STOPPER
54,L1.7
033
[1C]
09021-93520
STOPPER
55,L1.8
033
[1C]
09021-93530
STOPPER
56,L1.9
033
[1C]
09021-93540
STOPPER
57,L2.0
033
[1C]
09021-93550
STOPPER
58,L2.1
033
[1C]
09021-93560
STOPPER
59,L2.2
033
[1C]
09021-93570
STOPPER
60,L2.3
033
[1C]
09021-93580
STOPPER
61,L2.4
033
[1C]
09021-93590
STOPPER
62,L2.5
033
[1C]
09021-93600
STOPPER
63,L2.6
033
[1C]
09021-93610
STOPPER
64,L2.7
033
[1C]
09021-93620
STOPPER
65,L2.8
033
[1C]
09021-93630
STOPPER
66,L2.9
033
[1C]
09021-93640
STOPPER
67,L3.0
033
[1C]
09021-93650
STOPPER
68,L3.1

Include in ##:

09450-05710 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09450-05710

PUMP ASSY, INJECTI

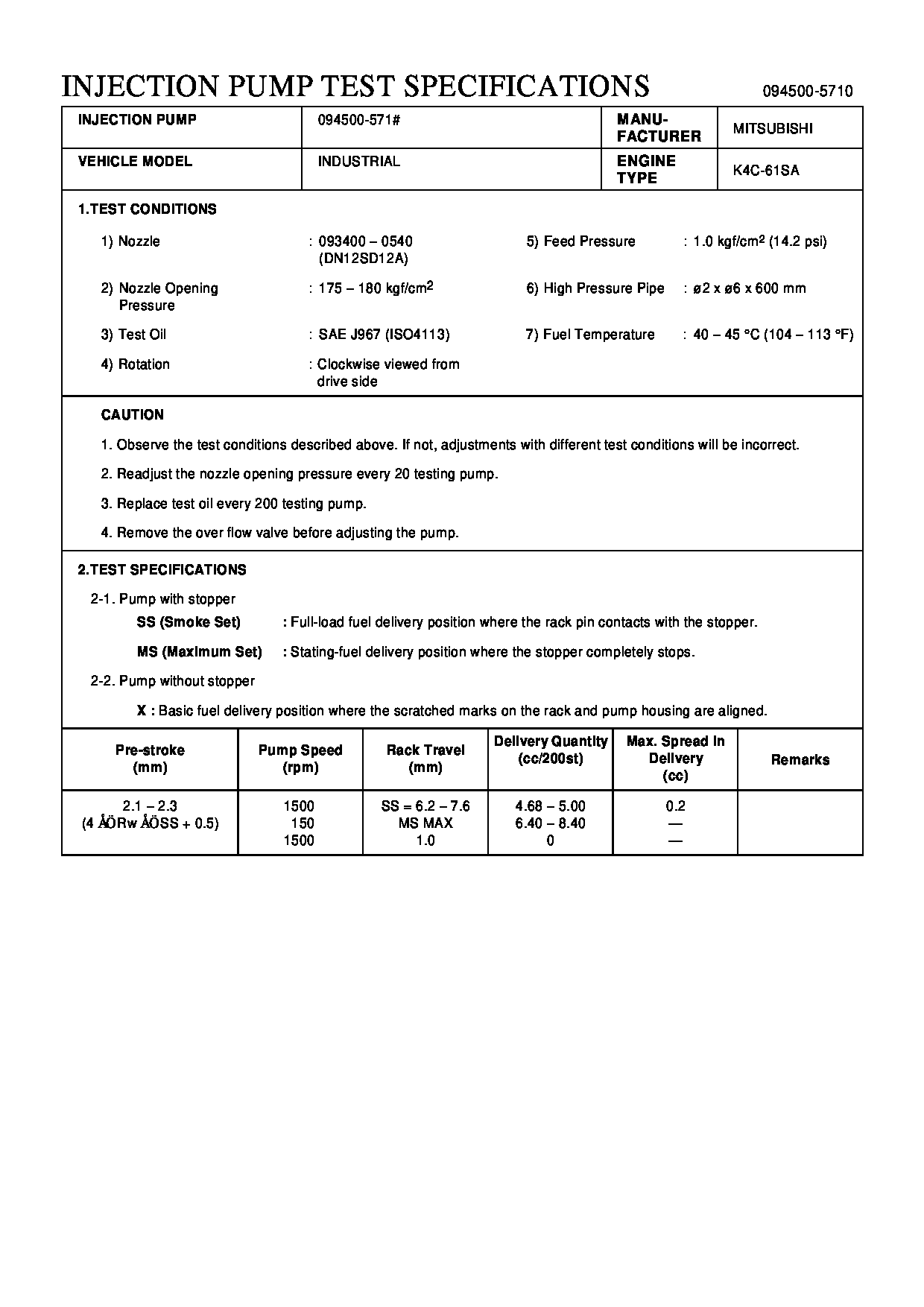

Test Calibration Data:

Get Full test data file
0945005710 30A6502100
EG5710
EG5710
