09450-05700 PUMP ASSY, INJECTI Calibration Data


Rating:
2
Buy PUMP ASSY, INJECTI 09450-05700 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL K4F-DT51
Engine
K4F-DT51
Serial start-end
9002--9301
Info
Injector Nozzle
093500-4720
Injector nozzle: 0935004720

Components :

00.001
PUMP ASSY, INJECTI
09450-05700 MITSUBISHI HEAEY INDUSTRIES
PFR4M

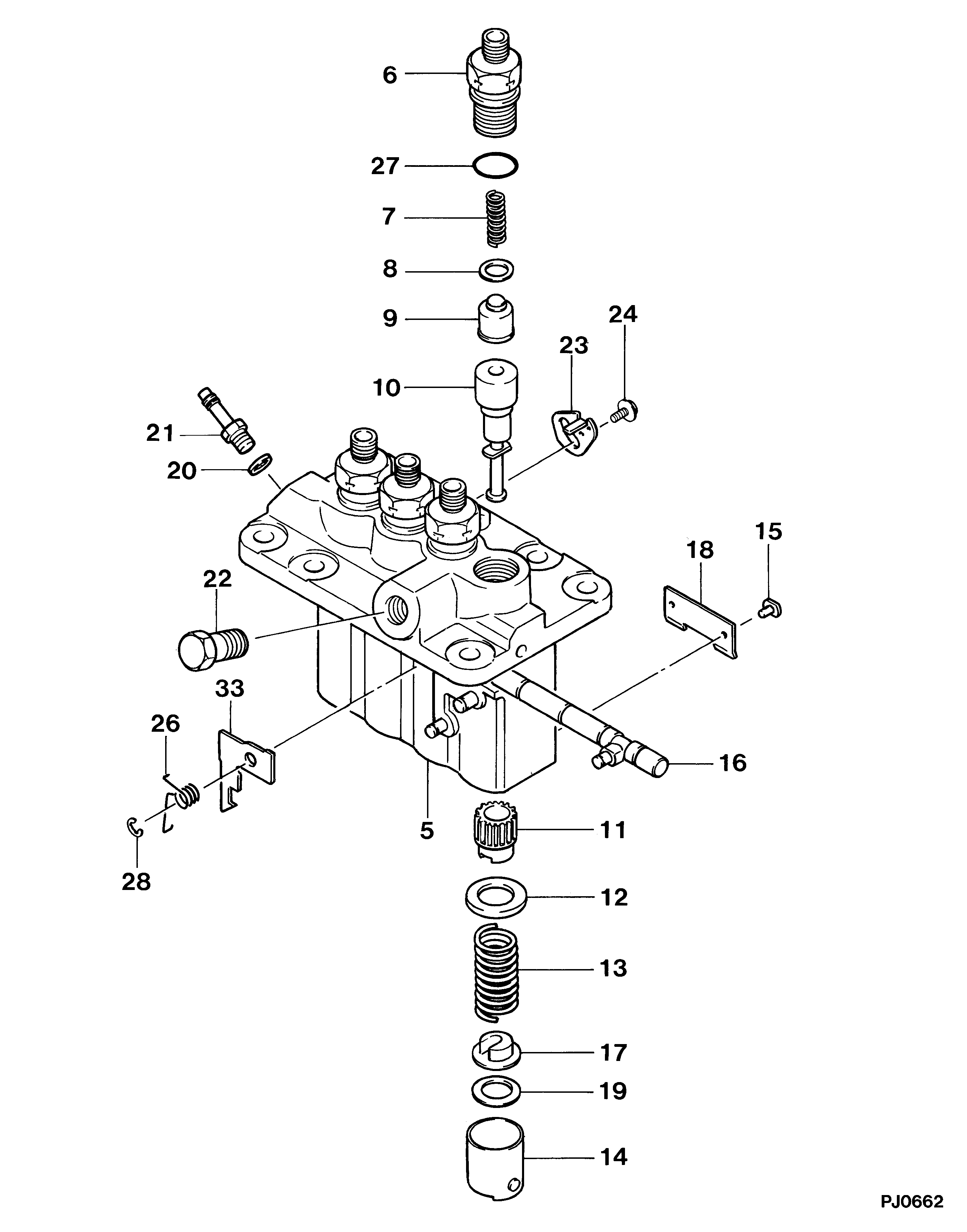

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09450-05700
PUMP ASSY, INJECTI
PFR4M
005
[01]
09011-02420
HOUSING SUB-ASSY,
006
[04]
09013-10720
HOLDER, DELIVERY V
007
[04]
09013-60480
SPRING, DELIVERY V
008
[04]
09013-70130
GASKET, DELIVERY V
009
[04]
09014-02260
VALVE SUB-ASSY, IN
-9103
009
[04]
09014-02380
VALVE SUB-ASSY, IN
9103-
010
[04]
09015-04650
ELEMENT SUB-ASSY,
011
[04]
09016-10210
SLEEVE, PLUNGER CO
012
[04]
09016-30082
SEAT, SPRING, UPR
013
[04]
09016-40170
SPRING, PUMP PLUNG
014
[04]
09017-00170
TAPPET SUB-ASSY,IN
014-001
[04]
09017-10021
TAPPET, INJECTION
014-002
[04]
09217-60010
ROLLER, FEED PUMP
014-003
[04]
09017-60020
PIN, INJECTION PUM
015
[04]
09018-30050
PIN, INJECTION PUM
016
[01]
09021-00440
RACK ASSY, CONTROL
017
[04]
09030-10060
SEAT, SPRING, LWR
018
[02]
09046-70030
PLATE
019
[C]
09031-10010
PLATE, TAPPET ADJU
T0.6
019
[C]
09031-10110
PLATE, TAPPET ADJU
T0.2
019
[C]
09031-10120
PLATE, TAPPET ADJU
T0.3
019
[C]
09031-10130
PLATE, TAPPET ADJU
T0.4
019
[C]
09031-10140
PLATE, TAPPET ADJU
T0.5
019
[C]
09031-10160
PLATE, TAPPET ADJU
T0.25
019
[C]
09031-10170
PLATE, TAPPET ADJU
T0.35
019
[C]
09031-10280
PLATE, TAPPET ADJU
T0.45
019
[C]
09031-10300
PLATE, TAPPET ADJU
T0.55
019
[C]
09031-10310
PLATE, TAPPET ADJU
T0.65
020
[01]
94901-81020
WASHER, COPPER PLA
T1
021
[01]
09314-10260
NIPPLE, OIL LEAKAG
022
[01]
94918-00310
SCREW, HOLLOW
023
[03]
09006-80020
PLATE, ADJUSTING
024
[03]
94904-71980
BOLT, W/WASHER
M6,L9.5 -9004
024
[03]
94904-80800
BOLT, WASHER HEAD
M6,L8 9005-
026
[01]
09055-40390
SPRING, DIAPHRAGM
027
[04]
90802-20150
O-RING
ID14.8
028
[01]
09089-40020
E-RING
033
[1C]
09021-93650
STOPPER
68,L3.1
033
[1C]
09021-93660
STOPPER
69,L3.2
033
[1C]
09021-93670
STOPPER
70,L3.3
033
[1C]
09021-93680
STOPPER
71,L3.4
033
[1C]
09021-93690
STOPPER
72,L3.5
033
[1C]
09021-93700
STOPPER
73,L3.6
033
[1C]
09021-93710
STOPPER
74,L3.7
033
[1C]
09021-93720
STOPPER
75,L3.8
033
[1C]
09021-93730
STOPPER
76,L3.9
033
[1C]
09021-93740
STOPPER
77,L4.0
033
[1C]
09021-93750
STOPPER
78,L4.1
033
[1C]
09021-93760
STOPPER
79,L4.2 -9103
033
[1C]
09021-93770
STOPPER
80,L4.3 -9103
033
[1C]
09021-93780
STOPPER
81,L4.4 -9103
033
[1C]
09021-93790
STOPPER
82,L4.5 -9103
033
[1C]
09021-93630
STOPPER
66,L2.9 9103-
033
[1C]
09021-93640
STOPPER
67,L3.0 9103-
033
[1C]
09021-93610
STOPPER
64,L2.7 9103--9107
033
[1C]
09021-93760
STOPPER
79,L4.2 9107-
033
[1C]
09021-93620
STOPPER
65,L2.8 9103--9107
033
[1C]
09021-93770
STOPPER
80,L4.3 9107-

Include in ##:

09450-05700 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09450-05700

PUMP ASSY, INJECTI

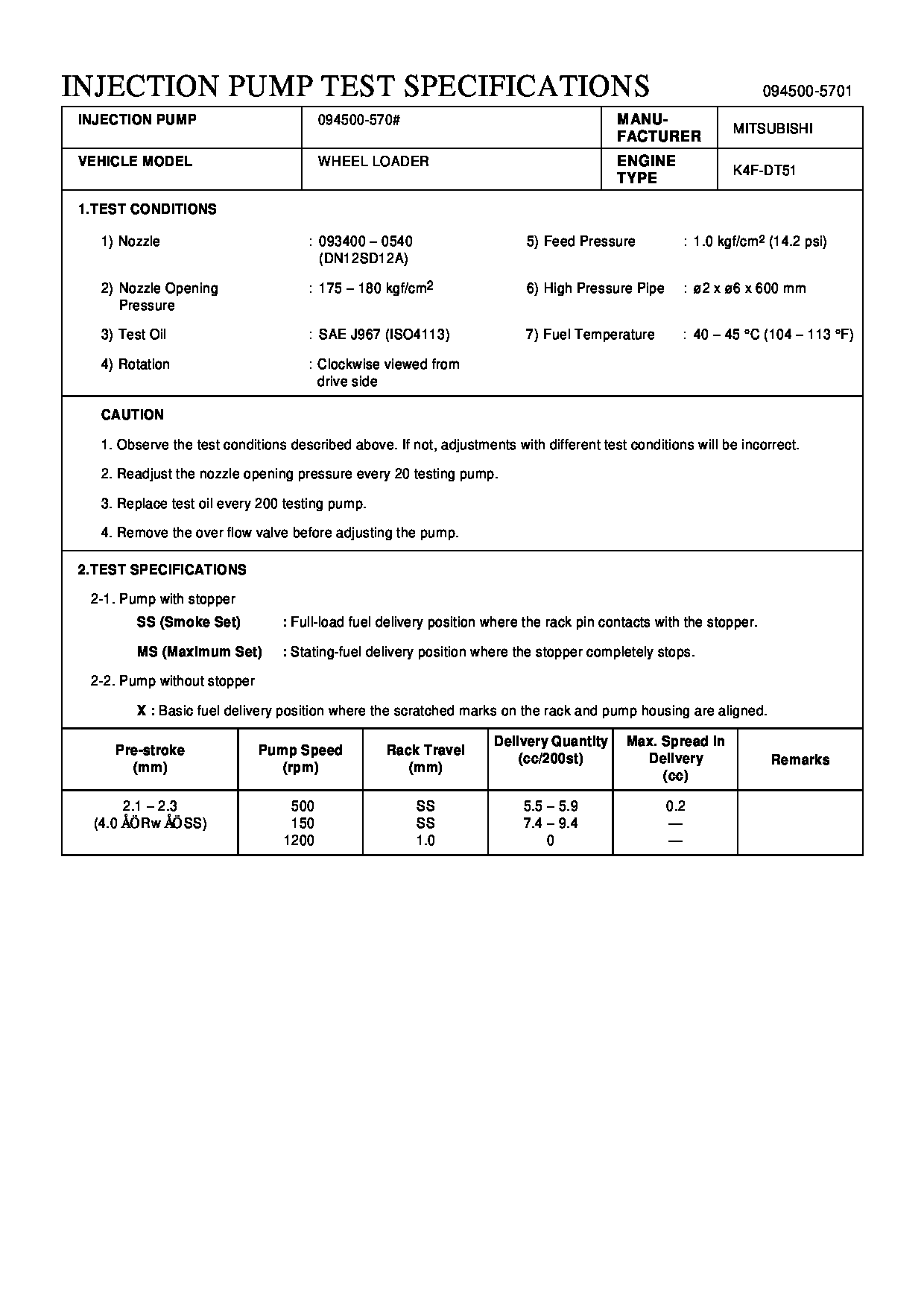

Test Calibration Data:

Get Full test data file
0945005700 30A65-01400
EG5701
EG5701
