09450-05550 PUMP ASSY, INJECTI Calibration Data


Rating:
41
Buy PUMP ASSY, INJECTI 09450-05550 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL K4D-31
Engine
K4D-31
Serial start-end
8908-
Info
Injector Nozzle
093500-1660
Injector nozzle: 0935001660

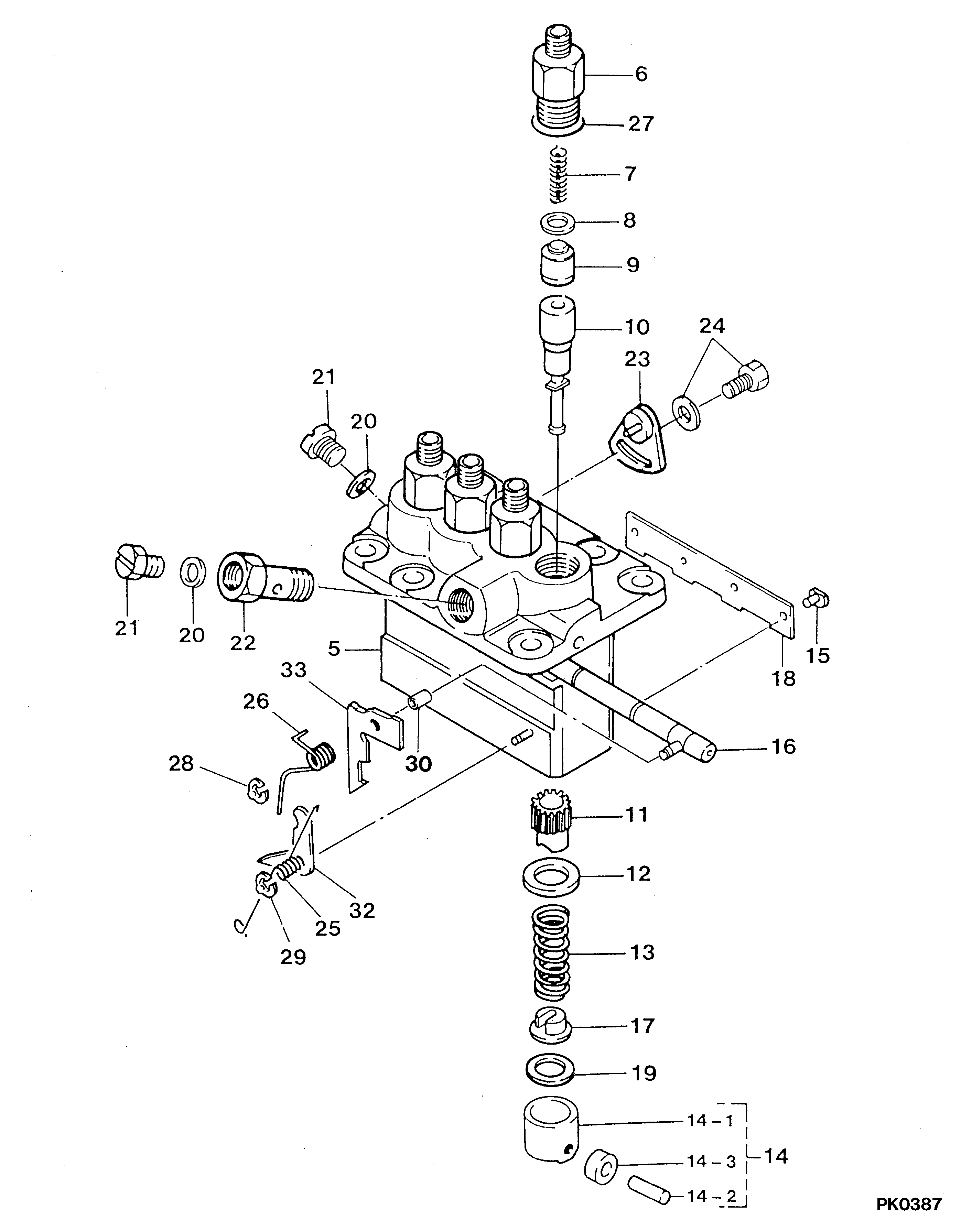

Components :

00.001
PUMP ASSY, INJECTI
PFR4M

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09450-05550
PUMP ASSY, INJECTI
PFR4M
005
[01]
HOUSING SUB-ASSY,
006
[04]
HOLDER, DELIVERY V
-9004
006
[04]
HOLDER, DELIVERY V
9005-
007
[04]
SPRING, DELIVERY V
008
[04]
GASKET, DELIVERY V
009
[04]
VALVE SUB-ASSY, IN
010
[04]
ELEMENT SUB-ASSY,
MK:2400
011
[04]
SLEEVE, PLUNGER CO
012
[04]
SEAT, SPRING, UPR
013
[04]
SPRING, PUMP PLUNG
014
[04]
TAPPET SUB-ASSY,IN
014-001
[04]
TAPPET, INJECTION
014-002
[04]
ROLLER, FEED PUMP
014-003
[04]
PIN, INJECTION PUM
015
[04]
PIN, INJECTION PUM
016
[01]
RACK ASSY, CONTROL
017
[04]
SEAT, SPRING, LWR
018
[02]
PLATE
019
[4C]
PLATE, TAPPET ADJU
T0.6
019
[4C]
PLATE, TAPPET ADJU
T0.2
019
[4C]
PLATE, TAPPET ADJU
T0.3
019
[4C]
PLATE, TAPPET ADJU
T0.4
019
[4C]
PLATE, TAPPET ADJU
T0.5
019
[4C]
PLATE, TAPPET ADJU
T0.25
019
[4C]
PLATE, TAPPET ADJU
T0.35
019
[4C]
PLATE, TAPPET ADJU
T0.45
019
[4C]
PLATE, TAPPET ADJU
T0.55
019
[4C]
PLATE, TAPPET ADJU
T0.65
020
[02]
WASHER, FUEL PIPE
-9705
020
[02]
WASHER, COPPER PLA
9706-
021
[02]
SCREW, AIR BLEEDER
022
[01]
SCREW, HOLLOW
023
[03]
PLATE, ADJUSTING
024
[03]
BOLT, W/WASHER
M6,L9.5 -9004
024
[03]
BOLT, WASHER HEAD
M6,L8 9004-
025
[01]
SPRING, DIAPHRAGM
026
[01]
SPRING, DIAPHRAGM
027
[04]
O-RING
ID14.8
028
[01]
E-RING
029
[01]
E-RING
030
[01]
COLLAR, STEEL
032
[1C]
STOPPER
6,L17.0
032
[1C]
STOPPER
7,L16.9
032
[1C]
STOPPER
8,L16.8
032
[1C]
STOPPER
9,L16.7
032
[1C]
STOPPER
10,L16.6
032
[1C]
STOPPER
11
032
[1C]
STOPPER
12
033
[1C]
STOPPER
54,L1.7
033
[1C]
STOPPER
55,L1.8
033
[1C]
STOPPER
56,L1.9
033
[1C]
STOPPER
57,L2.0
033
[1C]
STOPPER
58,L2.1
033
[1C]
STOPPER
59,L2.2
033
[1C]
STOPPER
60,L2.3
033
[1C]
STOPPER
61,L2.4
033
[1C]
STOPPER
62,L2.5
033
[1C]
STOPPER
63,L2.6
033
[1C]
STOPPER
64,L2.7
033
[1C]
STOPPER
65,L2.8
033
[1C]
STOPPER
66,L2.9
033
[1C]
STOPPER
67,L3.0
033
[1C]
STOPPER
68,L3.1

Include in ##:

09450-05550 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09450-05550

PUMP ASSY, INJECTI

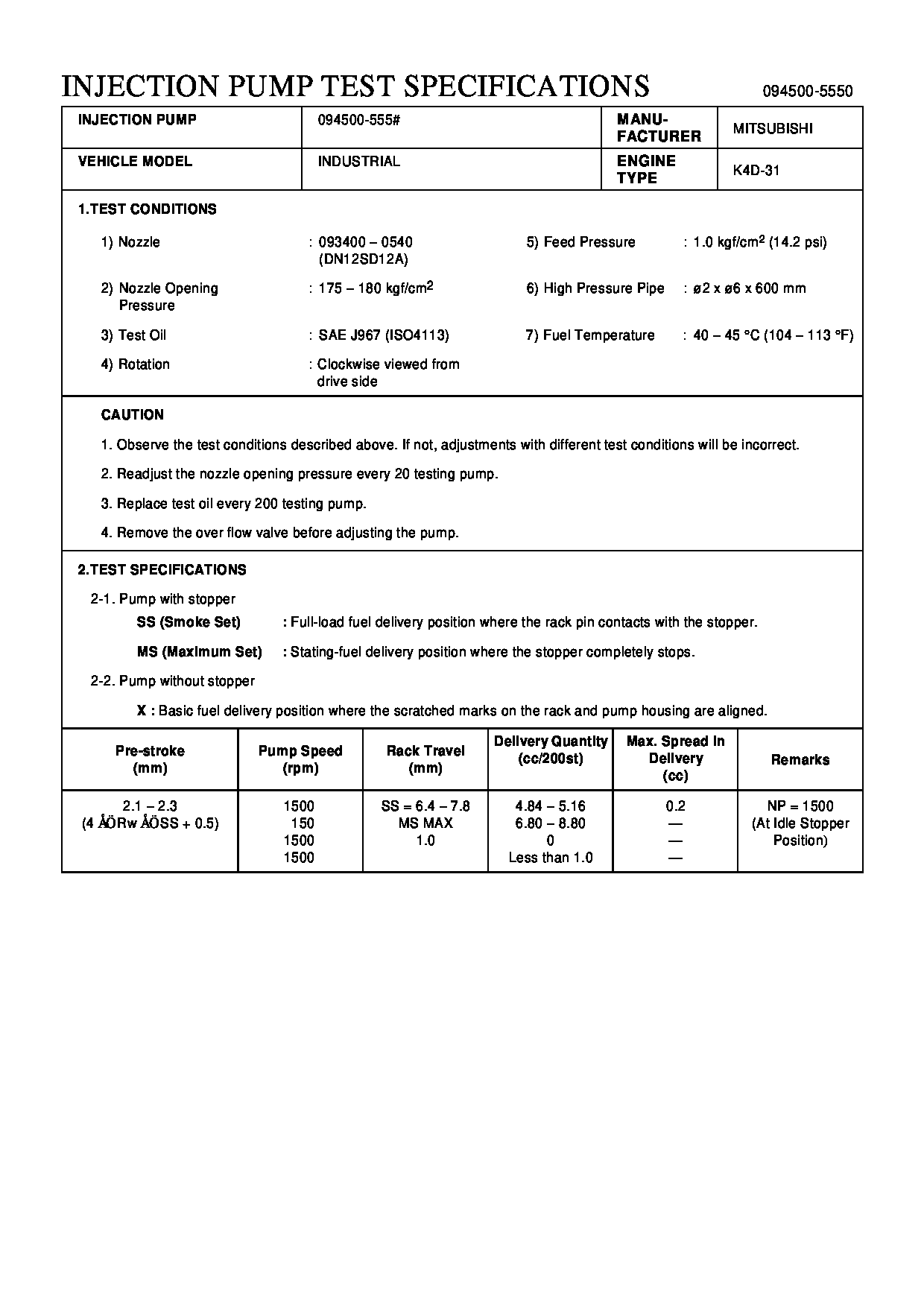

Test Calibration Data:

0945005550 MM438417




Information:


Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
The following changes are adaptable to the products within the listed serial numbers, and are effective with all products after the listed serial numbers.The improvement has been made to the 456-3493 Fuel Injector Gp, 456-3509 Fuel Injector Gp, and 460-8213 Fuel Injector Gp.This change is effective for the engine serial numbers listed in Table 1.
Table 1
Part Number Effective Serial Number
456-3493 S/N:MYE13870-UP
456-3509 S/N:SYE33275-UP
460-8213 S/N:WYE2009-UP
