09450-05230 PUMP ASSY, INJECTI Calibration Data


Rating:
2
Buy PUMP ASSY, INJECTI 09450-05230 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
Construction machine K4E-D13A
Engine
K4E-D13A
Serial start-end
8906--9204
Info
Injector Nozzle
093500-4320
Injector nozzle: 0935004320

Components :

00.001
PUMP ASSY, INJECTI
09450-05230 MITSUBISHI
PFR4M

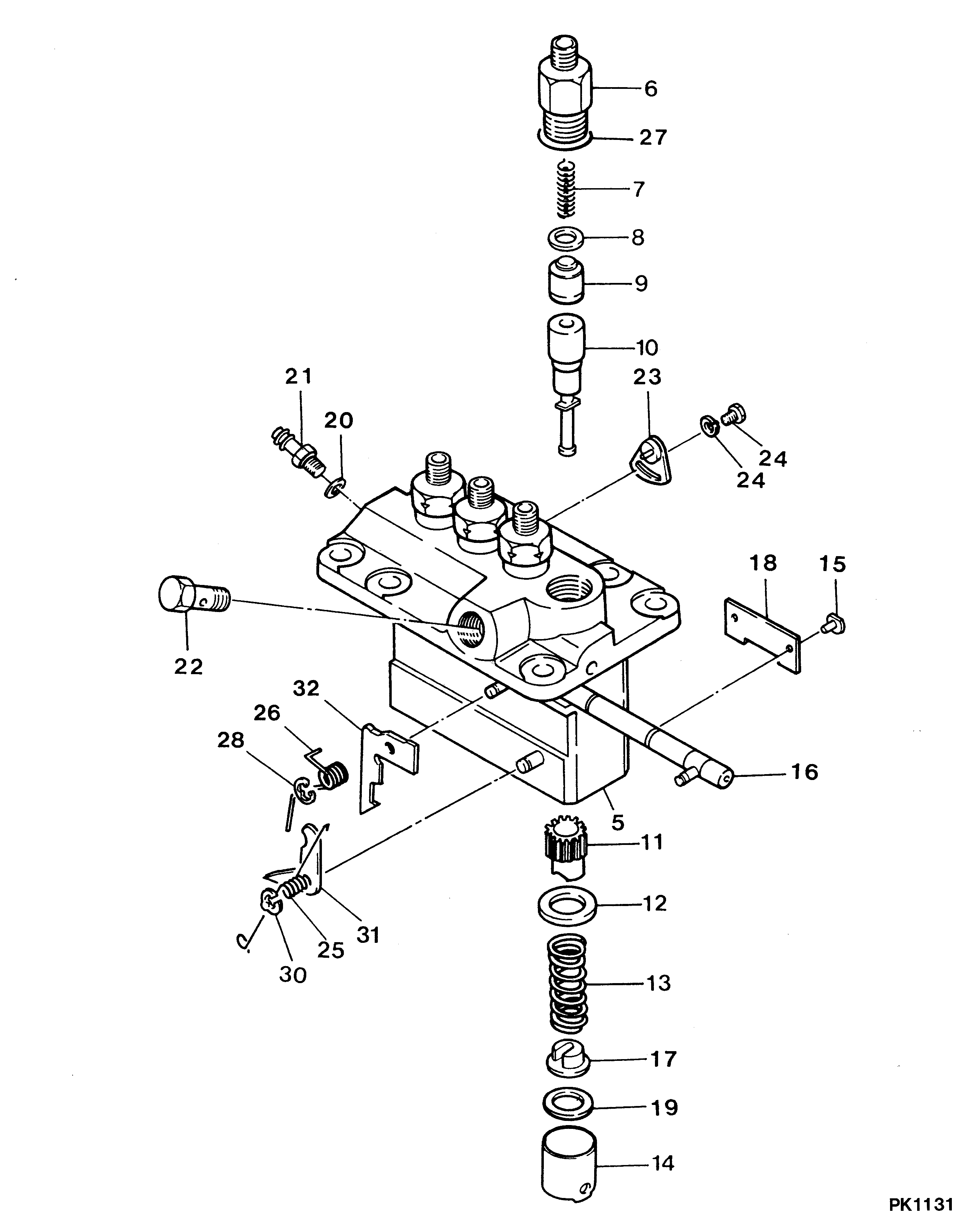

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09450-05230
PUMP ASSY, INJECTI
PFR4M
005
[01]
09011-02420
HOUSING SUB-ASSY,
006
[04]
09013-10720
HOLDER, DELIVERY V
007
[04]
09013-60900
SPRING, DELIVERY V
008
[04]
09013-70130
GASKET, DELIVERY V
009
[04]
09014-02030
VALVE SUB-ASSY, IN
010
[04]
09015-04640
ELEMENT SUB-ASSY,
011
[04]
09016-10210
SLEEVE, PLUNGER CO
012
[04]
09016-30082
SEAT, SPRING, UPR
013
[04]
09016-40170
SPRING, PUMP PLUNG
014
[04]
09017-00170
TAPPET SUB-ASSY,IN
014-001
[04]
09017-10021
TAPPET, INJECTION
014-002
[04]
09217-60010
ROLLER, FEED PUMP
014-003
[04]
09017-60020
PIN, INJECTION PUM
015
[04]
09018-30050
PIN, INJECTION PUM
016
[01]
09021-00440
RACK ASSY, CONTROL
017
[04]
09030-10060
SEAT, SPRING, LWR
018
[02]
09046-70030
PLATE
019
[4C]
09031-10010
PLATE, TAPPET ADJU
T0.6
019
[4C]
09031-10110
PLATE, TAPPET ADJU
T0.2
019
[4C]
09031-10120
PLATE, TAPPET ADJU
T0.3
019
[4C]
09031-10130
PLATE, TAPPET ADJU
T0.4
019
[4C]
09031-10140
PLATE, TAPPET ADJU
T0.5
019
[4C]
09031-10160
PLATE, TAPPET ADJU
T0.25
019
[4C]
09031-10170
PLATE, TAPPET ADJU
T0.35
019
[4C]
09031-10280
PLATE, TAPPET ADJU
T0.45
019
[4C]
09031-10300
PLATE, TAPPET ADJU
T0.55
019
[4C]
09031-10310
PLATE, TAPPET ADJU
T0.65
020
[01]
94901-81020
WASHER, COPPER PLA
T1
021
[01]
09314-10170
NIPPLE, OIL LEAKAG
022
[01]
94918-00310
SCREW, HOLLOW
023
[03]
09006-80020
PLATE, ADJUSTING
024
[03]
94904-71980
BOLT, W/WASHER
M6,L9.5 -9004
024
[03]
94904-80800
BOLT, WASHER HEAD
M6,L8 9005-
025
[01]
09055-40470
SPRING, DIAPHRAGM
026
[01]
09055-40280
SPRING, DIAPHRAGM
027
[04]
90802-20150
O-RING
ID14.8
028
[01]
09089-40020
E-RING
030
[01]
09089-40010
E-RING
031
[1C]
09021-93080
STOPPER
6,L17.0
031
[1C]
09021-93090
STOPPER
7,L16.9
031
[1C]
09021-93100
STOPPER
8,L16.8
031
[1C]
09021-93110
STOPPER
9,L16.7
031
[1C]
09021-93120
STOPPER
10,L16.6
031
[1C]
09021-95360
STOPPER
11,L16.85
031
[1C]
09021-95370
STOPPER
11L16.75
032
[1C]
09021-93910
STOPPER
55,L1.8
032
[1C]
09021-93920
STOPPER
56,L1.9
032
[1C]
09021-93930
STOPPER
57,L2.0
032
[1C]
09021-93940
STOPPER
58,L2.1
032
[1C]
09021-93950
STOPPER
59,L2.2
032
[1C]
09021-93960
STOPPER
60,L2.3
032
[1C]
09021-93970
STOPPER
61,L2.4
032
[1C]
09021-93980
STOPPER
62,L2.5
032
[1C]
09021-93990
STOPPER
63,L2.6
032
[1C]
09021-94000
STOPPER
64,L2.7
032
[1C]
09021-94010
STOPPER
65,L2.8
032
[1C]
09021-94020
STOPPER
66,L2.9
032
[1C]
09021-94030
STOPPER
67,L3.0
032
[1C]
09021-94040
STOPPER
68,L3.1
032
[1C]
09021-94050
STOPPER
69,L3.2

Include in ##:

09450-05230 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09450-05230

PUMP ASSY, INJECTI

Test Calibration Data:

Get Full test data file
0945005230 MM438927
EG5230
EG5230
