09450-04910 PUMP ASSY, INJECTI Calibration Data


Rating:
51
Buy PUMP ASSY, INJECTI 09450-04910 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
MARINE K3E-51M
Engine
K3E-51M
Serial start-end
8806-
Info
Injector Nozzle
093500-1660
Injector nozzle: 0935001660

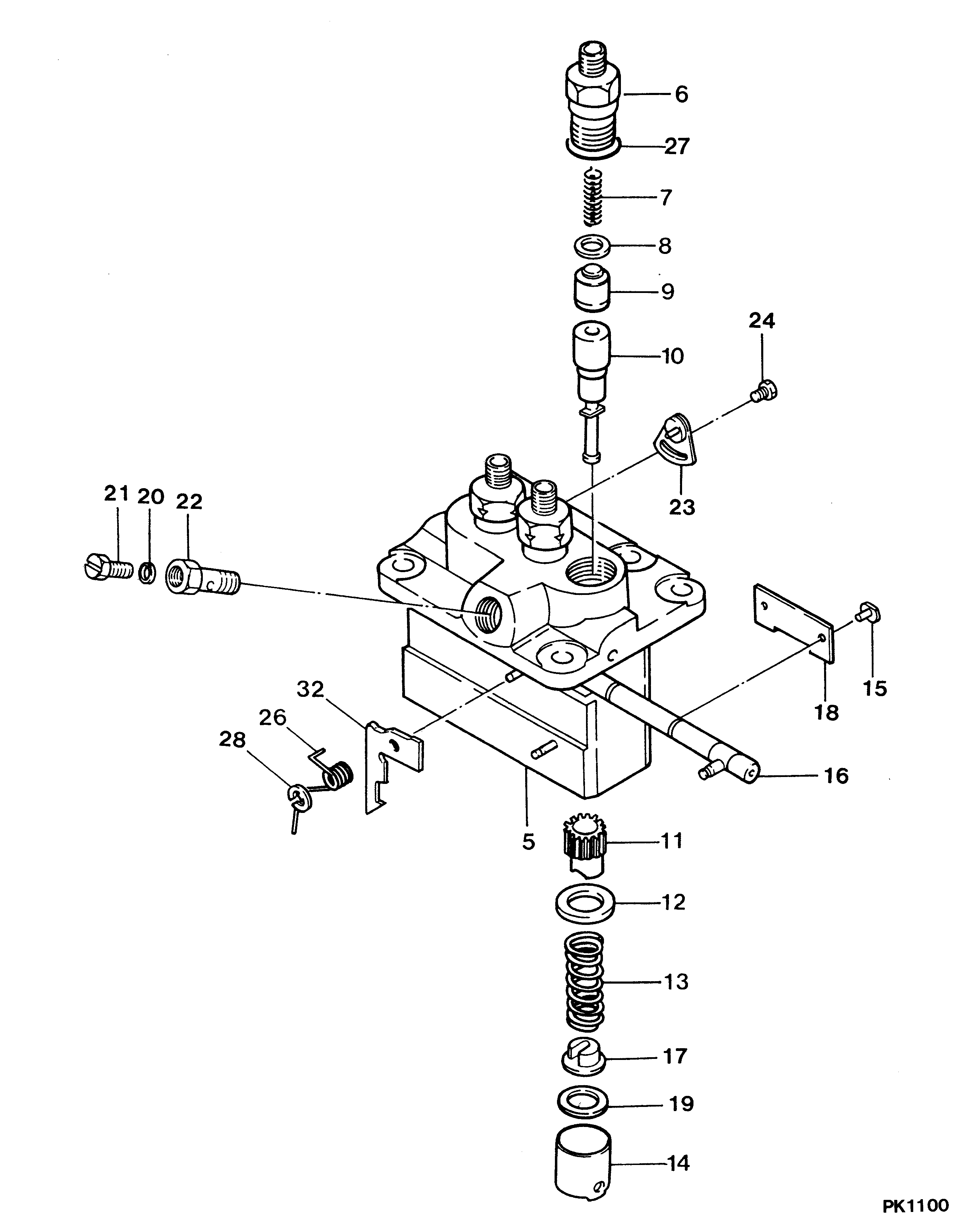

Components :

00.001
PUMP ASSY, INJECTI
PFR3M

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09450-04910
PUMP ASSY, INJECTI
PFR3M
005
[01]
HOUSING SUB-ASSY,
006
[03]
HOLDER, DELIVERY V
007
[03]
SPRING, DELIVERY V
008
[03]
GASKET, DELIVERY V
-9005
008
[03]
GASKET, DELIVERY V
9005-
009
[03]
VALVE SUB-ASSY, IN
MK:188
010
[03]
ELEMENT SUB-ASSY,
MK:2190
011
[03]
SLEEVE, PLUNGER CO
012
[03]
SEAT, SPRING, UPR
013
[03]
SPRING, PUMP PLUNG
014
[03]
TAPPET SUB-ASSY,IN
014-001
[03]
TAPPET, INJECTION
014-002
[03]
ROLLER, FEED PUMP
014-003
[03]
PIN, INJECTION PUM
015
[03]
PIN, INJECTION PUM
016
[01]
RACK ASSY, CONTROL
017
[03]
SEAT, SPRING, LWR
018
[01]
PLATE
019
[3C]
PLATE, TAPPET ADJU
T0.6
019
[3C]
PLATE, TAPPET ADJU
T0.2
019
[3C]
PLATE, TAPPET ADJU
T0.3
019
[3C]
PLATE, TAPPET ADJU
T0.4
019
[3C]
PLATE, TAPPET ADJU
T0.5
019
[3C]
PLATE, TAPPET ADJU
T0.25
019
[3C]
PLATE, TAPPET ADJU
T0.35
019
[3C]
PLATE, TAPPET ADJU
T0.45
019
[3C]
PLATE, TAPPET ADJU
T0.55
019
[3C]
PLATE, TAPPET ADJU
T0.65
020
[01]
WASHER, FUEL PIPE
-9705
020
[01]
WASHER, COPPER PLA
9706-
021
[01]
SCREW, AIR BLEEDER
022
[01]
SCREW, HOLLOW
023
[02]
PLATE, ADJUSTING
024
[02]
BOLT, W/WASHER
M6,L9.5 -9004
024
[02]
BOLT, WASHER HEAD
M6,L8 9004-
026
[01]
SPRING, DIAPHRAGM
027
[03]
O-RING
ID14.8
028
[01]
E-RING
032
[1C]
STOPPER
58,L2.1
032
[1C]
STOPPER
59,L2.2
032
[1C]
STOPPER
60,L2.3
032
[1C]
STOPPER
61,L2.4
032
[1C]
STOPPER
62,L2.5
032
[1C]
STOPPER
63,L2.6
032
[1C]
STOPPER
64,L2.7
032
[1C]
STOPPER
65,L2.8
032
[1C]
STOPPER
66,L2.9
032
[1C]
STOPPER
67,L3.0
032
[1C]
STOPPER
68,L3.1
032
[1C]
STOPPER
69,L3.2
032
[1C]
STOPPER
70,L3.3
032
[1C]
STOPPER
71,L3.4
032
[1C]
STOPPER
72,L3.5

Include in ##:

09450-04910 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09450-04910

PUMP ASSY, INJECTI

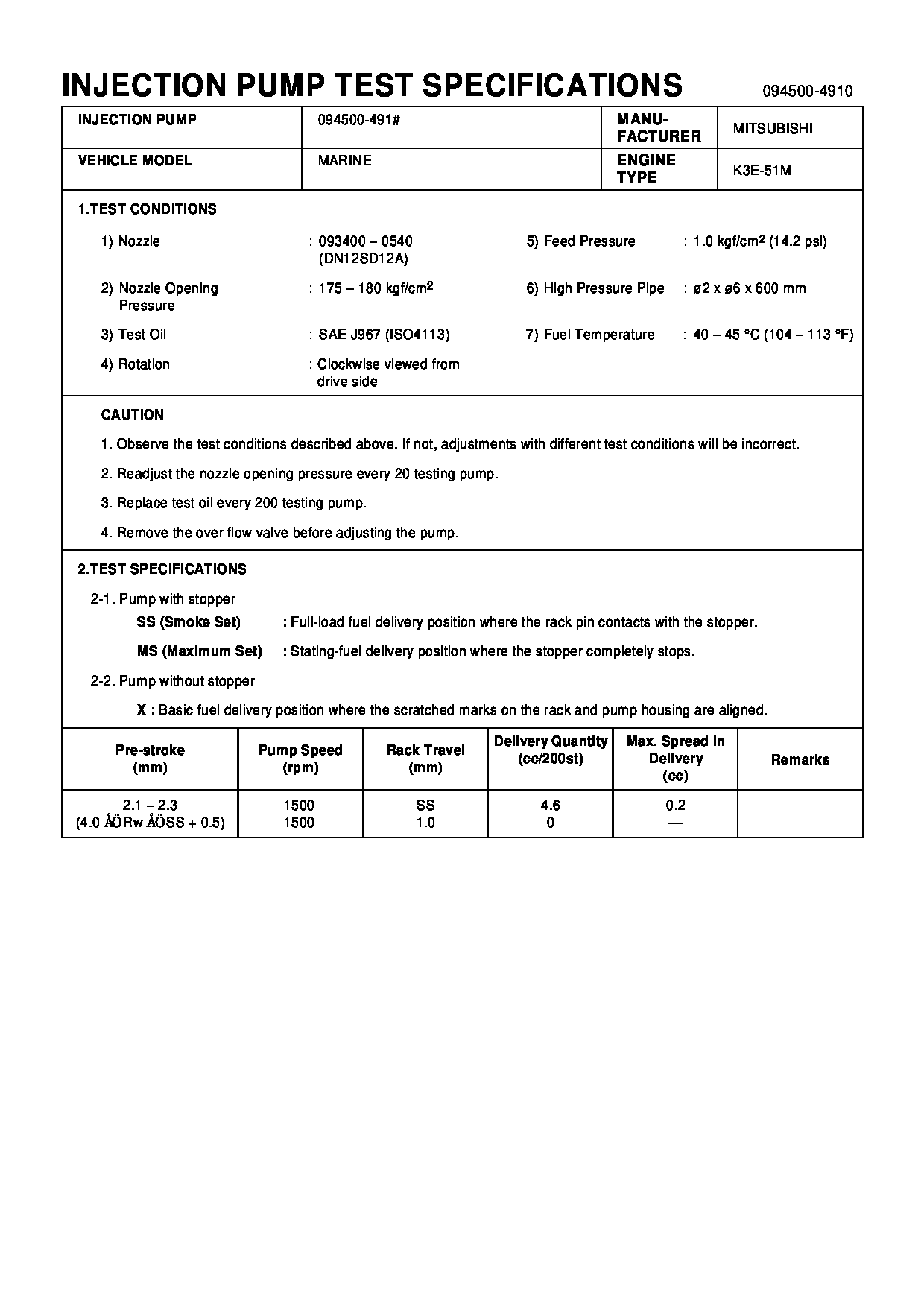

Test Calibration Data:

0945004910 MM437738




Information:


04Dec2012
D241
E310
J320
T010
Before/After
(Limited distribution)
PRODUCT SUPPORT PROGRAM FOR INSPECTING AND POSSIBLY REPLACING 20R-1282 FUEL INJECTORS ON CERTAIN 3512C, AND 3516C ENGINES
1290 1251 PS43780
This Program must be administered either before or after failure.In either case the decision whether to apply the Program is made by the dealer. When reporting the repair, use "PS43780" as the Part Numberand "7755" as the Group Number. If administered before failure, use "56" as the Warranty Claim Description Code and "T" as the SIMS Description code.If administered after failure, use "96" as the Warranty Claim Description Code, and "Z" as the SIMS Description Code.
The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
TERMINATION DATE
30Jun2013
PROBLEM
The initial production run of 20R-1282 injectors (less than 250 pieces) built before August 15, 2012 contains the wrong nozzle tip part number due to a print releasing error. 20R-1282 injectors built before August 15, 2012 (serial #1240557) should be removed from the engine, as the injection spray plume may direct onto the cylinder wall. Long term use may result in piston ring or liner wear.
AFFECTED PRODUCT
Model Identification Number
*******Group 1*******
3512C E3X00207
*******Group 2*******
3516C PES00225-00226, 228, 240, 256
PARTS NEEDED
Qty
Part Number Description
*******Group 1*******
12 7F8698 BOLT (As Needed)
12 3920222 INJECTOR GP-FUEL (As Needed)
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 15% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
*******Group 2*******
16 7F8698 BOLT (As Needed)
16 3920222 INJECTOR GP-FUEL (As Needed)
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 7% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
Refer to the Service Manual if/as necessary.
Inspect
