09450-04850 PUMP ASSY, INJECTI Calibration Data


Rating:
78
Buy PUMP ASSY, INJECTI 09450-04850 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
TRACTOR D1302-N
Engine
D1302-N
Serial start-end
8806--8811
Info
Injector Nozzle
093500-3330
Injector nozzle: 0935003330

Components :

00.001
PUMP ASSY, INJECTI
PFR3M

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09450-04850
PUMP ASSY, INJECTI
PFR3M
16415-51011 KUBOTA
001
[01]
HOUSING SUB-ASSY,
15321-51081 KUBOTA
005
[03]
HOLDER SUB-ASSY, D
16415-51221 KUBOTA
006
[03]
SPRING, DELIVERY V
16415-51231 KUBOTA
007
[03]
O-RING
ID14.8
14611-51201 KUBOTA
008
[03]
GASKET, DELIVERY V
-9004
15221-51241 KUBOTA
008
[03]
GASKET, DELIVERY V
D11.8 9005-
11420-51241 KUBOTA
009
[03]
VALVE SUB-ASSY, IN
MK:-
15271-51031 KUBOTA
010
[01]
ELEMENT SUB-ASSY,
16415-51051 KUBOTA
011
[03]
SLEEVE, PLUNGER CO
15221-51382 KUBOTA
012
[03]
SEAT, SPRING, UPR
15221-51271 KUBOTA
013
[03]
SPRING, PUMP PLUNG
15221-51281 KUBOTA
014
[03]
SEAT, SPRING, LWR
15021-51291 KUBOTA
015
[3C]
PLATE, TAPPET ADJU
T0.6
14109-51301 KUBOTA
015
[3C]
PLATE, TAPPET ADJU
T0.2
015
[3C]
PLATE, TAPPET ADJU
T0.3
015
[3C]
PLATE, TAPPET ADJU
T0.4
15221-51491 KUBOTA
015
[3C]
PLATE, TAPPET ADJU
T0.5
015
[3C]
PLATE, TAPPET ADJU
T0.25
015
[3C]
PLATE, TAPPET ADJU
T0.35
015
[3C]
PLATE, TAPPET ADJU
T0.45
015
[3C]
PLATE, TAPPET ADJU
T0.55
015
[3C]
PLATE, TAPPET ADJU
T0.65
016
[03]
TAPPET SUB-ASSY,IN
15221-51071 KUBOTA
016-001
[03]
TAPPET, INJECTION
15021-51990 KUBOTA
016-002
[03]
ROLLER, FEED PUMP
15109-52931 KUBOTA
016-003
[03]
PIN, INJECTION PUM
15021-51970 KUBOTA
017
[03]
PIN, INJECTION PUM
14611-51251 KUBOTA
018
[01]
PIN, CLAMP
15321-51431 KUBOTA
018
[01]
PLATE
19484-51461 KUBOTA
019
[01]
RACK ASSY, CONTROL
15321-51061 KUBOTA
020
[02]
PLATE, ADJUSTING
14384-51391 KUBOTA
021
[02]
WASHER, WAVE
M6
14952-51551 KUBOTA
022
[02]
BOLT, W/WASHER
M6,L9.5 -9004
15221-91031 KUBOTA
022
[02]
BOLT, WASHER HEAD
M6,L8 9005-
023
[01]
SCREW, HOLLOW
15521-51321 KUBOTA
025
[01]
PLATE, DELIVERY VA
026
[02]
WASHER, AIR BLEEDE
T1.6
15221-96651 KUBOTA
026
[01]
PLATE, DELIVERY VA
029
[02]
BOLT
M6,L38

Include in ##:

09450-04850 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09450-04850
16415-5101
PUMP ASSY, INJECTI
0945004850
16415-51011
KUBOTA
PUMP ASSY, INJECTI

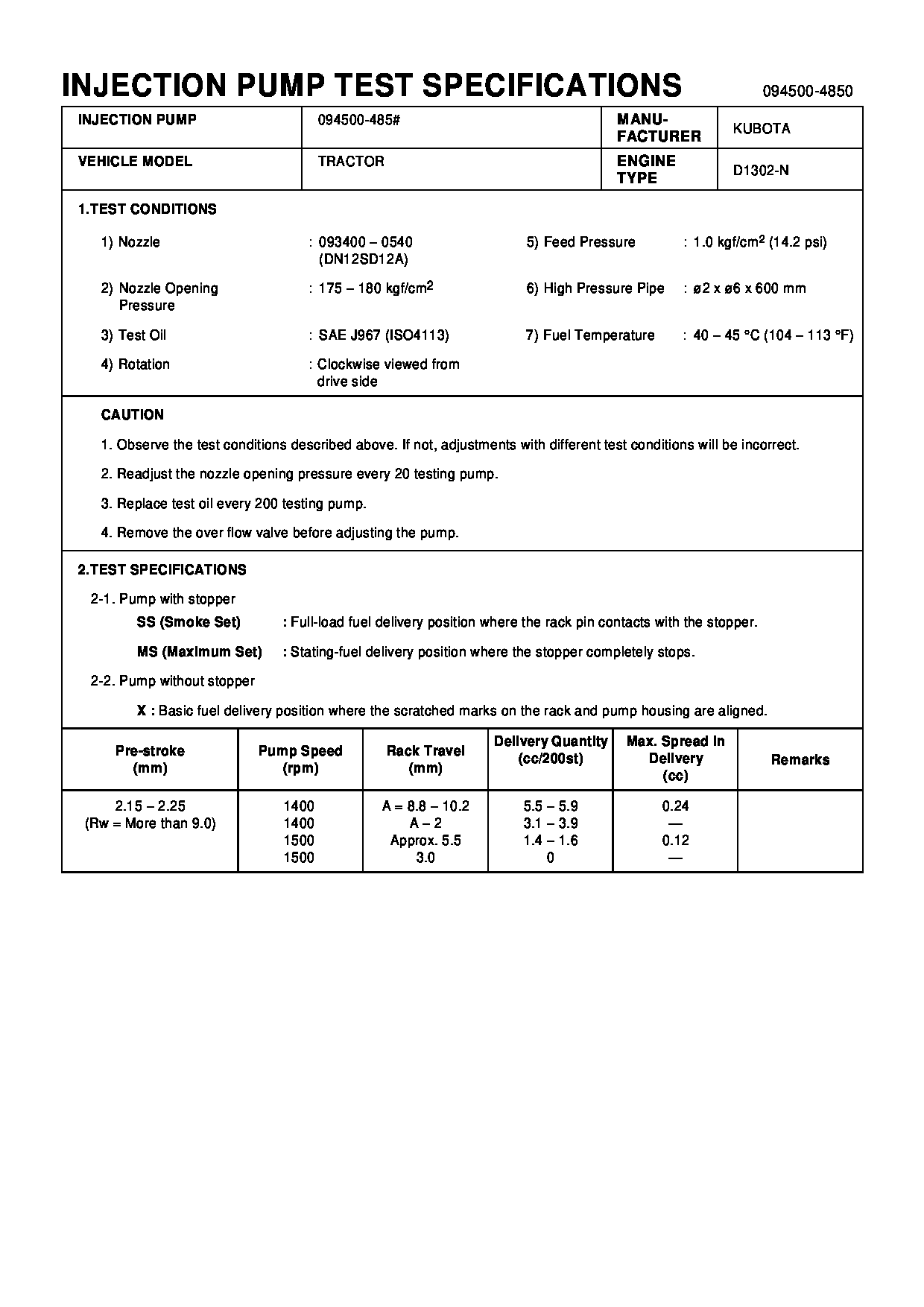

Test Calibration Data:

0945004850 16415-51011




Information:


17Mar2009
(Revised 29Mar2010)
U-109
A-95
D-90
O-94
TT-10
After Failure Only
PRODUCT SUPPORT PROGRAM FOR INSPECTING AND POSSIBLY UPDATING THE CATERPILLAR REGENERATION SYSTEM ON CERTAIN C13 ON-HIGHWAY TRUCK ENGINES EQUIPPED WITH 12 VOLT AND CERTAIN 24 VOLT HEATED NOZZLE AFTERTREATMENT REGENERATION DEVICES
107P 1743 108M 108B 108E PS51635
This Program can only be administered after a failure occurs.The decision whether to apply the Program is made by the dealer. When reporting the repair, use "PS51635" as the Part Numberand "7755" as the Group Number. Use "96" as the Warranty Claim Description Code and use "Z" as the SIMS Description Code.
The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
This Revised Service Letter replaces the 17Mar2009 (Revised 29Jan2010) Service Letter. Changes have been made to the Affected Product and to extend the Termination Date to 31Dec2010.
TERMINATION DATE
31Dec2010
PROBLEM
The existing components on the Caterpillar Regeneration System may fail causing the system to not regenerate properly. This failure results in the check engine lamp being illuminated and possible engine derate.
AFFECTED PRODUCT
Model Identification Number
*******Group 1*******
C13 LEE09917, 9927, 9947, 9956-9957, 9965, 9967, 10037, 10078, 10092, 10129, 10134, 10269, 10284, 10288, 10294, 10300-10301, 10303, 10306, 10344-10345, 10347, 10390-10391, 10436-10437, 10439-10440, 10478-10485, 10506-10507, 10518, 10614, 10659, 10739, 10742, 10828-10830, 11011, 11025, 11152-11153, 11162, 11191, 11193, 11273-11274, 11301, 11348, 11365, 11374, 11419, 11510, 11513, 11520, 11526, 11528-11529, 11531, 11536-11537, 11580, 11584, 11610, 11618, 11620, 11632, 11635, 11643-11644, 11649-11650, 11655, 11658, 11664, 11682, 11686, 11786, 11909, 11994, 12069, 12207, 12394, 12445, 12615, 12622, 13103, 13228, 13272, 13473, 14063-14066, 14068, 14070, 14074, 14081, 14085, 14090, 14094-14095, 14099, 14101-14102, 14107, 14113, 14115, 14124, 14127, 14131-14132, 14138, 14163, 14167, 14171, 14180, 14184, 14197, 14199, 14228-14229, 14259, 14261, 14435, 14459, 14494, 14517, 14525, 14541, 14551-14552, 14554, 14569, 14577, 14618, 14868, 14872, 14892, 14919, 14926, 14929, 14938, 15009, 15014, 15130, 15245, 15260, 15270, 15285, 15287, 15298, 15316, 15324, 15329, 15337, 15347, 15352, 15384, 15389, 15394, 15405, 15533, 15542, 15552, 15554, 15561, 15569-15570, 15589, 15591, 15603, 15619, 15649, 15991, 16280, 16424, 16434, 16493, 16505, 16533, 16588, 16623, 16630, 16673, 16714, 16717, 16736, 16776, 16877, 16922, 16925, 16985-16986, 17096, 17716, 17758, 17844, 17862, 17878-17879, 17898, 18011, 18070, 18404-18405, 18414, 18424, 18430, 18436, 18507, 18628, 18630, 18689, 18703, 18706, 18717, 18719, 18721, 18920, 18925, 18958, 18969, 19296, 19299, 19338, 19343, 19345, 19357, 19372, 19387, 19391, 19521, 19552, 20087, 20145, 20484, 20504, 20533, 20538, 20551, 20639, 20665, 20702, 20780, 20803
*******Group 2*******
C13 LEE10462-10463, 10496, 10522, 10534, 10536, 10539, 11726, 11731, 11738, 11744, 11855, 11861, 11870, 11902, 11906, 11913, 11922, 11962, 11981, 11993, 12046, 12054, 12891, 12910, 12937, 12941, 12951, 17806, 17808, 17831, 17835, 17837, 17840
PARTS NEEDED
Qty
Part Number Description
*******Group 1*******
1 2893107 GASKET
2 2901993 STRAP-CABLE
1
