09450-04650 PUMP ASSY, INJECTI Denso Cross


Rating:
56
Buy PUMP ASSY, INJECTI 09450-04650 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL K4E-61RA
Engine
K4E-61RA
Serial start-end
8601--8709
Info
Injector Nozzle
093500-1660
Injector nozzle: 0935001660

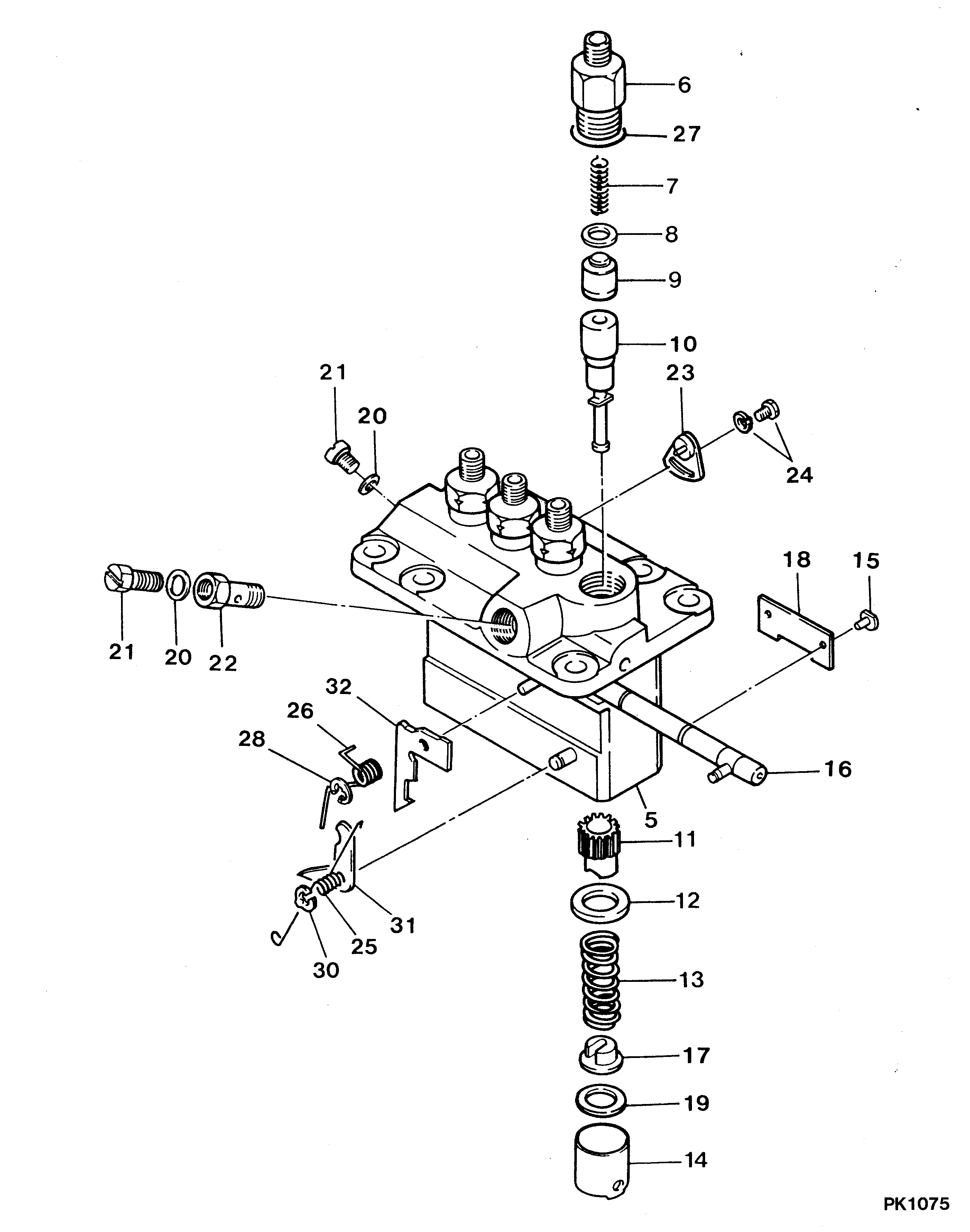

Components :

00.001
PUMP ASSY, INJECTI
PFR4M

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09450-04650
PUMP ASSY, INJECTI
PFR4M
005
[01]
HOUSING SUB-ASSY,
006
[04]
HOLDER, DELIVERY V
-9004
006
[04]
HOLDER, DELIVERY V
9005-
007
[04]
SPRING, DELIVERY V
008
[04]
GASKET, DELIVERY V
-9004
008
[04]
GASKET, DELIVERY V
9005-
009
[04]
VALVE SUB-ASSY, IN
MK: -
010
[04]
ELEMENT SUB-ASSY,
MK:2400
011
[04]
SLEEVE, PLUNGER CO
012
[04]
SEAT, SPRING, UPR
013
[04]
SPRING, PUMP PLUNG
014
[04]
TAPPET SUB-ASSY,IN
014-001
[04]
TAPPET, INJECTION
014-002
[04]
ROLLER, FEED PUMP
014-003
[04]
PIN, INJECTION PUM
015
[04]
PIN, INJECTION PUM
016
[01]
RACK ASSY, CONTROL
017
[04]
SEAT, SPRING, LWR
018
[02]
PLATE
019
[C]
PLATE, TAPPET ADJU
T0.6
019
[C]
PLATE, TAPPET ADJU
T0.2
019
[C]
PLATE, TAPPET ADJU
T0.3
019
[C]
PLATE, TAPPET ADJU
T0.4
019
[C]
PLATE, TAPPET ADJU
T0.5
019
[C]
PLATE, TAPPET ADJU
T0.25
019
[C]
PLATE, TAPPET ADJU
T0.35
019
[C]
PLATE, TAPPET ADJU
T0.45
019
[C]
PLATE, TAPPET ADJU
T0.55
019
[C]
PLATE, TAPPET ADJU
T0.65
020
[02]
WASHER, FUEL PIPE
021
[02]
SCREW, AIR BLEEDER
022
[01]
SCREW, HOLLOW
023
[03]
PLATE ASSY, ADJUST
-8807
023
[03]
PLATE, ADJUSTING
8808-
024
[03]
BOLT, W/WASHER
M6,L9.5 -9004
024
[03]
BOLT, WASHER HEAD
M6,L8 9005-
025
[01]
SPRING, DIAPHRAGM
026
[01]
SPRING, DIAPHRAGM
027
[04]
O-RING
ID14.8
028
[01]
E-RING
030
[01]
E-RING
031
[C]
STOPPER
6,L17.0
031
[C]
STOPPER
7,L16.9
031
[C]
STOPPER
8,L16.8
031
[C]
STOPPER
9,L16.7
031
[C]
STOPPER
10,L16.6
031
[C]
STOPPER
*1
031
[C]
STOPPER
*1
032
[C]
STOPPER
58,L2.1
032
[C]
STOPPER
59,L2.2
032
[C]
STOPPER
60,L2.3
032
[C]
STOPPER
61,L2.4
032
[C]
STOPPER
62,L2.5
032
[C]
STOPPER
63,L2.6
032
[C]
STOPPER
64,L2.7
032
[C]
STOPPER
65,L2.8
032
[C]
STOPPER
66,L2.9
032
[C]
STOPPER
67,L3.0

Include in ##:

09450-04650 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09450-04650

PUMP ASSY, INJECTI




Information:


20Sep2007
(Revised 09Oct2007)
U-465
A-380
TT-32
Priority
PRODUCT IMPROVEMENT PROGRAM FOR REPLACING INJECTOR SLEEVE O-RINGS ON CERTAIN C9 MTB ON-HIGHWAY TRUCK ENGINES
7555 1100 PI31352
This Program must be administered as soon as possible.When reporting the repair, use "PI31352" as the Part Number and "7751" as the Group Number, "56" as the Warranty Claim Description Codeand "T" as the SIMS Description code. Exception: If the repair is done after failure, use "PI31352" as the Part Number, "7751" as the Group Number,"96" as the Warranty Claim Description Code, and "Z" as the SIMS Description Code.
The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
This Revised Service Letter replaces the 20Sep2007 Service Letter. Changes have been made to the Service Claims Allowance, Parts Needed, and Action Required.
COMPLETION DATE
TERMINATION DATE
31Mar2008 30Sep2008
PROBLEM
The injector sleeve o-rings need to be replaced on certain C9 MTB On-Highway truck engines. The existing o-rings can fail and cause fuel to enter the coolant system.
AFFECTED PRODUCT
Model Identification Number
C9 MTB00101-00106, 109-190, 197-199, 1000-1001, 1003-1005, 1007-1221, 1227-1387, 1396-1429, 1431-1464, 1467-1550, 1553-2020
PARTS NEEDED
Qty
Part Number Description
6 1093207 SEAL-O-RING
12 1482903 SEAL-O-RING
6 1495240 RING-BACKUP
6 2271200 SLEEVE-INJECTOR
6 2930730 RING-BACKUP
6 3107255 SEAL-O-RING
6 3107257 SEAL-O-RING
ACTION REQUIRED
Follow Special Instruction REHS3798 for proper installation of injector sleeve o-rings.
Injector o-rings need to be replaced when the injector is removed to perform sleeve o-ring replacement. Reference SEBD6792 for correct orientation of injector o-rings.
OWNER NOTIFICATION
U.S. and Canadian owners will receive the attached Owner Notification.
SERVICE CLAIM ALLOWANCES
