09450-04640 PUMP ASSY, INJECTI Calibration Data Denso

Information Cross number Test Calibration Data Calibration Data Ex

Buy now

Add to cart Go to cart

Rating:

Buy PUMP ASSY, INJECTI 09450-04640 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product

Fuel Injection Pump

Vehicle engine

INDUSTRIAL K4D-61DA

Engine

K4D-61DA

Serial start-end

8801-

Info

Injector Nozzle

093500-1660

Injector nozzle: 0935001660

Components :

00.001

PUMP ASSY, INJECTI

09450-04640 MITSUBISHI

PFR4M

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

09450-04641

PUMP ASSY, INJECTI

PFR4M

005

[01]

09011-02420

HOUSING SUB-ASSY,

006

[04]

09013-10280

HOLDER, DELIVERY V

-9005

006

[04]

09013-10520

HOLDER, DELIVERY V

9005-

007

[04]

09013-60480

SPRING, DELIVERY V

008

[04]

09013-70061

GASKET, DELIVERY V

-9005

008

[04]

09013-70130

GASKET, DELIVERY V

9005-

009

[04]

09014-00410

VALVE SUB-ASSY, IN

MK: - -8807

009

[04]

09014-01860

VALVE SUB-ASSY, IN

8808-

010

[04]

09015-02120

ELEMENT SUB-ASSY,

MK:2120

011

[04]

09016-10210

SLEEVE, PLUNGER CO

012

[04]

09016-30082

SEAT, SPRING, UPR

013

[04]

09016-40170

SPRING, PUMP PLUNG

014

[04]

09017-00170

TAPPET SUB-ASSY,IN

014-001

[04]

09017-10021

TAPPET, INJECTION

014-002

[04]

09217-60010

ROLLER, FEED PUMP

014-003

[04]

09017-60020

PIN, INJECTION PUM

015

[04]

09018-30050

PIN, INJECTION PUM

016

[01]

09021-00440

RACK ASSY, CONTROL

017

[04]

09030-10060

SEAT, SPRING, LWR

018

[02]

09046-70030

PLATE

019

[C]

09031-10010

PLATE, TAPPET ADJU

T0.6

019

[C]

09031-10110

PLATE, TAPPET ADJU

T0.2

019

[C]

09031-10120

PLATE, TAPPET ADJU

T0.3

019

[C]

09031-10130

PLATE, TAPPET ADJU

T0.4

019

[C]

09031-10140

PLATE, TAPPET ADJU

T0.5

019

[C]

09031-10160

PLATE, TAPPET ADJU

T0.25

019

[C]

09031-10170

PLATE, TAPPET ADJU

T0.35

019

[C]

09031-10280

PLATE, TAPPET ADJU

T0.45

019

[C]

09031-10300

PLATE, TAPPET ADJU

T0.55

019

[C]

09031-10310

PLATE, TAPPET ADJU

T0.65

020

[02]

09022-20080

WASHER, FUEL PIPE

-9705

020

[02]

94901-81020

WASHER, COPPER PLA

9706-

021

[02]

09024-40180

SCREW, AIR BLEEDER

022

[01]

94918-00510

SCREW, HOLLOW

023

[03]

09007-00012

PLATE ASSY, ADJUST

-8807

023

[03]

09006-80020

PLATE, ADJUSTING

8808-

024

[03]

94904-71980

BOLT, W/WASHER

M6,L9.5 -9004

024

[03]

94904-80800

BOLT, WASHER HEAD

M6,L8 9004-

026

[01]

09055-40440

SPRING, DIAPHRAGM

027

[04]

90802-20150

O-RING

ID14.8

028

[01]

09089-40020

E-RING

033

[C]

09021-93480

STOPPER

51,1.4

033

[C]

09021-93490

STOPPER

52,1.5

033

[C]

09021-93500

STOPPER

53,1.6

033

[C]

09021-93510

STOPPER

54,L1.7

033

[C]

09021-93520

STOPPER

55,L1.8

033

[C]

09021-93530

STOPPER

56,L1.9

033

[C]

09021-93540

STOPPER

57,L2.0

033

[C]

09021-93550

STOPPER

58,L2.1

033

[C]

09021-93560

STOPPER

59,L2.2

033

[C]

09021-93570

STOPPER

60,L2.3

033

[C]

09021-95530

STOPPER

47,L1.0

033

[C]

09021-95540

STOPPER

48,L1.1

033

[C]

09021-95550

STOPPER

49,L1.2

033

[C]

09021-95560

STOPPER

50,L1.3

Cross reference number

Part num

Firm num

Firm

Name

09450-04640

PUMP ASSY, INJECTI

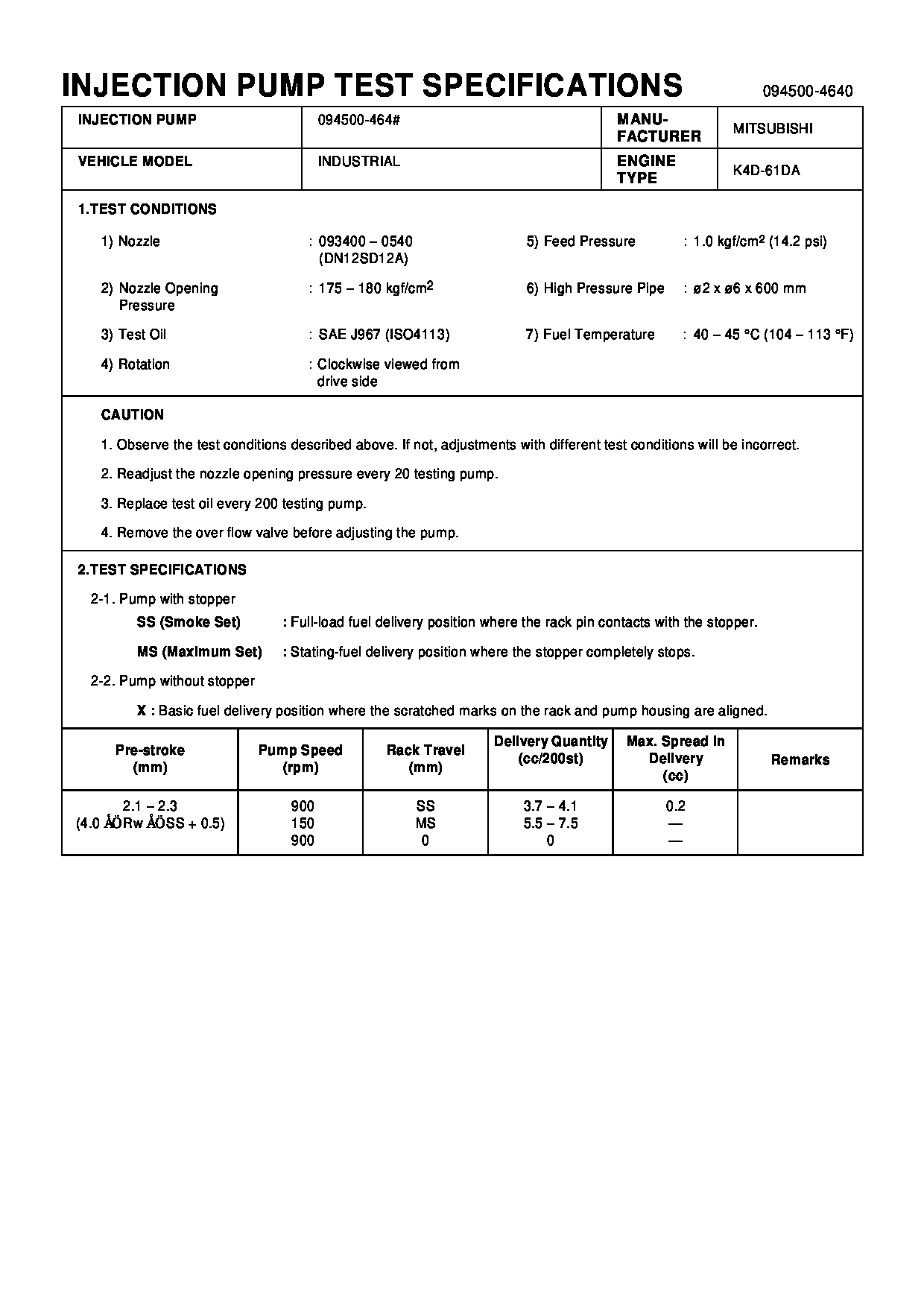

Test Calibration Data:

Get Full test data file

0945004640 MM436829

09450-04640 PUMP ASSY, INJECTI Calibration Data

Information pump assy, injecti Denso

Components :

Scheme #.#:

Cross reference number

Test Calibration Data:

Have questions with 09450-04640?

Group cross 09450-04640
