09450-04510 PUMP ASSY, INJECTI Calibration Data Denso

Information Cross number Test Calibration Data Calibration Data Ex

Buy now

Add to cart Go to cart

Rating:

Buy PUMP ASSY, INJECTI 09450-04510 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product

Fuel Injection Pump

Vehicle engine

INDUSTRIAL L3E-61WN

Engine

L3E-61WN

Serial start-end

8708-

Info

Injector Nozzle

093500-3350

Injector nozzle: 0935003350

Components :

00.001

PUMP ASSY, INJECTI

09450-04510 MITSUBISHI

PFR3NC

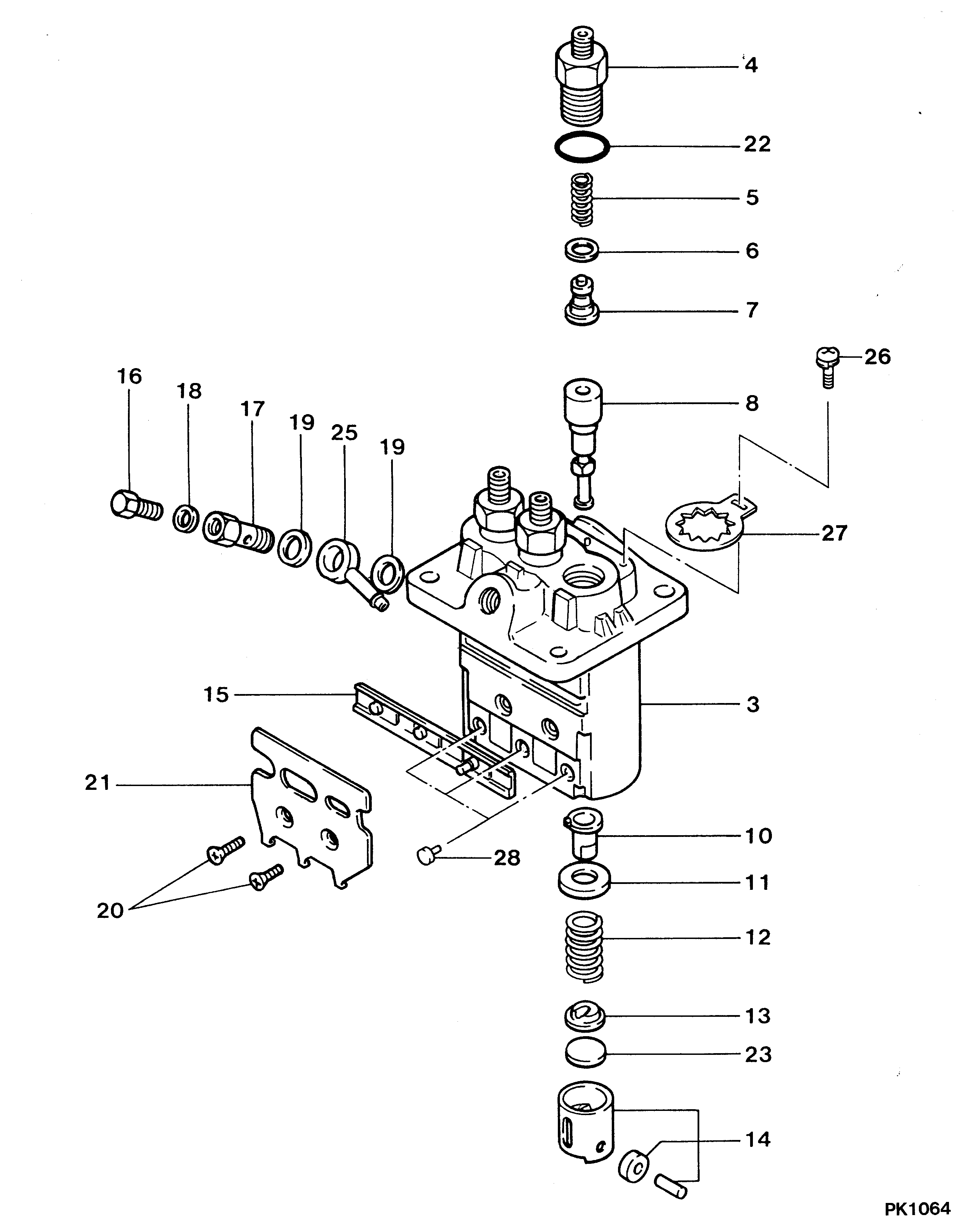

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

09450-04510

PUMP ASSY, INJECTI

PFR3NC

003

[01]

09011-03730

HOUSING SUB-ASSY,

004

[03]

09013-10830

HOLDER, DELIVERY V

005

[03]

09013-60530

SPRING, DELIVERY V

006

[03]

09013-70061

GASKET, DELIVERY V

-9004

006

[03]

09013-70130

GASKET, DELIVERY V

9005-

007

[03]

09014-01900

VALVE SUB-ASSY, IN

008

[03]

09015-04280

ELEMENT SUB-ASSY,

010

[03]

09016-00140

SLEEVE SUB-ASSY, C

011

[03]

09016-30140

SEAT, SPRING, UPR

012

[03]

09016-40220

SPRING, PUMP PLUNG

013

[03]

09016-50170

SEAT, SPRING, LWR

014

[03]

09017-00220

TAPPET SUB-ASSY,IN

015

[01]

09021-00560

RACK ASSY, CONTROL

016

[01]

09024-40010

SCREW, AIR BLEEDER

017

[01]

09024-50310

SCREW, HOLLOW

018

[01]

09024-80010

WASHER, DRAIN SCRE

019

[02]

09025-10010

WASHER, INJECTION

020

[02]

94900-20500

SCREW, COUNTERSUNK

M5,L8

021

[01]

09069-11020

BRACKET, STOP WIRE

022

[03]

90801-10130

O-RING

ID13 -0501

022

[03]

09013-90400

O-RING

ID13 0502-

023

[C]

09031-10320

PLATE, TAPPET ADJU

T1.85

023

[C]

09031-10330

PLATE, TAPPET ADJU

T1.9

023

[C]

09031-10340

PLATE, TAPPET ADJU

T1.95

023

[C]

09031-10350

PLATE, TAPPET ADJU

T2.0

023

[C]

09031-10360

PLATE, TAPPET ADJU

T2.05

023

[C]

09031-10370

PLATE, TAPPET ADJU

T2.1

023

[C]

09031-10380

PLATE, TAPPET ADJU

T2.15

023

[C]

09031-10390

PLATE, TAPPET ADJU

T2.2

023

[C]

09031-10400

PLATE, TAPPET ADJU

T2.25

023

[C]

09031-10410

PLATE, TAPPET ADJU

T2.3

023

[C]

09031-10420

PLATE, TAPPET ADJU

T2.35

023

[C]

09031-10430

PLATE, TAPPET ADJU

T2.4

023

[C]

09031-10440

PLATE, TAPPET ADJU

T2.45

023

[C]

09031-10450

PLATE, TAPPET ADJU

T2.5

025

[01]

09221-70470

NIPPLE, SWIVEL

026

[03]

91370-05101

SCREW, W/WASHER

M5,L10 -9004

026

[03]

94900-75390

SCREW, W/WASHER

M5,L9 9005-

027

[03]

09023-00070

PLATE SET, VALVE H

028

[03]

09018-30090

PIN, INJECTION PUM

Include in ##:

09450-04510 as PUMP ASSY, INJECTI

Cross reference number

Part num

Firm num

Firm

Name

09450-04510

PUMP ASSY, INJECTI

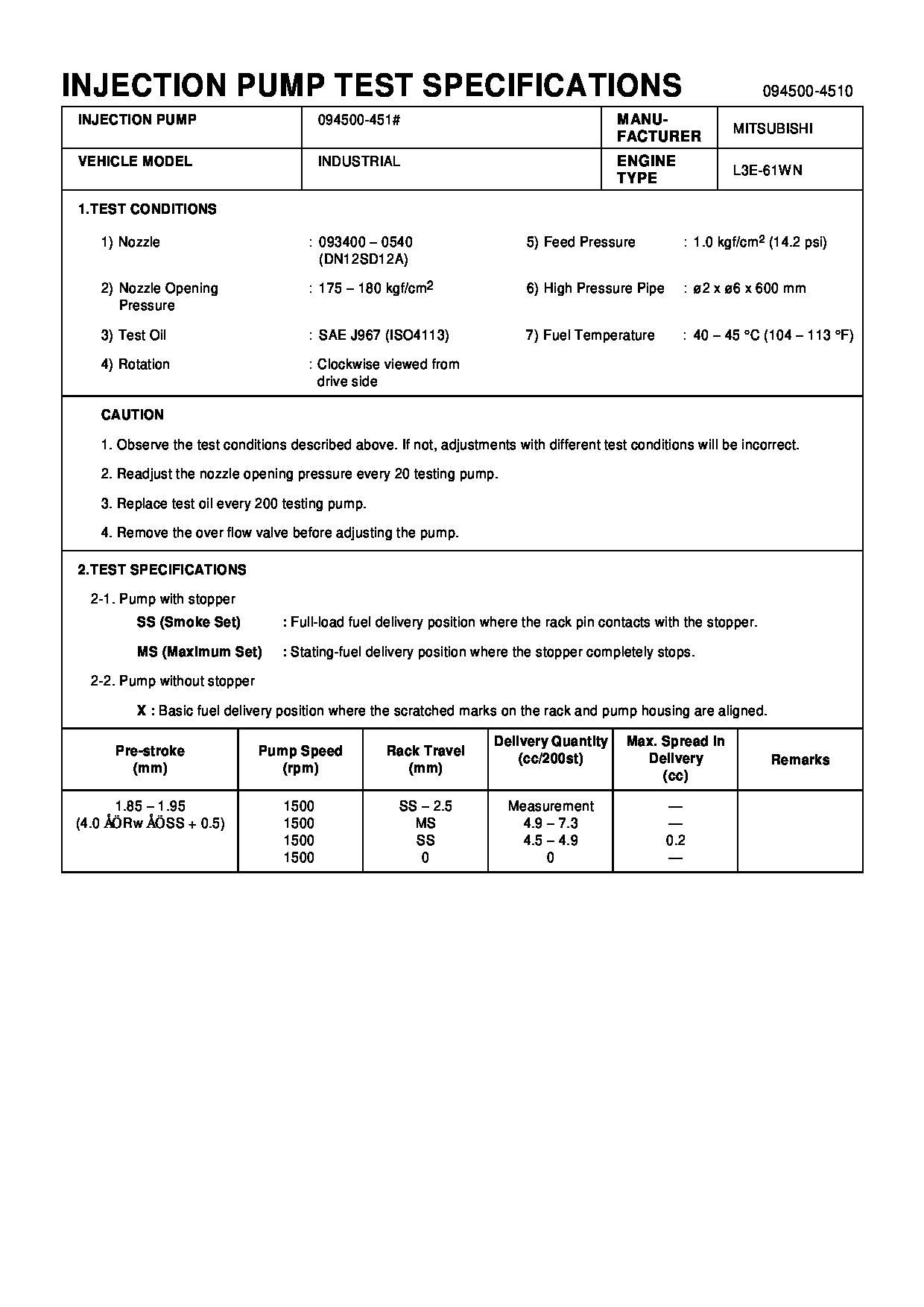

Test Calibration Data:

Get Full test data file

0945004510 MM436649

09450-04510 PUMP ASSY, INJECTI Calibration Data

Information pump assy, injecti Denso

Components :

Scheme #.#:

Include in ##:

Cross reference number

Test Calibration Data:

Have questions with 09450-04510?

Group cross 09450-04510
