09450-04280 PUMP ASSY, INJECTI Calibration Data


Rating:
7
Buy PUMP ASSY, INJECTI 09450-04280 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL K3E-61DA
Engine
K3E-61DA
Serial start-end
8812-
Info
Injector Nozzle
093500-1660
Injector nozzle: 0935001660

Components :

00.001
PUMP ASSY, INJECTI
09450-04280 MITSUBISHI
PFR3M

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09450-04280
PUMP ASSY, INJECTI
PFR3M
005
[01]
09011-02590
HOUSING SUB-ASSY,
006
[03]
09013-10520
HOLDER, DELIVERY V
007
[03]
09013-60480
SPRING, DELIVERY V
008
[03]
09013-70130
GASKET, DELIVERY V
009
[03]
09014-00410
VALVE SUB-ASSY, IN
MK: -
010
[03]
09015-02190
ELEMENT SUB-ASSY,
MK:2190
011
[03]
09016-10210
SLEEVE, PLUNGER CO
012
[03]
09016-30082
SEAT, SPRING, UPR
013
[03]
09016-40170
SPRING, PUMP PLUNG
014
[03]
09017-00170
TAPPET SUB-ASSY,IN
014-001
[03]
09017-10021
TAPPET, INJECTION
014-002
[03]
09217-60010
ROLLER, FEED PUMP
014-003
[03]
09017-60020
PIN, INJECTION PUM
015
[03]
09018-30050
PIN, INJECTION PUM
016
[01]
09021-00470
RACK ASSY, CONTROL
017
[03]
09030-10060
SEAT, SPRING, LWR
018
[01]
09046-70040
PLATE
019
[3C]
09031-10010
PLATE, TAPPET ADJU
T0.6
019
[3C]
09031-10110
PLATE, TAPPET ADJU
T0.2
019
[3C]
09031-10120
PLATE, TAPPET ADJU
T0.3
019
[3C]
09031-10130
PLATE, TAPPET ADJU
T0.4
019
[3C]
09031-10140
PLATE, TAPPET ADJU
T0.5
019
[3C]
09031-10160
PLATE, TAPPET ADJU
T0.25
019
[3C]
09031-10170
PLATE, TAPPET ADJU
T0.35
019
[3C]
09031-10280
PLATE, TAPPET ADJU
T0.45
019
[3C]
09031-10300
PLATE, TAPPET ADJU
T0.55
019
[3C]
09031-10310
PLATE, TAPPET ADJU
T0.65
020
[01]
09022-20080
WASHER, FUEL PIPE
-9705
020
[01]
94901-81020
WASHER, COPPER PLA
9706-
021
[01]
09024-40180
SCREW, AIR BLEEDER
022
[01]
09024-50210
SCREW, HOLLOW
023
[02]
09006-80020
PLATE, ADJUSTING
024
[02]
94904-80800
BOLT, WASHER HEAD
026
[01]
09055-40440
SPRING, DIAPHRAGM
027
[03]
90802-20150
O-RING
ID14.8 -0501
027
[03]
09013-90410
O-RING
ID14.8 0502-
028
[01]
09089-40020
E-RING
D11,T0.7
031
[1C]
09021-93540
STOPPER
57,L2.0
031
[1C]
09021-93550
STOPPER
58,L2.1
031
[1C]
09021-93560
STOPPER
59,L2.2
031
[1C]
09021-93570
STOPPER
60,L2.3
031
[1C]
09021-93580
STOPPER
61,L2.4
031
[1C]
09021-93590
STOPPER
62,L2.5
031
[1C]
09021-93600
STOPPER
63,L2.6
031
[1C]
09021-93610
STOPPER
64,L2.7
031
[1C]
09021-93620
STOPPER
65,L2.8
031
[1C]
09021-93630
STOPPER
66,L2.9
031
[1C]
09021-93640
STOPPER
67,L3.0
031
[1C]
09021-93650
STOPPER
68,L3.1
031
[1C]
09021-93660
STOPPER
69,L3.2
031
[1C]
09021-93670
STOPPER
70,L3.3
031
[1C]
09021-93680
STOPPER
71,L3.4

Include in ##:

09450-04280 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09450-04280

PUMP ASSY, INJECTI

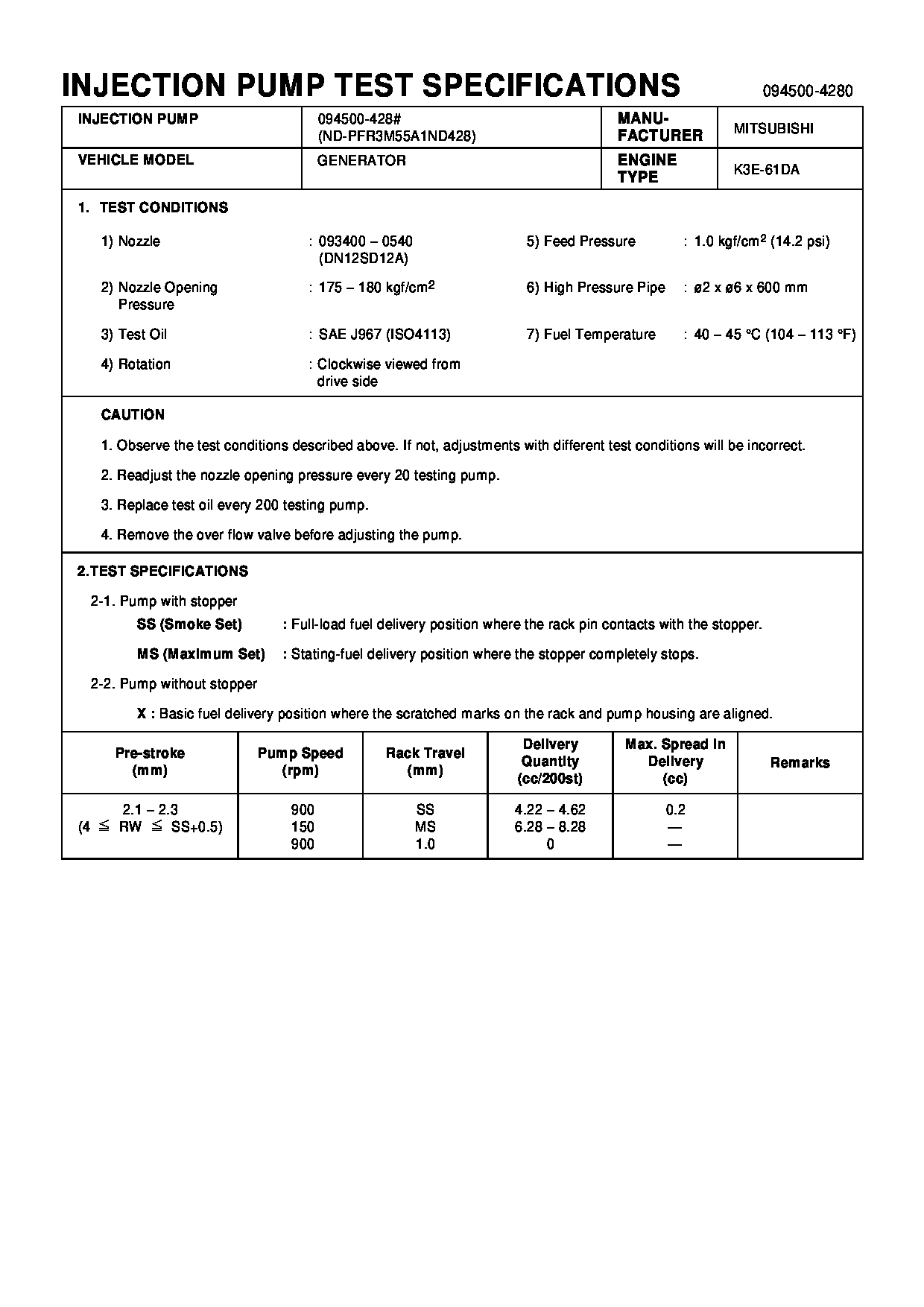

Test Calibration Data:

Get Full test data file
0945004280 MM435726
EG4280
EG4280
