09450-04200 PUMP ASSY, INJECTI Calibration Data


Rating:
2
Buy PUMP ASSY, INJECTI 09450-04200 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
MARINE K4D-61TM
Engine
K4D-61TM
Serial start-end
8712-
Info
Injector Nozzle
093500-1660
Injector nozzle: 0935001660

Components :

00.001
PUMP ASSY, INJECTI
PFR4M

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09450-04200
PUMP ASSY, INJECTI
PFR4M
005
[01]
HOUSING SUB-ASSY,
006
[04]
HOLDER, DELIVERY V
007
[04]
SPRING, DELIVERY V
008
[04]
GASKET, DELIVERY V
009
[04]
VALVE SUB-ASSY, IN
MK:188
010
[04]
ELEMENT SUB-ASSY,
MK:2400
011
[04]
SLEEVE, PLUNGER CO
012
[04]
SEAT, SPRING, UPR
013
[04]
SPRING, PUMP PLUNG
014
[04]
TAPPET SUB-ASSY,IN
014-001
[04]
TAPPET, INJECTION
014-002
[04]
ROLLER, FEED PUMP
014-003
[04]
PIN, INJECTION PUM
015
[04]
PIN, INJECTION PUM
016
[01]
RACK ASSY, CONTROL
017
[04]
SEAT, SPRING, LWR
018
[02]
PLATE
019
[4C]
PLATE, TAPPET ADJU
T0.6
019
[4C]
PLATE, TAPPET ADJU
T0.2
019
[4C]
PLATE, TAPPET ADJU
T0.3
019
[4C]
PLATE, TAPPET ADJU
T0.4
019
[4C]
PLATE, TAPPET ADJU
T0.5
019
[4C]
PLATE, TAPPET ADJU
T0.25
019
[4C]
PLATE, TAPPET ADJU
T0.35
019
[4C]
PLATE, TAPPET ADJU
T0.45
019
[4C]
PLATE, TAPPET ADJU
T0.55
019
[4C]
PLATE, TAPPET ADJU
T0.65
020
[02]
WASHER, FUEL PIPE
-9705
020
[02]
WASHER, COPPER PLA
9706-
021
[02]
SCREW, AIR BLEEDER
022
[01]
SCREW, HOLLOW
023
[03]
PLATE, ADJUSTING
024
[03]
BOLT, WASHER HEAD
M6,L8
025
[01]
SPRING, DIAPHRAGM
D7.11
026
[01]
SPRING, DIAPHRAGM
027
[04]
O-RING
ID14.8
028
[01]
E-RING
D11,T0.7
029
[01]
E-RING
D9, T0.7
032
[01]
STOPPER
1,L16.9
032
[01]
STOPPER
2,L16.8
032
[01]
STOPPER
3,L16.7
032
[01]
STOPPER
4,L16.6
032
[01]
STOPPER
5,L16.5
033
[01]
STOPPER
56,L1.9
033
[01]
STOPPER
57,L2.0
033
[01]
STOPPER
58,L2.1
033
[01]
STOPPER
59,L2.2
033
[01]
STOPPER
60,L2.3
033
[01]
STOPPER
61,L2.4
033
[01]
STOPPER
62,L2.5
033
[01]
STOPPER
63,L2.6
033
[01]
STOPPER
64,L2.7
033
[01]
STOPPER
65,L2.8
033
[01]
STOPPER
66,L2.9
033
[01]
STOPPER
67,L3.0
033
[01]
STOPPER
68,L3.1
033
[01]
STOPPER
69,L3.2
033
[01]
STOPPER
70,L3.3

Include in ##:

09450-04200 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09450-04200

PUMP ASSY, INJECTI

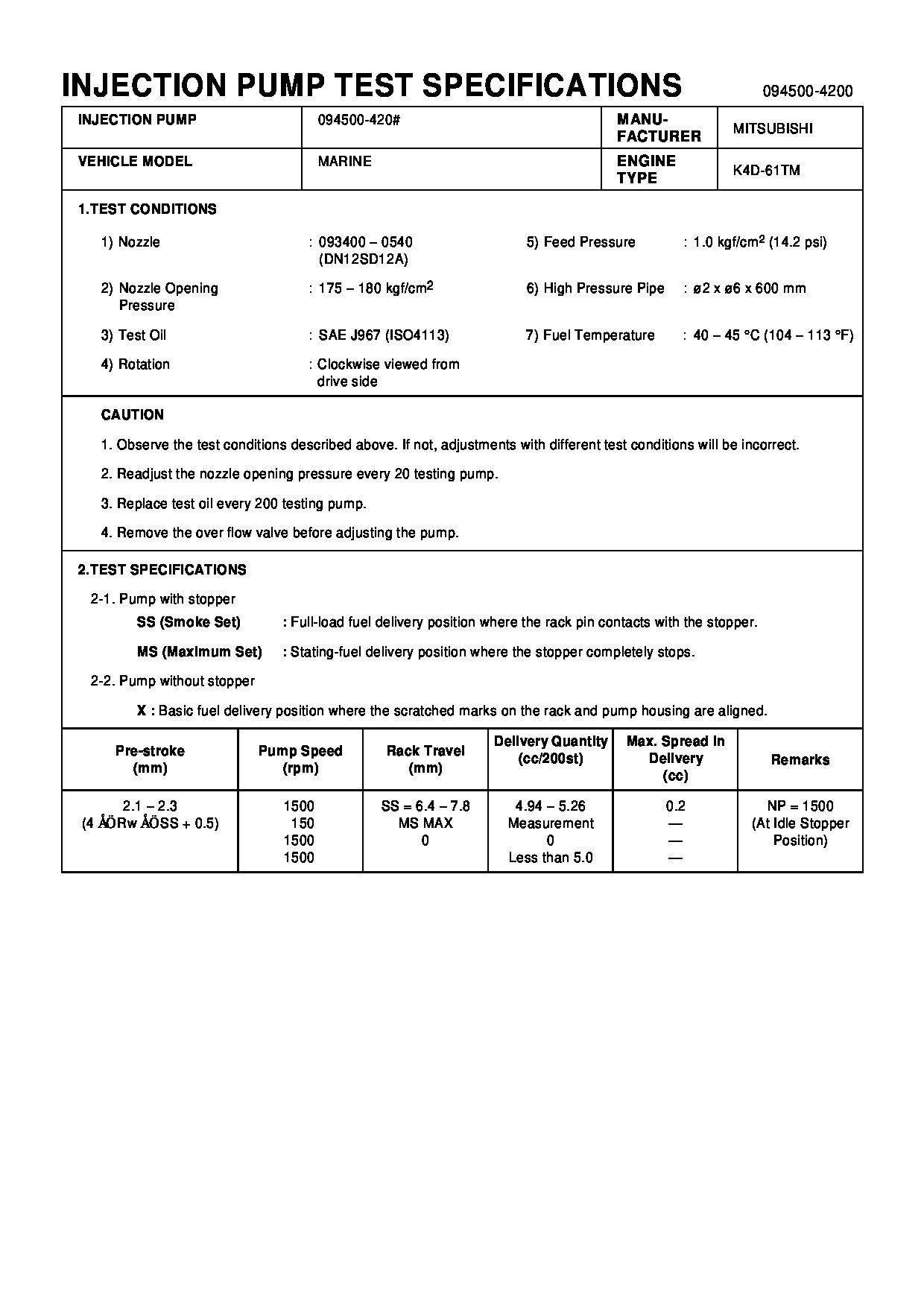

Test Calibration Data:

0945004200 MM435568
