09450-04100 PUMP ASSY, INJECTI Calibration Data


Rating:
49
Buy PUMP ASSY, INJECTI 09450-04100 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
Construction machine K4F-D11C
Engine
K4F-D11C
Serial start-end
8609--8902
Info
Injector Nozzle
093500-3330
Injector nozzle: 0935003330

Components :

00.001
PUMP ASSY, INJECTI
09450-04100 MITSUBISHI
PFR4M

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09450-04102
PUMP ASSY, INJECTI
PFR4M
005
[01]
09011-02420
HOUSING SUB-ASSY,
006
[04]
09013-10720
HOLDER, DELIVERY V
007
[04]
09013-60900
SPRING, DELIVERY V
008
[04]
09013-70130
GASKET, DELIVERY V
009
[04]
09014-01690
VALVE SUB-ASSY, IN
MK:169 -8807
009
[04]
09014-02030
VALVE SUB-ASSY, IN
8808-
010
[04]
09015-03450
ELEMENT SUB-ASSY,
MK:3450 -8807
010
[04]
09015-04640
ELEMENT SUB-ASSY,
8808-
011
[04]
09016-10210
SLEEVE, PLUNGER CO
012
[04]
09016-30082
SEAT, SPRING, UPR
013
[04]
09016-40170
SPRING, PUMP PLUNG
014
[04]
09017-00170
TAPPET SUB-ASSY,IN
014-001
[04]
09017-10021
TAPPET, INJECTION
014-002
[04]
09217-60010
ROLLER, FEED PUMP
014-003
[04]
09017-60020
PIN, INJECTION PUM
015
[04]
09018-30050
PIN, INJECTION PUM
016
[01]
09021-00440
RACK ASSY, CONTROL
017
[04]
09030-10060
SEAT, SPRING, LWR
018
[02]
09046-70030
PLATE
019
[4C]
09031-10010
PLATE, TAPPET ADJU
T0.6
019
[4C]
09031-10110
PLATE, TAPPET ADJU
T0.2
019
[4C]
09031-10120
PLATE, TAPPET ADJU
T0.3
019
[4C]
09031-10130
PLATE, TAPPET ADJU
T0.4
019
[4C]
09031-10140
PLATE, TAPPET ADJU
T0.5
019
[4C]
09031-10160
PLATE, TAPPET ADJU
T0.25
019
[4C]
09031-10170
PLATE, TAPPET ADJU
T0.35
019
[4C]
09031-10280
PLATE, TAPPET ADJU
T0.45
019
[4C]
09031-10300
PLATE, TAPPET ADJU
T0.55
019
[4C]
09031-10310
PLATE, TAPPET ADJU
T0.65
020
[01]
94901-81020
WASHER, COPPER PLA
T1
021
[01]
09314-10170
NIPPLE, OIL LEAKAG
022
[01]
94918-00310
SCREW, HOLLOW
023
[03]
09006-80020
PLATE, ADJUSTING
024
[03]
94904-80800
BOLT, WASHER HEAD
025
[01]
09055-40470
SPRING, DIAPHRAGM
026
[01]
09055-40280
SPRING, DIAPHRAGM
027
[04]
90802-20150
O-RING
ID14.8 -0501
027
[04]
09013-90410
O-RING
ID14.8 0502-
028
[01]
09089-40020
E-RING
D11,T0.7
029
[01]
09089-40010
E-RING
D9, T0.7
032
[1C]
09021-93080
STOPPER
6,L17.0
032
[1C]
09021-93090
STOPPER
7,L16.9
032
[1C]
09021-93100
STOPPER
8,L16.8
032
[1C]
09021-93110
STOPPER
9,L16.7
032
[1C]
09021-93120
STOPPER
10,L16.6
032
[1C]
09021-95360
STOPPER
11,L16.8
032
[1C]
09021-95370
STOPPER
12,L16.7
033
[1C]
09021-93670
STOPPER
70,L3.3
033
[1C]
09021-93680
STOPPER
71,L3.4
033
[1C]
09021-93690
STOPPER
72,L3.5
033
[1C]
09021-93700
STOPPER
73,L3.6
033
[1C]
09021-93710
STOPPER
74,L3.7
033
[1C]
09021-93720
STOPPER
75,L3.8
033
[1C]
09021-93730
STOPPER
76,L3.9
033
[1C]
09021-93740
STOPPER
77,L4.0
033
[1C]
09021-93750
STOPPER
78,L4.1
033
[1C]
09021-93760
STOPPER
79,L4.2
033
[1C]
09021-93770
STOPPER
80,L4.3
033
[1C]
09021-93780
STOPPER
81,L4.4
033
[1C]
09021-93640
STOPPER
67,L3.0
033
[1C]
09021-93650
STOPPER
68,L3.1
033
[1C]
09021-93660
STOPPER
69,L3.2

Cross reference number



Part num
Firm num
Firm
Name
09450-04100

PUMP ASSY, INJECTI

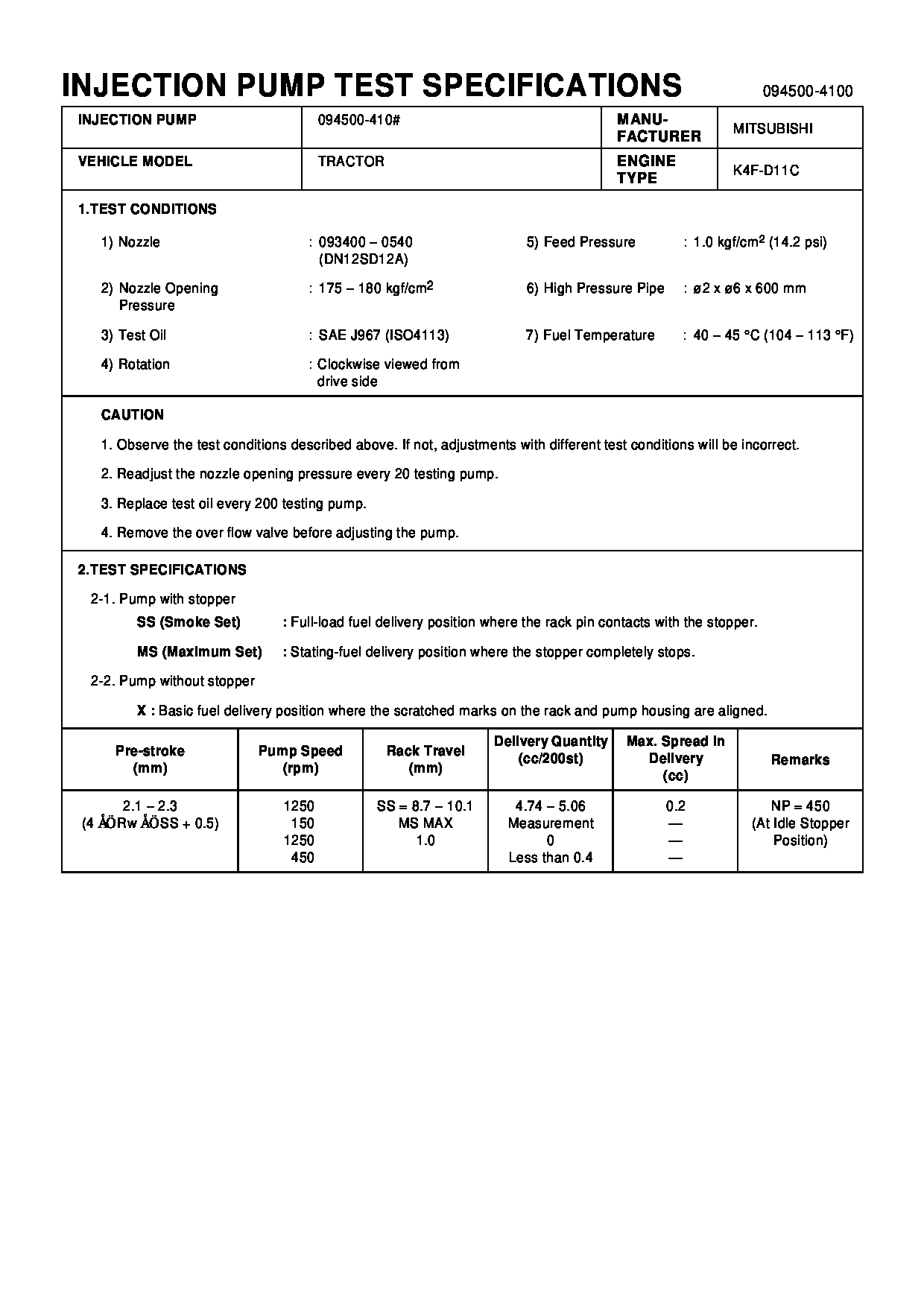

Test Calibration Data:

Get Full test data file
0945004100 MM436951
EG4100
EG4100
