09450-04090 PUMP ASSY, INJECTI Calibration Data


Rating:
8
Buy PUMP ASSY, INJECTI 09450-04090 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
agricultural machine K4M-D11C
Engine
K4M-D11C
Serial start-end
8609--8712
Info
Injector Nozzle
093500-3330
Injector nozzle: 0935003330

Components :

00.001
PUMP ASSY, INJECTI
09450-04090 MITSUBISHI
PFR4M

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09450-04090
PUMP ASSY, INJECTI
PFR4M
005
[01]
09011-02420
HOUSING SUB-ASSY,
006
[04]
09013-10720
HOLDER, DELIVERY V
007
[04]
09013-60640
SPRING, DELIVERY V
007
[03]
09013-60900
SPRING, DELIVERY V
008
[04]
09013-70130
GASKET, DELIVERY V
009
[04]
09014-01690
VALVE SUB-ASSY, IN
MK:169
010
[04]
09015-04060
ELEMENT SUB-ASSY,
011
[04]
09016-10210
SLEEVE, PLUNGER CO
012
[04]
09016-30082
SEAT, SPRING, UPR
013
[04]
09016-40170
SPRING, PUMP PLUNG
014
[04]
09017-00170
TAPPET SUB-ASSY,IN
014-001
[04]
09017-10021
TAPPET, INJECTION
014-002
[04]
09217-60010
ROLLER, FEED PUMP
014-003
[04]
09017-60020
PIN, INJECTION PUM
015
[04]
09018-30050
PIN, INJECTION PUM
016
[01]
09021-00440
RACK ASSY, CONTROL
017
[04]
09030-10060
SEAT, SPRING, LWR
018
[02]
09046-70030
PLATE
019
[C]
09031-10010
PLATE, TAPPET ADJU
T0.6
019
[C]
09031-10110
PLATE, TAPPET ADJU
T0.2
019
[C]
09031-10120
PLATE, TAPPET ADJU
T0.3
019
[C]
09031-10130
PLATE, TAPPET ADJU
T0.4
019
[C]
09031-10140
PLATE, TAPPET ADJU
T0.5
019
[C]
09031-10160
PLATE, TAPPET ADJU
T0.25
019
[C]
09031-10170
PLATE, TAPPET ADJU
T0.35
019
[C]
09031-10280
PLATE, TAPPET ADJU
T0.45
019
[C]
09031-10300
PLATE, TAPPET ADJU
T0.55
019
[C]
09031-10310
PLATE, TAPPET ADJU
T0.65
020
[01]
09022-20080
WASHER, FUEL PIPE
021
[01]
09024-40180
SCREW, AIR BLEEDER
022
[01]
94918-00510
SCREW, HOLLOW
023
[03]
09007-00012
PLATE ASSY, ADJUST
-8807
023
[03]
09006-80020
PLATE, ADJUSTING
8808-
024
[03]
94904-71980
BOLT, W/WASHER
M6,L9.5 -9004
025
[01]
09055-40340
SPRING, DIAPHRAGM
D7.11
026
[01]
09055-40440
SPRING, DIAPHRAGM
027
[04]
90802-20150
O-RING
ID14.8
028
[01]
09089-40020
E-RING
D11,T0.7
029
[01]
09089-40010
E-RING
D9, T0.7
030
[04]
94901-35590
WASHER, PLATE, SK
T0.5
031
[C]
09021-92500
STOPPER
1,L16.9
031
[C]
09021-92510
STOPPER
2,L16.8
031
[C]
09021-92520
STOPPER
3,L16.7
031
[C]
09021-92530
STOPPER
4,L16.6
031
[C]
09021-92540
STOPPER
5,L16.5
032
[C]
09021-93800
STOPPER
83,L4.6
032
[C]
09021-93810
STOPPER
84,L4.7
032
[C]
09021-93820
STOPPER
85,L4.8
032
[C]
09021-93830
STOPPER
86,L4.9
032
[C]
09021-93840
STOPPER
87,L5.0
032
[C]
09021-93850
STOPPER
88,L5.1
032
[C]
09021-93860
STOPPER
89,L5.2
032
[C]
09021-95760
STOPPER
90,L5.3
032
[C]
09021-95770
STOPPER
91,L5.4
032
[C]
09021-95780
STOPPER
92,L5.5
032
[C]
09021-95790
STOPPER
93,L5.6
032
[C]
09021-95800
STOPPER
94,L5.7
032
[C]
09021-95810
STOPPER
95,L5.8
032
[C]
09021-95820
STOPPER
96,L5.9
032
[C]
09021-95830
STOPPER
97,L6.0

Include in ##:

09450-04090 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09450-04090

PUMP ASSY, INJECTI

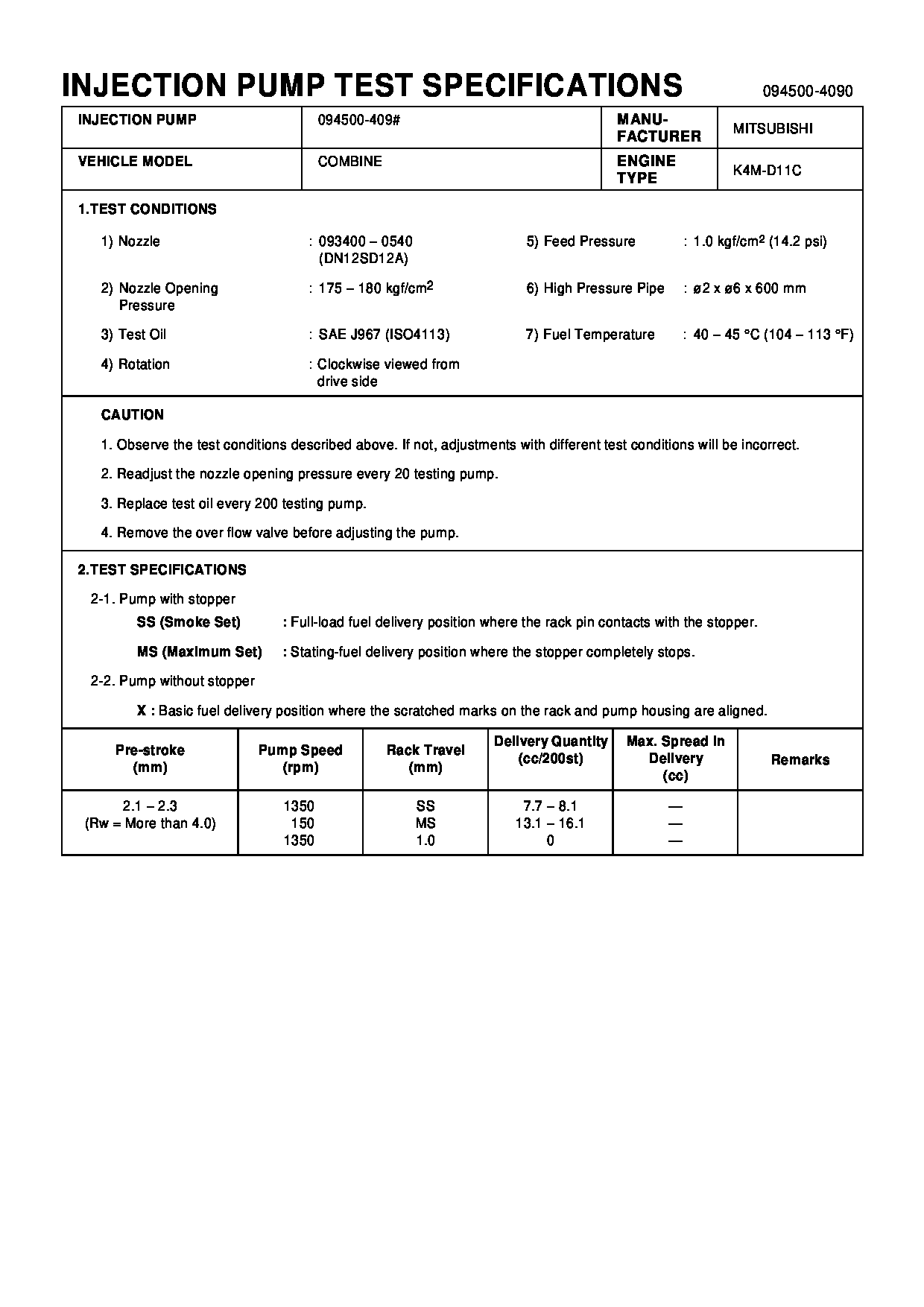

Test Calibration Data:

Get Full test data file
0945004090 MM435263
EG4090
EG4090
