09450-04010 PUMP ASSY, INJECTI Calibration Data


Rating:
2
Buy PUMP ASSY, INJECTI 09450-04010 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL RK70
Engine
RK70
Serial start-end
8608-
Info
Injector Nozzle

Components :

00.001
PUMP ASSY, INJECTI
09450-04010 KUBOTA
PFR1M

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09450-04010
PUMP ASSY, INJECTI
PFR1M
11231-51011 KUBOTA
001
[01]
09011-02300
HOUSING SUB-ASSY,
14287-51081 KUBOTA
002
[01]
09013-10280
HOLDER, DELIVERY V
-9004
15601-51221 KUBOTA
002
[01]
09013-10520
HOLDER, DELIVERY V
9005-
003
[01]
09013-60230
SPRING, DELIVERY V
15221-51231 KUBOTA
004
[01]
09013-70130
GASKET, DELIVERY V
D11.8
11420-51241 KUBOTA
005
[01]
09014-00410
VALVE SUB-ASSY, IN
MK: -
15221-51031 KUBOTA
006
[01]
09015-03690
ELEMENT SUB-ASSY,
MK:3690
008
[01]
09016-30082
SEAT, SPRING, UPR
15221-51271 KUBOTA
009
[01]
09016-40170
SPRING, PUMP PLUNG
15221-51281 KUBOTA
010
[01]
09016-10210
SLEEVE, PLUNGER CO
15221-51382 KUBOTA
011
[01]
09017-00170
TAPPET SUB-ASSY,IN
15221-51071 KUBOTA
011-001
[01]
09017-10022
TAPPET, INJECTION
15021-51990 KUBOTA
011-002
[01]
09217-60010
ROLLER, FEED PUMP
15109-52931 KUBOTA
011-003
[01]
09017-60020
PIN, INJECTION PUM
15021-51970 KUBOTA
012
[01]
09021-00342
RACK ASSY, CONTROL
14911-51061 KUBOTA
015
[01]
94918-00610
SCREW, HOLLOW
M10
14911-51321 KUBOTA
016
[02]
09024-10010
WASHER, AIR BLEEDE
T1.6
15221-96651 KUBOTA
017
[01]
09018-30041
PIN, INJECTION PUM
-9702
15221-51251 KUBOTA
017
[01]
09018-30130
PIN, INJECTION PUM
9702-
018
[01]
09030-10060
SEAT, SPRING, LWR
15021-51291 KUBOTA
019
[01]
94907-20830
RING, SNAP
ID27.6
14911-51431 KUBOTA
020
[01]
90802-20150
O-RING
ID14.8 -0501
14611-51201 KUBOTA
020
[01]
09013-90410
O-RING
ID14.8 0502-
022
[C]
09031-10010
PLATE, TAPPET ADJU
T0.6
14109-51301 KUBOTA
022
[C]
09031-10110
PLATE, TAPPET ADJU
T0.2
022
[C]
09031-10120
PLATE, TAPPET ADJU
T0.3
022
[C]
09031-10130
PLATE, TAPPET ADJU
T0.4
15221-51491 KUBOTA
022
[C]
09031-10140
PLATE, TAPPET ADJU
T0.5
022
[C]
09031-10160
PLATE, TAPPET ADJU
T0.25
022
[C]
09031-10170
PLATE, TAPPET ADJU
T0.35
022
[C]
09031-10280
PLATE, TAPPET ADJU
T0.45
022
[C]
09031-10300
PLATE, TAPPET ADJU
T0.55
022
[C]
09031-10310
PLATE, TAPPET ADJU
T0.65

Include in ##:

09450-04010 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09450-04010
11231-5101
PUMP ASSY, INJECTI
0945004010
11231-51011
KUBOTA
PUMP ASSY, INJECTI

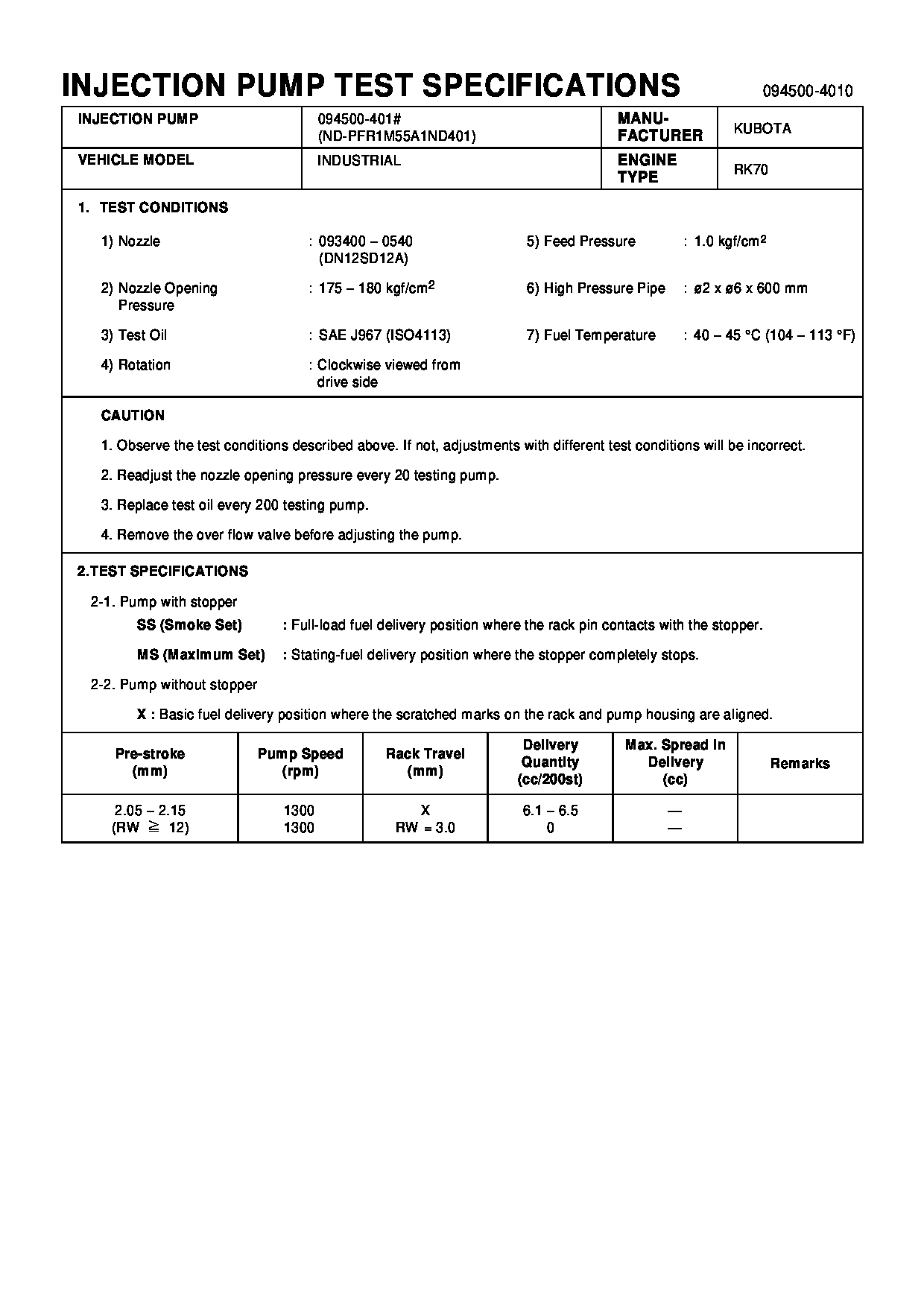

Test Calibration Data:

Get Full test data file
0945004010 11231-51011
EG4010
EG4010
