09450-03690 PUMP ASSY, INJECTI Calibration Data Denso

Information Cross number Test Calibration Data Calibration Data Ex

Buy now

Add to cart Go to cart

Rating:

Buy PUMP ASSY, INJECTI 09450-03690 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product

Fuel Injection Pump

Vehicle engine

Construction machine L3C-11A

Engine

L3C-11A

Serial start-end

8509--8804

Info

Injector Nozzle

093500-3350

Injector nozzle: 0935003350

Components :

00.001

PUMP ASSY, INJECTI

09450-03690 MITSUBISHI

PFR3NC

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

09450-03690

PUMP ASSY, INJECTI

PFR3NC

001

[01]

09011-03730

HOUSING SUB-ASSY,

002

[03]

09013-10830

HOLDER, DELIVERY V

003

[03]

09013-60820

SPRING, DELIVERY V

004

[03]

09013-70130

GASKET, DELIVERY V

005

[03]

09014-01800

VALVE SUB-ASSY, IN

MK:180

006

[03]

09015-03850

ELEMENT SUB-ASSY,

MK:3850

007

[03]

09016-00140

SLEEVE SUB-ASSY, C

008

[03]

09016-30140

SEAT, SPRING, UPR

009

[03]

09016-40220

SPRING, PUMP PLUNG

010

[03]

09016-50170

SEAT, SPRING, LWR

011

[03]

09017-00220

TAPPET SUB-ASSY,IN

012

[01]

09021-00560

RACK ASSY, CONTROL

013

[01]

09024-40010

SCREW, AIR BLEEDER

014

[01]

09024-50310

SCREW, HOLLOW

015

[01]

09024-80010

WASHER, DRAIN SCRE

016

[02]

09025-10010

WASHER, INJECTION

T1,D13.9

017

[03]

09018-30090

PIN, INJECTION PUM

018

[03]

09023-00070

PLATE SET, VALVE H

019

[01]

09069-11020

BRACKET, STOP WIRE

020

[02]

94900-20500

SCREW, COUNTERSUNK

M5,L8

021

[03]

91370-05101

SCREW, W/WASHER

M5,L10 -9004

021

[03]

94900-75390

SCREW, W/WASHER

M5,L9 9005-

022

[03]

90801-10130

O-RING

ID13 -0501

022

[03]

09013-90400

O-RING

ID13 0502-

023

[01]

09221-70470

NIPPLE, SWIVEL

024

[3C]

09031-10320

PLATE, TAPPET ADJU

T1.85

024

[3C]

09031-10330

PLATE, TAPPET ADJU

T1.9

024

[3C]

09031-10340

PLATE, TAPPET ADJU

T1.95

024

[3C]

09031-10350

PLATE, TAPPET ADJU

T2.0

024

[3C]

09031-10360

PLATE, TAPPET ADJU

T2.05

024

[3C]

09031-10370

PLATE, TAPPET ADJU

T2.1

024

[3C]

09031-10380

PLATE, TAPPET ADJU

T2.15

024

[3C]

09031-10390

PLATE, TAPPET ADJU

T2.2

024

[3C]

09031-10400

PLATE, TAPPET ADJU

T2.25

024

[3C]

09031-10410

PLATE, TAPPET ADJU

T2.3

024

[3C]

09031-10420

PLATE, TAPPET ADJU

T2.35

024

[3C]

09031-10430

PLATE, TAPPET ADJU

T2.4

024

[3C]

09031-10440

PLATE, TAPPET ADJU

T2.45

024

[3C]

09031-10450

PLATE, TAPPET ADJU

T2.5

Include in ##:

09450-03690 as PUMP ASSY, INJECTI

Cross reference number

Part num

Firm num

Firm

Name

09450-03690

PUMP ASSY, INJECTI

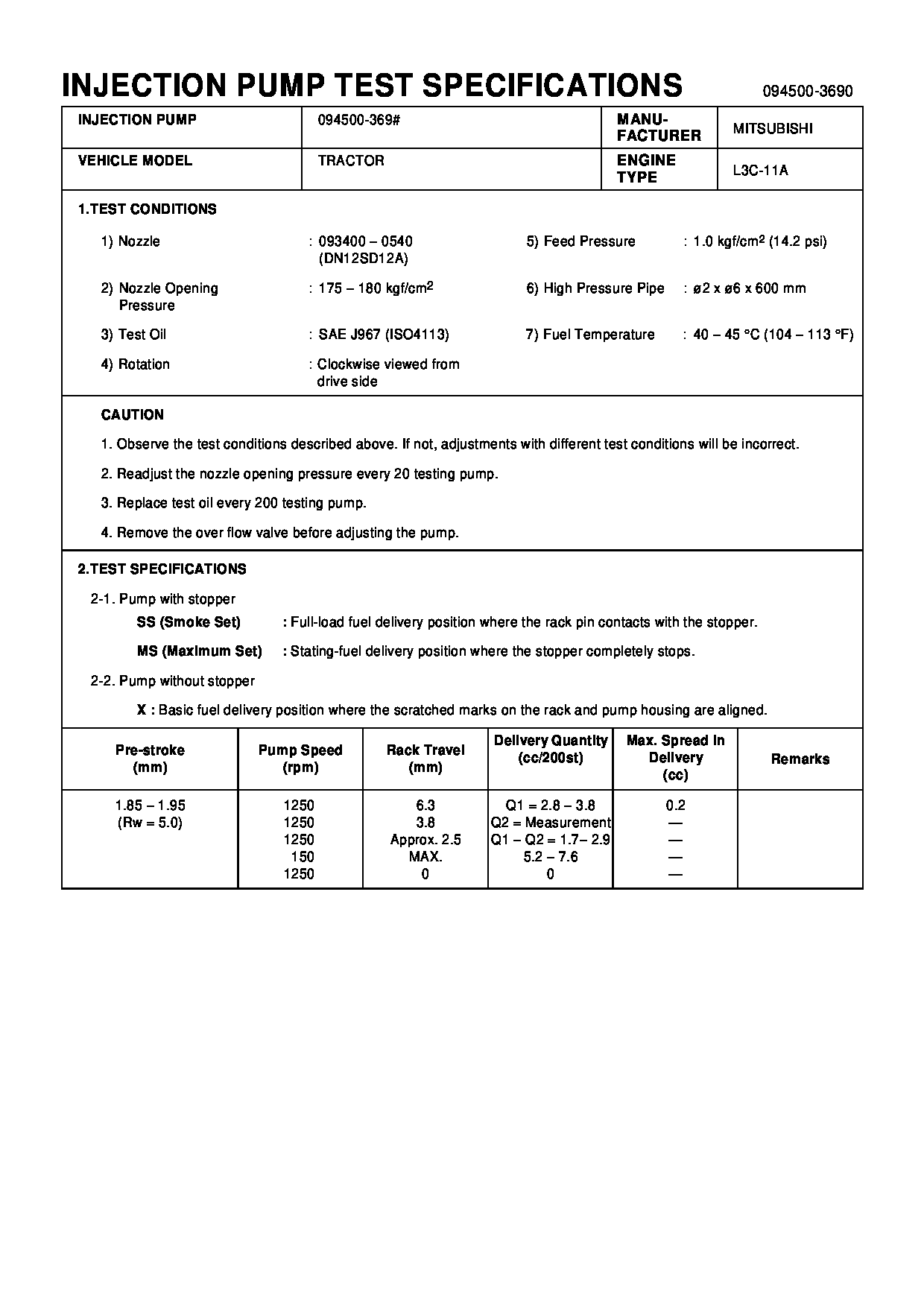

Test Calibration Data:

Get Full test data file

0945003690 MM433161

09450-03690 PUMP ASSY, INJECTI Calibration Data

Information pump assy, injecti Denso

Components :

Scheme #.#:

Include in ##:

Cross reference number

Test Calibration Data:

Have questions with 09450-03690?

Group cross 09450-03690
