09450-03510 PUMP ASSY, INJECTI Calibration Data


Rating:
19
Buy PUMP ASSY, INJECTI 09450-03510 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
GENERATOR Z600
Engine
Z600
Serial start-end
8503-
Info
Injector Nozzle
093500-1560
Injector nozzle: 0935001560

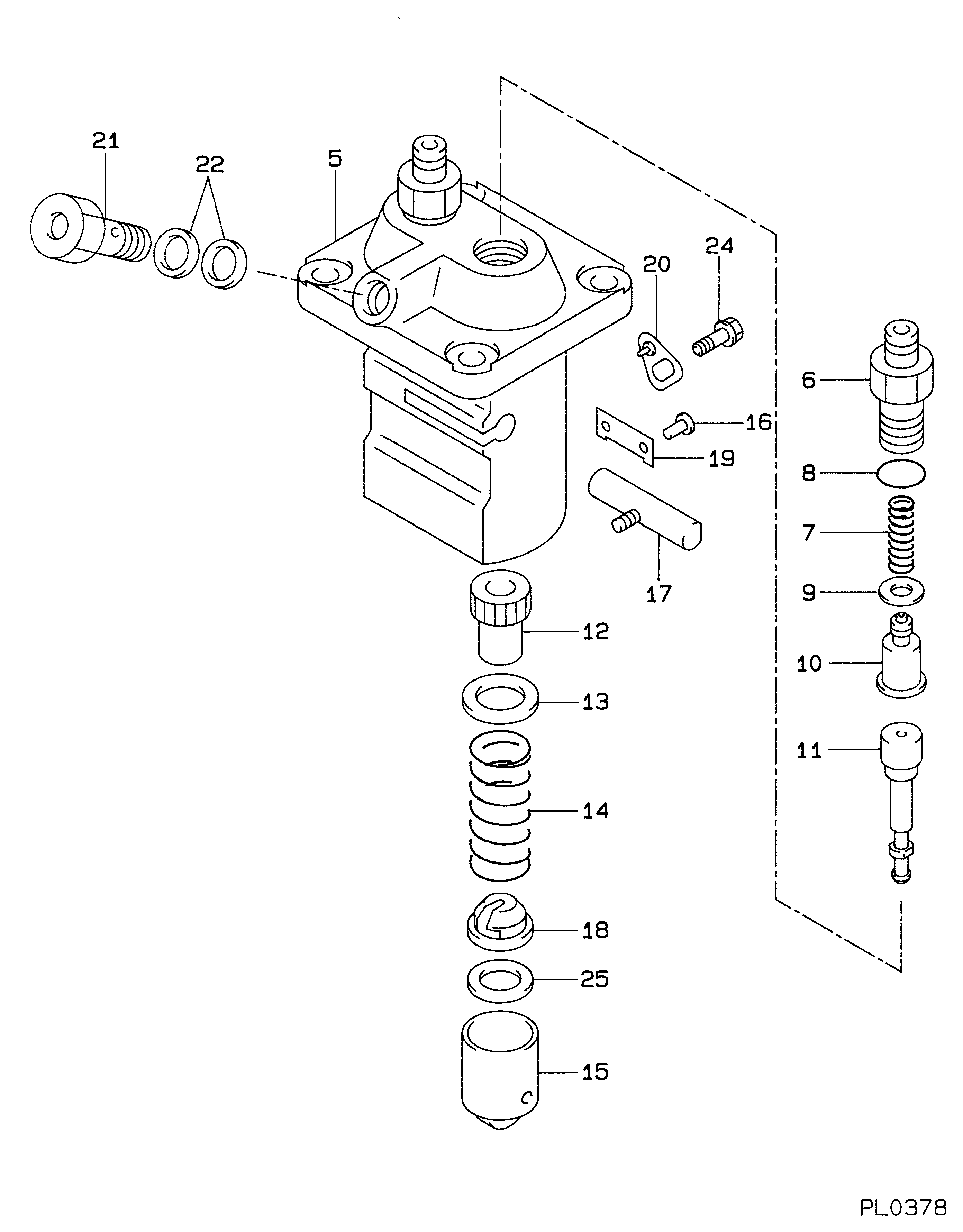

Components :

00.001
PUMP ASSY, INJECTI
PFR2M

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09450-03510
PUMP ASSY, INJECTI
PFR2M
19681-51012 KUBOTA
005
[01]
HOUSING SUB-ASSY,
15221-51082 KUBOTA
006
[02]
HOLDER, DELIVERY V
007
[02]
SPRING, DELIVERY V
15221-51231 KUBOTA
008
[02]
O-RING
ID14.8
14611-51201 KUBOTA
009
[02]
GASKET, DELIVERY V
D11.8
11420-51241 KUBOTA
010
[02]
VALVE SUB-ASSY, IN
MK:-
15271-51031 KUBOTA
011
[02]
ELEMENT SUB-ASSY,
MK:3310
012
[02]
SLEEVE, PLUNGER CO
15221-51382 KUBOTA
013
[02]
SEAT, SPRING, UPR
15221-51271 KUBOTA
014
[02]
SPRING, PUMP PLUNG
15221-51281 KUBOTA
015
[02]
TAPPET SUB-ASSY,IN
15221-51071 KUBOTA
015-001
[02]
TAPPET, INJECTION
15021-51990 KUBOTA
015-002
[02]
ROLLER, FEED PUMP
15109-52931 KUBOTA
015-003
[02]
PIN, INJECTION PUM
15021-51970 KUBOTA
016
[02]
PIN, INJECTION PUM
14611-51251 KUBOTA
017
[01]
RACK ASSY, CONTROL
-9711
15221-51062 KUBOTA
017
[01]
RACK ASSY, CONTROL
9712-
15271-51061 KUBOTA
018
[02]
SEAT, SPRING, LWR
15021-51291 KUBOTA
019
[01]
PLATE
14611-51441 KUBOTA
020
[01]
PLATE, ADJUSTING
14384-51391 KUBOTA
021
[01]
SCREW, HOLLOW
15521-51321 KUBOTA
022
[02]
WASHER, AIR BLEEDE
T1.6
15221-96651 KUBOTA
024
[01]
BOLT, W/WASHER
M6,L9.5 -9004
15221-91031 KUBOTA
024
[01]
BOLT, WASHER HEAD
M6,L8 9005-
025
[2C]
PLATE, TAPPET ADJU
T0.6
14109-51301 KUBOTA
025
[2C]
PLATE, TAPPET ADJU
T0.2
025
[2C]
PLATE, TAPPET ADJU
T0.3
025
[2C]
PLATE, TAPPET ADJU
T0.4
15221-51491 KUBOTA
025
[2C]
PLATE, TAPPET ADJU
T0.5
025
[2C]
PLATE, TAPPET ADJU
T0.25
025
[2C]
PLATE, TAPPET ADJU
T0.35
025
[2C]
PLATE, TAPPET ADJU
T0.45
025
[2C]
PLATE, TAPPET ADJU
T0.55
025
[2C]
PLATE, TAPPET ADJU
T0.65

Include in ##:

09450-03510 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09450-03510
19681-5101
PUMP ASSY, INJECTI
0945003510
19681-51012
KUBOTA
PUMP ASSY, INJECTI

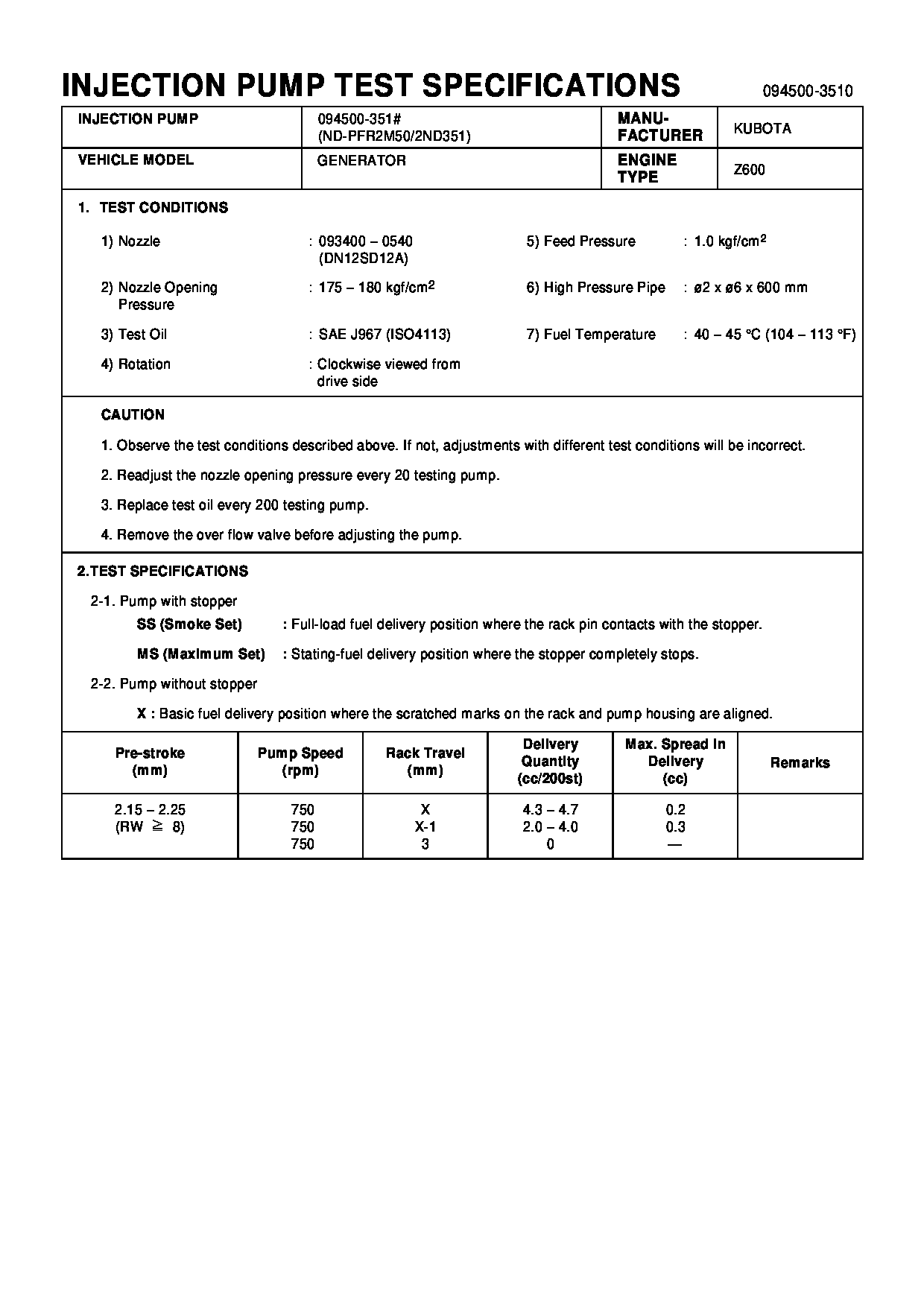

Test Calibration Data:

0945003510 19681-51012




Information:

Introduction
The following procedures contain crucial information on correctly installing the new 162-2501 Hose As and the 258-8917 Protection Sleeve .Note: The 162-2501 Hose As replaces 107-7942 Tube As .Installation Procedure of the Hose Assembly
Illustration 1 g01230674
Remove old 162-2501 Hose As (1). Keep all of the manifold and pump fittings attached.Note: Step 2 is only for 3408E engines.
Remove the 7W-6492 Pipe Plug (2) from the aftercooler housing (3). Install the 8T-6762 Pipe Plug into the aftercooler housing.
Illustration 2 g01230678
Note: Always tighten the fittings with your hand before you use a wrench. Support the hose and the elbow while you tighten in order to avoid the following damage: twisting, kinking and side loading.
Loosen elbow (4) and jam nut (5) .
Hand tighten the nut on the hose (5) to the elbow (4) .
Install the other end of the hose (6) to the pump fitting. Tighten the nut to 125 15 N m (90 11 lb ft).
Hold the elbow (4) in position and torque the jam nut to 145 15 N m (105 11 lb ft).
Support the elbow (4). Tighten the nut (5) on the hose to 125 15 N m (90 11 lb ft).
Illustration 3 g01230687
Illustration 3 shows the routing of the 162-2501 Hose As (8). The hose is routed from the rail, around the rear of the fuel transfer pump (9), and into the 90 degree fitting (7) that is installed into the pump.
Illustration 4 g01230689
Some 3408 engines use an aftercooler that is mounted high. The mounting bracket (10) is located close to the 162-2501 Hose As (8). If there is not enough clearance to install the protective sleeve, the hose will need to be loosened and the hose will need to be repositioned. Refer to 5 for repositioning of the hose.
Illustration 5 g01230690
The hose must be realigned if any of the following conditions exist:
Not enough clearance against the fuel transfer pump
Not enough clearance against the support bracket
Loosen the end of the hose (12) .
Loosen the elbow and the jam nut (11). Note: Do not remove the hose.
Reposition the hose in order to acquire the desired clearance.
Hold the end of the hose (12). Tighten the jam nut (11) .Tighten the jam nut to the following torque. ... 143 15 N m (105 11 lb ft)Note: Locking pliers can be used on the crimped portion of the hose. Do not use the locking pliers on the braided portion of the hose. This will damage the hose which will cause a failure.
Tighten the end of the hose (12) .Tighten the end of the hose to the following torque. ... 125 15 N m (92 11 lb ft)Note: If adjustment of the hose is required, make sure that the hose is not bent. Also, ensure that the hose is not twisted. If these conditions exist the PTFE liner can be damaged.Installation of the Protective Sleeve Over the New Hose Assembly
Illustration 6 g01106118
Top viewInstallation of a protective sleeve for the hoses of the
