09450-03070 PUMP ASSY, INJECTI Calibration Data


Rating:
71
Buy PUMP ASSY, INJECTI 09450-03070 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
GENERATOR D950
Engine
D950
Serial start-end
8401--8404
Info
Injector Nozzle
093500-1560
Injector nozzle: 0935001560

Components :

00.001
PUMP ASSY, INJECTI
09450-03070 KUBOTA
PFR3M

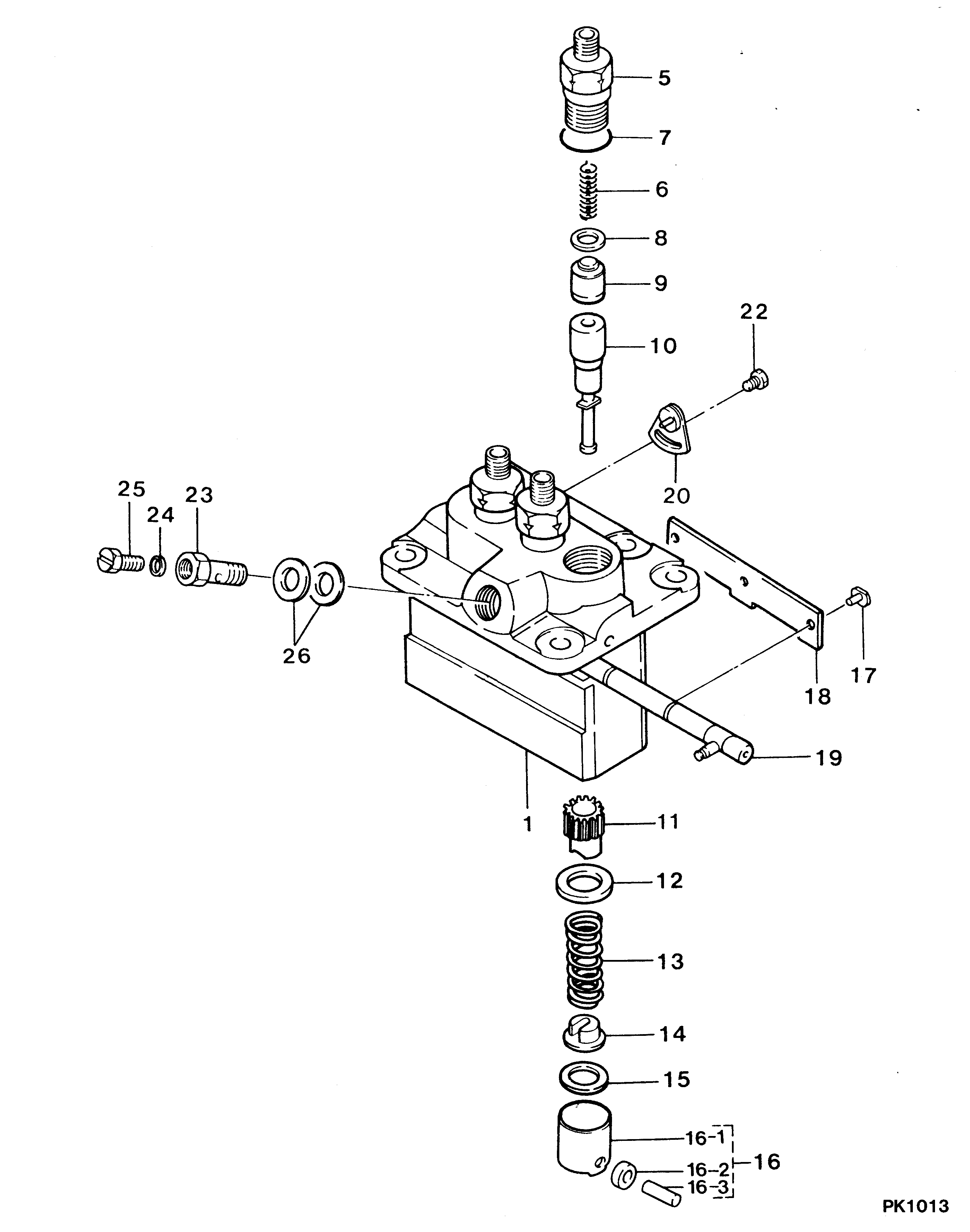

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09450-03070
PUMP ASSY, INJECTI
PFR3M
19484-51012 KUBOTA
001
[01]
09011-01161
HOUSING SUB-ASSY,
15321-51081 KUBOTA
005
[03]
09013-10520
HOLDER, DELIVERY V
006
[03]
09013-60230
SPRING, DELIVERY V
15221-51231 KUBOTA
007
[03]
90802-20150
O-RING
ID14.8
14611-51201 KUBOTA
008
[03]
09013-70061
GASKET, DELIVERY V
-9004
15221-51241 KUBOTA
008
[03]
09013-70130
GASKET, DELIVERY V
D11.8 9005-
11420-51241 KUBOTA
009
[03]
09014-00620
VALVE SUB-ASSY, IN
MK:-
15271-51031 KUBOTA
010
[03]
09015-03310
ELEMENT SUB-ASSY,
MK:3310
011
[03]
09016-10210
SLEEVE, PLUNGER CO
15221-51382 KUBOTA
012
[03]
09016-30082
SEAT, SPRING, UPR
15221-51271 KUBOTA
013
[03]
09016-40170
SPRING, PUMP PLUNG
15221-51281 KUBOTA
014
[03]
09030-10060
SEAT, SPRING, LWR
15021-51291 KUBOTA
015
[C]
09031-10010
PLATE, TAPPET ADJU
T0.6
14109-51301 KUBOTA
015
[C]
09031-10110
PLATE, TAPPET ADJU
T0.2
015
[C]
09031-10120
PLATE, TAPPET ADJU
T0.3
015
[C]
09031-10130
PLATE, TAPPET ADJU
T0.4
15221-51491 KUBOTA
015
[C]
09031-10140
PLATE, TAPPET ADJU
T0.5
015
[C]
09031-10160
PLATE, TAPPET ADJU
T0.25
015
[C]
09031-10170
PLATE, TAPPET ADJU
T0.35
016
[03]
09017-00170
TAPPET SUB-ASSY,IN
15221-51071 KUBOTA
016-001
[03]
09017-10021
TAPPET, INJECTION
15021-51990 KUBOTA
016-002
[03]
09217-60010
ROLLER, FEED PUMP
15109-52931 KUBOTA
016-003
[03]
09017-60020
PIN, INJECTION PUM
15021-51970 KUBOTA
017
[03]
09018-30050
PIN, INJECTION PUM
14611-51251 KUBOTA
018
[01]
09046-70040
PLATE
19484-51461 KUBOTA
019
[01]
09021-00221
RACK ASSY, CONTROL
15321-51061 KUBOTA
020
[02]
09007-00012
PLATE ASSY, ADJUST
-8807
14611-51391 KUBOTA
020
[02]
09006-80020
PLATE, ADJUSTING
8808-
14384-51391 KUBOTA
022
[02]
94904-71980
BOLT, W/WASHER
M6,L9.5 -9004
15221-91031 KUBOTA
022
[02]
94904-80800
BOLT, WASHER HEAD
M6,L8 9005-
023
[01]
09024-50012
SCREW, HOLLOW
15021-51321 KUBOTA
024
[01]
94901-81020
WASHER, COPPER PLA
T1
15221-96661 KUBOTA
025
[01]
09024-40080
SCREW, AIR BLEEDER
15221-51351 KUBOTA
026
[02]
09024-10010
WASHER, AIR BLEEDE
15221-96651 KUBOTA

Include in ##:

09450-03070 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09450-03070
19484-5101
PUMP ASSY, INJECTI
0945003070
19484-51012
KUBOTA
PUMP ASSY, INJECTI

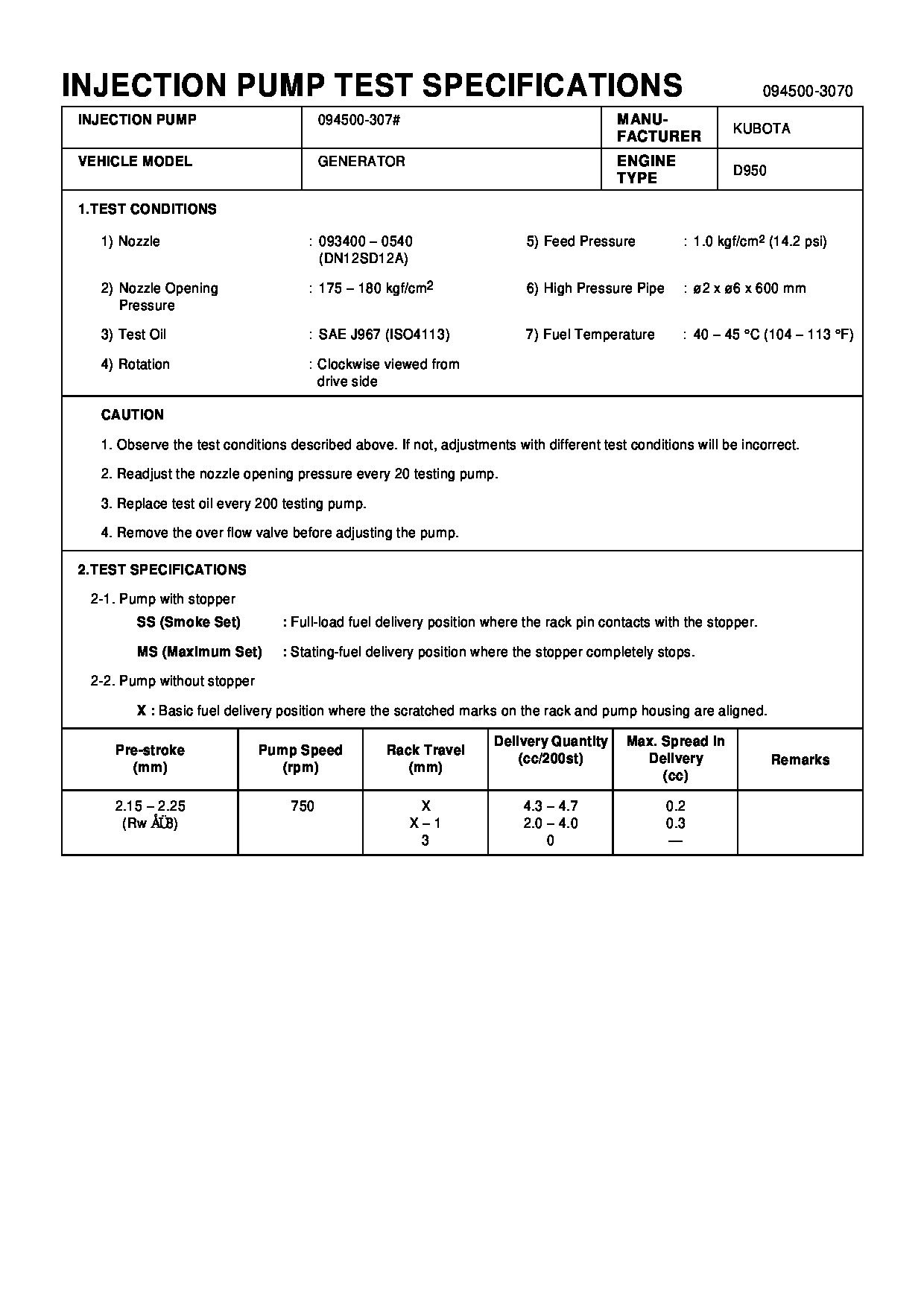

Test Calibration Data:

Get Full test data file
0945003070 19484-51011
EG3070
EG3070
