09450-02490 PUMP ASSY, INJECTI Calibration Data


Rating:
59
Buy PUMP ASSY, INJECTI 09450-02490 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
Construction machine K3H
Engine
K3H
Serial start-end
8301--9105
Info
Injector Nozzle
093500-2300
Injector nozzle: 0935002300

Components :

00.001
PUMP ASSY, INJECTI
09450-02490 MITSUBISHI
PFR3M

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09450-02491
PUMP ASSY, INJECTI
PFR3M
005
[01]
09011-02830
HOUSING SUB-ASSY,
006
[03]
09013-10520
HOLDER, DELIVERY V
007
[03]
09013-60480
SPRING, DELIVERY V
008
[03]
09013-70061
GASKET, DELIVERY V
-9004
008
[03]
09013-70130
GASKET, DELIVERY V
9005-
009
[03]
09014-00800
VALVE SUB-ASSY, IN
010
[03]
09015-01531
ELEMENT SUB-ASSY,
MK:1341
011
[03]
09016-10210
SLEEVE, PLUNGER CO
012
[03]
09016-30082
SEAT, SPRING, UPR
013
[03]
09016-40170
SPRING, PUMP PLUNG
014
[03]
09017-00170
TAPPET SUB-ASSY,IN
014-001
[03]
09017-10022
TAPPET, INJECTION
014-002
[03]
09217-60010
ROLLER, FEED PUMP
014-003
[03]
09017-60020
PIN, INJECTION PUM
015
[03]
09018-30050
PIN, INJECTION PUM
016
[01]
09021-00470
RACK ASSY, CONTROL
017
[03]
09030-10060
SEAT, SPRING, LWR
018
[01]
09046-70040
PLATE
019
[C]
09031-10010
PLATE, TAPPET ADJU
T0.6
019
[C]
09031-10110
PLATE, TAPPET ADJU
T0.2
019
[C]
09031-10120
PLATE, TAPPET ADJU
T0.3
019
[C]
09031-10130
PLATE, TAPPET ADJU
T0.4
019
[C]
09031-10140
PLATE, TAPPET ADJU
T0.5
019
[C]
09031-10160
PLATE, TAPPET ADJU
T0.25
019
[C]
09031-10170
PLATE, TAPPET ADJU
T0.35
019
[C]
09031-10280
PLATE, TAPPET ADJU
T0.45
019
[C]
09031-10300
PLATE, TAPPET ADJU
T0.55
019
[C]
09031-10310
PLATE, TAPPET ADJU
T0.65
020
[02]
09022-20080
WASHER, FUEL PIPE
-9705
020
[02]
94901-81020
WASHER, COPPER PLA
T1 9706-
021
[02]
09024-40180
SCREW, AIR BLEEDER
022
[01]
94918-00510
SCREW, HOLLOW
023
[02]
09007-00012
PLATE ASSY, ADJUST
-8807
023
[02]
09006-80020
PLATE, ADJUSTING
8808-
024
[02]
94904-71980
BOLT, W/WASHER
M6,L9.5 -9004
024
[02]
94904-80800
BOLT, WASHER HEAD
M6,L8 9004-
025
[01]
09055-40340
SPRING, DIAPHRAGM
D7.11
026
[01]
09055-40280
SPRING, DIAPHRAGM
D8.81
027
[03]
90802-20150
O-RING
ID14.8
028
[01]
09089-40020
E-RING
029
[01]
09089-40010
E-RING
032
[C]
09021-93080
STOPPER
6,L17.0
032
[C]
09021-93090
STOPPER
7,L16.9
032
[C]
09021-93100
STOPPER
8,L16.8
032
[C]
09021-93110
STOPPER
9,L16.7
032
[C]
09021-93120
STOPPER
10,L16.6
032
[C]
09021-95360
STOPPER
11,L16.85
032
[C]
09021-95370
STOPPER
11L16.75
033
[C]
09021-93560
STOPPER
59,L2.2
033
[C]
09021-93570
STOPPER
60,L2.3
033
[C]
09021-93580
STOPPER
61,L2.4
033
[C]
09021-93590
STOPPER
62,L2.5
033
[C]
09021-93600
STOPPER
63,L2.6
033
[C]
09021-93610
STOPPER
64,L2.7
033
[C]
09021-93620
STOPPER
65,L2.8
033
[C]
09021-93630
STOPPER
66,L2.9
033
[C]
09021-93640
STOPPER
67,L3.0
033
[C]
09021-93650
STOPPER
68,L3.1
033
[C]
09021-93660
STOPPER
69,L3.2
033
[C]
09021-93670
STOPPER
70,L3.3
033
[C]
09021-93680
STOPPER
71,L3.4
033
[C]
09021-93690
STOPPER
72,L3.5
033
[C]
09021-93700
STOPPER
73,L3.6

Cross reference number



Part num
Firm num
Firm
Name
09450-02490

PUMP ASSY, INJECTI

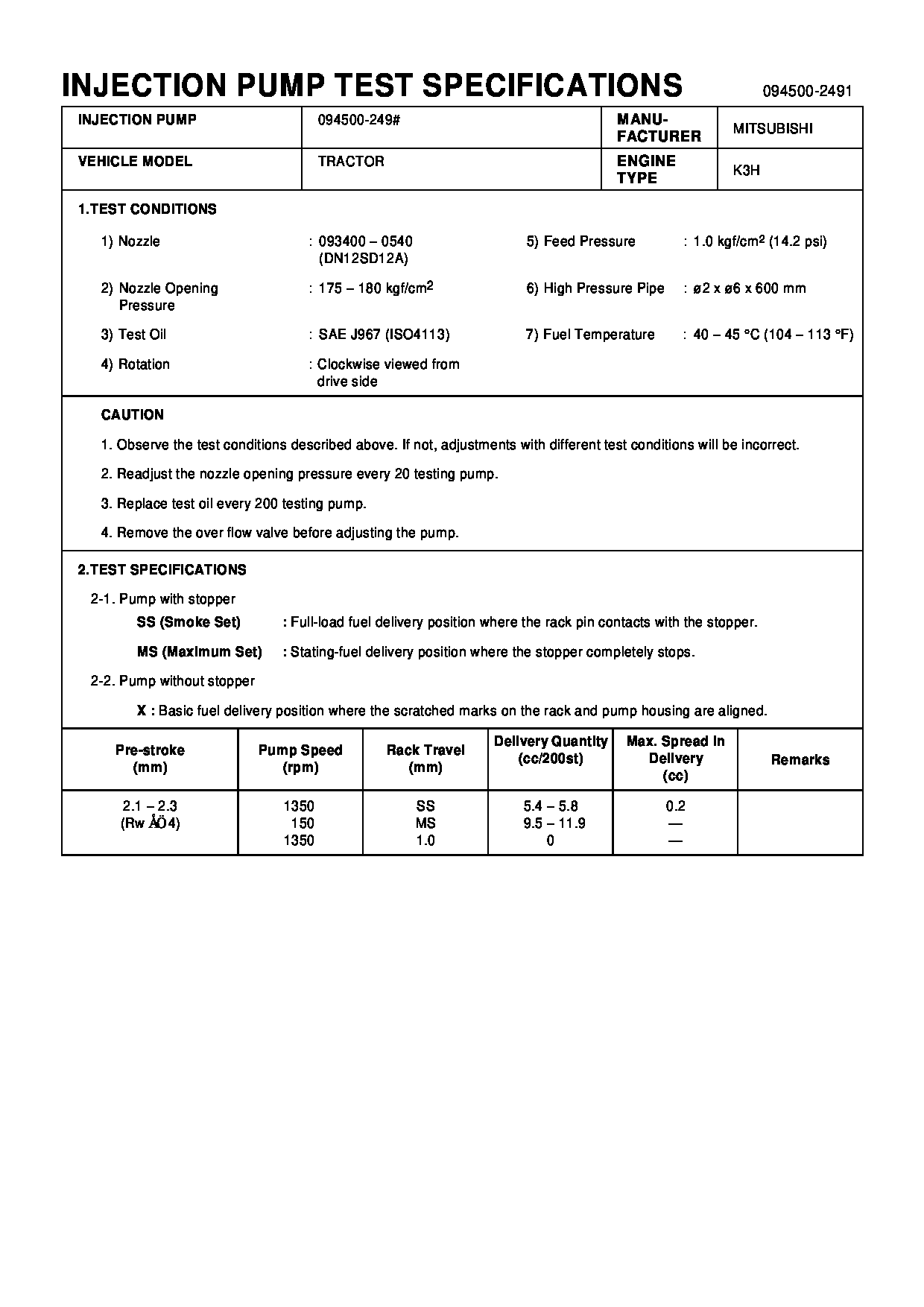

Test Calibration Data:

Get Full test data file
0945002490 MM413235
EG2491
EG2491
