Information pump assy, injecti Denso
Product
Fuel Injection Pump
Vehicle engine
BUS 4D34T4
Engine
4D34T4
Serial start-end
9510-
Info
Injector Nozzle
093500-6050
Injector nozzle:
0935006050
KIT List:
Part name
Kit1
Kit2
Cross reference number
Part num
Firm num
Firm
Name
0930005500
ME014861
MITSUBISHI
PUMP ASSY, INJECTI

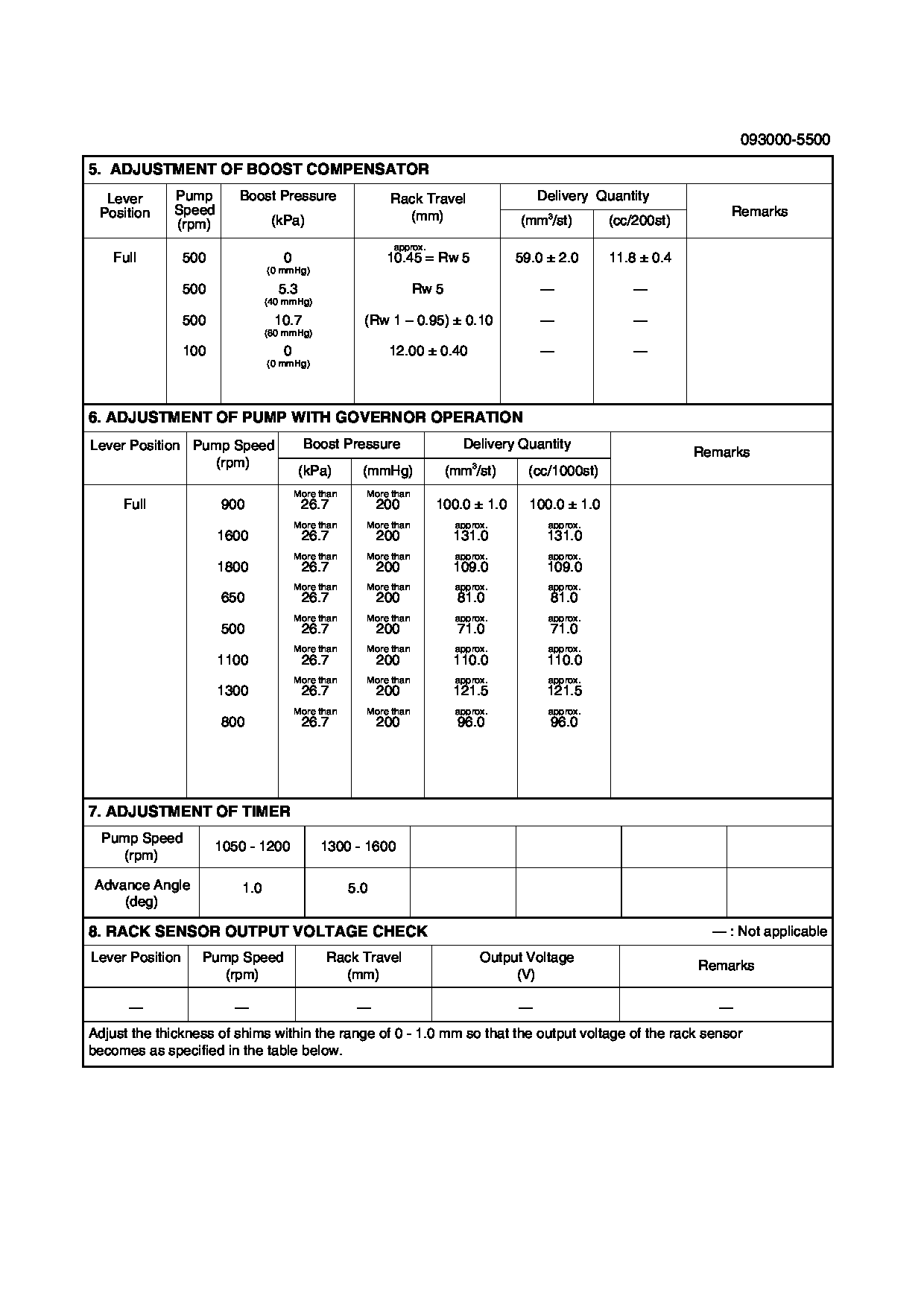

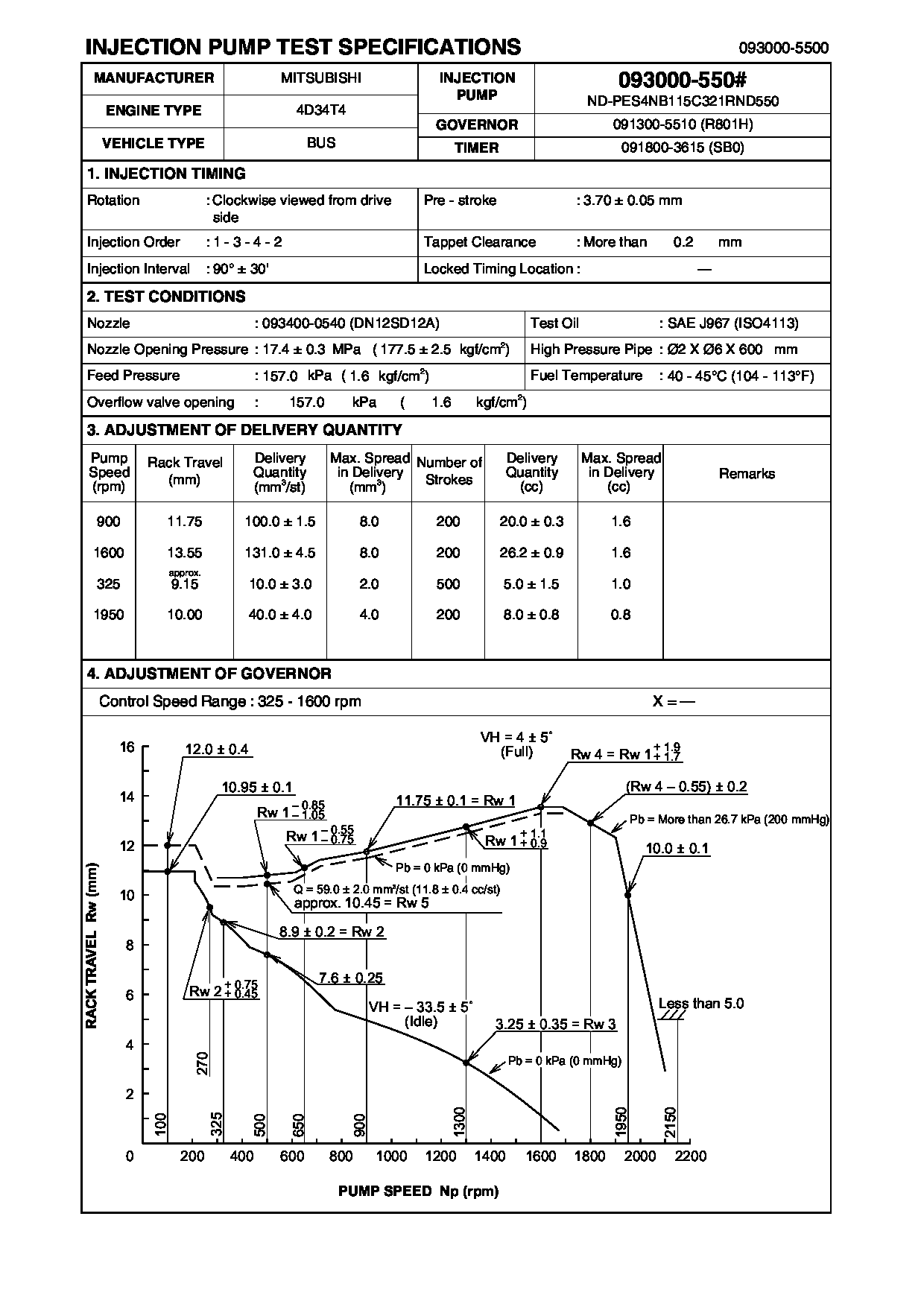

Test Calibration Data:
0930005500
ME011686
0930005503
ME014861
Information:
Below Normal Heating
Long Idle Periods ... When the engine is running with no load, only a small quantity of fuel is being burned and engine heat is removed too fast.Very Light Load ... Very light loads, and a very slow speed or downhill travel can cause below normal heating because of the low heat input of the engine. The installation of shutters helps to correct this condition.Defective Thermostat(s) ... Thermostat(s) that are "stuck" open (will not move to the closed position) will cause below normal heating. A thermostat that is stuck between the open and closed positions or only opens part of the way can cause below normal heating when the truck has a light load.*Authorized dealers are equipped with the necessary tools and personnel familiar with disassembly and assembly procedures to perform these services.
Long Idle Periods ... When the engine is running with no load, only a small quantity of fuel is being burned and engine heat is removed too fast.Very Light Load ... Very light loads, and a very slow speed or downhill travel can cause below normal heating because of the low heat input of the engine. The installation of shutters helps to correct this condition.Defective Thermostat(s) ... Thermostat(s) that are "stuck" open (will not move to the closed position) will cause below normal heating. A thermostat that is stuck between the open and closed positions or only opens part of the way can cause below normal heating when the truck has a light load.*Authorized dealers are equipped with the necessary tools and personnel familiar with disassembly and assembly procedures to perform these services.
