09300-04390 PUMP ASSY, INJECTI Calibration Data Denso

Information Cross number Test Calibration Data Calibration Data Ex

Buy now

Add to cart Go to cart

Rating:

Buy PUMP ASSY, INJECTI 09300-04390 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product

Fuel Injection Pump

Vehicle engine

BUS 4D33

Engine

4D33

Serial start-end

9311-

Info

Injector Nozzle

093500-4480

Injector nozzle: 0935004480

KIT List:

Part name

Kit1

Kit2

Body assy, injecti

Governor assy, mec

Timer assy, automa

Pump assy, fuel fe

Components :

00.001

PUMP ASSY, INJECTI

09300-04390 MITSUBISHI

A4,R801 -9308

00.001

PUMP ASSY, INJECTI

09300-04390 MITSUBISHI

9309-

01.002

BODY ASSY, INJECTI

09010-08710 MITSUBISHI

01.003

GOVERNOR ASSY, MEC

09130-03900 MITSUBISHI

R801

02.004

SWITCH KIT, CONTRO

09009-90660 MITSUBISHI

02.005

LEVER SET

09129-10190 MITSUBISHI

ADJUST L

02.006

COVER ASSY, GOVERN

09145-00232 MITSUBISHI

02.007

COVER ASSY, GOVERN

09145-00881 MITSUBISHI

01.008

TIMER ASSY, AUTOMA

09180-02811 MITSUBISHI

01.009

PUMP ASSY, FUEL FE

09210-01551 MITSUBISHI

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

09300-04390

PUMP ASSY, INJECTI

A4,R801 -9308

ME016958 MITSUBISHI

000

[01]

09300-04391

PUMP ASSY, INJECTI

9309-

ME016958 MITSUBISHI

001

[01]

09010-08710

BODY ASSY, INJECTI

ME728118 MITSUBISHI

002

[01]

09180-02811

TIMER ASSY, AUTOMA

SA0

ME728122 MITSUBISHI

003

[01]

09006-00320

COVER SUB-ASSY, TI

ME703649 MITSUBISHI

004

[01]

94914-02840

O-RING

MH035502 MITSUBISHI

005

[04]

94901-15020

WASHER, STEEL PLAT

FOR M10

MH005068 MITSUBISHI

006

[04]

90258-10001

WASHER, SPRING

FOR M10

MC843842 MITSUBISHI

007

[04]

91266-10081

NUT, HEXAGON

M10,L8

MF430122 MITSUBISHI

008

[01]

09130-03900

GOVERNOR ASSY, MEC

R801

009

[01]

09210-01551

PUMP ASSY, FUEL FE

ME703037 MITSUBISHI

010

[01]

09028-50021

CAP

FOR MAX.SPEED

ME035845 MITSUBISHI

013

[01]

94913-00210

KEY, WOODRUFF

ME702047 MITSUBISHI

014

[01]

94901-40210

WASHER, COUNTERSUN

T1.5

ME702043 MITSUBISHI

015

[01]

09001-20220

NUT, TIMER ROUND

ME702033 MITSUBISHI

016

[01]

09001-80090

COVER, CONTROL RAC

ME702251 MITSUBISHI

017

[05]

94904-72690

BOLT, W/WASHER

M6,L16

ME702045 MITSUBISHI

018

[01]

91418-06201

BOLT, W/WASHER

M6,L20

ME702041 MITSUBISHI

019

[01]

94904-73910

BOLT, W/WASHER

ME703449 MITSUBISHI

022

[01]

09028-50050

CAP

FOR FULL-LOAD

ME076458 MITSUBISHI

Include in ##:

09300-04390 as PUMP ASSY, INJECTI

Cross reference number

Part num

Firm num

Firm

Name

09300-04390

ME016958

PUMP ASSY, INJECTI

0930004390

ME016958

MITSUBISHI

PUMP ASSY, INJECTI

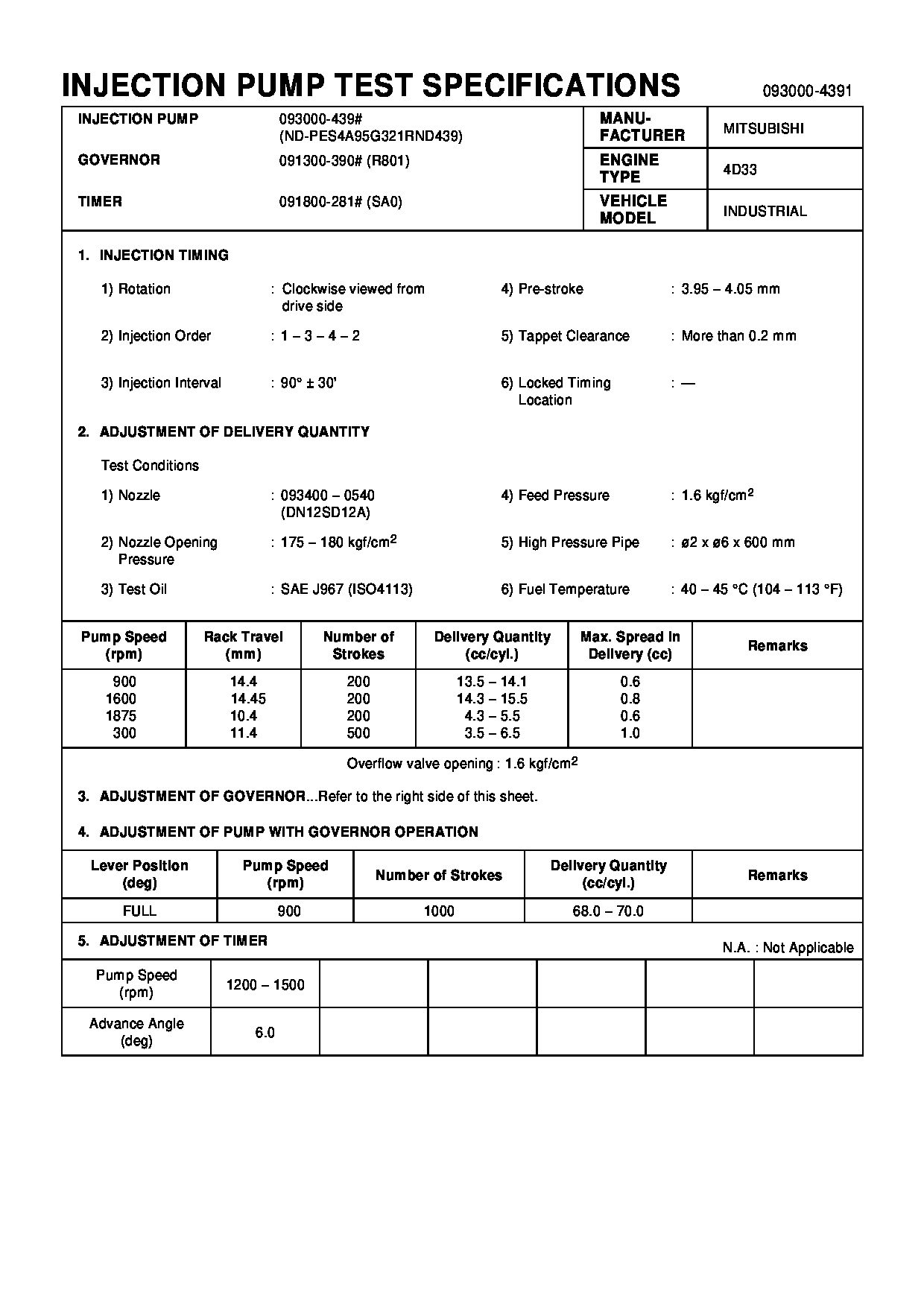

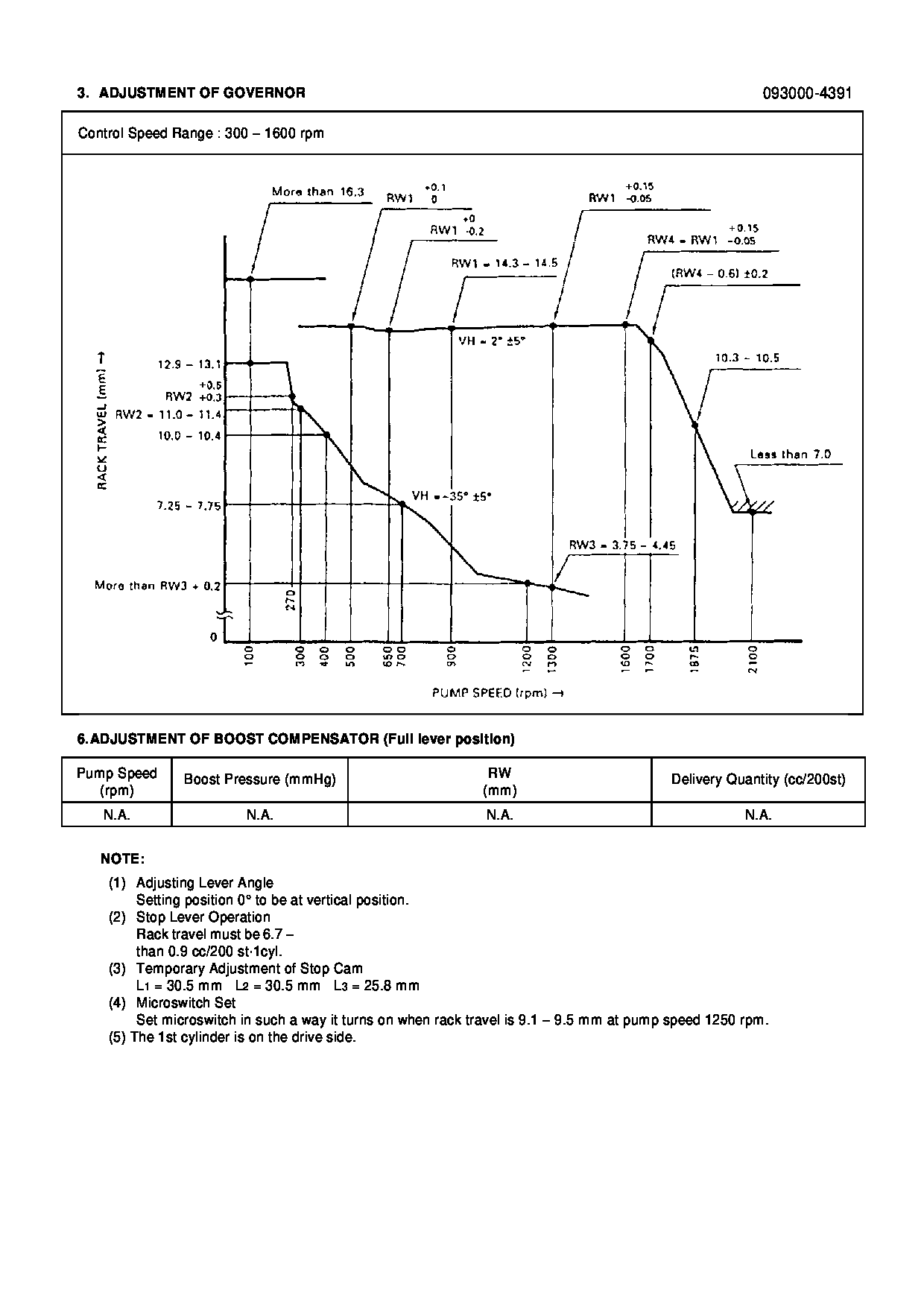

Test Calibration Data:

Get Full test data file

0930004390 ME016958

09300-04390 PUMP ASSY, INJECTI Calibration Data

Information pump assy, injecti Denso

KIT List:

Components :

Scheme #.#:

Include in ##:

Cross reference number

Test Calibration Data:

Have questions with 09300-04390?

Group cross 09300-04390
