09300-04360 PUMP ASSY, INJECTI Calibration Data


Rating:
46
Buy PUMP ASSY, INJECTI 09300-04360 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
TRUCK 4D33
Engine
4D33
Serial start-end
9205-
Info
Injector Nozzle
093500-4480
Injector nozzle: 0935004480

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
Governor assy, mec
Timer assy, automa
Pump assy, fuel fe

Components :

00.001
PUMP ASSY, INJECTI
A4,R801 -9308
00.001
PUMP ASSY, INJECTI
9309-
01.002
BODY ASSY, INJECTI
A4
01.003
GOVERNOR ASSY, MEC
R801
02.004
LEVER SET
ADJUST L
02.005
COVER ASSY, GOVERN
02.006
COVER ASSY, GOVERN
01.007
TIMER ASSY, AUTOMA
SA
01.008
PUMP ASSY, FUEL FE
KS

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
PUMP ASSY, INJECTI
A4,R801 -9308
ME016891 MITSUBISHI
000
[01]
PUMP ASSY, INJECTI
9309-
ME016891 MITSUBISHI
001
[01]
BODY ASSY, INJECTI
A4
ME728119 MITSUBISHI
002
[01]
TIMER ASSY, AUTOMA
SA0
ME728122 MITSUBISHI
003
[01]
COVER SUB-ASSY, TI
ME703649 MITSUBISHI
004
[01]
O-RING
MH035502 MITSUBISHI
005
[04]
WASHER, STEEL PLAT
FOR M10
MH005068 MITSUBISHI
006
[04]
WASHER, SPRING
FOR M10
MC843842 MITSUBISHI
007
[04]
NUT, HEXAGON
M10,L8
MF430122 MITSUBISHI
008
[01]
GOVERNOR ASSY, MEC
R801
ME728962 MITSUBISHI
009
[01]
PUMP ASSY, FUEL FE
KS
ME703037 MITSUBISHI
010
[01]
CAP
FOR MAX.SPEED
ME035845 MITSUBISHI
013
[01]
KEY, WOODRUFF
ME702047 MITSUBISHI
014
[01]
WASHER, COUNTERSUN
T1.5
ME702043 MITSUBISHI
015
[01]
NUT, TIMER ROUND
ME702033 MITSUBISHI
016
[01]
COVER, CONTROL RAC
ME702251 MITSUBISHI
017
[05]
BOLT, W/WASHER
M6,L16
ME702045 MITSUBISHI
018
[01]
BOLT, W/WASHER
M6,L20
ME702041 MITSUBISHI
019
[01]
BOLT, W/WASHER
ME703449 MITSUBISHI
022
[01]
CAP
FOR FULL-LOAD
ME076458 MITSUBISHI

Cross reference number



Part num
Firm num
Firm
Name
09300-04360

PUMP ASSY, INJECTI
0930004360
ME016891
MITSUBISHI
PUMP ASSY, INJECTI

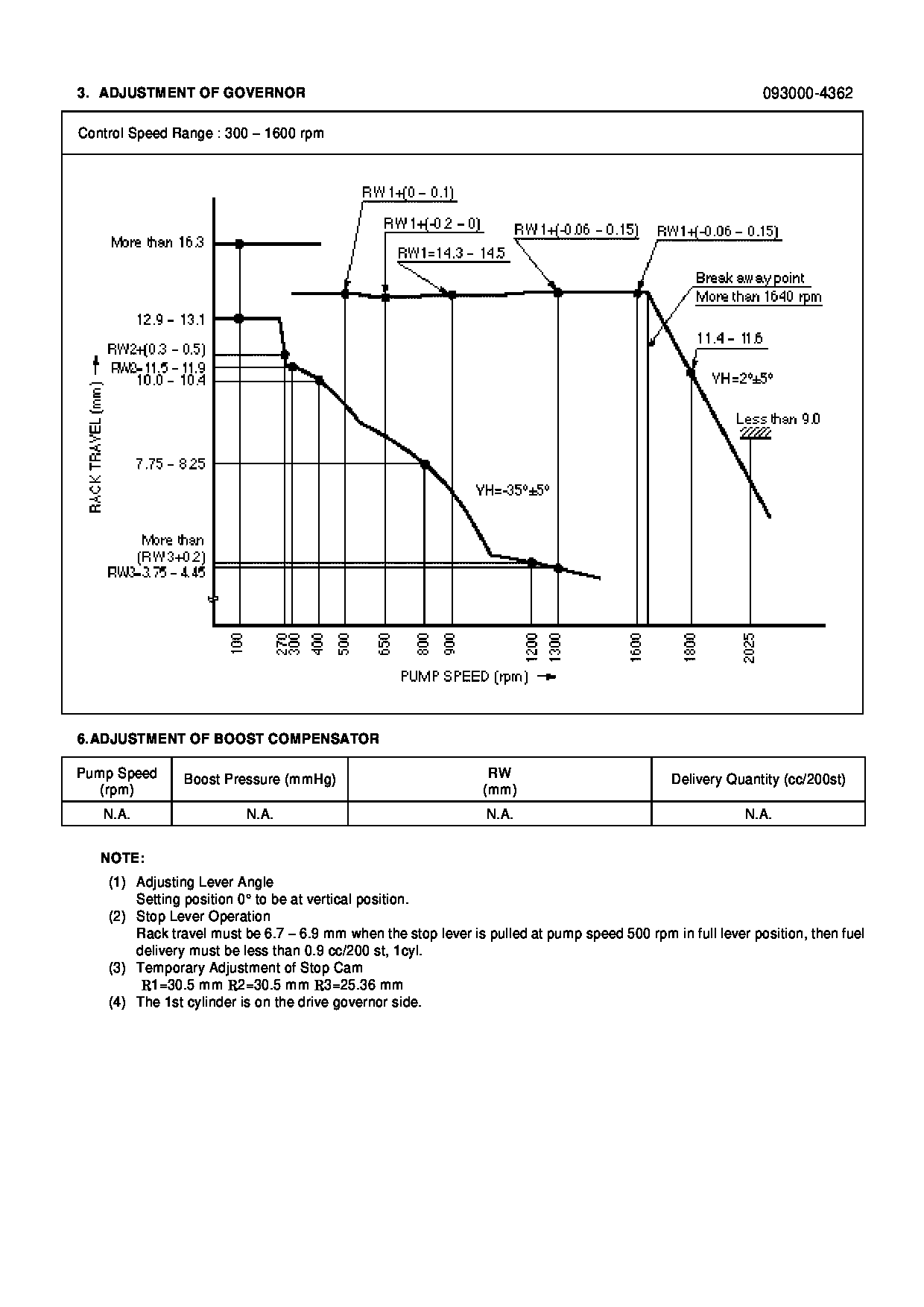

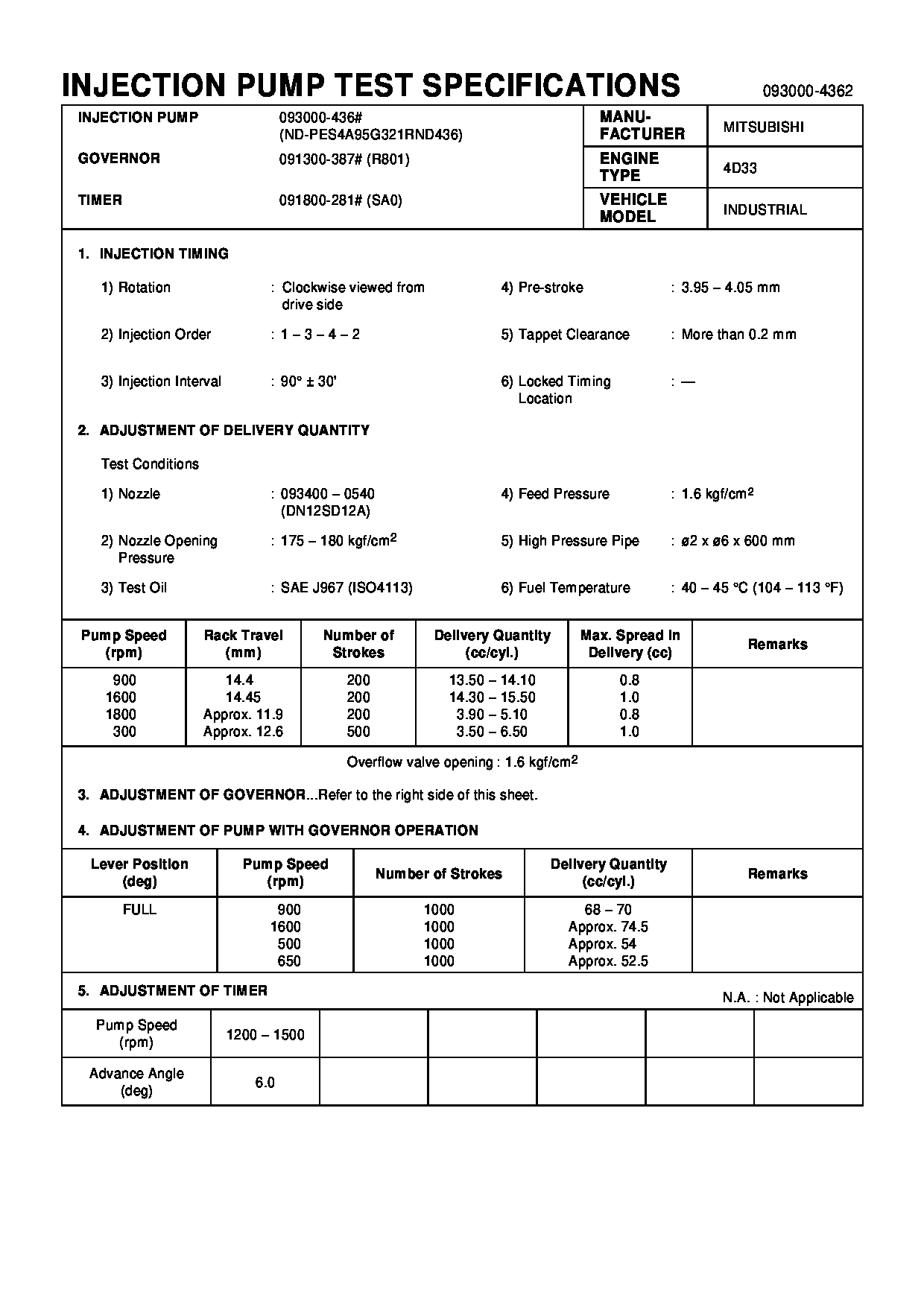

Test Calibration Data:

0930004360 ME016891
