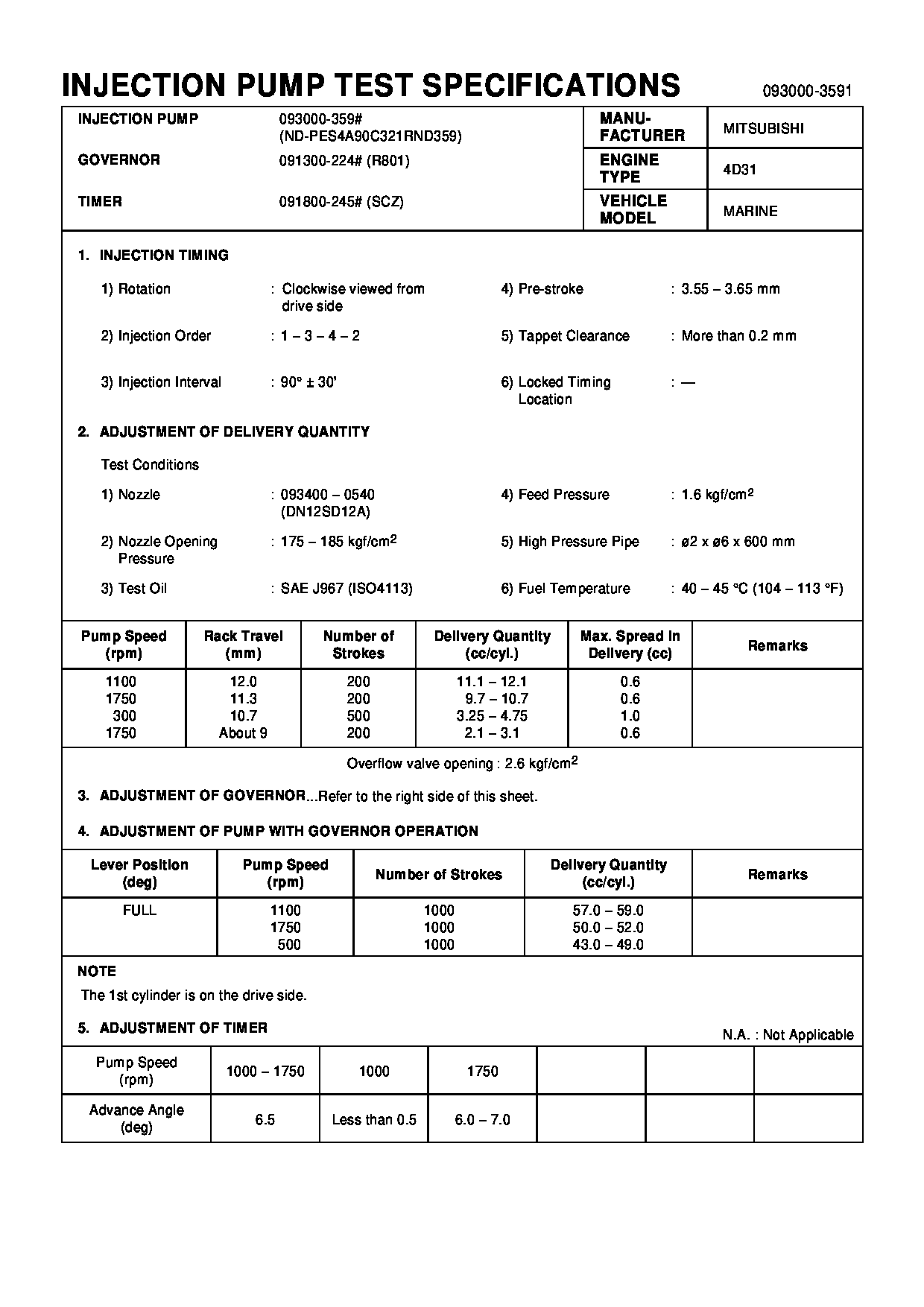

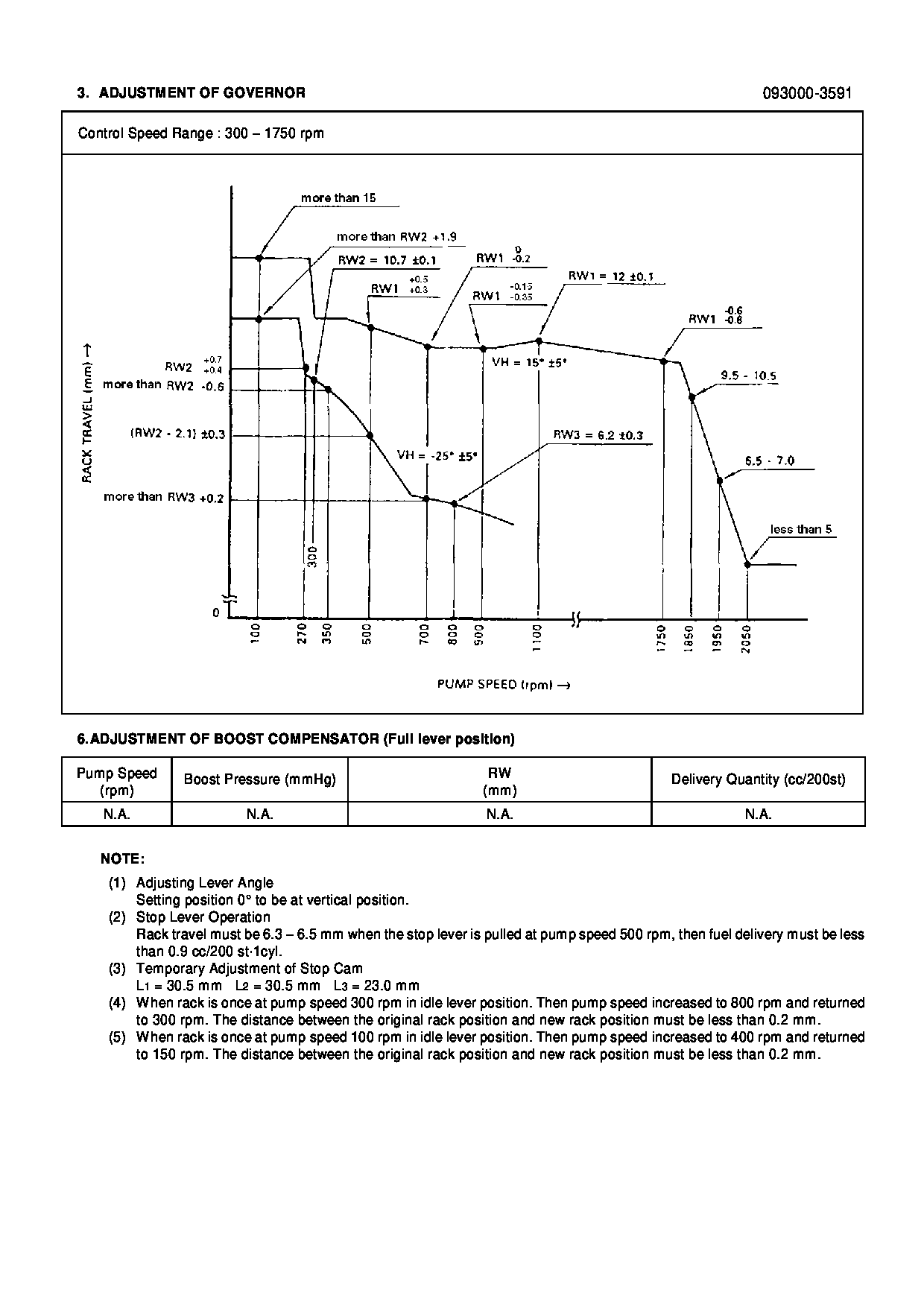

09300-03590 PUMP ASSY, INJECTI Calibration Data

CAT REMAN ANNOUNCES AN APPEARANCE CHANGE TO MECHANICAL UNIT INJECTORS FOR 3600 ENGINES
Announcement
In the past, Reman 3600 mechanical unit injectors consistently had only one drill hole in the body. Effective immediately, dealers will now see some bodies with one drill hole and some bodies with two drill holes. Validation tests confirm the number of drill holes will not impact quality, reliability, durability, fit, or performance. Affected part numbers are listed in the table below.
* For serial number specific information please see SISWEB.
Effective immediately, Figure 1 and Figure 2 will both represent acceptable 3600 mechanical unit injector appearances.
Features and Benefits
Cat? Reman Fuel Injectors offer excellent value to customers. Customers who want fast repair turn-around, superior quality and reliability, and lower repair costs will benefit from the use of these remanufactured fuel transfer pumps. Cat Reman Fuel Injectors provide immediate, off-the-shelf availability at a fraction of the new price.
Features Benefits
All critical engineering changes and updates included Improved reliability and performance
Worldwide availability through Cat parts distribution system Customer access regardless of location
Backed by Caterpillar parts warranty Consistent support
Core Acceptance
Core Acceptance Criteria for Caterpillar Remanufactured Mechanical Unit Injectors is simple, visual, and requires no special tools. Consult the Unit Injectors ? Mechanical Core Acceptance Criteria SELD0030 for complete details.
Warranty
Please consult the appropriate Cat parts warranty statement for your area.
Core Management
Please refer to the Cat Core Management Information System (CMIS 2) Parts Information application describing all Cat Reman part/CAF and related information. Also refer to other CMIS 2 inquiry applications such as Customer Profiles, Inspection Reason Codes, Inspection Line Inquiry, Add Charge Information, Entitlement Activity, Entitlement Inquiry, CCR Inquiry, CCR Entry, Shipment Processing; Process Packaging Grief; and Reporting to properly manage core returns and monitor inspection performance. This information will be available to all dealers worldwide after your CMIS 2 conversion date. In the meantime, please continue to use the current CMIS Entitlement Parts Inquiry Screen describing the list of parts in a Core Acceptability Family (CAF) and related part number detail.
For the latest updates of Reman Policies and Core Management (SELD0122), Core Management Systems & Operations Procedures (SELD0040), and Shipping Instructions (SELD0039), go to the Reman Dealer website https://catreman.cat.com. If you have any questions regarding core return processing, feel free to call Corinth toll free at (800) 537-2928. Outside the US please refer to the Core section of the Reman website for appropriate contact information for your region.
For assistance with technical questions, call the Peoria Reman Technical Help Line also toll free at (888) 88-REMAN (outside the US call non-toll free +1-309-494-4342), or use our E-mail address--Reman_Help.
