09300-03080 PUMP ASSY, INJECTI Calibration Data


Rating:
30
Buy PUMP ASSY, INJECTI 09300-03080 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
LAND CRUISER 12H-T
Engine
12H-T
Serial start-end
8808--9001
Info
Injector Nozzle
093500-3260
Injector nozzle: 0935003260

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
Governor assy, mec
Timer assy, automa
Pump assy, fuel fe

Components :

00.001
PUMP ASSY, INJECTI
A6,R801
01.002
BODY ASSY, INJECTI
A6
01.003
GOVERNOR ASSY, MEC
R801
02.004
COVER ASSY, GOVERN
02.005
COMPENSATOR SUB-AS
01.006
TIMER ASSY, AUTOMA
SCZ
01.007
PUMP ASSY, FUEL FE
KE

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09300-03080
PUMP ASSY, INJECTI
A6,R801
22010-68220 TOYOTA
001
[01]
BODY ASSY, INJECTI
A6
22120-68160 TOYOTA
002
[01]
GOVERNOR ASSY, MEC
R801
22410-68220 TOYOTA
003
[01]
PUMP ASSY, FUEL FE
KE
22510-77130 TOYOTA
004
[01]
TIMER ASSY, AUTOMA
SCZ
22610-68030 TOYOTA
007
[01]
COVER, CONTROL RAC
22116-46010 TOYOTA
008
[01]
KEY, WOODRUFF
T3.985
90099-13023 TOYOTA
009
[01]
NUT, TIMER ROUND
22611-78030 TOYOTA
010
[01]
BOLT, W/WASHER
M6,L20
90091-20620 TOYOTA
011
[05]
BOLT, W/WASHER
M6,L16
90099-04319 TOYOTA
014
[01]
COVER SUB-ASSY, TI
22812-68020 TOYOTA
015
[04]
NUT, HEXAGON
M10
94110-41000 TOYOTA
016
[04]
WASHER, STEEL PLAT
FOR M10
90099-01463 TOYOTA
017
[01]
BOLT, W/WASHER
M8,L18
90099-04346 TOYOTA
018
[01]
WASHER, COUNTERSUN
T1.5ID14
90099-01500 TOYOTA
019
[01]
SEAL, LEAD
22354-68210 TOYOTA
020
[01]
CLIP, CORD
FOR FULL-LOAD
22568-68210 TOYOTA

Include in ##:

09300-03080 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09300-03080
22010-6822
PUMP ASSY, INJECTI
0930003080
22010-68220
TOYOTA
PUMP ASSY, INJECTI

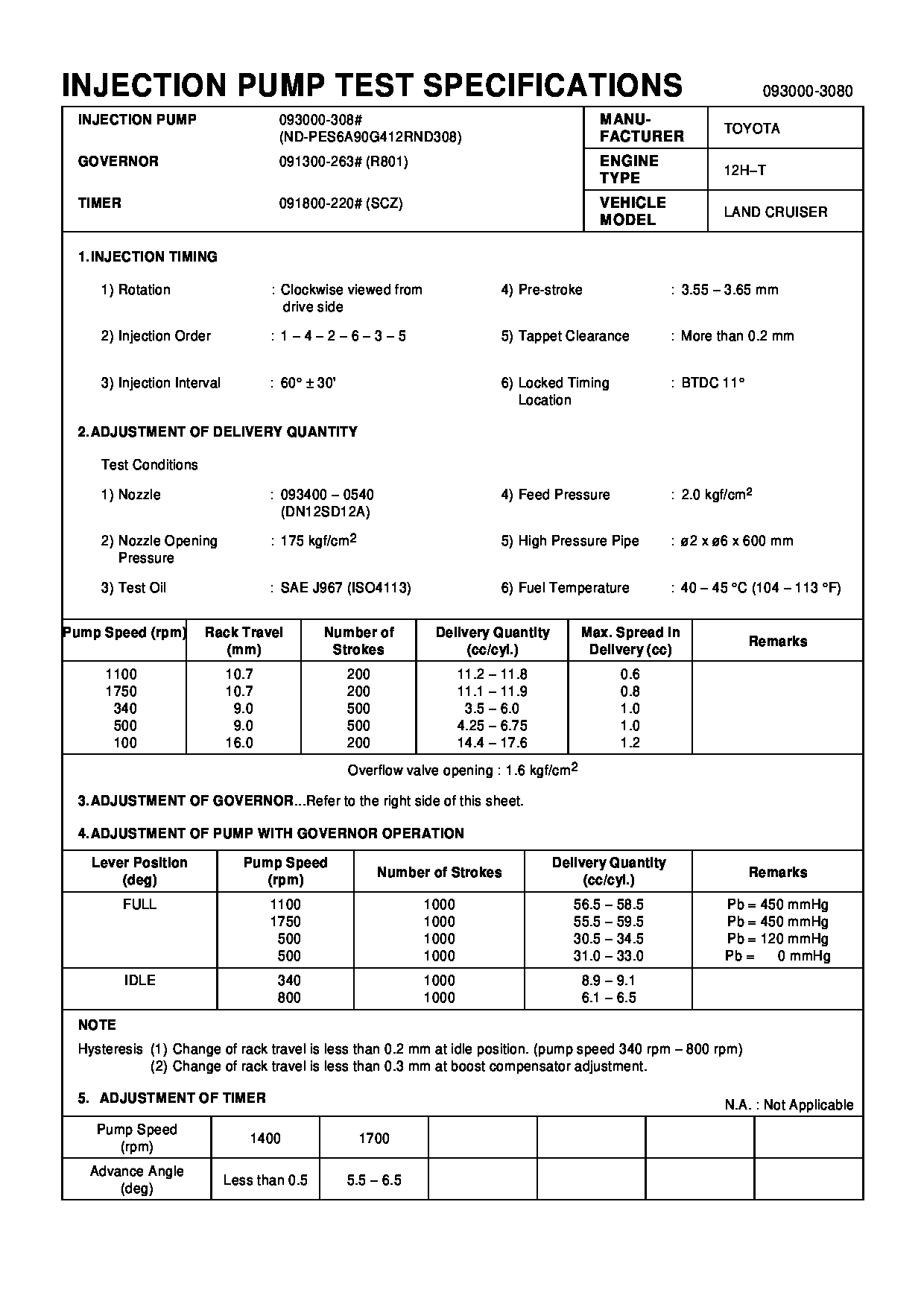

Test Calibration Data:

0930003080 22010-68210-B




Information:

The air cleaner service indicator is connected to the air inlet pipe between the air cleaner and the manifold. It contains a red marked piston, which gradually rises with restriction to the air flow. When the entire piston is visible it will lock in this position. This indicates a need for air cleaner service. The piston will remain in this position whether or not the engine is running. After servicing the air cleaner, reset the piston by depressing the plunger in the bottom of the indicator.Excessive engine exhaust smoke and/or loss of power may indicate the need for servicing the air cleaner. Never service the air cleaner while the engine is running.(See your truck manufacturer's operator's books for maintenance intervals and instructions.) Air cleaner restriction at high idle should not exceed 25 inches (635 mm) of water.Valve Lash
Make valve lash adjustment with engine stopped.Top dead center (TDC) of the No. 1 piston on the compression stroke is the reference point. The No. 1 piston is at TDC compression stroke when the timing mark on the crankshaft damper or the pulley is aligned with the timing pointer, and No. 1 and No. 2 exhaust and inlet valves are closed. (The rocker arms are free.) To Adjust The Valve Lash
1. Adjust lash for No. 1 and No. 2 exhaust and inlet valves. a. Loosen valve adjusting screw locknut.b. Turn adjusting screw to allow a clearance gauge to pass between the top of the valve stem and the valve rocker arm. c. Set lash at .025 in. (0,64 mm) for exhaust valves and .015 in. (0,38 mm) for inlet valves.d. Tighten adjusting screw locknut.e. Check adjustment. 2. Turn crankshaft 180° clockwise (viewed from front of engine). Some engines have a "VS" mark directly opposite the TDC mark. Align the "VS" mark with the pointer. Adjust lash for No. 7 and No. 3 exhaust and inlet valves.3. Turn crankshaft 180° clockwise (viewed from front of engine). Timing mark (TDC) and pointer should be aligned. Adjust lash for No. 4 and No. 5 exhaust and inlet valves.4. Turn crankshaft 180° clockwise (viewed from front of engine). "VS" mark and pointer should be aligned. Adjust lash for No. 6 and No. 8 exhaust and inlet valves. POSITIVE CRANKCASE VENTILATION VALVE: The PCV valve directs blow-by gases to the combustion chambers where they are burned. Scheduled maintenance or adjustment is not required; however any oily accumulation around the cover could indicate the diaphragm has worn through. Replace diaphragm every 48,000 miles or 1,200 service hours.Replacing Diaphragm:1. Clean area around PCV valve (1).2. Remove series of bolts holding cover (2) in place.3. Clean and inspect all parts and replace as necessary. Always install new gaskets and diaphragm when disassembled for inspection. 4. When installing, coat both sides of the gasket (4) with gasket cement and install against rear face of inner sleeve (3).5. To prevent diaphragm (6) from distorting and tearing during assembly, coat both flange sides of the diaphragm with gasket cement and install
