09300-02822 PUMP ASSY, INJECTI Calibration Data


Rating:
37
Buy PUMP ASSY, INJECTI 09300-02822 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Components :

00.001
PUMP ASSY, INJECTI
A4,R801 -9308
00.001
PUMP ASSY, INJECTI
A4,R801 9309-
01.002
BODY ASSY, INJECTI
A4
01.003
GOVERNOR ASSY, MEC
R801 -9209
01.003
GOVERNOR ASSY, MEC
R801 9209-
02.004
SWITCH KIT, CONTRO
02.005
COVER ASSY, GOVERN
01.006
TIMER ASSY, AUTOMA
SCZ
01.007
PUMP ASSY, FUEL FE
KS

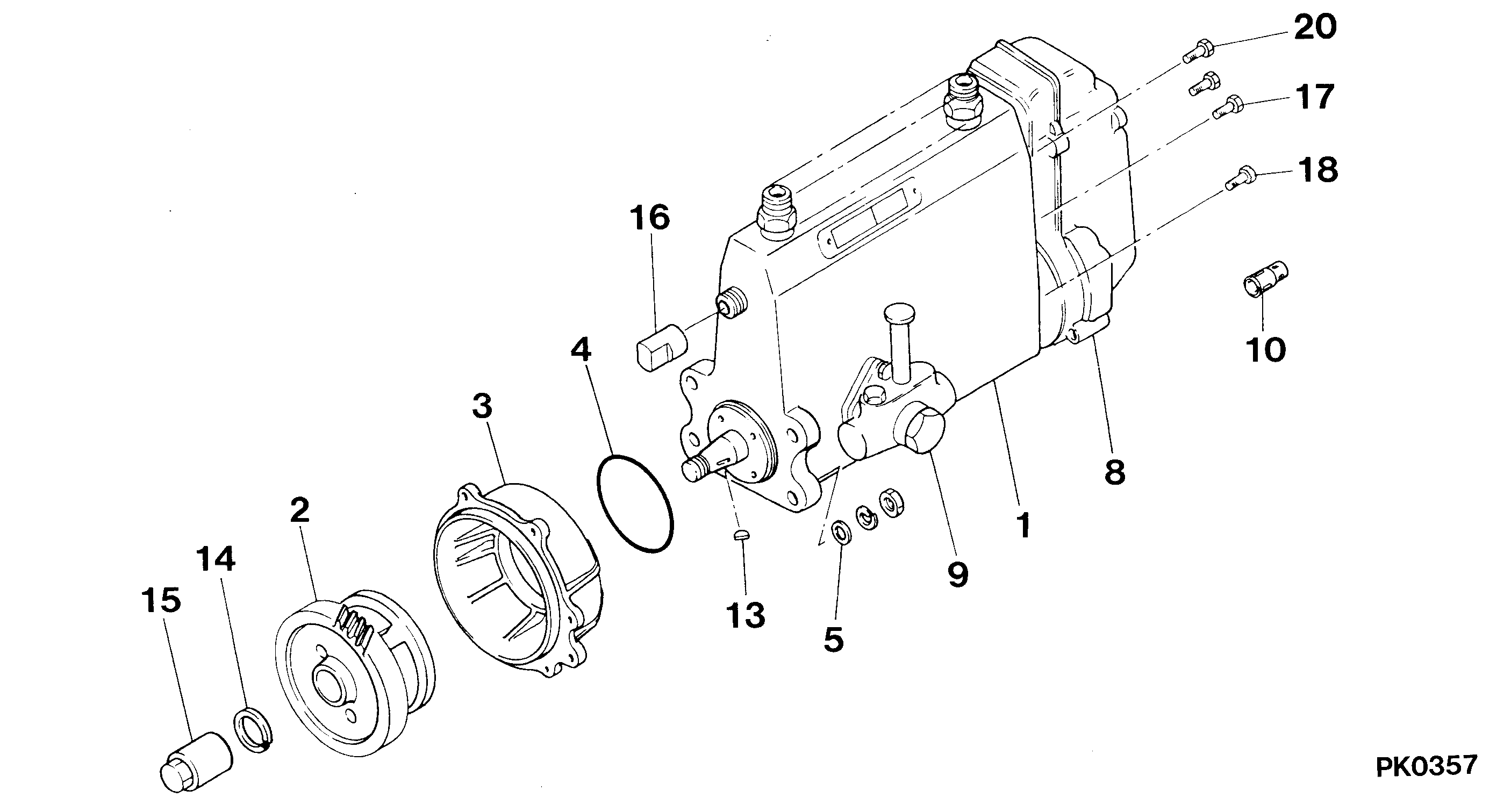

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
PUMP ASSY, INJECTI
A4,R801 -9308
ME016432 MITSUBISHI
000
[01]
09300-02822
PUMP ASSY, INJECTI
A4,R801 9309-
ME016432 MITSUBISHI
001
[01]
BODY ASSY, INJECTI
A4
ME703718 MITSUBISHI
002
[01]
TIMER ASSY, AUTOMA
SCZ
ME703035 MITSUBISHI
003
[01]
COVER SUB-ASSY, TI
ME703649 MITSUBISHI
004
[01]
O-RING
ID74.1
MH035502 MITSUBISHI
005
[04]
WASHER, STEEL PLAT
FOR M10
MH005068 MITSUBISHI
008
[01]
GOVERNOR ASSY, MEC
R801
ME703717 MITSUBISHI
009
[01]
PUMP ASSY, FUEL FE
KS
ME703037 MITSUBISHI
010
[01]
CAP
ME703677 MITSUBISHI
013
[01]
KEY, WOODRUFF
ME702047 MITSUBISHI
014
[01]
WASHER, COUNTERSUN
T1.5
ME702043 MITSUBISHI
015
[01]
NUT, TIMER ROUND
ME702033 MITSUBISHI
016
[01]
COVER, CONTROL RAC
ME702251 MITSUBISHI
017
[01]
BOLT, W/WASHER
M6,L11.5
ME703038 MITSUBISHI
018
[04]
BOLT, W/WASHER
M6,L16
ME702045 MITSUBISHI
020
[01]
BOLT, W/WASHER
ME703449 MITSUBISHI

Include in ##:

09300-02822 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09300-02822
ME016432
PUMP ASSY, INJECTI

Test Calibration Data:

0930002820 ME016432
0930002822




Information:

Introduction
Correction to D3G failures of the fuel injection pumpProblem
The D3G has had failures of the fuel injection pump. The failures are seen as low power, running rough, smoking, and hard starting. The failures occur from 8 to 1350 hours. Most failures have been concentrated in the 8 to 400 hour range. There appears to be no environmental aspects or application aspects to the failures at this time. Solution
The rotary fuel pump that is used on the Track-Type Tractors uses diesel fuel for lubrication of the pump. One plunger is used for all 6 injectors. This increases the sensitivity to fuel quality. Customers that are having problems should use 256-4968 Fuel Conditioner . This should help fuel quality by increasing the lubrication. This additive can also be used with low sulfur diesel. Use this fuel conditioner according to directions. For more information, refer to , PELJ0525, "Introducing New Cat Diesel Fuel Conditioner". Low sulfur diesel is already available in many states per the 2007 Highway Diesel Rule. Refer to the following map that shows the areas that produce lower sulfur diesel fuel.
Illustration 1 g01229705
Note: Toyu fuel is not suitable for use in these machines. Toyu fuel does not provide any lubrication for the pump. Using this fuel may cause early failures.
