Information pump assy, injecti Denso

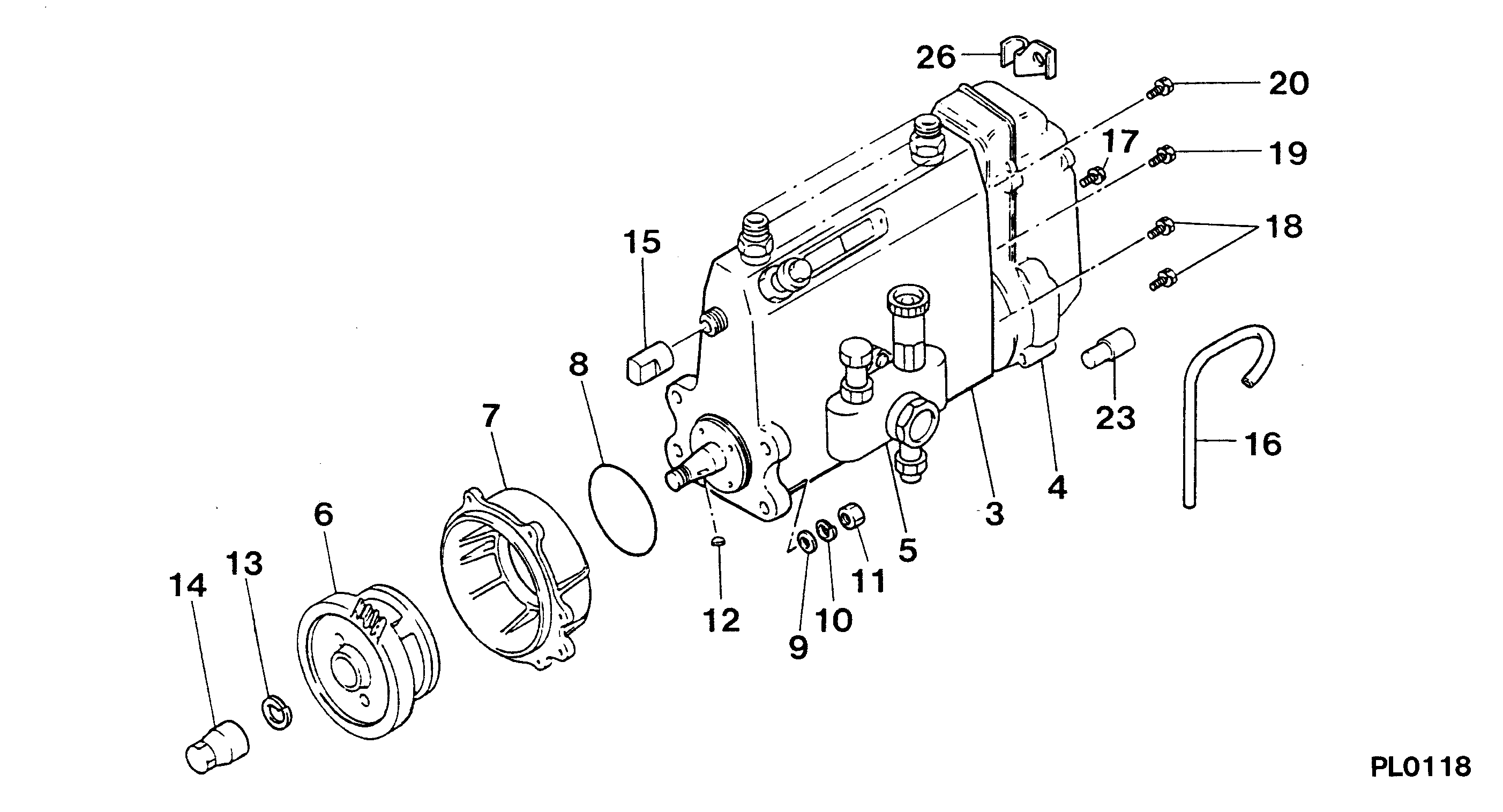

Components :
Scheme #.#:
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09300-02382
PUMP ASSY, INJECTI
9309-
ME016389
MITSUBISHI
Include in ##:
09300-02382
as PUMP ASSY, INJECTI
Cross reference number
Part num
Firm num
Firm
Name
09300-02382
ME016389
PUMP ASSY, INJECTI

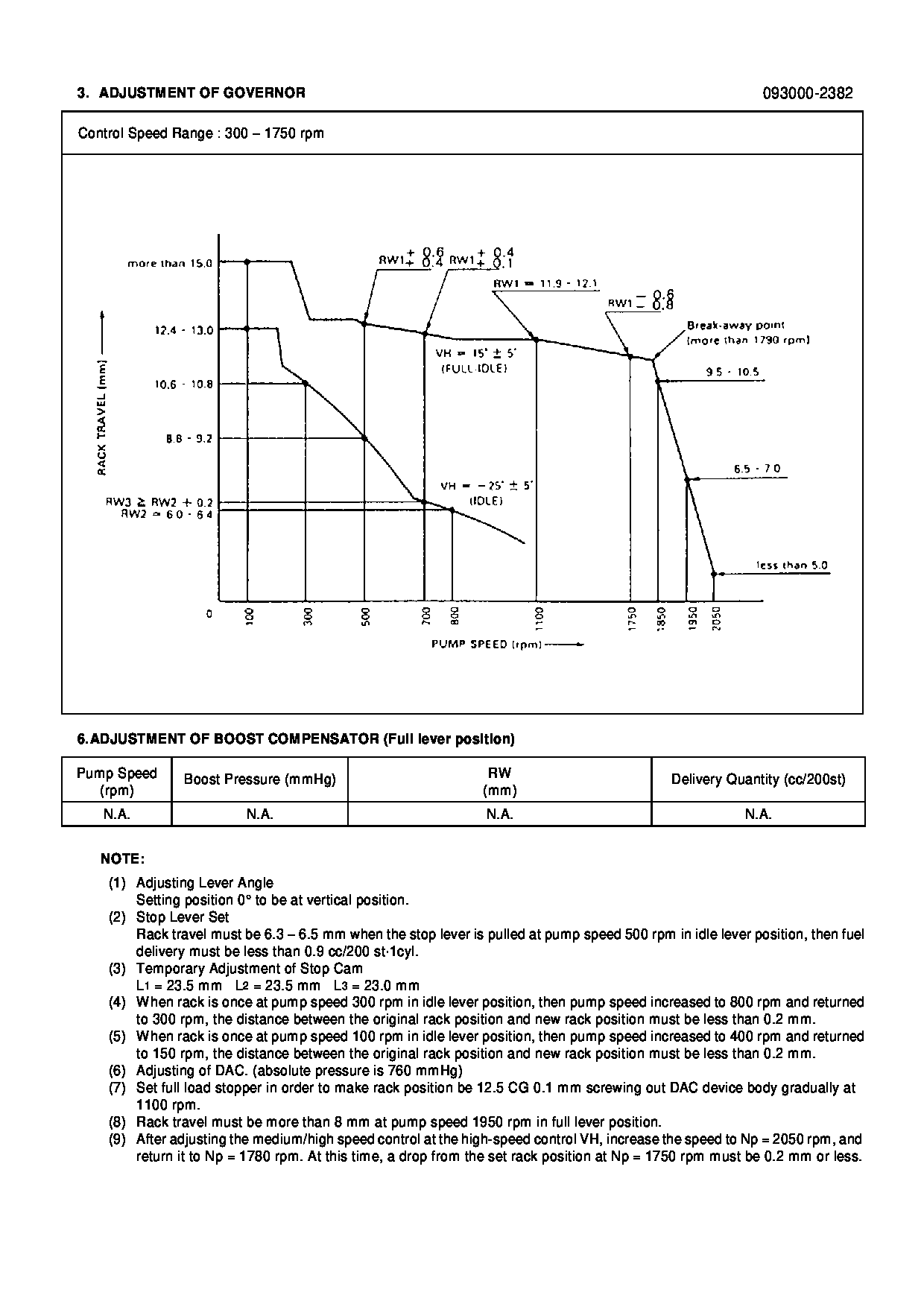

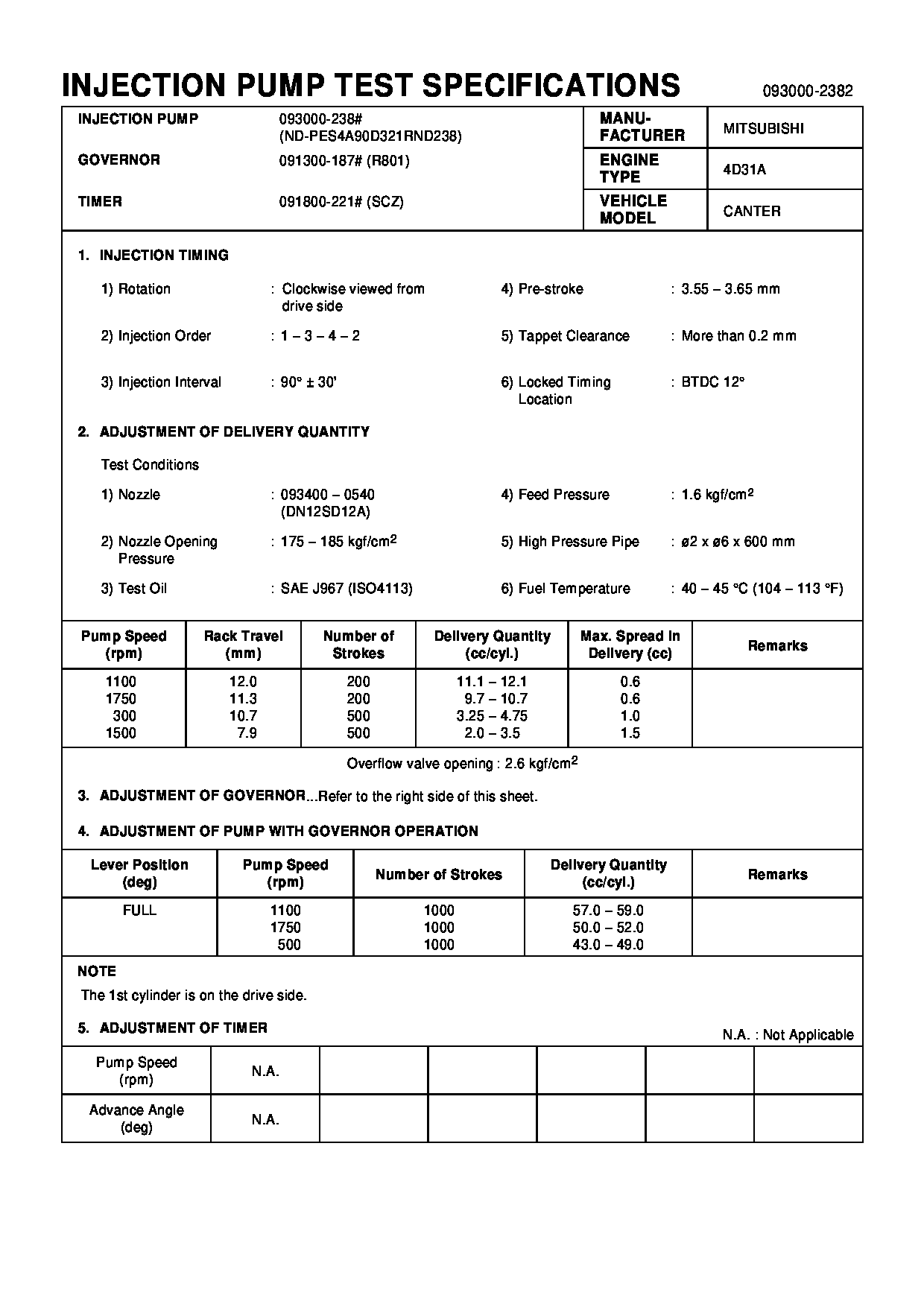

Test Calibration Data:
0930002380
ME016389
0930002382
Information:
Introduction
The design of the groove for the O-ring has changed. The proper O-ring should be used in order to match the design of the groove.
Illustration 1 g00715900
(1) O-Ring seal
Illustration 2 g00716166
Old O-Ring grooveUse with 9X-7680 O-Ring Seal
Illustration 3 g00716168
New O-Ring grooveUse with 033-6039 O-Ring Seal
Table 1
O-Ring Part Numbers
New Part Number Old Part Number
033-6039 9X-7680 Improved Kits
One extra O-ring of the new size will be included within each kit. The affected kits are listed in table 2.
Table 2
Part Number Description
138-6256 Seal Kit
154-6732 Fuel Injection Pump Kit
166-5985 Unit Injector Hydraulic Pump Compensator
The design of the groove for the O-ring has changed. The proper O-ring should be used in order to match the design of the groove.
Illustration 1 g00715900
(1) O-Ring seal
Illustration 2 g00716166
Old O-Ring grooveUse with 9X-7680 O-Ring Seal
Illustration 3 g00716168
New O-Ring grooveUse with 033-6039 O-Ring Seal
Table 1
O-Ring Part Numbers
New Part Number Old Part Number
033-6039 9X-7680 Improved Kits
One extra O-ring of the new size will be included within each kit. The affected kits are listed in table 2.
Table 2
Part Number Description
138-6256 Seal Kit
154-6732 Fuel Injection Pump Kit
166-5985 Unit Injector Hydraulic Pump Compensator
