09300-02323 PUMP ASSY, INJECTI Calibration Data


Rating:
49
Buy PUMP ASSY, INJECTI 09300-02323 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Components :

00.001
PUMP ASSY, INJECTI
A4,R801 -9308
00.001
PUMP ASSY, INJECTI
A4,R801 9309-
01.002
BODY ASSY, INJECTI
A4
01.003
GOVERNOR ASSY, MEC
R801 -8802
01.003
GOVERNOR ASSY, MEC
R801 8803-
02.004
COVER ASSY, GOVERN
01.005
TIMER ASSY, AUTOMA
SCZ
01.006
PUMP ASSY, FUEL FE
KS

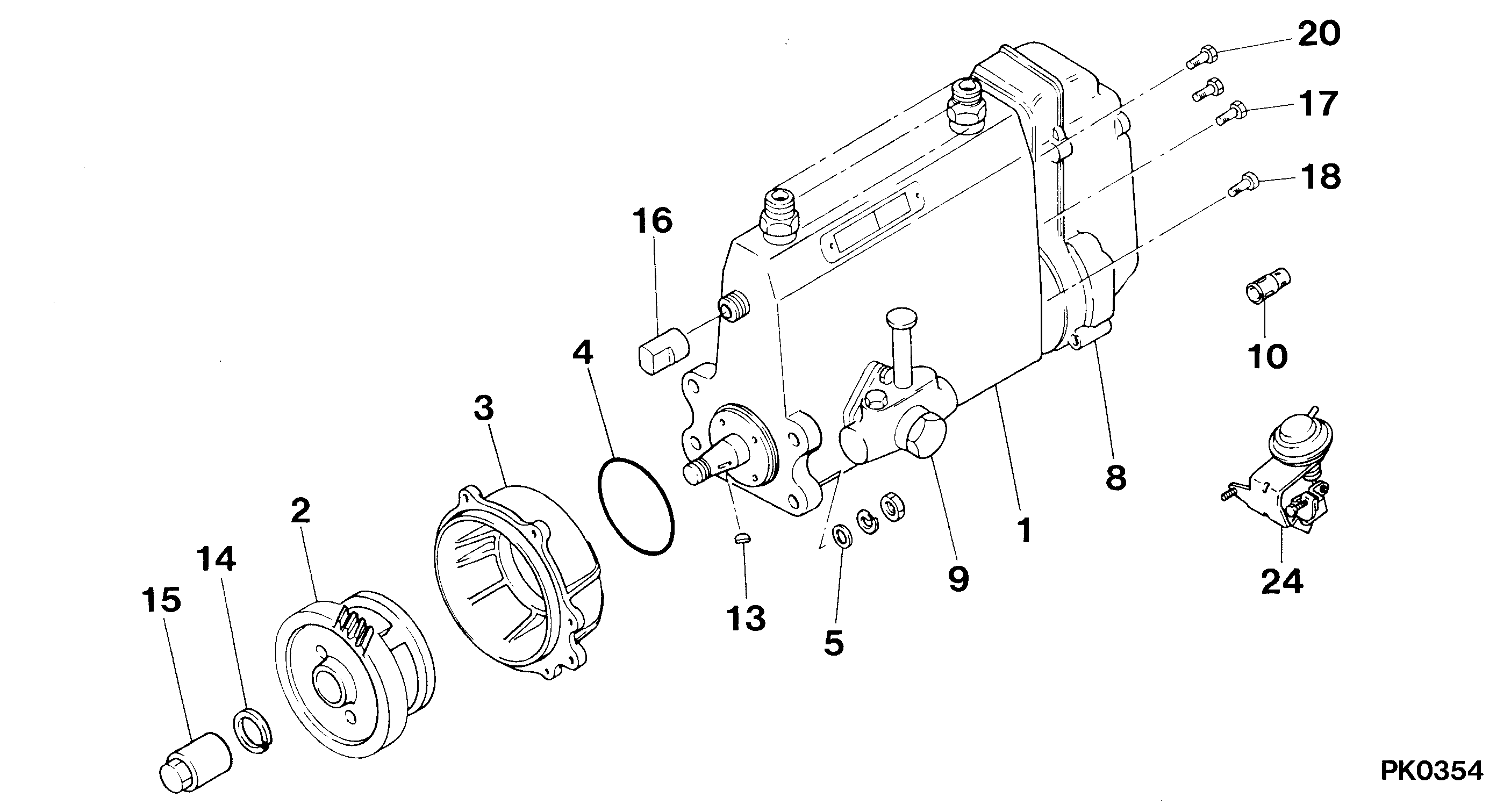

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
PUMP ASSY, INJECTI
A4,R801 -9308
ME016359 MITSUBISHI
000
[01]
09300-02323
PUMP ASSY, INJECTI
A4,R801 9309-
ME016359 MITSUBISHI
001
[01]
BODY ASSY, INJECTI
A4
ME703494 MITSUBISHI
002
[01]
TIMER ASSY, AUTOMA
SCZ
ME703035 MITSUBISHI
003
[01]
COVER SUB-ASSY, TI
-8701
ME016071 MITSUBISHI
003
[01]
COVER SUB-ASSY, TI
8701-
ME703649 MITSUBISHI
004
[01]
O-RING
ID74.1
MH035502 MITSUBISHI
005
[04]
WASHER, STEEL PLAT
FOR M10
MH005068 MITSUBISHI
008
[01]
GOVERNOR ASSY, MEC
R801
ME016144 MITSUBISHI
009
[01]
PUMP ASSY, FUEL FE
KS
ME703037 MITSUBISHI
010
[01]
CAP
FOR MAX.SPEED
ME035845 MITSUBISHI
013
[01]
KEY, WOODRUFF
T3.985
ME702047 MITSUBISHI
014
[01]
WASHER, COUNTERSUN
T1.5ID14
ME702043 MITSUBISHI
015
[01]
NUT, TIMER ROUND
ME702033 MITSUBISHI
016
[01]
COVER, CONTROL RAC
ME702251 MITSUBISHI
017
[01]
BOLT, W/WASHER
M6,L11.5
ME703038 MITSUBISHI
018
[04]
BOLT, W/WASHER
M6,L16
ME702045 MITSUBISHI
019
[01]
BOLT, W/WASHER
M6,L20
ME702041 MITSUBISHI
020
[01]
BOLT, W/WASHER
M8,L18
ME703449 MITSUBISHI
024
[01]
ACTUATOR SET, IDLE
ME016155 MITSUBISHI

Include in ##:

09300-02323 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09300-02323
ME016359
PUMP ASSY, INJECTI

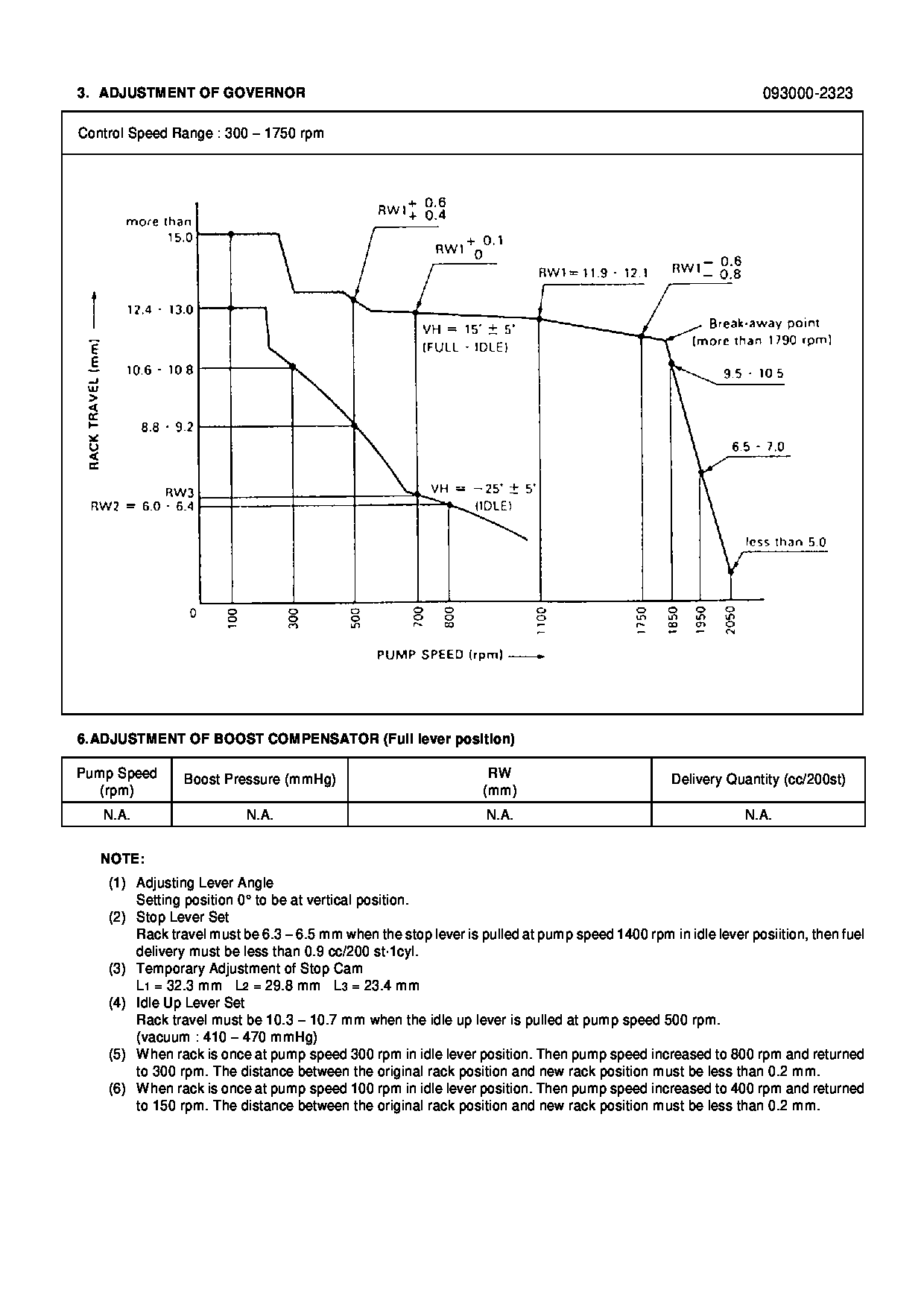

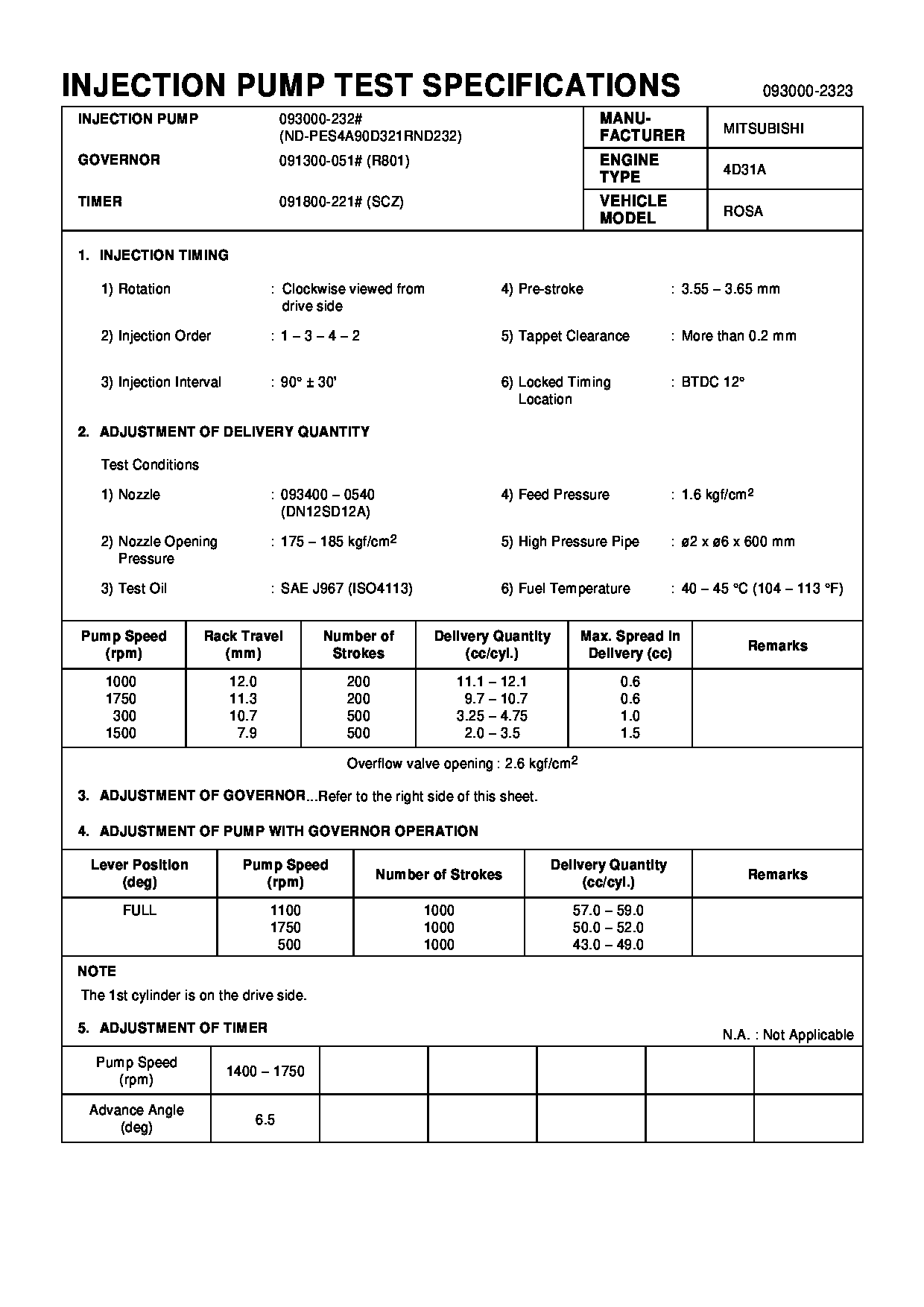

Test Calibration Data:

0930002320 ME016359
0930002323




Information:

Introduction
If the engine turns over but the engine does not start, refer to Operation and Maintenance Manual, "Fuel System - Prime" and Troubleshooting, "Engine Cranks but Will Not Start".If the engine will not start, new service parts are available.The new service parts are the following components.
257-2382 Plug
257-2381 Pin
258-8149 Spring Removal Procedure
Contact with high pressure fuel may cause fluid penetration and burn hazards. High pressure fuel spray may cause a fire hazard. Failure to follow these inspection, maintenance and service instructions may cause personal injury or death.
Ensure that all adjustments and repairs that are carried out to the fuel system are performed by authorised personnel that have the
