09300-01972 PUMP ASSY, INJECTI Calibration Data


Rating:
29
Buy PUMP ASSY, INJECTI 09300-01972 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Components :

00.001
PUMP ASSY, INJECTI
A4,R801
01.002
BODY ASSY, INJECTI
A4
01.003
GOVERNOR ASSY, MEC
R801
02.004
COVER ASSY, GOVERN
02.005
COVER ASSY, GOVERN
02.006
COVER ASSY, GOVERN
01.007
TIMER ASSY, AUTOMA
SCZ
01.008
PUMP ASSY, FUEL FE
KS

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09300-01972
PUMP ASSY, INJECTI
A4,R801
22010-4760 HINO
004
[01]
VALVE ASSY, OVERFL
1.5-1.8K
22107-1090A HINO
005
[02]
WASHER
T1
22847-1940A HINO
006
[01]
COVER, CONTROL RAC
22114-1160A HINO
007
[04]
BOLT, W/WASHER
M6,L16
22815-2410A HINO
008
[01]
BOLT, W/WASHER
M6,L12.5
22815-2900A HINO
009
[01]
COVER SUB-ASSY, TI
22825-1470A HINO
010
[01]
BOLT, W/WASHER
M6,L20
22815-1290A HINO
011
[01]
BOLT, W/WASHER
M8,L18
22815-2820A HINO
014
[01]
NUT, TIMER ROUND
22511-1060A HINO
015
[01]
TIMER ASSY, AUTOMA
SCZ
22510-1910A HINO
016
[01]
WASHER, COUNTERSUN
T1.5ID14
22867-1320A HINO
017
[01]
KEY, WOODRUFF
W4,H5
22895-1080A HINO
018
[01]
BODY ASSY, INJECTI
A4
22110-2810A HINO
019
[03]
WASHER, SPRING
FOR M6
28219-1110A HINO
020
[03]
NUT, HEXAGON
M6,L5
22825-1480A HINO
021
[01]
PUMP ASSY, FUEL FE
KS
22570-1240A HINO
023
[01]
GOVERNOR ASSY, MEC
R801
027
[04]
NUT, HEXAGON
M10
22825-1490A HINO
028
[04]
WASHER, SPRING
M10
28219-1120A HINO
029
[04]
WASHER, STEEL PLAT
FOR M10
22877-1551A HINO
030
[01]
NUT, HEXAGON
M6,L36
92100-6040A HINO
031
[01]
SCREW, CONTROL RAC
22396-1210A HINO
032
[02]
PIN
22358-1010A HINO

Include in ##:

09300-01972 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09300-01972
22010-4760
PUMP ASSY, INJECTI

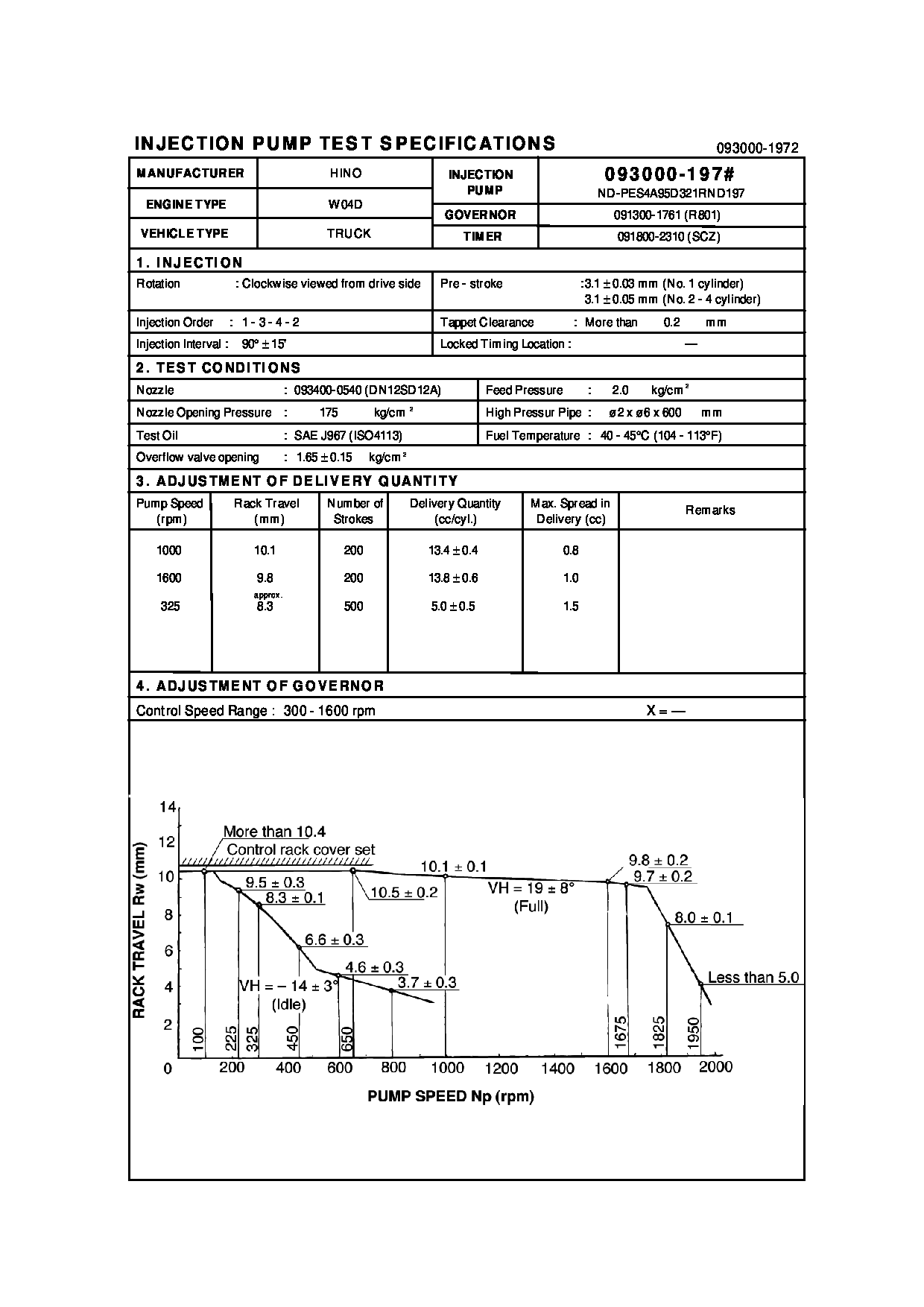

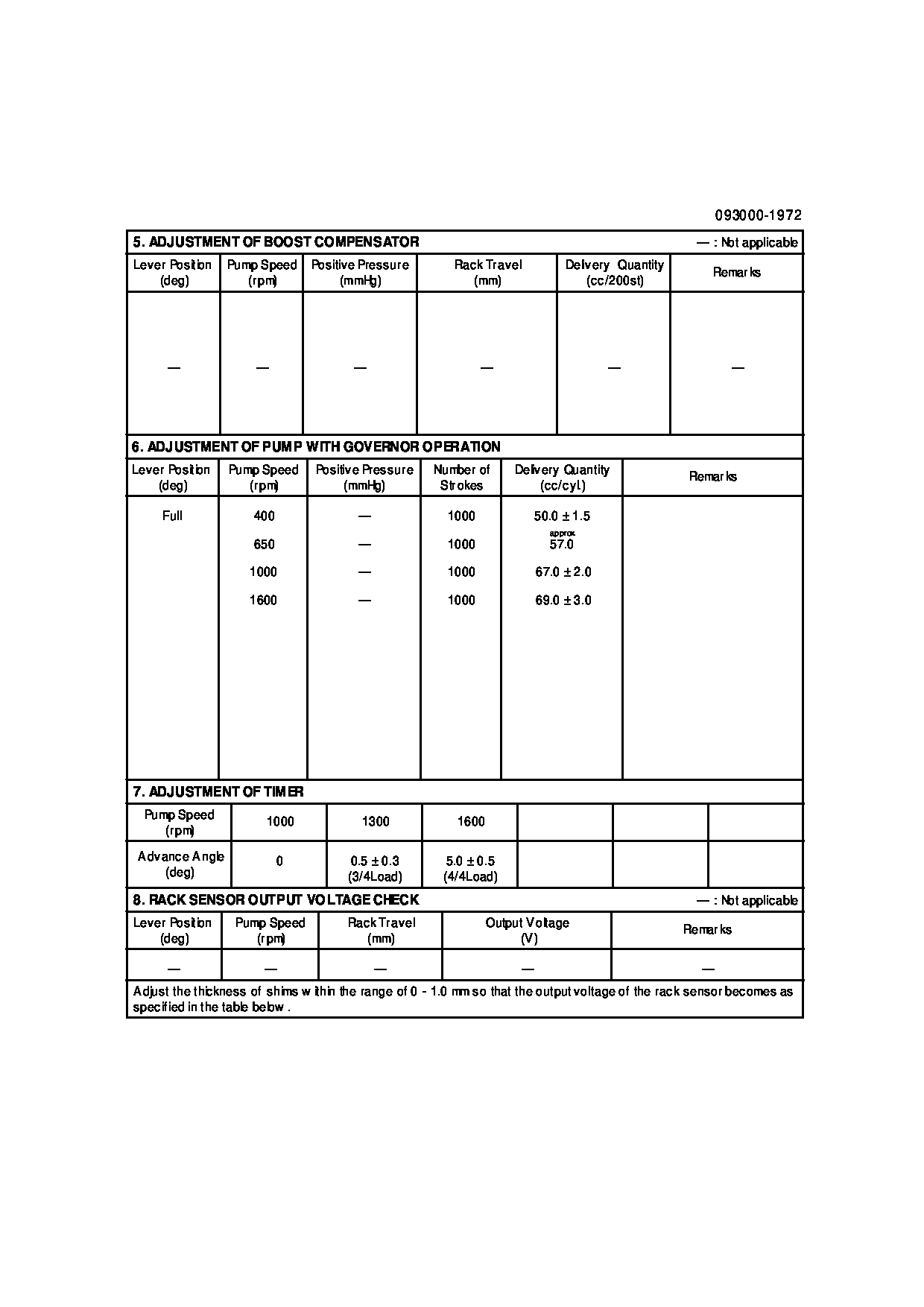

Test Calibration Data:

0930001972 22010-4760B




Information:


Illustration 1 g00565418
4W-8471 Time Delay Relay
Use a 6V-7070 Digital Multimeter, a stopwatch, and a battery (8 volts to 40 volts) for this test.
Connect the positive lead of the voltage source to terminal (TD-4) of the time delay relay. Connect the negative lead to terminal (TD-3). If the test is done on an engine, the start/stop switch must be in the STOP position in order to power terminal (TD-6). All connections must be maintained until the tests are completed.
Use the multimeter to determine continuity. Compare the measurements to the following table.
Table 1
Terminals     Relay Position
5-6     Closed
6-7     Open
Connect the positive lead of the voltage source to terminal (TD-1). If the time delay relay is tested on the engine do not leave the voltage source hooked to terminal (TD-1) for more than 60 seconds. The fuel shutoff solenoid will be energized. Use the multimeter to determine continuity. Compare the measurements to the following table.
Table 2
Terminals     Relay Position
5-6     Open
6-7     Closed
Remove the positive lead of the voltage source from terminal (TD-1). Use the stopwatch to measure the time that is needed for the position of the relay to change. Use the multimeter to determine continuity. Compare the measurements to the following table.
Table 3
Terminals     Delay Time of Relay Position
0 to 60 seconds 80 seconds or more
5-6     Open     Closed
6-7     Closed     Open    Note: If a jumper is normally installed across terminals (TD-2) and (TD-3), the jumper must be removed before performing Step 5.
Connect the positive lead of the voltage source to terminal (TD-2). If the time delay relay is tested on the engine, do not leave the voltage source on terminal (TD-2) for more than 60 seconds. The fuel shutoff solenoid will be energized. Use the stopwatch to measure the time that is needed for the position of the relay to change. Use the multimeter to determine continuity. Compare the measurements to the following table.
Table 4
Terminals     Delay Time of Relay Position
0 to 8 seconds 10 seconds or more
5-6     Closed     Open
6-7     Open     Closed
Remove the positive lead of the voltage source from terminal (TD-1). Use the stopwatch to measure the time that is needed for the position of the relay to change. Use the multimeter to determine continuity. Compare the measurements to the following table.
Table 5
Terminals     Delay Time of Relay Position
0 to 60 seconds 80 seconds or more
5-6     Open     Closed
6-7     Closed     Open
Remove the voltage source from terminal (TD-4). Use the multimeter to determine continuity. Compare the measurements to the following table.
Table 6
Terminals     Relay Position
5-6     Closed
6-7     Open
