Buy PUMP ASSY, INJECTI 09300-01830 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product

Fuel Injection Pump

Vehicle engine

DYNA 13B-T

Engine

13B-T

Serial start-end

8605-

Info

Injector Nozzle

093500-2900

Injector nozzle: 0935002900

KIT List:

Part name

Kit1

Kit2

Body assy, injecti

Governor assy, mec

Timer assy, automa

Pump assy, fuel fe

Components :

00.001

PUMP ASSY, INJECTI

09300-01830 TOYOTA

A4,R801

01.002

BODY ASSY, INJECTI

09010-06550 TOYOTA

01.003

GOVERNOR ASSY, MEC

09130-01411 TOYOTA

R801

02.004

COVER ASSY, GOVERN

09145-00313 TOYOTA

02.005

COMPENSATOR SUB-AS

19260-00120 TOYOTA

01.006

TIMER ASSY, AUTOMA

09180-02250 TOYOTA

SCZ

01.007

PUMP ASSY, FUEL FE

09210-01700 TOYOTA

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

09300-01830

PUMP ASSY, INJECTI

A4,R801

22010-58020 TOYOTA

001

[01]

09010-06550

BODY ASSY, INJECTI

22120-58370 TOYOTA

002

[01]

09130-01410

GOVERNOR ASSY, MEC

R801 -8608

22410-58370 TOYOTA

002

[01]

09130-01411

GOVERNOR ASSY, MEC

R801 8608-

22410-58370 TOYOTA

003

[01]

09210-01700

PUMP ASSY, FUEL FE

22510-873 TOYOTA

008

[01]

09001-80090

COVER, CONTROL RAC

22116-56230 TOYOTA

009

[01]

09257-50200

SHAFT, SPLINE

22174-58360 TOYOTA

010

[01]

09001-20190

NUT, TIMER ROUND

22611-58200 TOYOTA

011

[01]

94901-50590

WASHER, SPRING

T3.5

90099-01449 TOYOTA

012

[01]

94913-00210

KEY, WOODRUFF

T3.985

90099-13023 TOYOTA

013

[01]

09048-10030

CLAMP, HOSE

8511-

90929-01132 TOYOTA

016

[01]

91418-06201

BOLT, W/WASHER

M6,L20

90091-20608 TOYOTA

017

[04]

94904-72690

BOLT, W/WASHER

M6,L16

90099-04319 TOYOTA

018

[01]

94904-72990

BOLT, W/WASHER

M6,L11.5

90099-04320 TOYOTA

019

[01]

94904-73910

BOLT, W/WASHER

M8,L18

90099-04346 TOYOTA

030

[01]

09180-02250

TIMER ASSY, AUTOMA

SCZ

22610-58040 TOYOTA

Include in ##:

09300-01830 as PUMP ASSY, INJECTI

Cross reference number

Part num

Firm num

Firm

Name

09300-01830

22010-5802

PUMP ASSY, INJECTI

0930001830

22010-58020

TOYOTA

PUMP ASSY, INJECTI

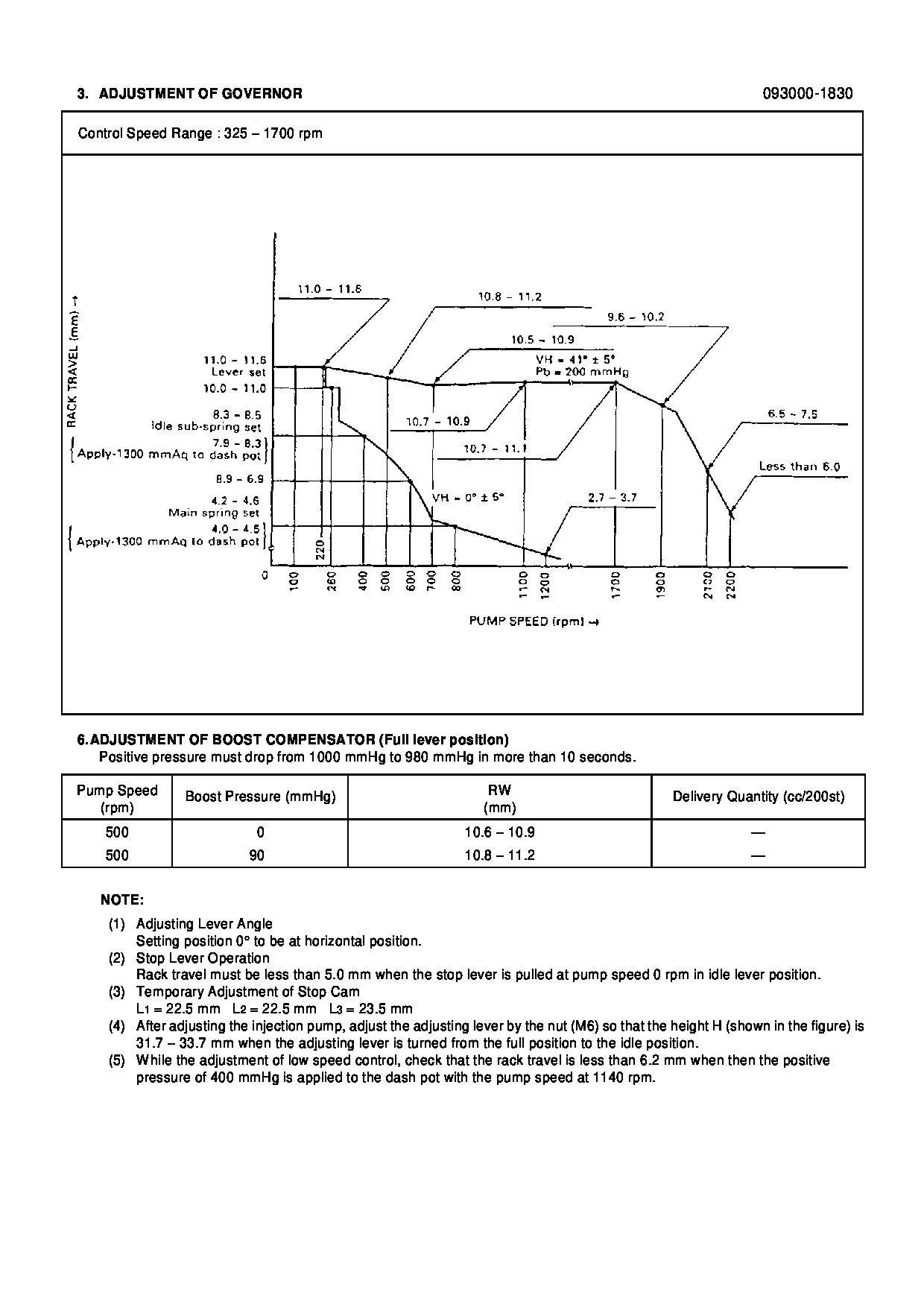

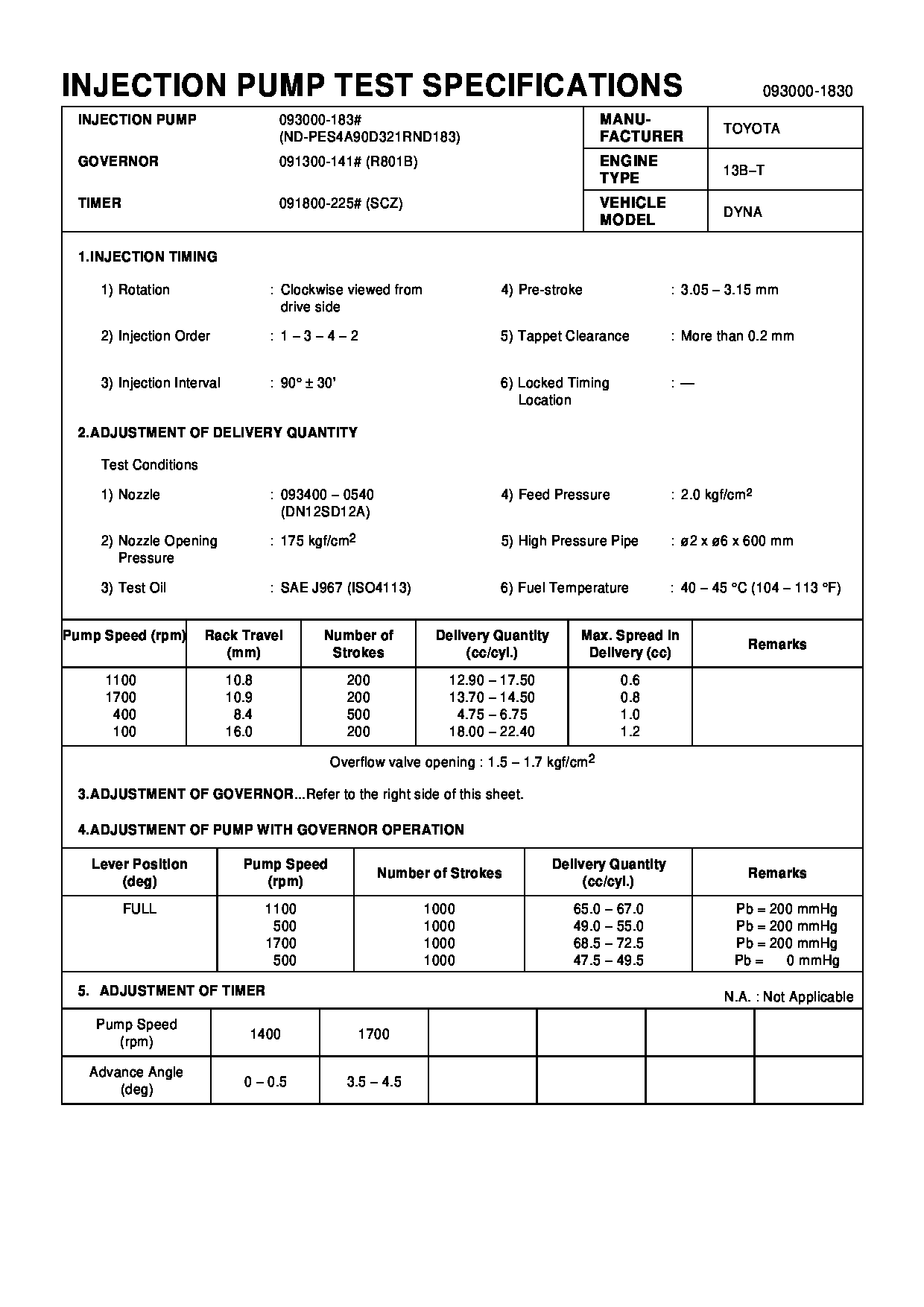

Test Calibration Data:

Get Full test data file

0930001830 22010-58020
