09300-01820 PUMP ASSY, INJECTI Calibration Data


Rating:
75
Buy PUMP ASSY, INJECTI 09300-01820 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
DYNA 13B-T
Engine
13B-T
Serial start-end
8605-
Info
Injector Nozzle
093500-2900
Injector nozzle: 0935002900

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
1904400320
Governor assy, mec
No Application
Timer assy, automa
0918030050
Pump assy, fuel fe
1922900060

Components :

00.001
PUMP ASSY, INJECTI
09300-01820 TOYOTA
A4,R801
01.002
BODY ASSY, INJECTI
09010-05800 TOYOTA
A4
01.003
GOVERNOR ASSY, MEC
09130-01510 TOYOTA
R801
02.004
COVER ASSY, GOVERN
09145-00313 TOYOTA
01.005
TIMER ASSY, AUTOMA
09180-02250 TOYOTA
SCZ
01.006
PUMP ASSY, FUEL FE
09210-01700 TOYOTA
KE

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09300-01820
PUMP ASSY, INJECTI
A4,R801
22010-58010 TOYOTA
001
[01]
09010-05800
BODY ASSY, INJECTI
A4
22120-58330 TOYOTA
002
[01]
09130-01510
GOVERNOR ASSY, MEC
R801
22410-58360 TOYOTA
003
[01]
09210-01700
PUMP ASSY, FUEL FE
KE
22510-873 TOYOTA
008
[01]
09001-80090
COVER, CONTROL RAC
22116-56230 TOYOTA
009
[01]
09257-50200
SHAFT, SPLINE
22174-58360 TOYOTA
010
[01]
09001-20190
NUT, TIMER ROUND
22611-58200 TOYOTA
011
[01]
94901-50590
WASHER, SPRING
T3.5
90099-01449 TOYOTA
012
[01]
94913-00210
KEY, WOODRUFF
T3.985
90099-13023 TOYOTA
013
[01]
09048-10030
CLAMP, HOSE
8511-
90929-01132 TOYOTA
016
[01]
91418-06201
BOLT, W/WASHER
M6,L20
90091-20608 TOYOTA
017
[04]
94904-72690
BOLT, W/WASHER
M6,L16
90099-04319 TOYOTA
018
[01]
94904-72990
BOLT, W/WASHER
M6,L11.5
90099-04320 TOYOTA
019
[01]
94904-73910
BOLT, W/WASHER
M8,L18
90099-04346 TOYOTA
030
[01]
09180-02250
TIMER ASSY, AUTOMA
SCZ
22610-58040 TOYOTA

Include in ##:

09300-01820 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09300-01820
22010-5801
PUMP ASSY, INJECTI
0930001820
22010-58010
TOYOTA
PUMP ASSY, INJECTI

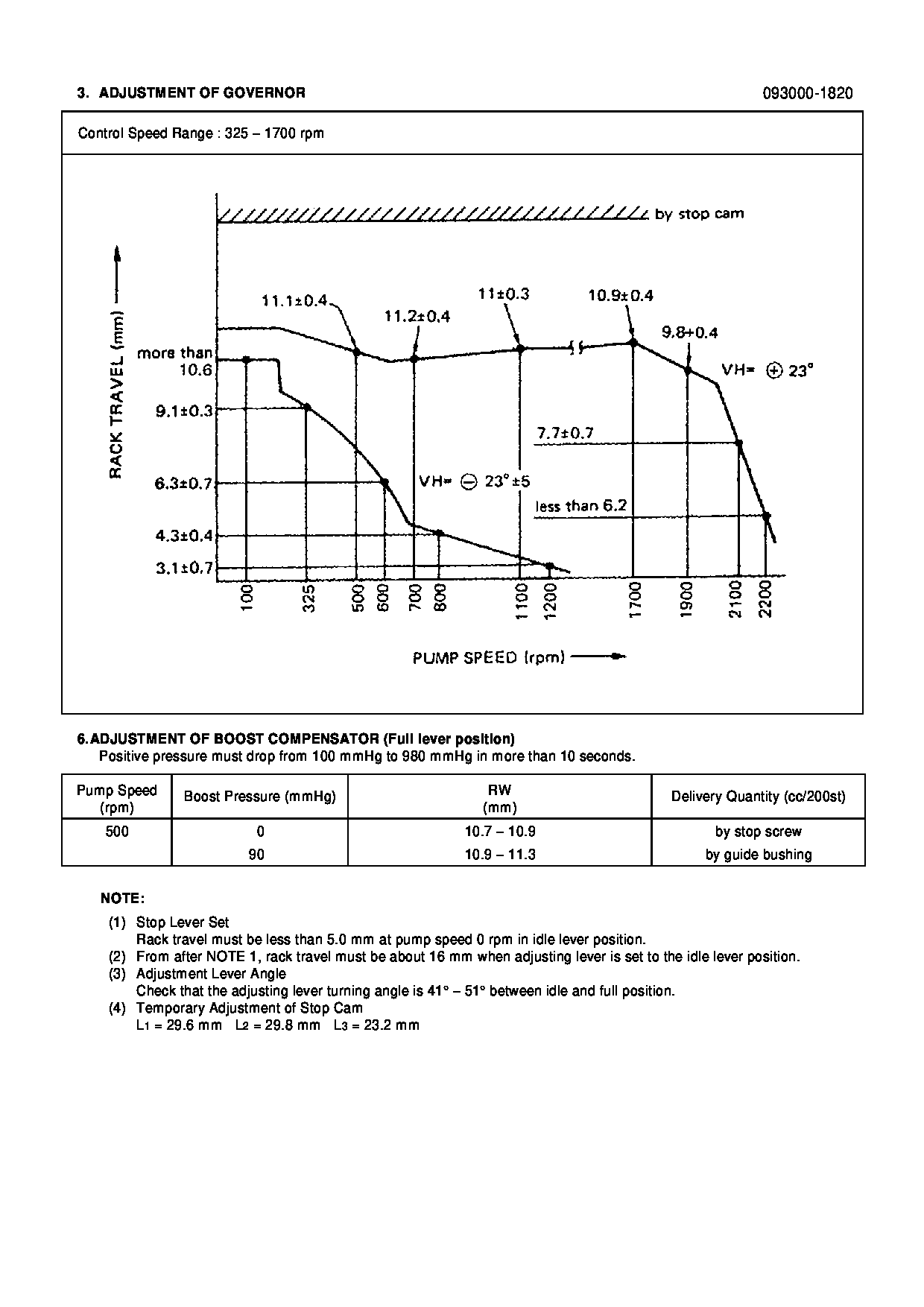

Test Calibration Data:

Get Full test data file
0930001820 22010-58010
EE1820
EE1820
