09300-01580 PUMP ASSY, INJECTI Calibration Data


Rating:
66
Buy PUMP ASSY, INJECTI 09300-01580 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
CANTER 4D30A
Engine
4D30A
Serial start-end
8512-
Info
Injector Nozzle
093500-2470
Injector nozzle: 0935002470

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
Timer assy, automa
Pump assy, fuel fe
Governor assy, mec

Components :

00.001
PUMP ASSY, INJECTI
A4,RU
01.002
BODY ASSY, INJECTI
A4:DRIV.16.8
01.003
TIMER ASSY, AUTOMA
SCZ
01.004
PUMP ASSY, FUEL FE
KS
01.005
GOVERNOR ASSY, MEC
RU

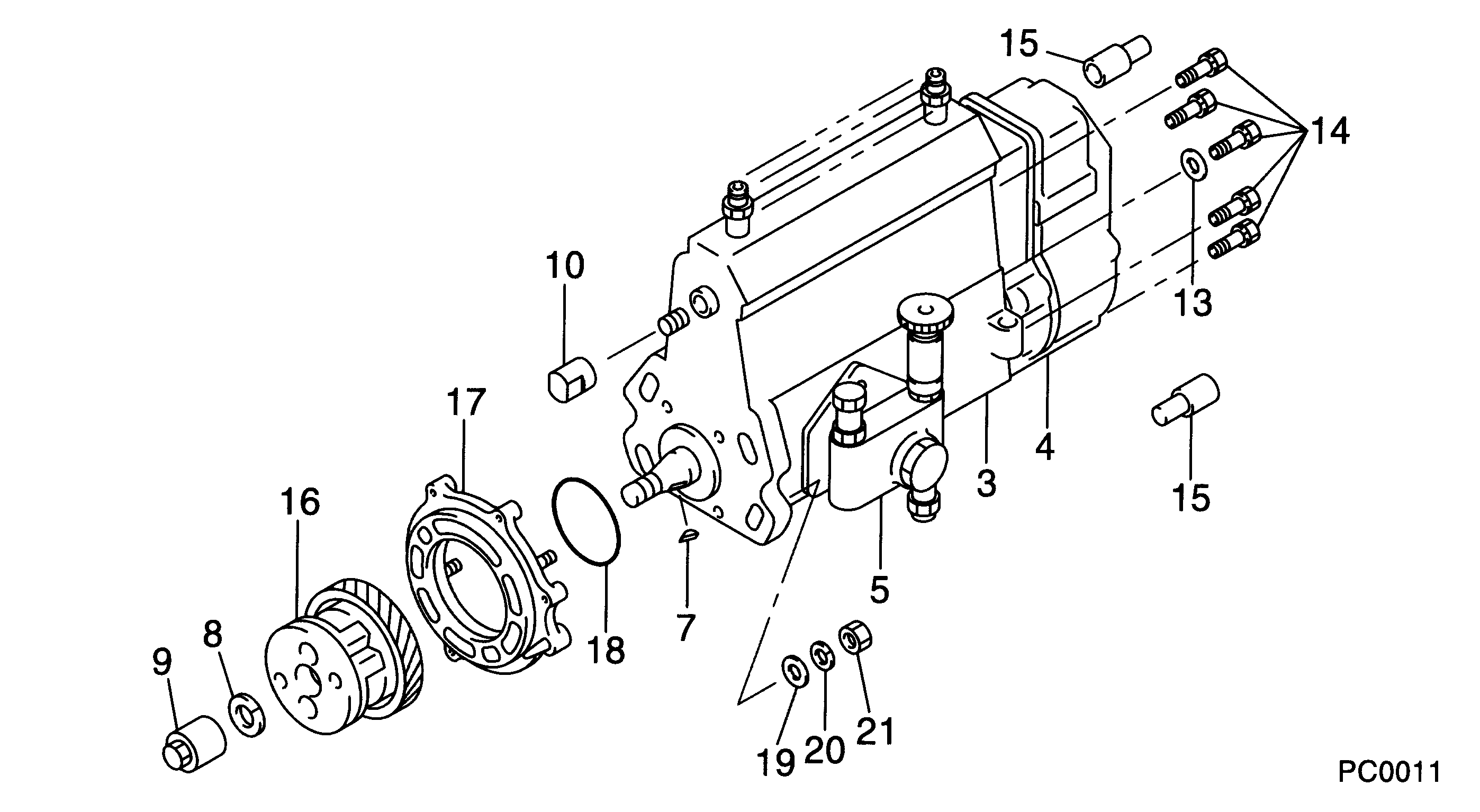

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
PUMP ASSY, INJECTI
A4,RU
003
[01]
BODY ASSY, INJECTI
A4:DRIV.16.8
004
[01]
GOVERNOR ASSY, MEC
RU
005
[01]
PUMP ASSY, FUEL FE
KS
007
[01]
KEY, WOODRUFF
008
[01]
WASHER, SPRING
T2.5
009
[01]
NUT, TIMER ROUND
-8909
009
[01]
NUT, TIMER ROUND
8909-
010
[01]
COVER, CONTROL RAC
013
[01]
WASHER, PLATE
M6,T1.5
014
[06]
BOLT, W/WASHER
M6,L14
015
[02]
CAP
FOR MAX.SPEED
016
[01]
TIMER ASSY, AUTOMA
SCZ
017
[01]
COVER SUB-ASSY, TI
018
[01]
O-RING
ID62.5
019
[04]
WASHER, STEEL PLAT
FOR M10
020
[04]
WASHER, SPRING
M10
021
[04]
NUT, HEXAGON
M10

Cross reference number



Part num
Firm num
Firm
Name
09300-01580

PUMP ASSY, INJECTI

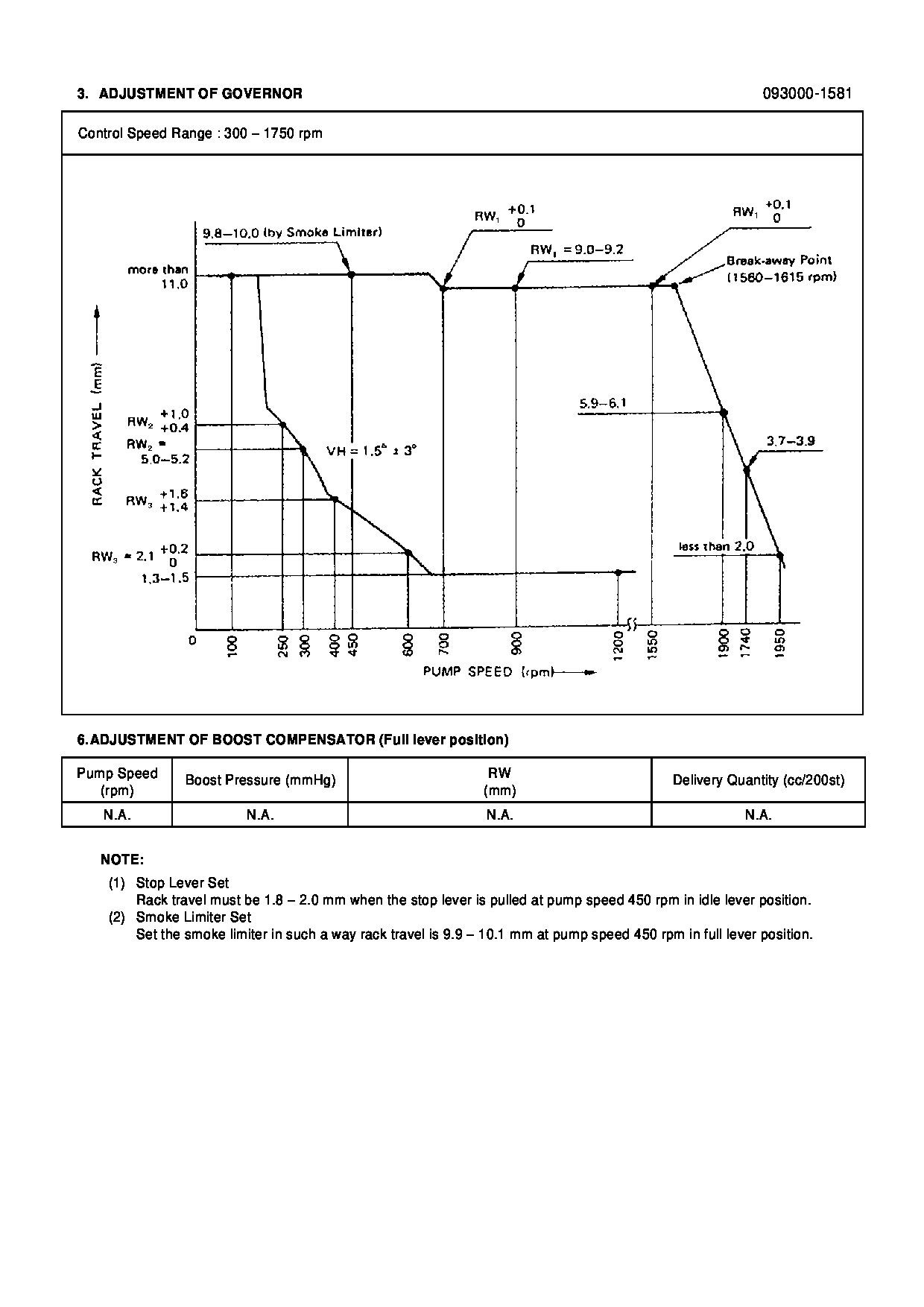

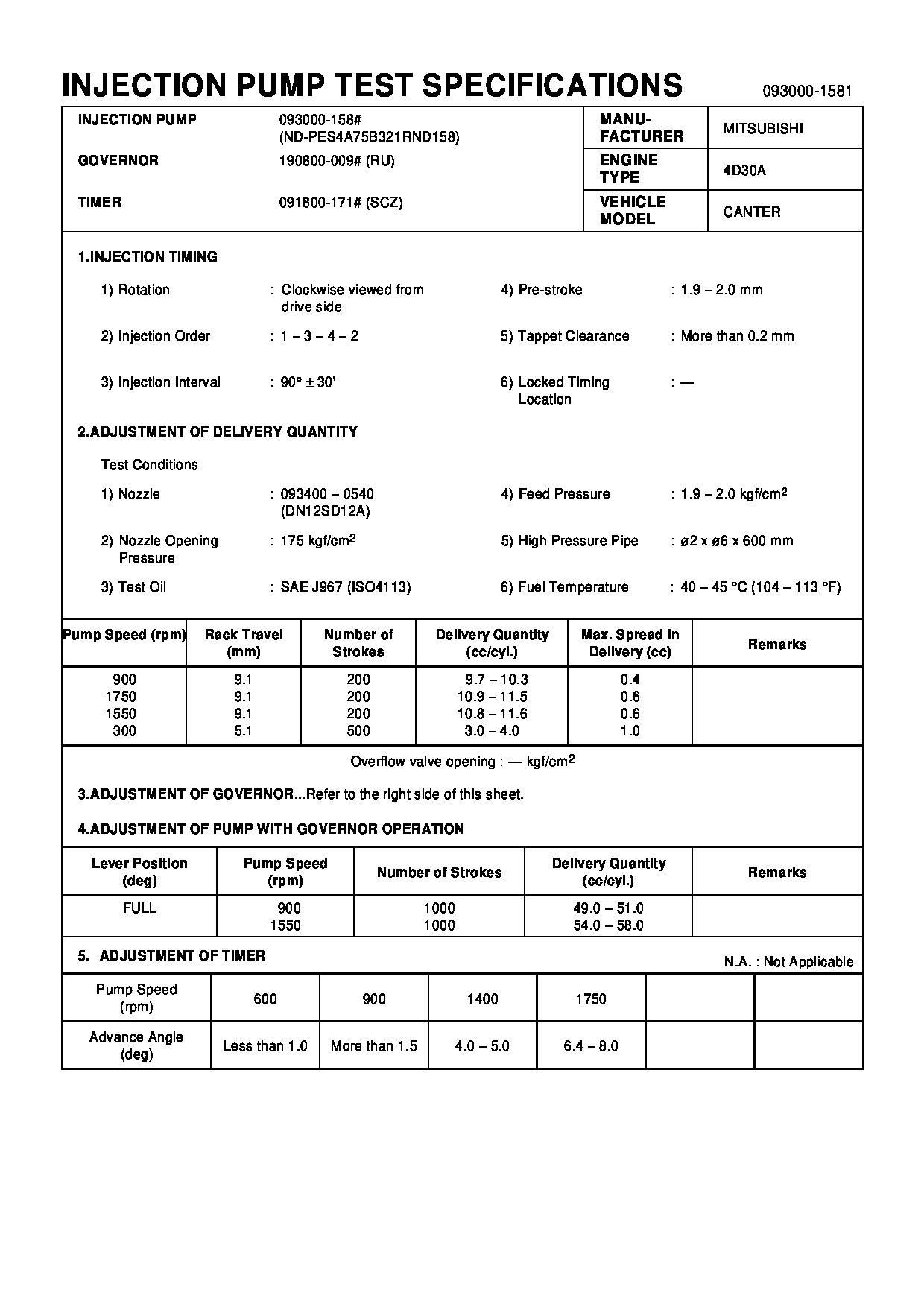

Test Calibration Data:

0930001580 ME016391




Information:


Fill the fuel tank at the end of each day of operation to drive out moist air and to prevent condensation. Maintain a fairly constant level in the tank (near the top) to avoid drawing moisture into the tank as the level decreases. Do not fill the tank to the top. Fuel expands as it gets warm and may overflow.Drain water and sediment from tank at the interval specified in the Maintenance Schedule.Do not fill fuel filters with fuel before installing them. Contaminated fuel will cause accelerated wear to fuel system parts.
Fuel Recommendations
Use only fuel as recommended in this section. The fuels recommended for use in Caterpillar engines are No.2-D diesel fuel and No.2 fuel oil, although No. 1 grades are acceptable. The following fuel specifications are some of the worldwide fuels which may meet the requirements. Caterpillar Diesel Engines are capable of burning a wide range of distillate fuels. The use of clean, stable blends of distillate fuel which meet the following requirements will provide quality engine service life. Sulfur
The percentage of sulfur
