09300-01523 PUMP ASSY, INJECTI Calibration Data


Rating:
25
Buy PUMP ASSY, INJECTI 09300-01523 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Components :

00.001
PUMP ASSY, INJECTI
A4,R801 -9308
00.001
PUMP ASSY, INJECTI
9309-
01.002
BODY ASSY, INJECTI
A4:DRIV.16.8
01.003
GOVERNOR ASSY, MEC
R801
02.004
COVER ASSY, GOVERN
02.005
COVER ASSY, GOVERN
01.006
TIMER ASSY, AUTOMA
SCZ
01.007
PUMP ASSY, FUEL FE
KS

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
PUMP ASSY, INJECTI
A4,R801 -9308
ME016225 MITSUBISHI
000
[01]
09300-01523
PUMP ASSY, INJECTI
9309-
ME016225 MITSUBISHI
003
[01]
BODY ASSY, INJECTI
A4
ME703047 MITSUBISHI
004
[01]
GOVERNOR ASSY, MEC
R801 -8803
ME703048 MITSUBISHI
004
[01]
GOVERNOR ASSY, MEC
8803--8807
ME703048 MITSUBISHI
004
[01]
GOVERNOR ASSY, MEC
8807-
ME703048 MITSUBISHI
005
[01]
PUMP ASSY, FUEL FE
KS
ME016021 MITSUBISHI
006
[01]
TIMER ASSY, AUTOMA
SCZ
ME016163 MITSUBISHI
007
[01]
COVER SUB-ASSY, TI
ME016070 MITSUBISHI
008
[01]
O-RING
MH035501 MITSUBISHI
009
[04]
WASHER, STEEL PLAT
FOR M10
MH005068 MITSUBISHI
012
[01]
KEY, WOODRUFF
ME703361 MITSUBISHI
013
[01]
WASHER, SPRING
T2.5
ME008373 MITSUBISHI
014
[01]
NUT, TIMER ROUND
-8909
ME022426 MITSUBISHI
014
[01]
NUT, TIMER ROUND
8909-
ME703450 MITSUBISHI
015
[01]
COVER, CONTROL RAC
ME022416 MITSUBISHI
016
[01]
BOLT, HEXAGON
M8,L18
ME702044 MITSUBISHI
019
[04]
BOLT, W/WASHER
M6,L16
ME702045 MITSUBISHI
020
[01]
BOLT, W/WASHER
M6,L11.5
ME703038 MITSUBISHI
021
[01]
ACTUATOR SET, IDLE
ME016155 MITSUBISHI
022
[01]
CAP
ME035845 MITSUBISHI

Include in ##:

09300-01523 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09300-01523
ME016225
PUMP ASSY, INJECTI

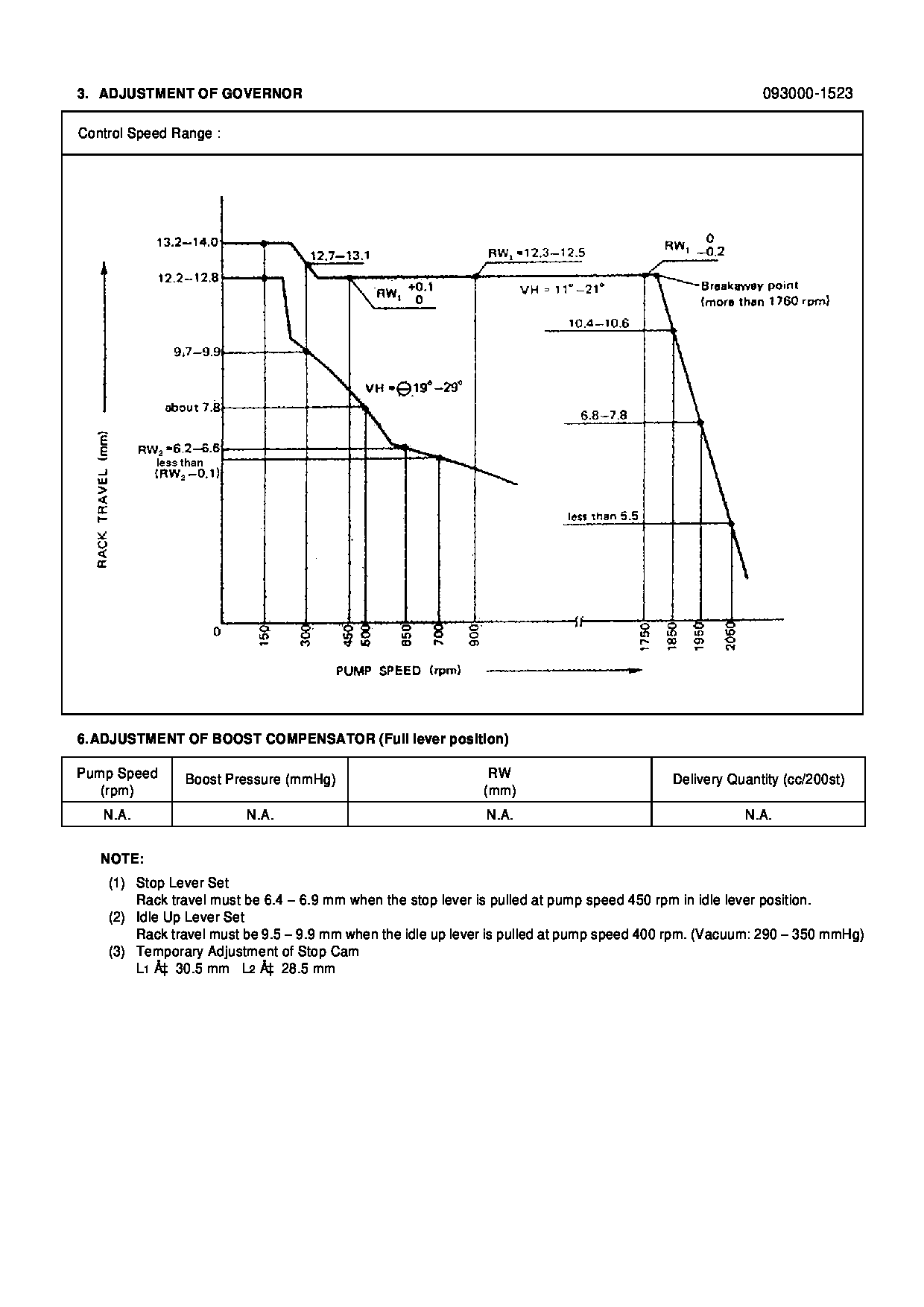

Test Calibration Data:

0930001520 ME016225
0930001523
0930001860 ME016225




Information:


26Feb2020
U-93
A-70
D-86
O-82
Parts stock action only
PRODUCT IMPROVEMENT PROGRAM FOR INSPECTING AND POSSIBLY REMOVING CERTAIN 471-6029 DEF INJECTOR AND MOUNTING GROUPS FROM DEALER PARTS STOCK
108I 7750 PI70799
Caterpillar’s obligations under this Service Letter are subject to, and shall not apply in contravention of, the laws, rules, regulations, directives, ordinances, orders, or statutes of the United States, or of any other applicable jurisdiction, without recourse or liability with respect to Caterpillar.
When submitting claim for Parts Stock Action, Use the appropriate 99Z as the s/n, the appropriate Service Letter Program Number as the Part number in the Part Causing Failure field, "7751" as the Group Number, "56" as the Description Code.
The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
TERMINATION DATE
31May2020
PROBLEM
A defined batch of existing 471-6029 DEF Injector and Mounting Groups can fail under certain conditions.
ACTION REQUIRED
Inspect all 471-6029 DEF Injector and Mounting Groups in dealer parts stock.
Open the packaging and visually inspect the DEF injector.
If the DEF injector's upper body molding mark is an A or B, then the DEF injector is acceptable to use. Repackage the DEF injector and mark the packaging as inspected per this program and place the part back into dealer parts stock.
If the DEF injector's upper body molding mark is a 1 or 2, then remove the part from dealer parts stock. Refer to the Parts Disposition.
Image 1 shows the molding marks and location.
SERVICE CLAIM ALLOWANCES
Submit one claim for all parts removed from dealer parts stock.
PARTS DISPOSITION
NACD:
Hold all 471-6029 DEF Injector and Mounting Groups removed from dealer parts stock for a Parts Return Request (PRR). A Parts Return Request (PRR) will be issued to you through the Send-It-Back process after the claim is submitted. Make sure to list the service letter program number on the packing slip and include the closed work order paperwork. Handle all other parts in accordance with your Warranty Bulletin on warranty parts handling.
If a Parts Return Request (PRR) is not issued to you after 30 days through the Send-It-Back process, handle the parts in accordance with your warranty bulletin on warranty parts handling.
EAME, LACD, and APD:
Hold all 471-6029 DEF Injector and Mounting Groups removed from dealer parts stock for 30 days for a possible Parts Return Request (PRR). Make sure to list the service letter program number on the packing slip and include the closed work order paperwork. Handle all other parts in accordance with your Warranty Bulletin on warranty parts handling.
If a Parts Return Request (PRR) is not issued to you after 30 days through the Send-It-Back process, handle the parts in accordance with your warranty bulletin on warranty parts handling.
