09300-01313 PUMP ASSY, INJECTI Calibration Data


Rating:
26
Buy PUMP ASSY, INJECTI 09300-01313 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Components :

00.001
PUMP ASSY, INJECTI
A4,RU -8511
00.001
PUMP ASSY, INJECTI
A4,RU 8602-
00.001
PUMP ASSY, INJECTI
A4,RU 8511--8602
01.002
BODY ASSY, INJECTI
A4:DRIV.16.8
01.003
GOVERNOR ASSY, MEC
RU -8509
01.003
GOVERNOR ASSY, MEC
9011-
01.003
GOVERNOR ASSY, MEC
8509--8707
01.003
GOVERNOR ASSY, MEC
8707--9011
01.004
TIMER ASSY, AUTOMA
SCZ
01.005
PUMP ASSY, FUEL FE
KS

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
PUMP ASSY, INJECTI
A4,RU -8511
ME006202 MITSUBISHI
000
[01]
PUMP ASSY, INJECTI
A4,RU 8511--8602
ME006202 MITSUBISHI
000
[01]
09300-01313
PUMP ASSY, INJECTI
A4,RU 8602-
ME006202 MITSUBISHI
003
[01]
BODY ASSY, INJECTI
A4
ME703032 MITSUBISHI
004
[01]
GOVERNOR ASSY, MEC
RU -8707
ME703033 MITSUBISHI
004
[01]
GOVERNOR ASSY, MEC
RU 8707-
ME703033 MITSUBISHI
005
[01]
PUMP ASSY, FUEL FE
KS
ME016021 MITSUBISHI
006
[01]
TIMER ASSY, AUTOMA
SCZ
ME703031 MITSUBISHI
007
[01]
COVER SUB-ASSY, TI
ME006130 MITSUBISHI
008
[01]
O-RING
MH035501 MITSUBISHI
009
[04]
WASHER, STEEL PLAT
FOR M10
MH005068 MITSUBISHI
012
[01]
KEY, WOODRUFF
ME703361 MITSUBISHI
013
[01]
WASHER, SPRING
T2.5
ME008373 MITSUBISHI
014
[01]
NUT, TIMER ROUND
-8609
ME022426 MITSUBISHI
014
[01]
NUT, TIMER ROUND
8609-
ME703450 MITSUBISHI
015
[01]
COVER, CONTROL RAC
ME702034 MITSUBISHI
016
[06]
BOLT, W/WASHER
M6,L14
94904-70620 MITSUBISHI
020
[02]
CAP
ME035845 MITSUBISHI

Include in ##:

09300-01313 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09300-01313
ME006202
PUMP ASSY, INJECTI

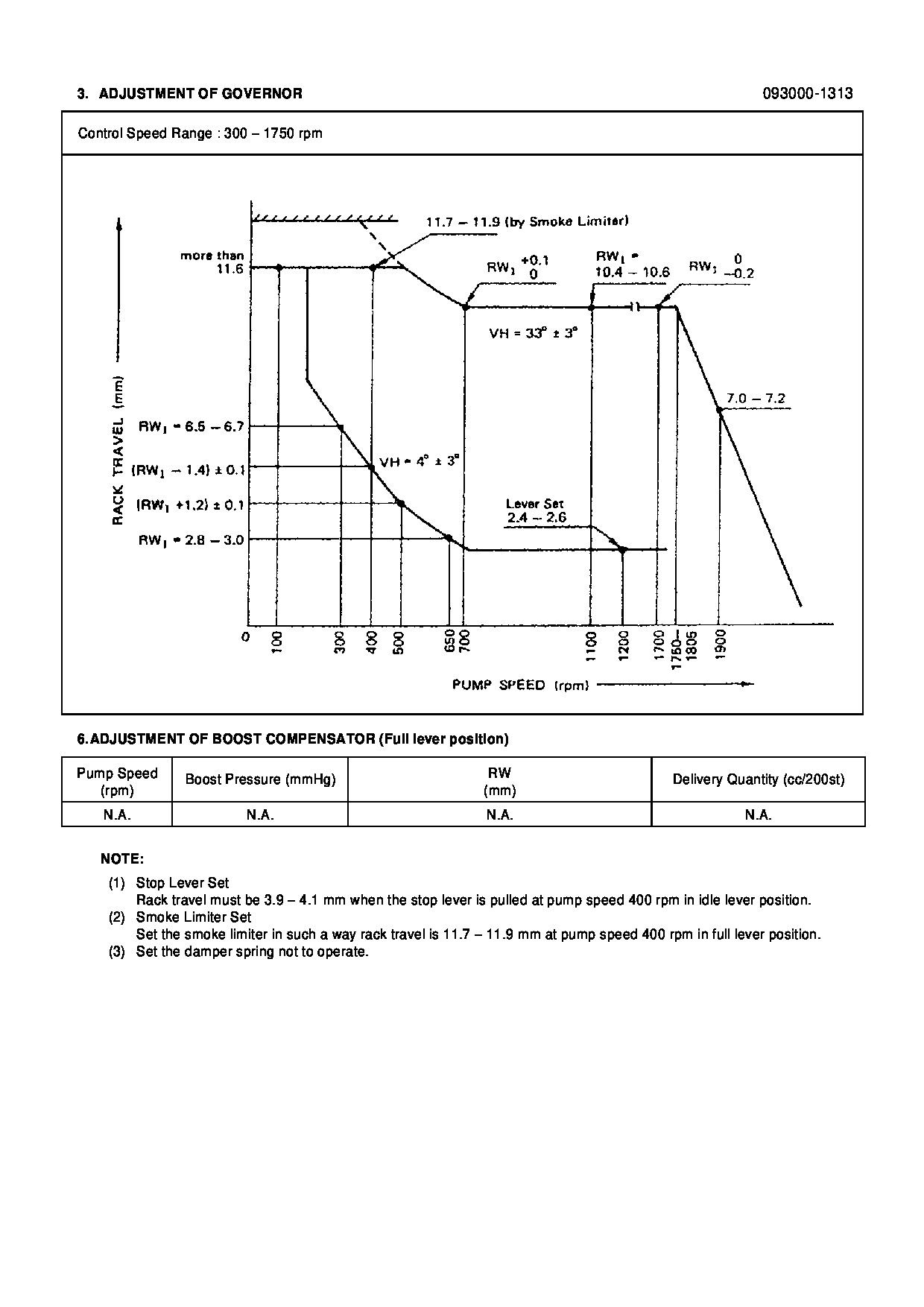

Test Calibration Data:

0930001310 ME006202
0930001313




Information:


28Oct2019
U-642
A-510
D-558
O-556
Parts stock action only
PRODUCT IMPROVEMENT PROGRAM FOR REMOVING OR REPLACING THE 506-8793 FAST FILL DEF NOZZLE IN DEALER PARTS STOCK, DEALER TOOL INVENTORY, OR CUSTOMER TOOL INVENTORY
7750 PI70777
Caterpillar’s obligations under this Service Letter are subject to, and shall not apply in contravention of, the laws, rules, regulations, directives, ordinances, orders, or statutes of the United States, or of any other applicable jurisdiction, without recourse or liability with respect to Caterpillar.
When submitting claim for Parts Stock Action, Use the appropriate 99Z as the s/n, the appropriate Service Letter Program Number as the Part number in the Part Causing Failure field, "7751" as the Group Number, "56" as the Description Code.
The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
TERMINATION DATE
31Jan2020
PROBLEM
The existing 506-8793 Fast Fill DEF Nozzles can get stuck while filling DEF and will not kick out when the DEF tank is full.
ACTION REQUIRED
Dealer Parts Stock:
Inspect all 506-8793 Fast Fill DEF Nozzles in dealer parts stock. If a 506-8793 Fast Fill DEF Nozzle is equipped with a blue twist engagement handle, then remove the part from dealer part stock.
Dealer Tool Inventory and/or Customer Tool Inventory:
Inspect all 506-8793 Fast Fill DEF Nozzles in dealer tool inventory. If a 506-8793 Fast Fill DEF Nozzle is equipped with a blue twist engagement handle, then replace the fast fill DEF nozzle with a 584-9979 Fast Fill DEF Nozzle.
Dealers should check their records of customers who have purchased one or more of the 506-8793 Fast Fill DEF Nozzles. If necessary, inspect all 506-8793 Fast Fill DEF Nozzles in customer tool inventory. If a 506-8793 Fast Fill DEF Nozzle is equipped with a blue twist engagement handle, then replace the fast fill DEF nozzle with a 584-9979 Fast Fill DEF Nozzle.
SERVICE CLAIM ALLOWANCES
Dealer Parts Stock:Submit one claim for all parts removed from dealer parts stock.Dealer Tool Inventory and/or Customer Tool Inventory:One 584-9979 Fast Fill DEF Nozzle is allowed for each 506-8793 Fast Fill DEF Nozzle removed from service that is equipped with a blue twist engagement handle.
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
