09300-01240 PUMP ASSY, INJECTI Calibration Data


Rating:
10
Buy PUMP ASSY, INJECTI 09300-01240 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL S6M2
Engine
S6M2
Serial start-end
8408--8711
Info
Injector Nozzle
093500-3220
Injector nozzle: 0935003220

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
Governor assy, mec
Timer assy, automa
Timer assy, automa
Pump assy, fuel fe
Governor assy, mec

Components :

00.001
PUMP ASSY, INJECTI
NB6,RSV
01.002
BODY ASSY, INJECTI
NB6
01.003
GOVERNOR ASSY, MEC
RSV
01.004
TIMER ASSY, AUTOMA
SA/4SP
01.005
TIMER ASSY, AUTOMA
SA/4SP
01.006
PUMP ASSY, FUEL FE
KE
01.006
PUMP ASSY, FUEL FE
KE -8306
01.006
PUMP ASSY, FUEL FE
8307-
01.007
GOVERNOR ASSY, MEC
RSV

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
PUMP ASSY, INJECTI
NB6,RSV
003
[01]
BODY ASSY, INJECTI
NB6
004
[01]
GOVERNOR ASSY, MEC
RSV -8708
004
[01]
GOVERNOR ASSY, MEC
RSV 8708-
005
[02]
BOLT, W/WASHER
M6,L20
006
[01]
TIMER ASSY, AUTOMA
-8606
006
[01]
TIMER ASSY, AUTOMA
8606-
007
[01]
NUT, TIMER ROUND
008
[01]
O-RING
ID27.7
009
[01]
WASHER, COUNTERSUN
T1.5ID18
010
[01]
O-RING
ID79.5
011
[01]
KEY, WOODRUFF
W5,H7.5
012
[01]
VALVE ASSY, OVERFL
2.4-2.8K
013
[02]
WASHER, FUEL PIPE
T1.2
015
[01]
PUMP ASSY, FUEL FE
KE
016
[01]
BOLT, W/WASHER
M6,L14
017
[04]
BOLT, W/WASHER
M6,L16
018
[01]
COVER, CONTROL RAC
019
[01]
WASHER, COPPER PLA
T1.5
020
[01]
COVER SUB-ASSY, TI
021
[04]
NUT, HEXAGON
M10
022
[04]
WASHER, SPRING
FOR M10
023
[04]
WASHER, STEEL PLAT
FOR M10

Cross reference number



Part num
Firm num
Firm
Name
09300-01240

PUMP ASSY, INJECTI

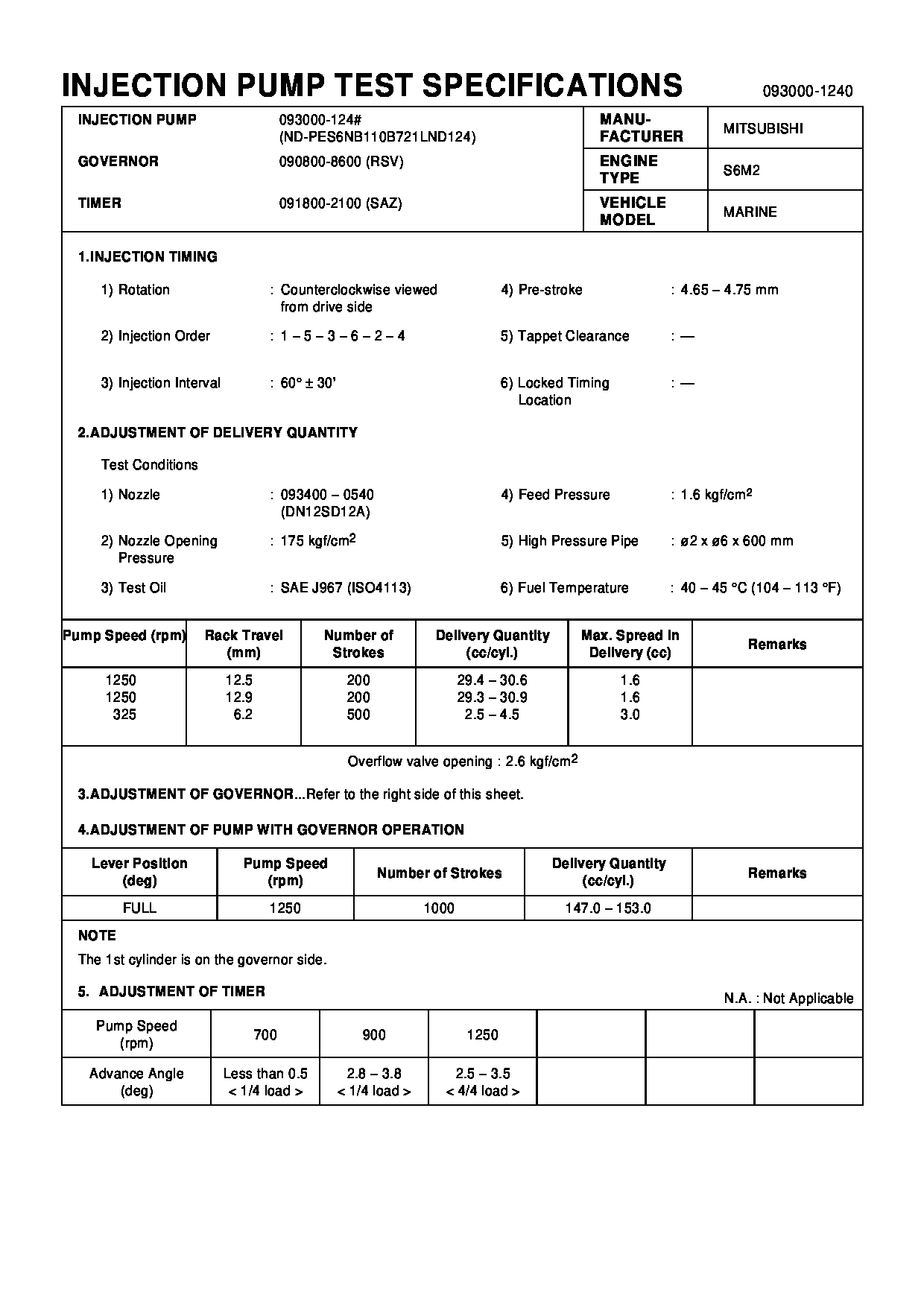

Test Calibration Data:

0930001240 42634-10300




Information:
