09300-00980 PUMP ASSY, INJECTI Calibration Data


Rating:
29
Buy PUMP ASSY, INJECTI 09300-00980 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
BUS 4D30A
Engine
4D30A
Serial start-end
8409--8609
Info
Injector Nozzle
093500-2470
Injector nozzle: 0935002470

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
Governor assy, mec
Timer assy, automa
Pump assy, fuel fe

Components :

00.001
PUMP ASSY, INJECTI
A4.RU
01.002
BODY ASSY, INJECTI
A4:DRIV.16.8
01.003
GOVERNOR ASSY, MEC
-9011
01.003
GOVERNOR ASSY, MEC
9011-
01.004
TIMER ASSY, AUTOMA
SCZ
01.005
PUMP ASSY, FUEL FE
KS

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09300-00980
PUMP ASSY, INJECTI
A4.RU
ME016190 MITSUBISHI
003
[01]
BODY ASSY, INJECTI
A4:DRIV.16.8
004
[01]
GOVERNOR ASSY, MEC
RU
ME016141 MITSUBISHI
005
[01]
PUMP ASSY, FUEL FE
KS
ME703037 MITSUBISHI
007
[01]
KEY, WOODRUFF
ME703361 MITSUBISHI
008
[01]
WASHER, SPRING
T2.5
ME008373 MITSUBISHI
009
[01]
NUT, TIMER ROUND
-8909
ME022426 MITSUBISHI
009
[01]
NUT, TIMER ROUND
8909-
ME703450 MITSUBISHI
010
[01]
COVER, CONTROL RAC
ME022416 MITSUBISHI
013
[01]
WASHER, PLATE
M6,T1.5
ME703364 MITSUBISHI
014
[06]
BOLT, W/WASHER
M6,L14
ME703359 MITSUBISHI
015
[02]
CAP
FOR MAX.SPEED
ME035845 MITSUBISHI
016
[01]
TIMER ASSY, AUTOMA
SCZ
ME016163 MITSUBISHI
017
[01]
COVER SUB-ASSY, TI
ME016070 MITSUBISHI
018
[01]
O-RING
MH035501 MITSUBISHI
019
[04]
WASHER, STEEL PLAT
FOR M10
MH005068 MITSUBISHI
020
[04]
WASHER, SPRING
M10
MC327716 MITSUBISHI
021
[04]
NUT, HEXAGON
M10
MF430122 MITSUBISHI

Include in ##:

09300-00980 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09300-00980
ME016190
PUMP ASSY, INJECTI
0930000980
ME016190
MITSUBISHI
PUMP ASSY, INJECTI

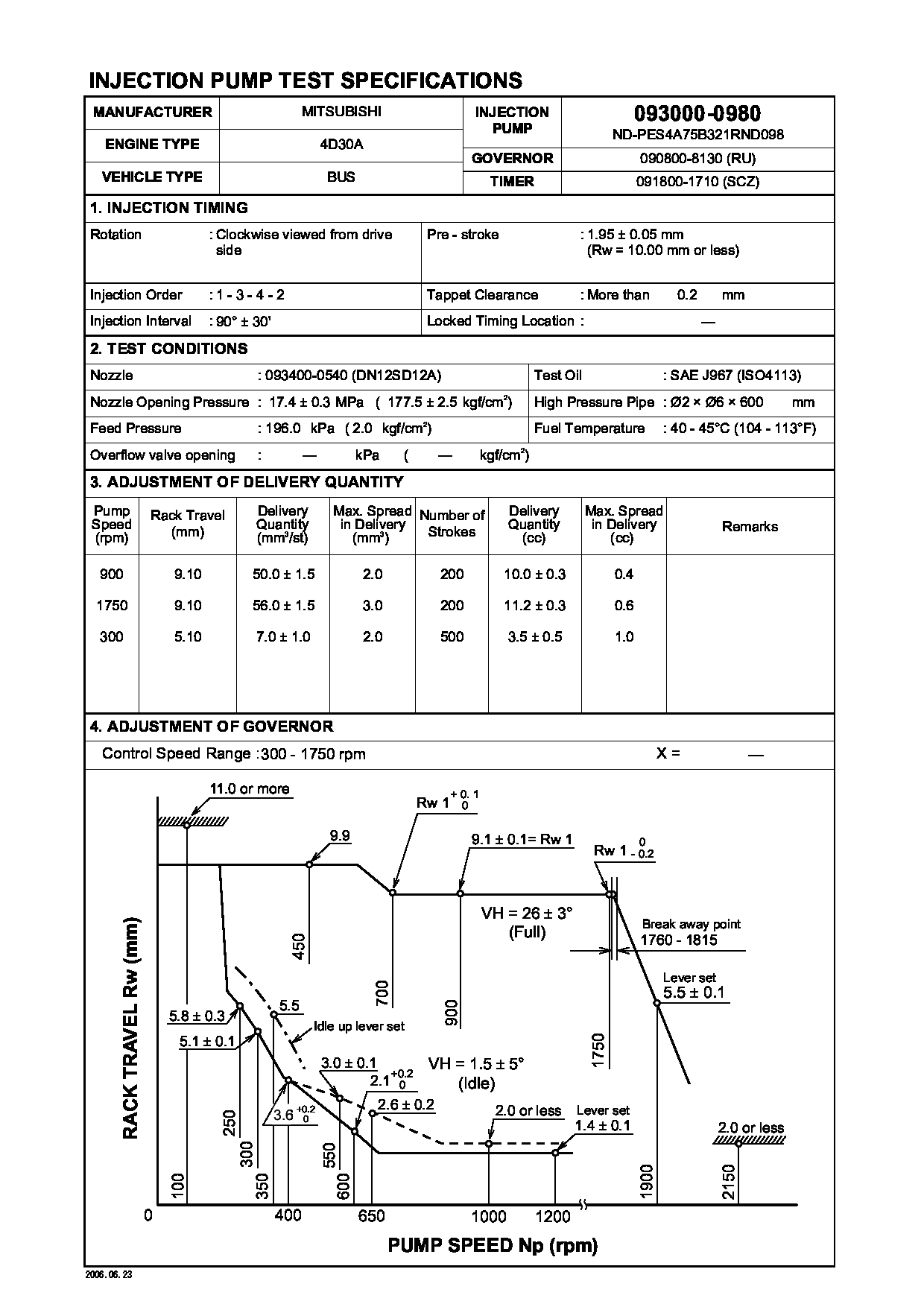

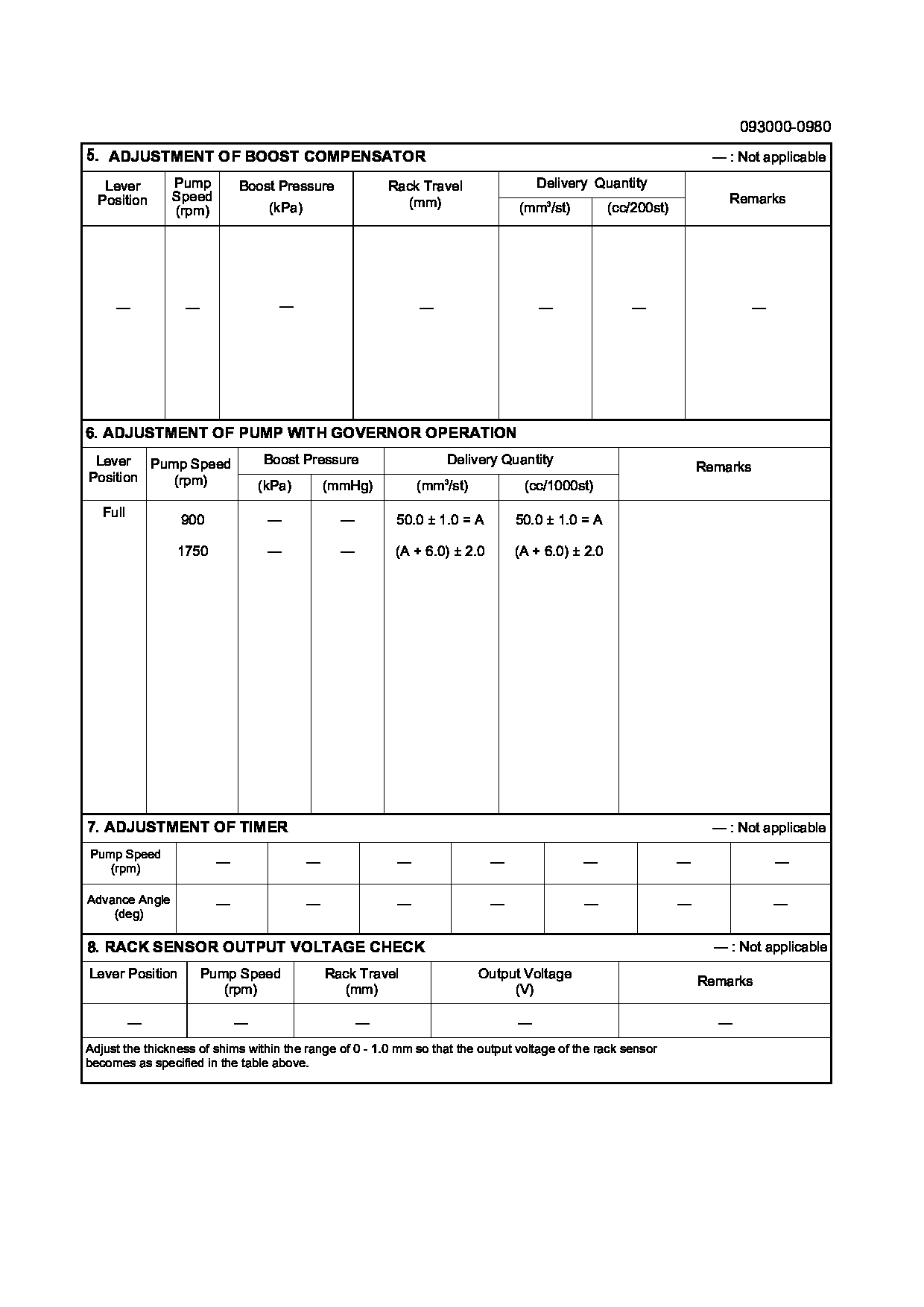

Test Calibration Data:

0930000980 ME016190




Information:


22May2018
U-291
D-256
O-261
After Failure Only
PRODUCT SUPPORT PROGRAM FOR REPLACING THE DEF INJECTOR ASSEMBLY ON CERTAIN M318F/M320F/M322F WHEELED EXCAVATORS AND MH3022/MH3024/MH3026 MATERIAL HANDLERS
108I PS53760
Caterpillar’s obligations under this Service Letter are subject to, and shall not apply in contravention of, the laws, rules, regulations, directives, ordinances, orders, or statutes of the United States, or of any other applicable jurisdiction, without recourse or liability with respect to Caterpillar.
This Program can only be administered after a failure occurs.The decision whether to apply the Program is made by the dealer. When reporting the repair, use "PS53760" as the Part Numberand "7755" as the Group Number. Use "96" as the Warranty Claim Description Code and use "Z" as the SIMS Description Code.
The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
TERMINATION DATE
31May2020
PROBLEM
The existing DEF Injector can fail on certain M318F/M320F/M322F Wheeled Excavators and MH3022/MH3024/MH3026 Material Handlers. If the existing DEF Injector fails, it will need to be replaced and the engine software updated.
AFFECTED PRODUCT
Model Identification Number
M318F F8B00287-00290, 292-296, 300-301, 303-313, 315, 318, 321-323, 325-326, 328, 330-331, 334-338, 340-341, 343, 345-347, 350, 352-356, 358-360, 362-363, 365-367, 369-375, 385, 387-392, 394-395, 397-398, 402-407, 412-413, 416-417, 419-422, 424-427, 429-434, 439, 441, 443-446, 448-450, 455-456, 458, 460-463, 465-466, 468-474, 478-479, 481-482, 484-485, 487, 489-490, 493-496, 498, 500, 502-505, 508-509, 511, 513, 515-524, 526-528, 530-537, 539-551, 556-558, 560-576, 581-582, 585-592, 595, 600-601, 604-607, 610-613, 617-618, 620-621, 623-628, 630, 632, 635-636, 639-640, 642, 645, 647-648, 650, 652-653, 655-656, 658-661, 663-665, 667-668, 670-676, 679, 683-684, 686, 689, 693-694, 696-698, 701, 703-711, 713-716, 718-722, 725, 727, 730, 732-734, 739-742, 745, 748, 751-753, 755-757, 759-764, 769-770, 772-776, 778, 782-789, 791-796, 798, 800-803, 805, 807-809, 811, 814, 816-818, 820, 822, 824-825, 827-828, 830-831, 833-839, 842-845, 847, 849-856, 858-859, 861-863, 865-867, 869-870, 873-876, 878-880, 883, 886, 888, 892, 894-896, 900-901, 903-906, 908, 910-916, 918, 920-926, 928-931, 934-937, 939-944, 946-950, 952, 954-955, 957-961, 963-964, 967, 969-971, 974-975, 979-980, 982-986, 988-989, 992, 995, 997-999, 1002, 1005, 1007, 1009, 1013-1016, 1018-1020, 1023, 1027-1028, 1030-1031, 1033-1038, 1040, 1043, 1045-1047, 1049-1051, 1055, 1057-1066, 1069
FB800262, 264-266, 268-278, 280, 282-283, 285-286, 289-291, 293-295, 297, 300-301, 303-304, 310, 315-318, 320, 322, 325, 333, 336, 338-339, 343, 347, 349-350, 352, 357, 359-361, 366, 372-374, 376, 378-379, 382, 384, 386, 389-390, 392, 396, 400, 402-407, 409-415, 418, 421-422, 425, 427, 432, 434, 436, 438-439, 443, 445-448, 451-455, 457-458, 460, 464, 466, 468-469, 471, 476, 482, 491-493, 495-496, 500
M318F OEM MH900101-00104, 90105
M320F F2W00169-00170, 173, 176, 178-181, 183-185, 187, 192-198, 200-204, 206, 210-211, 213, 215, 220-221, 224-227, 229-230, 234-235, 237-238, 240, 242-243, 245, 247, 251-252, 254-256, 259-263, 265-270, 273, 275-277, 279, 281-287, 289-293, 295-298, 300-302, 304-307, 311, 313-314, 317-322, 324, 326, 328-333, 337-341, 343-347, 349-352, 355-359, 361, 363, 367, 370-373, 376-377, 380-382, 385-392, 395-397, 399-400, 402-406, 408-412, 414-416, 418-419, 421-422, 424-429, 431-433, 436, 438-445, 450-452
FB200281, 283-285, 287-289, 291-295, 297-298, 304, 306, 309-310, 312, 315-317, 319, 322,
